Post subject: Re: Sting Bass owners, is this normal?
Posted: Sun Feb 09, 2014 8:33 am
Offline
Professional Musician
Professional Musician

Joined: Sat Feb 12, 2011 8:01 am
Posts: 2842
I read somewhere about when they got the tuners originally they just mounted them and after a while they started routing for the tabs. But that would have been early on- not in 57. So I still think there's the possibility this is all a good excuse for production reasons. But what the heck- mine are flush and I route when I put a set of vintage style tuners on a neck. I like the 27 to 1 ratio and the reverse action. They are good for getting "fine tuning ".


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Sting Bass owners, is this normal?
Posted: Thu Mar 06, 2014 4:22 am
Offline
Hobbyist
Hobbyist

Joined: Sun Nov 03, 2013 5:07 pm
Posts: 37
I'll upload a pic later of the 51 tuning machines they look almost exactly like your Sting Bass. Stay Tuned Campers. There is an Arch to them between the mounting screws.
I'll take a couple Detailed pics and post them here.


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Thu Mar 06, 2014 8:16 am
Offline
Professional Musician
Professional Musician

Joined: Sat Feb 12, 2011 8:01 am
Posts: 2842
They didn't route the back of the headstocks on the Stings so the plate will look arched. Same with the old basses untill they started routing a divot so the plates would fit down flush. My Sting has the divots but someone must have done it before I bought it.


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Thu Mar 06, 2014 9:11 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jun 12, 2007 4:18 pm
Posts: 1921
Location: Upstate, NY
This thread is getting interesting! Anyone got pics of the CS 51's and 55's tuners? I'd be interested to see if they are period correct and have the arch.

_________________
http://www.reverbnation.com/casanovafrankensteinandthevoodoomachine
https://www.facebook.com/CFandtheVM

2012 Fender Custom Shop 55 Precision Bass
2012 Fender American Vintage 57 Precision Bass RI
2014 Fender Super Bassman and Bassman 100T/410 Neo


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Thu Mar 06, 2014 5:05 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Nov 03, 2013 5:07 pm
Posts: 37

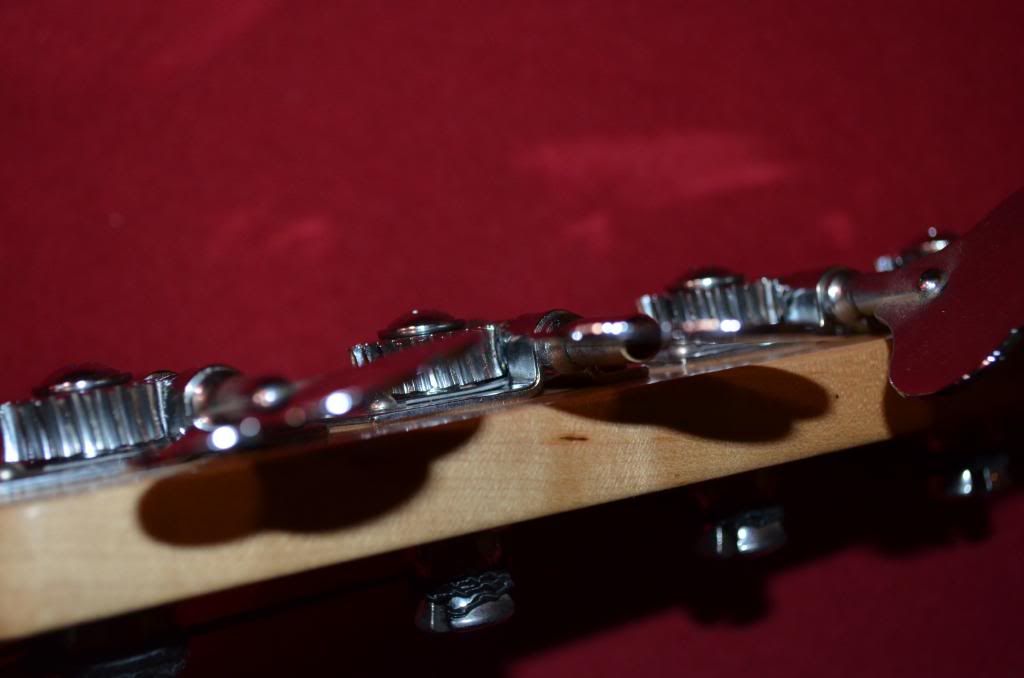

OK so I took pics up close and personal of the tuning machines on the 1951 P, It is ORIGINAL... for sure, I also took pics of the tuning machines on my Mexican Jazz...
it is substantially newer, the headstock is not routed (I don't claim to be an expert in any way, but I have never SEEN one with routed inlets on the back of the headstock...
The MUCH newer Mexican standard Jazz machines are also surface mounted and NOT arched. They are also Kluson Open Style.
My only other bass to compare too is a 2000 or 2001 Hotrod P...
It has sealed machines...

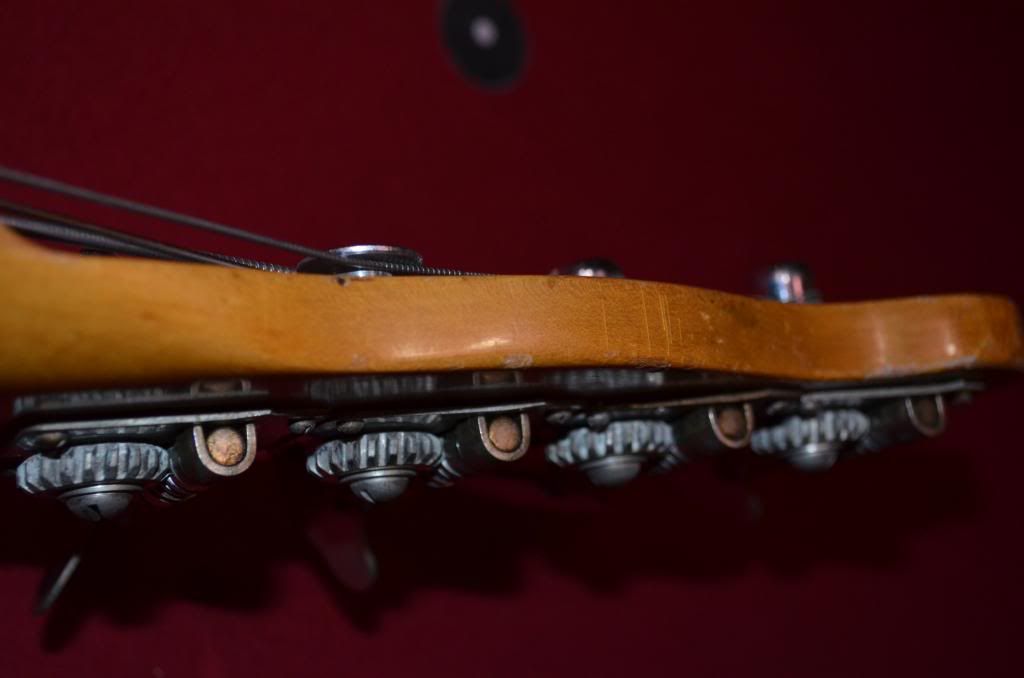

1951 P

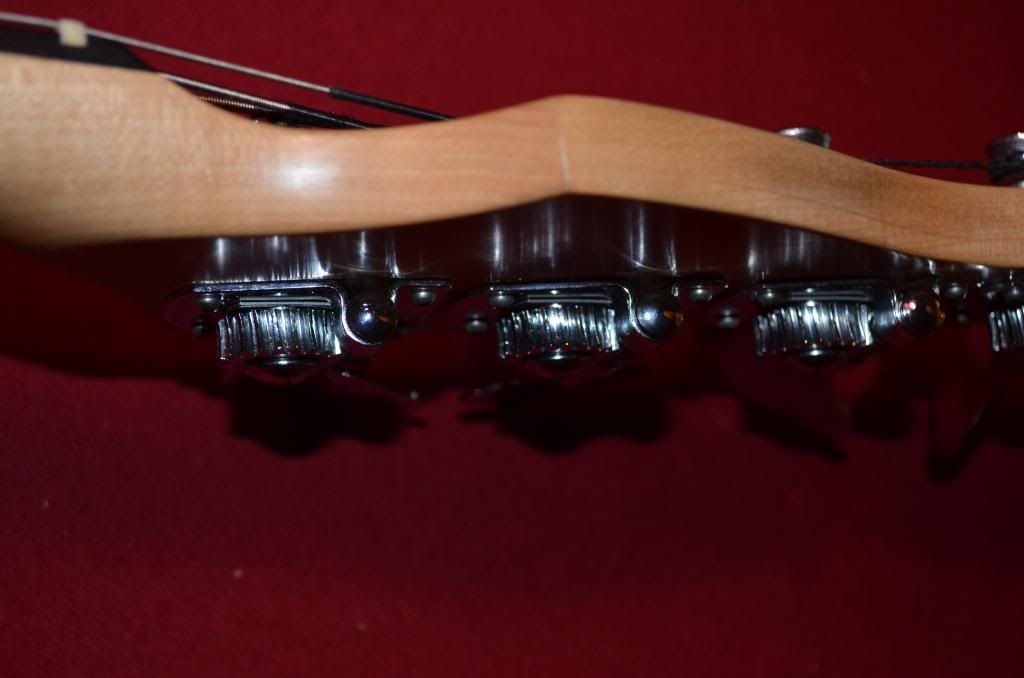

Later (90's?) Mexi Jazz


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Thu Mar 06, 2014 9:26 pm
Offline
Professional Musician
Professional Musician

Joined: Sat Feb 12, 2011 8:01 am
Posts: 2842
JUST so everyone knows===

VINTAGE TUNERS have tabs on the inside of the plate that are folded over to secure the tuner post ( NOT THE BARREL) === Once the tabs are folded over in the mfg. process they ARE NOT flush with the under side of the plate. They protrude out about 3/32nds approx. or so. This causes the plate to NOT completely come in contact with the flat wood of the back of the headstock.

MODERN TUNERS are not the same as the vintage REVERSE 27 to 1 ratio tuners. Modern tuners do not have the tabs protruding from under the tuner plate. They lay flat in the back of the headstock.

VINTAGE style tuners are still available and they are reverse wind and they have the tabs. To install them flush a small scooped out hole must be made where the tabs come in contact with the back of the headstock. IF YOU DON"T make the small scooped out hole==== when the tuner is screwed in (without the scoop) the tuner plate bends into what can be called an "arch".

I myself consider it a minor flaw. The old basses had the arched bent tuner plates from installation. AFTER a period of time the scooped out area was added so the plate is not arched/bent. All that was back in the day.


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Fri Mar 07, 2014 6:03 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Oct 15, 2012 7:16 pm
Posts: 18659
Location: In this country town, where the laughter sounds...
A great post SV. That makes a lot of sense for why it looks buckled, or bent. 8) :mrgreen:

_________________
"Electric Lady"


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Fri Mar 07, 2014 8:04 am
Offline
Professional Musician
Professional Musician

Joined: Sat Feb 12, 2011 8:01 am
Posts: 2842
Mr. Nylon wrote:
A great post SV. That makes a lot of sense for why it looks buckled, or bent. 8) :mrgreen:




Thanks MrNylon- I know I've read about the old tuners a few times. I read a lot of books etc... I could post where I originally read it but that would take a whole lot of search time in a short attention span World (if you catch my drift). :roll:


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Fri Mar 07, 2014 10:15 am
Offline
Fender Staff
User avatar

Joined: Fri Mar 20, 2009 12:40 pm
Posts: 746
Hi folks,
Sorry.... a bit late to the party. Had a nice discussion on this awhile back..rather than repeat... http://www.talkbass.com/forum/f8/sting-bass-owners-normal-1042831/index3.html

Cheers,
rob

_________________
______________
rob Schwarz
Director,Fender Customer Service
Proudly serving Fender Customers
for over 30 years



Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Fri Mar 07, 2014 4:26 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Mar 28, 2008 3:19 pm
Posts: 1480
Location: Vancouver, BC Canada
Wow !! very informative Rob,.....Thanks :)


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Fri Mar 07, 2014 5:08 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jun 12, 2007 4:18 pm
Posts: 1921
Location: Upstate, NY
Awesome, thanks!

_________________
http://www.reverbnation.com/casanovafrankensteinandthevoodoomachine
https://www.facebook.com/CFandtheVM

2012 Fender Custom Shop 55 Precision Bass
2012 Fender American Vintage 57 Precision Bass RI
2014 Fender Super Bassman and Bassman 100T/410 Neo


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Fri Mar 07, 2014 7:37 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Oct 15, 2012 7:16 pm
Posts: 18659
Location: In this country town, where the laughter sounds...
That iced it for what SV stated. Great photos. 8)

_________________
"Electric Lady"


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Fri Mar 07, 2014 8:22 pm
Offline
Professional Musician
Professional Musician

Joined: Sat Feb 12, 2011 8:01 am
Posts: 2842
A picture is worth a thousand words.... isn't it ? One of these days I'm going to fix whatever is keeping me from posting pics.


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Fri Mar 07, 2014 9:51 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Mar 28, 2008 3:19 pm
Posts: 1480
Location: Vancouver, BC Canada
stroker vance wrote:
A picture is worth a thousand words.... isn't it ? One of these days I'm going to fix whatever is keeping me from posting pics.
A picture is worth a thousand words.... isn't it ? One of these days I'm going to fix whatever is keeping me from posting pics.


Same Here..... as I have a few pictures of the arsenal/family I'd like to share. :)


Top
Profile
Post subject: Re: Sting Bass owners, is this normal?
Posted: Sat Mar 08, 2014 6:15 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Oct 15, 2012 7:16 pm
Posts: 18659
Location: In this country town, where the laughter sounds...
Posting photos is one of the few things I don't have problems with.


_________________
"Electric Lady"


Top
Profile
