Post subject: I broke something on my Jazzmaster
Posted: Tue Jan 19, 2010 5:48 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Nov 12, 2009 11:12 pm
Posts: 2
So during practice today me and my band were doing a song where I normally but the guitar next to the amp for feedback, but today I went overboard. While I was doing that I broke off the rhythm/lead switch. For those who don't know what that is, here's a picture of what it should look like.

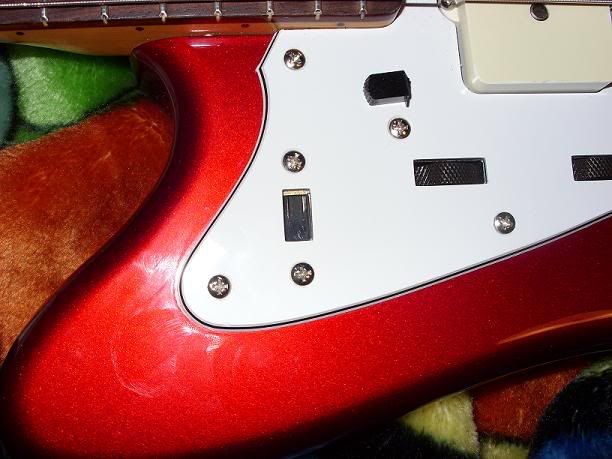

and this is what mine looks like

So yeah it's pretty messed up.

As you can see the plastic actually snapped, so I can't just put it back on, and super gluing it is too risky. I'll most likely have to got a whole new rhythm circuit and put it in there. The problem is I suck with electronics, so what should I do about this?


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Tue Jan 19, 2010 5:55 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Jan 30, 2009 11:30 pm
Posts: 378
Location: melbourne 'rock city' australia
Easy.
You need the right replacement switch. I guess have a browse on Fender's parts list on their site, see if they sell them... and if not then go search online parts stores like Allparts. It's going to be a very very simple repair, but if you can't solder then take it to your local fender dealer to do it. Once you take the scratchplate off a JM too it can get fiddly. You have to be careful putting it back on to make sure the pickup cables go down into the routing and don't get squished between the face of the guitar and the pickguard, basically replace it very carefully the way it came off and make sure you don't squash any electrics. Ah, it's not that hard actually. And replacing the switch is a two wire job. If you solder it's a cinch.
Hope you were getting killer feedback!

_________________
"...Compared to the flowers and the birds and the trees, I am an Apeman."


Top
Profile
Post subject:
Posted: Wed Jan 20, 2010 10:46 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Tue Jul 17, 2007 7:25 am
Posts: 356
Here's a replacement switch, and a choice of three different online stores:

one store:
http://www.acmeguitarworks.com/Switch_Switchcraft_Slide_Ja_P68C10.cfm

another store:
http://www.allparts.com/On-On-Slide-Switch-p/ep-0260-023.htm

and another:
http://www.stewmac.com/shop/Electronics,_pickups/Components:_Switches_and_knobs/Switchcraft_Slide_Switches.html


Top
Profile
Post subject:
Posted: Thu Jan 21, 2010 9:21 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Dec 11, 2007 5:10 pm
Posts: 2132
Location: Deep in the Heart of Texas (San Antonio, y'all)
As previously mentioned, this is a minor inconvenience. If you provide the part, a tech shouldn't charge you more than $30 to swap it out for you. Good luck! 8)

_________________
I really like all them "Aster" guitars. You know, like the Stratoc, Telec and Jazzm. :wink:


Top
Profile
Post subject:
Posted: Thu Jan 21, 2010 9:36 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Jul 15, 2009 5:41 pm
Posts: 17
hey if you got the piece that broke you can buy some loctite gel
i fixed many plastic pieces with it and they have not broke again
bonds well. about $4.00 a small bottle. let set for 24 hrs before use
