Post subject: Re: Complete Telecaster Build Pictorial
Posted: Sat Apr 16, 2011 1:03 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Jan 30, 2011 2:35 pm
Posts: 807
Location: Just East of Event Horizon
ralfcaetano wrote:
hey dude!!! how did you drill the holes?
...sorry forgot to say lol the pickguard holes?

I just lined the pickguard up with the neck of the guitar and taped the pickguard down to the body with masking tape so that it would not move from its proper location. I then drilled the holes with a very small 1/16" drill bit, centered in the holes of the pickguard.

The larger diameter pickguard screws, which are self tapping wood screws, can then be screwed into the smaller diameter 1/16" holes, without fear of the screw angling to the side, or not having enough wood to secure the screw threads, from a hole that is too large.

This was done prior to marking the control plate cutout onto the custom, uncut pickguard, so that I would know the exact placement of the control plate cutout. Sorry that I forgot to document this stage of the assembly!!


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Complete Telecaster Build Pictorial
Posted: Sat Apr 16, 2011 1:19 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Aug 02, 2008 7:11 am
Posts: 1344
Location: Portugal
MickJagger wrote:
ralfcaetano wrote:
hey dude!!! how did you drill the holes?
...sorry forgot to say lol the pickguard holes?

I just lined the pickguard up with the neck of the guitar and taped the pickguard down to the body with masking tape so that it would not move from its proper location. I then drilled the holes with a very small 1/16" drill bit, centered in the holes of the pickguard.

The larger diameter pickguard screws, which are self tapping wood screws, can then be screwed into the smaller diameter 1/16" holes, without fear of the screw angling to the side, or not having enough wood to secure the screw threads, from a hole that is too large.

This was done prior to marking the control plate cutout onto the custom, uncut pickguard, so that I would know the exact placement of the control plate cutout. Sorry that I forgot to document this stage of the assembly!!


it's alright it was just for curiosity since i'm working on a guitar too... though i have heard of the risks of paint chipping and i wanted to see if you did anything to prevent it... i'm gonna drill holes to make a strat with an 8 hole pickguard one with an 11 hole pickguard... do you consider the risk of paint chipping a small one?


Top
Profile
Post subject: Re: Complete Telecaster Build Pictorial
Posted: Sat Apr 16, 2011 4:27 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Jan 30, 2011 2:35 pm
Posts: 807
Location: Just East of Event Horizon
ralfcaetano wrote:
...i have heard of the risks of paint chipping and i wanted to see if you did anything to prevent it... i'm gonna drill holes to make a strat with an 8 hole pickguard one with an 11 hole pickguard... do you consider the risk of paint chipping a small one?

If you are using a urethane coated body such as the Mighty Mite bodies have, the finish is brittle and drilling does pose a chipping problem. If you use a small 1/16" diameter drill bit to drill pilot holes for the pickguard screws, there should be little possibility for the finish to chip out and any chipping that does actually occur should be covered by the pickguard.

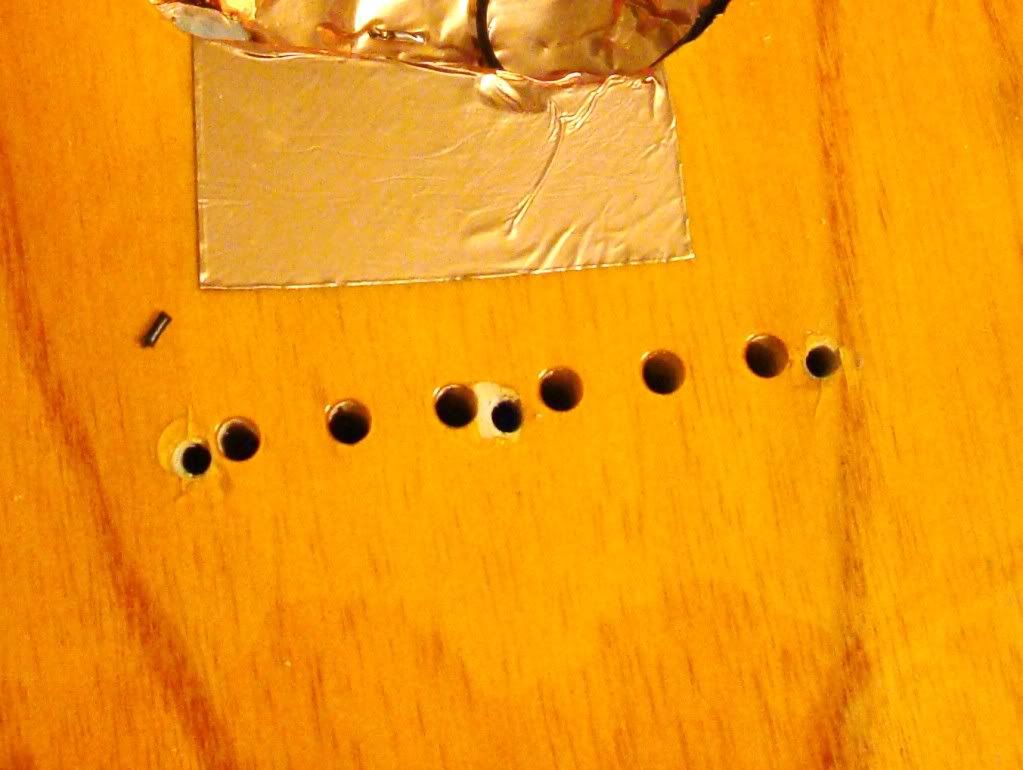

Here is a picture that shows the six larger pre-drilled Mighty Mite body string holes and the three smaller holes that are approximately 1/8" diameter, that I drilled for the bridge. I wasn't really concerned with the finish chipping, as I figured that any chipping would be covered by the bridge plate.

As you can see, chipping occurred with a fairly small drill bit around the three smaller 1/8" holes for the bridge.


It's possible that for any larger hole, if you drill a very small pilot hole, beginning with a 1/16" hole, and then use a counter sink bit at a very slow speed, with very light pressure, that you could countersink holes without chipping, then drill a larger hole, counter sink again, and then drill a larger hole if necessary.
I never actually tried this approach.

I considered using a countersink bit on the string holes which needed to be enlarged to accept the string ferrules.

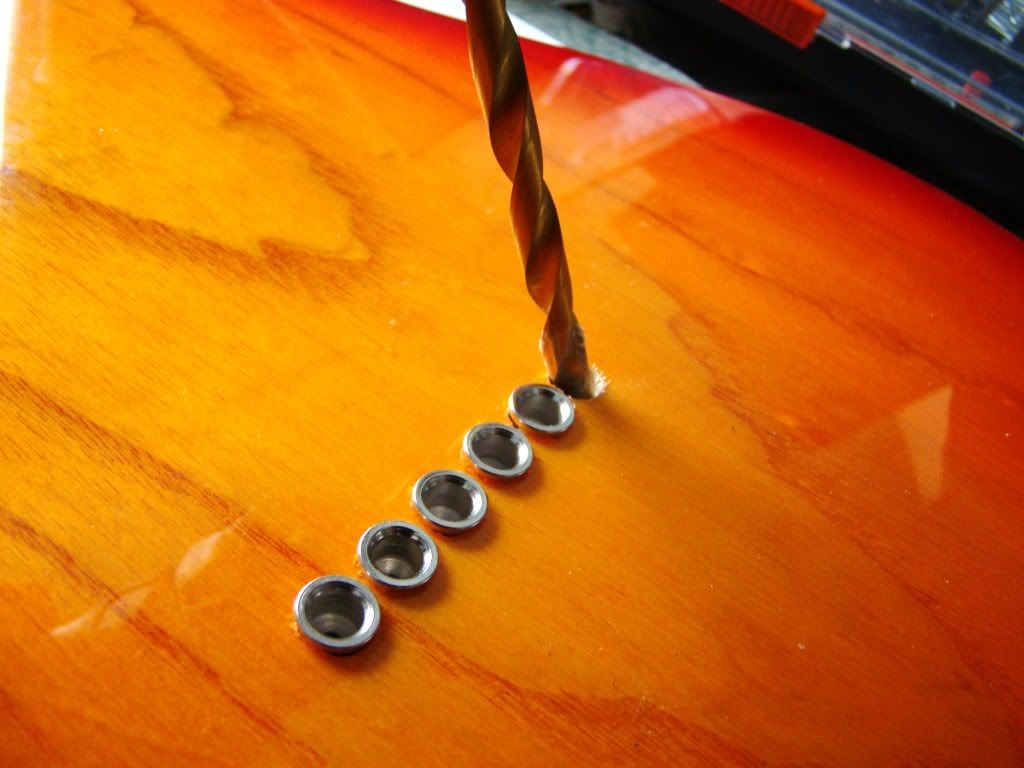

But instead, I chose to use a smaller 1/4 inch bit placed inside the hole at an angle and carefully expanded the hole with a VERY, VERY slow drill speed, certainly not more than 50 rpm, while carefully touching the side of the drill on the edges of the hole.

Of course this would only work when a larger hole is already drilled through the body and the finish.
Otherwise, I would consider trying a countersink bit for any hole larger than 1/16", where I was worried about chipping in an exposed area, and graduate to larger drill bits in a very progressive manner, countersinking after every sucessive drilling at a very slow drill speed with very light pressure.



Last edited by MickJagger on Wed Apr 27, 2011 8:38 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Complete Telecaster Build Pictorial
Posted: Wed Apr 27, 2011 7:11 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Apr 13, 2011 10:25 am
Posts: 18
Mike, thanks for sending me the link to your build. An amazing spread,the photos and details are excellent and may help those of us who wish to pursue the effort some day . I am very intrigued by the top loader bridge. It's so sci-fi in its simplicity and efficiency. It's very cool! Do you have the desire to build another?


Top
Profile
Post subject: Re: Complete Telecaster Build Pictorial
Posted: Wed Apr 27, 2011 7:48 pm
Offline
Professional Musician
Professional Musician

Joined: Sat Feb 12, 2011 8:01 am
Posts: 2842
I built an Ash with flame maple top tele M M Cherry burst 1 piece body with maple V neck bone nut - gotoh tuners- vintage bridge- it looks like yours quite a bit-- It sounds very nice- better than the Tele I sold after I built the Flamecaster. My build is a 2005.

Did you make the bridge pick up route bigger so you could intonate the guitar properly? The bridge PU hole was "off" or different than a Fender on mine. If you look at my bridge the saddles are about as far back as they can go. There is just barely enough room to put them back far enough to get it set right. The thru body string holes have just enough room for the strings to go thru. I had to mod the route just to get it close enough for everything to work. It was tricky. I was wondering why the route is different on a MM body compared to a Fender. Any info on that?

On the chipping paint- I usually tape over where I'm going to drill and that usually does the job of keeping the finish from chipping- starter holes are a must.


Top
Profile
Post subject: Re: Complete Telecaster Build Pictorial
Posted: Wed Apr 27, 2011 9:27 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Jan 30, 2011 2:35 pm
Posts: 807
Location: Just East of Event Horizon
dan invisible wrote:
Mike, thanks for sending me the link to your build. An amazing spread,the photos and details are excellent and may help those of us who wish to pursue the effort some day . I am very intrigued by the top loader bridge. It's so sci-fi in its simplicity and efficiency. It's very cool! Do you have the desire to build another?

Hi Dan,
I always liked the look of the '83-'84 bridge, which was on my first Tele that I got in '83 when the rumour was that Fender was going to move all production to Japan. There were relatively low production numbers during those 2 years which was the end of the "Smith Era" and the end of the Fender Fullerton plant. That is why you don't see very many guitars with that bridge.

I recently bought the Custom Shop bridge below that was on eBay for a possible future build.
As you can see, I'm a "modern" Tele guy, but I appear to be out numbered by the "vintage" guys on this site.

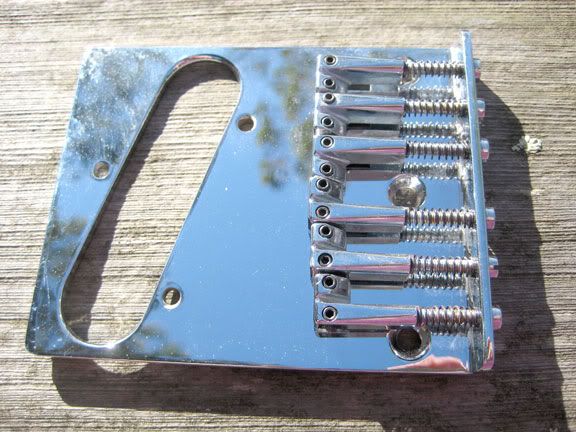

Here's the '83-'84 Bridge for comparison. I'm still partial to the '83-'84 bridge.
