Post subject: pickup wiring
Posted: Sun Feb 13, 2011 9:23 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Feb 13, 2011 9:17 pm
Posts: 1
Can anyone help me with this?

I have installed a Little '59 in the bridge of my Telecaster. I would like to wire it so that the switch splits the humbucker when in the middle position, but still selects the proper pickups in the other positions.

If you know how to wire it this way, please let me know...or direct me to where I can find a wiring diagram for it.

Thanks!


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: pickup wiring
Posted: Mon Feb 14, 2011 12:05 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 24, 2009 12:05 am
Posts: 1400
Location: Australia
Check the SeymourDuncan website for wiring diagrams. If there's nothing there just send them an email with your requirements.

_________________
_______________________________________
MIM Std Tele, MIM HSS Strat, Homemade Mongrel Tele, Blues Jr, Champ600, coupla pedals...sweeeet!


Top
Profile
Post subject: Re: pickup wiring
Posted: Tue Feb 15, 2011 12:55 am
Offline
Hobbyist
Hobbyist

Joined: Mon Jun 15, 2009 10:11 pm
Posts: 47

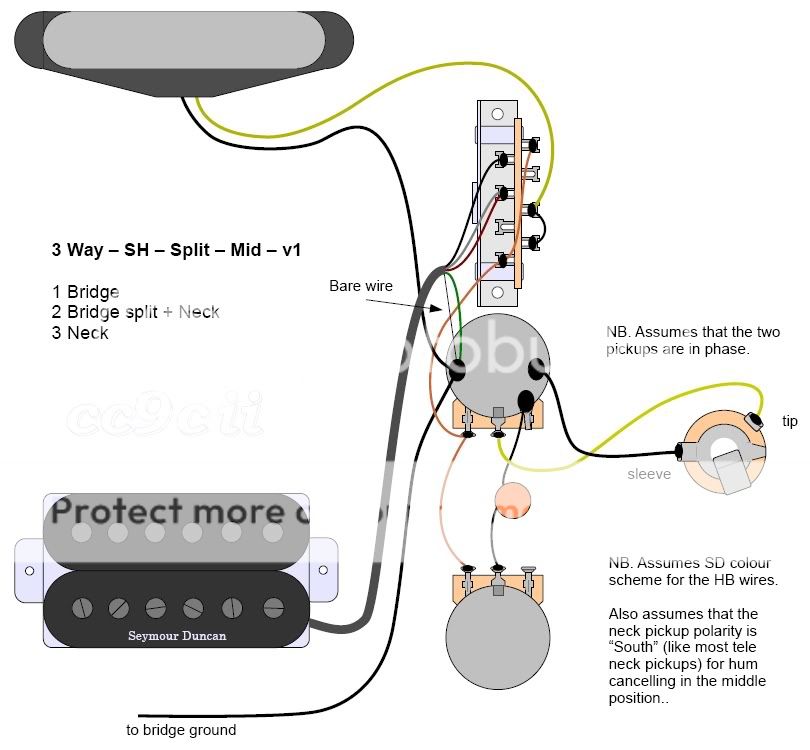

Try this. If your pickups are not in phase to begin with, the wiring of the HB needs to be changed. Also, if your neck pickup is "North" and would like the middle to be hum cancelling, the HB wiring needs to change.
