Post subject: 250k pot
Posted: Fri Jan 28, 2011 8:30 am
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 26, 2011 3:58 pm
Posts: 6
i just recently finished my first tele project custom made from a 58 broadcaster template.
After the wiring was finished I noticed that the volume knob control is is backwards. In other words when I roll the knob clockwise it rolls the volume off , when I roll the knob counter clock it turns the volume up. I have tripled checked my wiring schematic as well.
In the neck position I have a single coil alnico pickup, the bridge position humbucker
Both pots are 250k with .047Tone caps.
Comments and advise welcome
Thanks


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 250k pot
Posted: Fri Jan 28, 2011 10:01 am
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 19, 2011 11:16 am
Posts: 86
They do make "reverse" pots. Sounds like what you have. You didn't state if your guitar was right or left handed. But seriously, they do make regular and reverse pots.


Top
Profile
Post subject: Re: 250k pot
Posted: Fri Jan 28, 2011 10:36 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Feb 15, 2009 3:52 pm
Posts: 2005
So have you swapped the wiring to see if it works as you want?

_________________
-T

"You can't spend what you ain't got, you can't lose what you ain't never had" ~ McKinley Morganfield


Top
Profile
Post subject: Re: 250k pot
Posted: Fri Jan 28, 2011 5:36 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 19, 2011 11:16 am
Posts: 86
Do you have any pictures of the wiring? Are you using vintage or modern wiring application? Have you solved the problem yet?


Top
Profile
Post subject: Re: 250k pot
Posted: Fri Jan 28, 2011 9:49 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 26, 2011 3:58 pm
Posts: 6
[url][/url]http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=tele_1hum_1sing

That is link to the schm. I used. I assume it's modern wiring

I play left hand guitar

I haven't swapped wiring. Still confused. Tone pot works right.


Top
Profile
Post subject: Re: 250k pot
Posted: Sat Jan 29, 2011 7:58 am
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 26, 2011 3:58 pm
Posts: 6

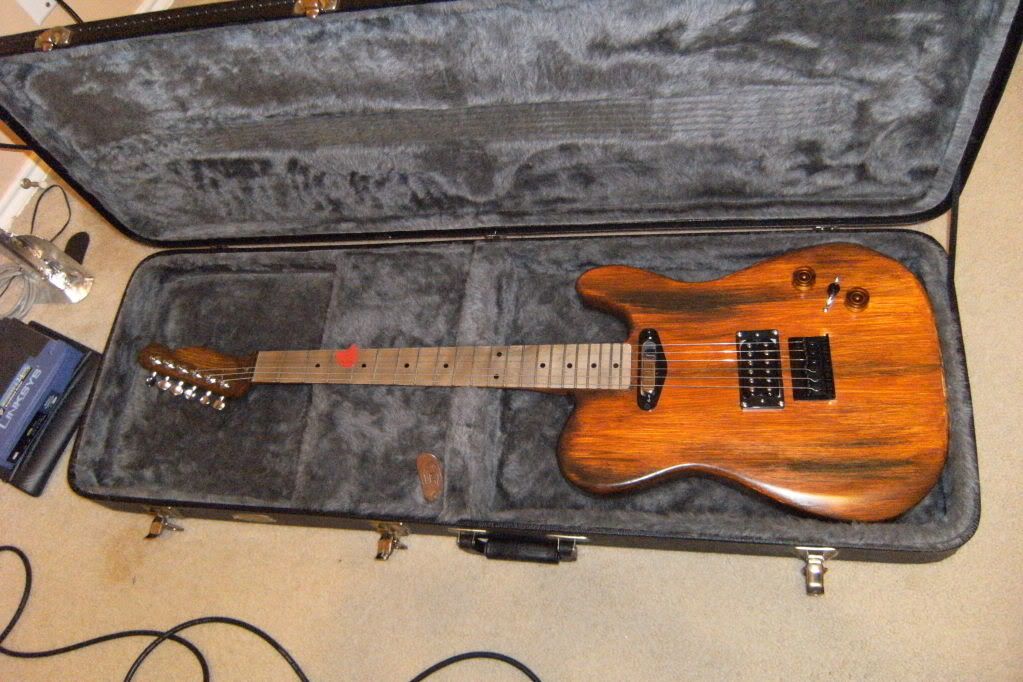

here's a photo for viewing - hope you like it. My first ever to build.


Top
Profile
Post subject: Re: 250k pot
Posted: Sat Jan 29, 2011 2:12 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jun 15, 2009 10:11 pm
Posts: 47
Rmixon48 wrote:
I play left hand guitar

I haven't swapped wiring. Still confused. Tone pot works right.


But that pic is a right hand guitar???

In any case, you do need to change the wiring if you want full volume at fully CCW (counter clock wise). You also need a lefty pot (i.e. with a reverse log taper).


Top
Profile
Post subject: Re: 250k pot
Posted: Sat Jan 29, 2011 7:46 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Jan 26, 2011 3:58 pm
Posts: 6
Yes that is right, "right hand"
Ok I found my problem. It was the operator/builder fault. I had the wire going to wrong terminal of the pot. I rewired, its fixed. Yahoo !
See I don't know much about playing or building one wiring. Learning as I go along.


Top
Profile
Post subject: Re: 250k pot
Posted: Sun Jan 30, 2011 6:18 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Feb 15, 2009 3:52 pm
Posts: 2005
That's what I mentioned on Friday.

Glad you fixed it.
Have fun!

_________________
-T

"You can't spend what you ain't got, you can't lose what you ain't never had" ~ McKinley Morganfield


Top
Profile
Post subject: Re: 250k pot
Posted: Sat Mar 30, 2013 8:19 am
Offline
Rock Star
Rock Star
User avatar

Joined: Thu Aug 07, 2008 3:12 pm
Posts: 6355
Location: Albemarle, NC
When seeing the original post I could have guessed you used a Seymour Duncan diagram without reading further. SD seems to draw their diagrams as if looking from the FRONT of the guitar. This means if you look at the pots from BEHIND to wire them, as you would with a Fender or about any other company's diagram, then all the controls will wind up backwards. This very same thing happened to me the first time I used an SD diagram. Then I figured out what had happened by comparing the SD diagram to Fender ones. I suspect that is how they get around copyright infringement on original manufacturer diagrams.
