Post subject: tele pictures(check wireing)
Posted: Thu Jan 29, 2009 1:36 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Wed Jan 28, 2009 6:52 am
Posts: 34

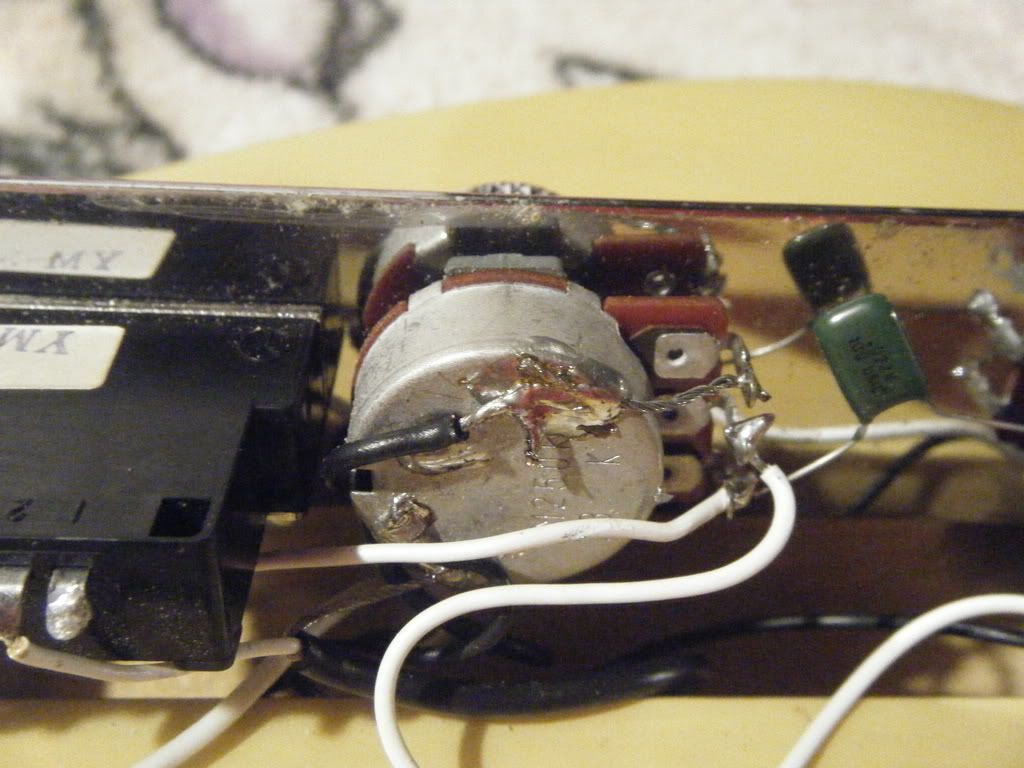

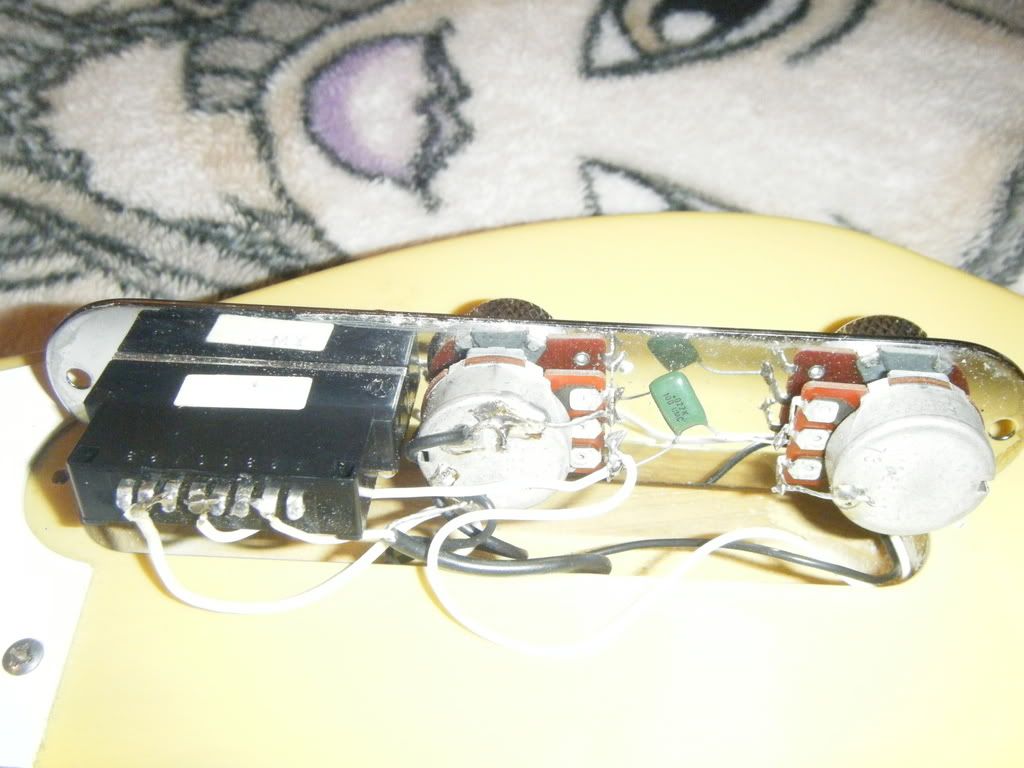

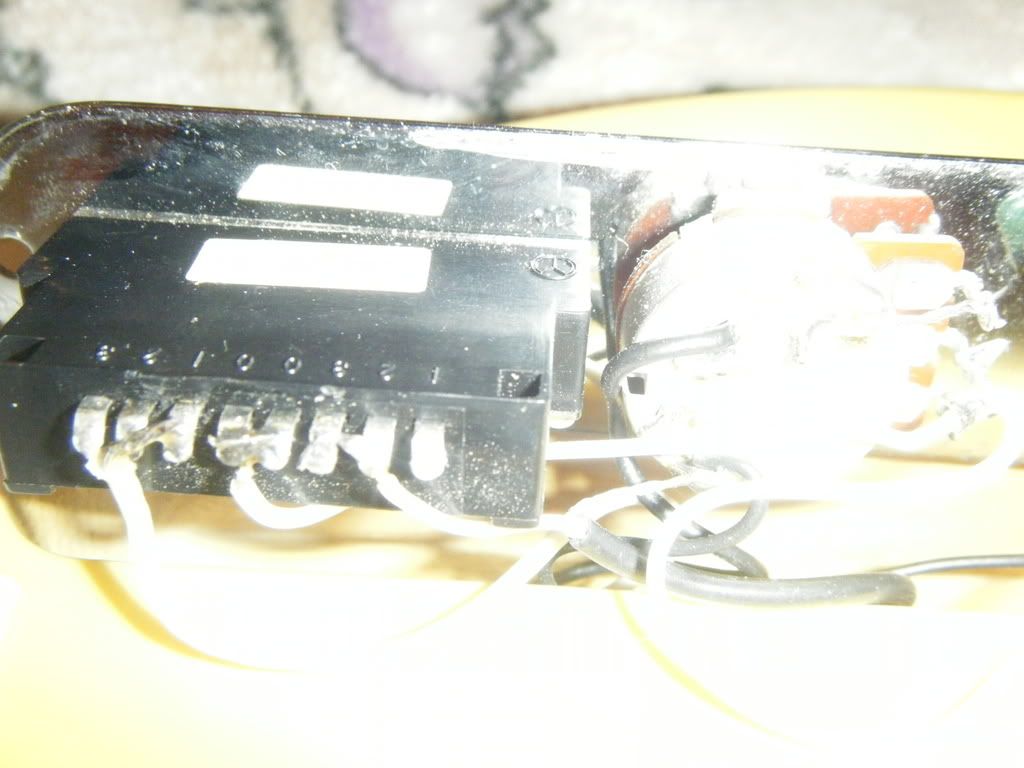

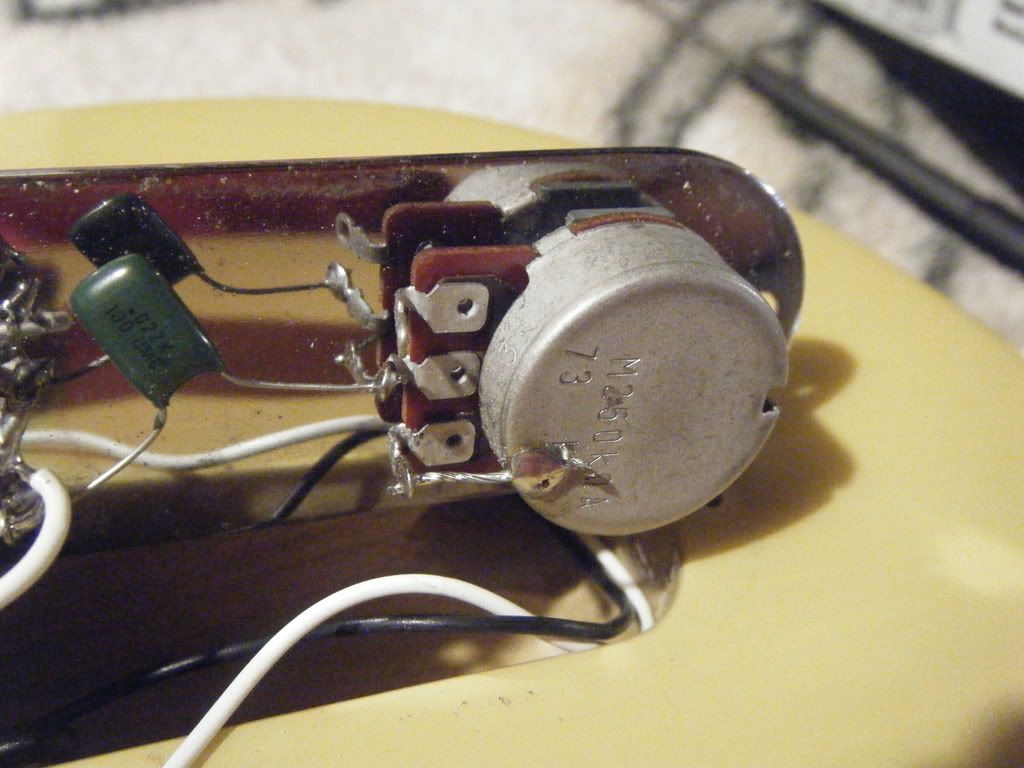

These are pics from my 85 esquire.Ive always had a problem with my sound cutting off.I think the problem lies in the toggle switch.It keeps shorting out on me.How does the wiring look?DOES IT LOOK CORRECT.
Image[/img]


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Thu Jan 29, 2009 8:37 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Mon Oct 06, 2008 10:57 am
Posts: 602
Could be the switch itself or the wiring. I've seen switches like that before. They are low end to say the best. And the soldering looks tre sloppy. You'd probably do well to replace everything, including the pots. You can buy complete kits from a variety of sources, including stewmac.

This guitar is not a collector's item, so I would say that the important thing is to get it to play right

EDIT. I read your post again and I originally thought you said Squier. But you said Esquier. That might make it a little more collectable, although none of the main line guitars from 85 will every appreciate like the 1950s models. You might want to blow out the pots instead of replacing them. But that switch is not a high quality component. Might try resoldering on the chance that there is a cold solder joint that is making and breaking intermittently.

_________________
James Burton Upgrade Telecaster
Hot Rodded Am Fat Strat Texas Special (now featuring Kinman Traditional II pickups)
Fender Blues Jr.
SWR California Blonde
Pedals Pedals Pedals


Top
Profile
Post subject:
Posted: Fri Jan 30, 2009 2:52 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Wed Jan 28, 2009 6:52 am
Posts: 34
ya its a 85 esquire copy,(japan)feals really good and heavy and the neck is really nice to.So i kindof want to keep it original.I seen one on ebay just like it go for $850.


Top
Profile
Post subject:
Posted: Fri Jan 30, 2009 4:44 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Wed May 21, 2008 3:04 pm
Posts: 74
Location: South Carolina

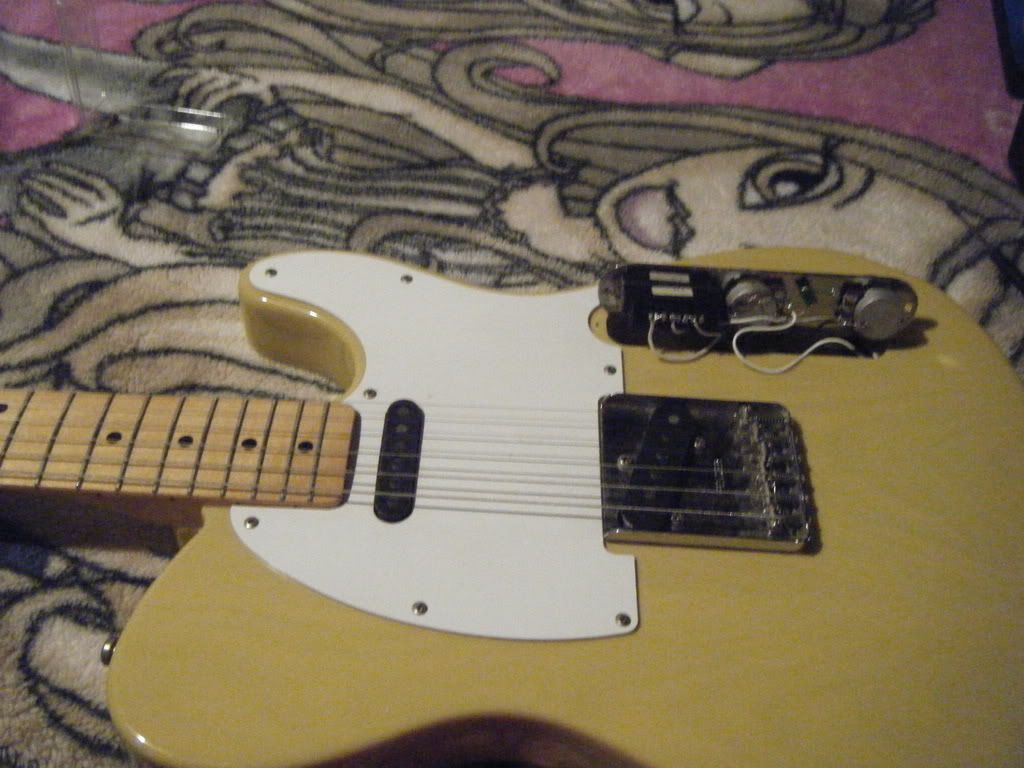

I don't think that is an Esquire. The Esquire does not have the neck pickup. I think that is just a standard Telecaster.

_________________
08 Hwy 1 Tele
Dean EVO
Fender 212R
(2) Line 6 Spider III 15s
