Post subject: Re: How off is ‘Too Off?’
Posted: Sun Sep 16, 2018 12:08 am
Offline
Hobbyist
Hobbyist

Joined: Sat Sep 08, 2018 12:12 pm
Posts: 23
Quote:
The saddles were throwing me too, but the FMT-HH does have that type of saddle/bridge.
https://shop.fender.com/en-US/electric- ... er&start=1
Agreed that something doesn't look right in the saddle spacing though... almost like there's a chrome flake or something on the side of one or more of the blocks pushing them over.



The thing is, in the product photography of all colours and models of these FMTs you can clearly see the strings aligned perfectly over the pickups.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: How off is ‘Too Off?’
Posted: Sun Sep 16, 2018 3:26 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Aug 23, 2007 1:57 pm
Posts: 1089
Location: Rossendale UK
It looks as though the saddles are following the radius arc.
They shouldn't be.
The strings should be set against the radius arc, but the saddles should always be at 90° to the bridge base plate.
If the saddles were at 90° to the bridge base plate the saddles wouldn't be spread across such a wide area.

_________________
Chris :)

Never argue with an idiot. They will only bring you down to their level and beat you with experience.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Sun Sep 16, 2018 11:03 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Sep 08, 2018 12:12 pm
Posts: 23
stratmangler wrote:
If the saddles were at 90° to the bridge base plate the saddles wouldn't be spread across such a wide area.


Kind of agree and the bridge is definitely not right but the problem is, the strings are actually correctly spaced across the neck. So I think the wrong width pickups are installed.

A pickup a few mm wider with poles to also spaced would solve this.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Mon Sep 17, 2018 12:53 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jan 02, 2015 6:57 am
Posts: 2235
Location: UK
You can't fit a longer PUP in the aperture, at least with that frame.

As the vendor has offered to take the guitar back I would go with that option as it is otherwise always going to annoy you.

_________________
John

After all this time I should be better.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Mon Sep 17, 2018 3:48 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
F spaced pups are the same external dimensions.

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Mon Sep 17, 2018 11:20 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Sep 08, 2018 12:12 pm
Posts: 23
BMW-KTM wrote:
F spaced pups are the same external dimensions.


You mean these are F-Spaced or not?


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Tue Sep 18, 2018 4:29 am
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
Likely they are not F spaced

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Tue Sep 18, 2018 4:36 am
Offline
Hobbyist
Hobbyist

Joined: Sat Sep 08, 2018 12:12 pm
Posts: 23
Why would Fender not use F-Spaced pickups in their own guitars??


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Tue Sep 18, 2018 6:58 am
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
Are you certain this guitar was brand new when you purchased it?

Have you looked under the hood for signs of soldering?

Assuming it is in fact non F spaced, the pickup may possibly have been changed.

If it has not been changed and it is not F spaced then I have no answer other than maybe it’s a QC escapee.

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Tue Sep 18, 2018 11:49 am
Offline
Rock Star
Rock Star

Joined: Tue Jul 17, 2007 1:53 am
Posts: 4240
I thought all Pearly Gates Pluses were "normal" spaced, not wide. (At least they were in LoneStars…) :?:


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Tue Sep 18, 2018 12:02 pm
Offline
Roadie
Roadie

Joined: Sat Oct 05, 2013 4:26 am
Posts: 249
The Pearly Gates Plus is a Fender exclusive but not F (trembucker) spaced. Go figure.

This alignment issue is visible on some dealer sites that produce their own images not the official Fender released images.

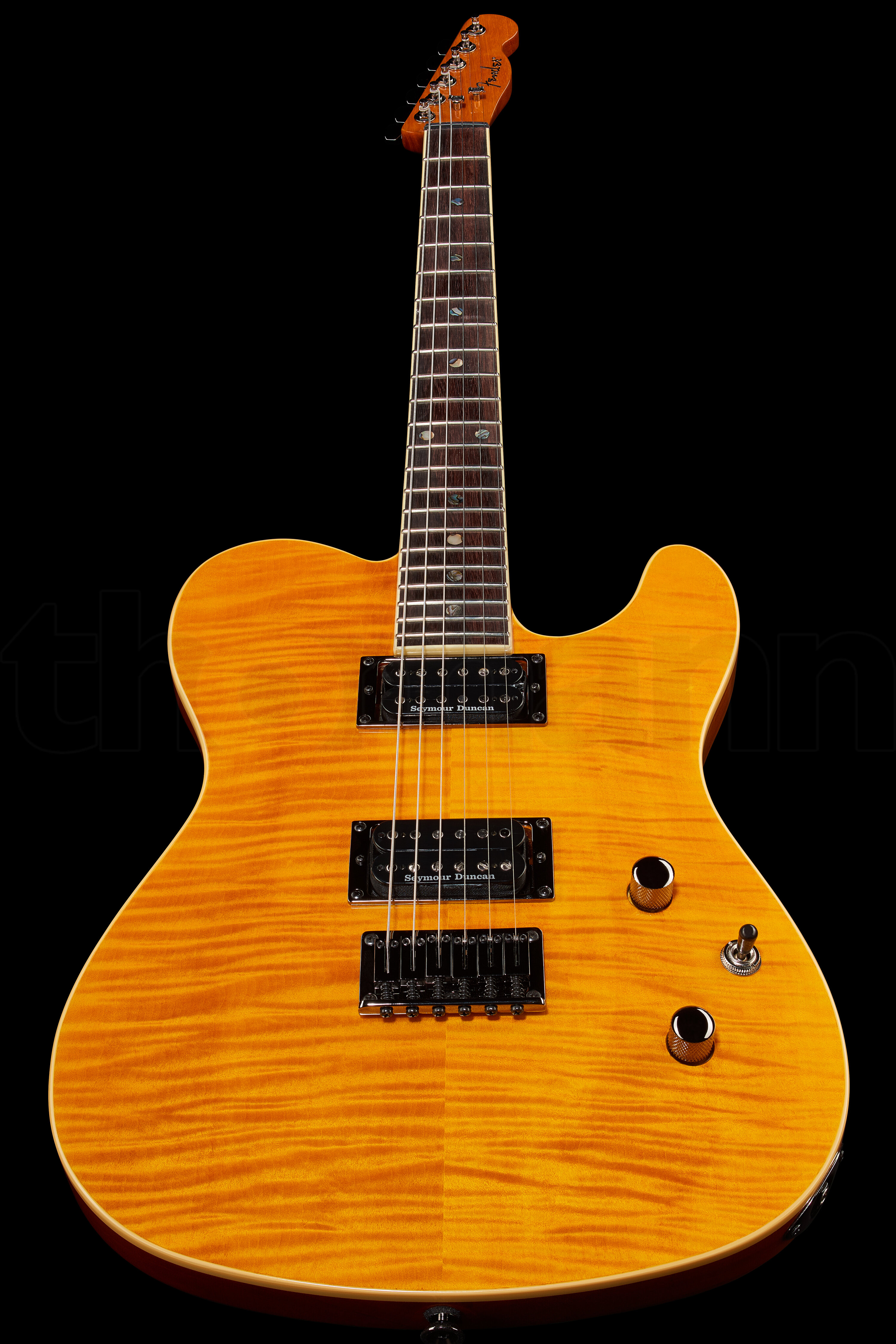

This is an amber at Thomann.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Tue Sep 18, 2018 12:32 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Sep 08, 2018 12:12 pm
Posts: 23
Replacement arrived today. Still not perfect but much better than the last one. I can live with it but there’s really no reason for it.


Notice the bridge doesn’t look quite as wonky as the previous one either.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Tue Sep 18, 2018 7:23 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Feb 13, 2018 10:28 pm
Posts: 1594
Location: SoCal, US
As mentioned, it could be from the saddles having been canted.
While the relative height of the strings should follow the neck, both of the screws on each individual saddle should have the same number of exposed threads, making the top of the saddle level with the bridge plate.
If the screws are uneven, the saddles will be canted, and one bottom corner will ride against the side of the next saddle, which can mess with the alignment.

"F" spaced pickups are generally used when the pickup is angled, such as the bridge pickup of a Strat. While not all Strat bridge pickups are "F" spaced, but many are... just enough to make it a pain if you want to change the color of your pickup covers.
On Humbuckers, rather than "F" spaced. Duncan refers to them as "Trembuckers"

_________________
-- Rich


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Wed Sep 19, 2018 9:36 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Dec 31, 2009 10:34 pm
Posts: 10760
Location: Athens, Greece
The OP also plans to build another backrouted Tele based on the Custom FMT HH.

For this custom creation I suggest a pair of humbuckers with nickel-plated chrome covers.


Top
Profile
Post subject: Re: How off is ‘Too Off?’
Posted: Mon Sep 24, 2018 3:59 am
Offline
Hobbyist
Hobbyist

Joined: Sat Sep 08, 2018 12:12 pm
Posts: 23
chromeface wrote:
The OP also plans to build another backrouted Tele based on the Custom FMT HH.

For this custom creation I suggest a pair of humbuckers with nickel-plated chrome covers.


I like the exposed type pick-up look to be honest.
