Post subject: What's the empty 5th hole on back neck plate for?
Posted: Wed Dec 02, 2015 1:16 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Sep 22, 2012 2:43 pm
Posts: 173
Location: Brisbane, Australia.
What's the empty 5th hole on back neck plate for?

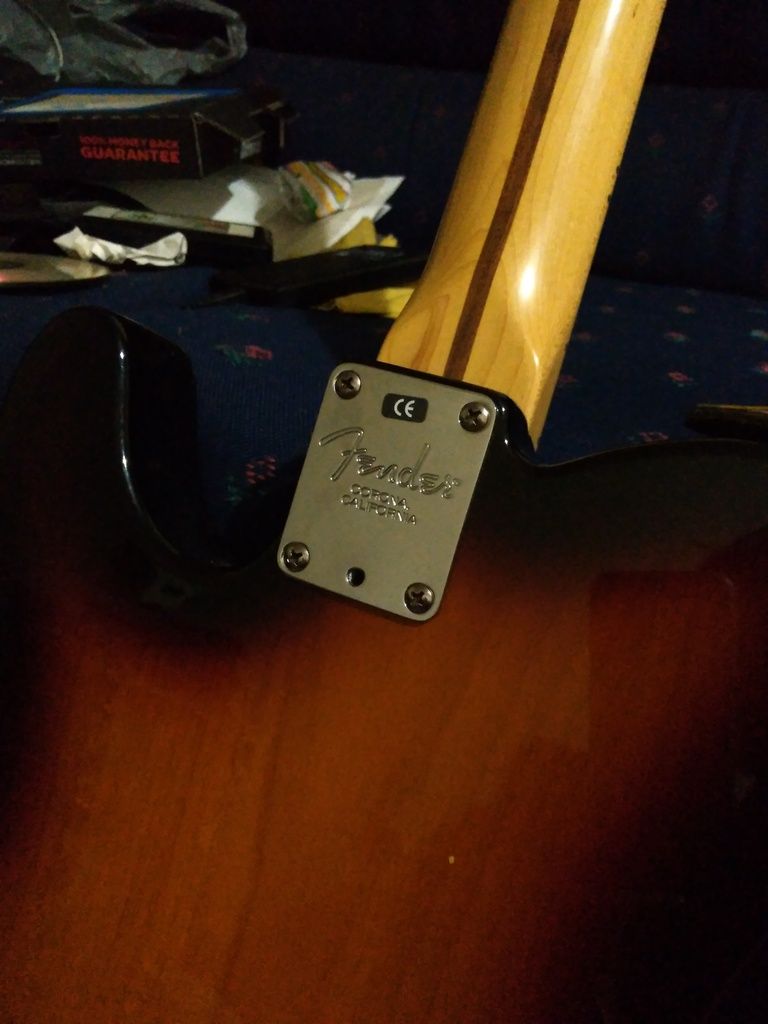

See the hole in the middle bottom of the plate? I noticed the same Allen key that fits the truss rod at the top of the neck also fits in that hole. Just curious what it adjusts?
It's a 2005 American Series Telecaster.
Cheers!! :-)

_________________
"A monkey dressed in silk is still a monkey no less" - Rodriguez


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: What's the empty 5th hole on back neck plate for?
Posted: Wed Dec 02, 2015 1:59 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Oct 10, 2008 6:45 pm
Posts: 2770
Location: Kansas
Dan999 wrote:
What's the empty 5th hole on back neck plate for?
See the hole in the middle bottom of the plate? I noticed the same Allen key that fits the truss rod at the top of the neck also fits in that hole. Just curious what it adjusts?
It's a 2005 American Series Telecaster.
Cheers!! :-)


That's for the micro-tilt adjustment. So you don't have to use shims to adjust the neck angle.

There's some info in this article on Fender's main site:

http://www2.fender.com/experience/tech- ... 1447698366


Last edited by John C on Wed Dec 02, 2015 2:00 pm, edited 1 time in total.

Top
Profile
Post subject: Re: What's the empty 5th hole on back neck plate for?
Posted: Wed Dec 02, 2015 2:00 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sun Sep 08, 2013 8:50 pm
Posts: 4602
Location: ˚ɷ˚
That's the "microtilt" hole. It avoids having to shim the neck for half the problems with the neck angle becoming wrong over time. Just twist the screw at the other side of that, and the neck will tilt a bit.


Top
Profile
Post subject: Re: What's the empty 5th hole on back neck plate for?
Posted: Wed Dec 02, 2015 2:04 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Sep 22, 2012 2:43 pm
Posts: 173
Location: Brisbane, Australia.
OK! Cheers! Thanks heaps. It's already perfect to play so as they say "If it ain't broken, don't change it"!

Have a good day mate.

:-)

_________________
"A monkey dressed in silk is still a monkey no less" - Rodriguez


Top
Profile
Post subject: Re: What's the empty 5th hole on back neck plate for?
Posted: Wed Dec 02, 2015 6:01 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Aug 01, 2015 12:32 pm
Posts: 339
Location: Las Vegas
That little adjustment really helped me when trying to get lower action. I wish all my guitars had it.
