Post subject: Fender Stratocaster back pocket measurements
Posted: Tue Feb 17, 2015 7:42 am
Offline
Hobbyist
Hobbyist

Joined: Tue Feb 17, 2015 7:25 am
Posts: 2
Greetings, I am machining out the back of a Fender stratocaster guitar. Does anyone know the measurements of the back pocket where the bridge springs are located? ( I have a squier strat and I want to make sure that the measurements are the same. I know that the bridge pocket is a different size. I am just checking about the entire back pocket's measurement.)

Thanks,
Don


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Fender Stratocaster back pocket measurements
Posted: Tue Feb 17, 2015 9:27 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
My 1995 American Standard

Spring section only : 2" 8/32 wide X 3" 27/32 long

Bridge block section only : 3" 4/32 wide X 1" 2/32 long

Total lengt : 3"27/32 + 1" 2/32 = 4" 29/32

I hope this help you


Top
Profile
Post subject: Re: Fender Stratocaster back pocket measurements
Posted: Tue Feb 17, 2015 9:58 am
Offline
Rock Star
Rock Star

Joined: Tue Jul 17, 2007 1:53 am
Posts: 4241

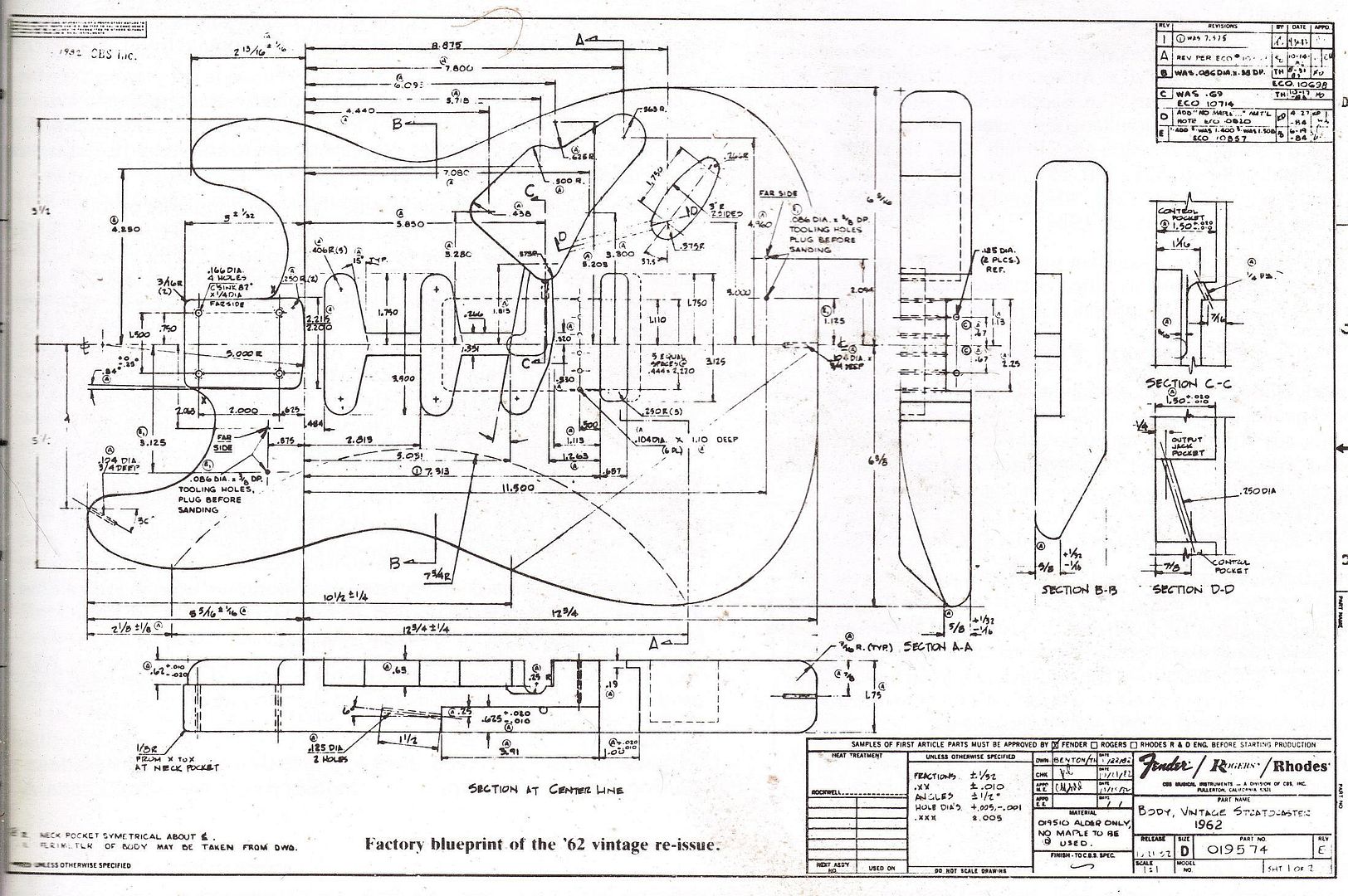

Stratocaster body dimensions


Top
Profile
Post subject: Re: Fender Stratocaster back pocket measurements
Posted: Tue Feb 17, 2015 12:26 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
Hard to read mesurements ;




Top
Profile
Post subject: Re: Fender Stratocaster back pocket measurements
Posted: Tue Feb 17, 2015 12:45 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada


Top
Profile
Post subject: Re: Fender Stratocaster back pocket measurements
Posted: Tue Feb 17, 2015 4:31 pm
Offline
Hobbyist
Hobbyist

Joined: Tue Feb 17, 2015 7:25 am
Posts: 2
Thanks for the replies. I will implement these measurements.
