Post subject: Re: 24" Scale Strat Build
Posted: Fri Apr 25, 2014 11:50 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Jun 11, 2011 10:40 pm
Posts: 17

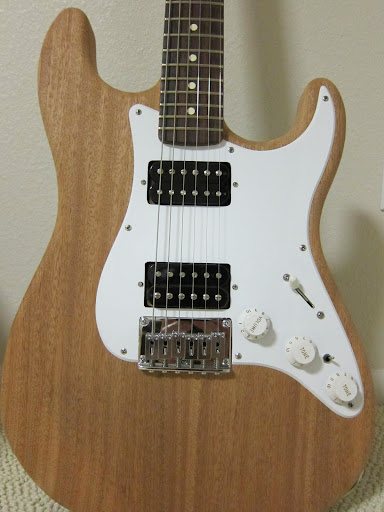

Here are the photos of the assembled strat. Still doing some tweaking to the setup but basic set up done and sounds good. Not sure to paint or stain.

I forgot to answer one question on the higher fret reach. It's the same as the strat. A contoured heel would have been nice.

The small block I added in the swimming pool route is just above the blue tape.

I tried really hard to get the string through body holes to be perfectly in line, but without a drill press...

Anyway, a 24" scale strat came be done.

Thanks everyone!








Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 24" Scale Strat Build
Posted: Sat Apr 26, 2014 2:15 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The body's lumber would seem to favor a light-to-medium stain and a satin-finish top coat. The grain is both dramatic and attractive.

I think it turned out pretty sweet -- sort of a "Duo-Sonic Meets Stratocaster" (a Duo-caster?).

8)

Rawk on!

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Sat Apr 26, 2014 5:32 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
Retroverbial wrote:
The body's lumber would seem to favor a light-to-medium stain and a satin-finish top coat. The grain is both dramatic and attractive.

Exactly right.

Or a burst. Or a transparent colour finish - cherry, for example. Or even an oil finish: teak oil or Danish oil.

But one way or another, something that lets us see that timber. The grain is too nice and regular to lose it beneath paint.

Altogether, I like this project. A gentlemen wants a 24 inch scale Strat, the Company doesn't make one so he sets about building it himself. And pulls it off well, by the looks of it. That's the homebuild ideal in a nutshell!

Nice work, gtr5150. 8)

Cheers - C

_________________


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Sat Apr 26, 2014 9:08 am
Offline
Professional Musician
Professional Musician

Joined: Wed May 25, 2011 12:45 pm
Posts: 1169
Retroverbial wrote:
...

I think it turned out pretty sweet -- sort of a "Duo-Sonic Meets Stratocaster" (a Duo-caster?).

8)

Rawk on!

Arjay


I think you nailed it.

_________________
In my opinion Leo Fender had essentially perfected the guitar amplifier by 1964.


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Sat Apr 26, 2014 10:50 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Ceri wrote:
Altogether, I like this project. A gentlemen wants a 24 inch scale Strat, the Company doesn't make one so he sets about building it himself. And pulls it off well, by the looks of it. That's the homebuild ideal in a nutshell!


And the savings of several thousand dollars is not an inconsequential matter either.

:mrgreen:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Sat Apr 26, 2014 12:27 pm
Offline
Professional Musician
Professional Musician

Joined: Wed Dec 15, 2010 7:06 am
Posts: 1662
Very nice good job I agree that the wood is to nice to not let the grain show through
mud


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Sun May 18, 2014 6:26 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Jun 11, 2011 10:40 pm
Posts: 17

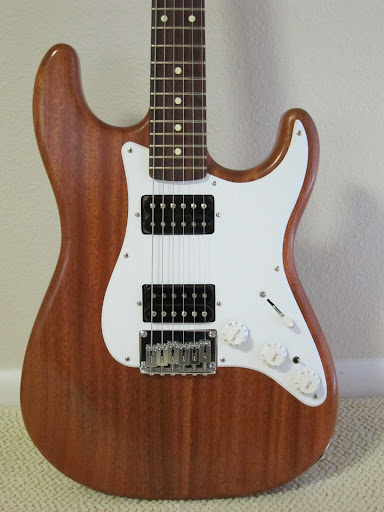

Here is the finished strat. I used a Honey Maple Minwax stain hoping to lighten the mahogany...it's darker than I wanted.





Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Sun May 18, 2014 6:35 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Perhaps so but the grain remains dramatic enough to provide some real contrast to the overall effort.

Definitely a keeper!

8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Sun May 18, 2014 6:37 pm
Offline
Amateur
Amateur
User avatar

Joined: Sat Feb 16, 2013 1:07 pm
Posts: 163
Location: Chicago
I'm not sure how it would've looked lighter, but I Think it's perfect like it is now.
Congrats looks like you made history :D 8)


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Mon May 19, 2014 12:48 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Dec 29, 2012 11:48 pm
Posts: 681
Location: Southern, CA
+ 100

Agree with everybody else. Very nice grain and you did a fantastic job :mrgreen:

Jerry

_________________
'62 Jazzmaster/'78 Precision Bass/'88 Fender F250 acoustic/'07 Gibson Less Paul Classic Antique/'12 Squier Strat/'14 Squier VM Jaguar/'15 Classic 60s Telecaster/'68 Showman Reverb/'70 Bandmaster Cabinet JBL D140F speakers/'69 Super Reverb/'12 G-DEC 3-30


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Mon May 19, 2014 1:13 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Dec 31, 2009 10:34 pm
Posts: 10760
Location: Athens, Greece

The mini-toggle splits the outer and inner coils from the humbuckers for single-coil sounds. Not sure if the pickup selector is a 3 or 5-way. Nice job! :D

The grain pattern on the mahogany body is astonishing! :P


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Mon May 19, 2014 1:24 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
chromeface wrote:
Not sure if the pickup selector is a 3 or 5-way.


Perhaps you should've read this thread more thoroughly......

gtr5150 wrote:
My donor neck came from my MIM Blacktop Jag. It fits perfectly. So far the project is going well. I had to cut a small piece of mahogany and glued it into the route since the route is for a 25.5" normal strat scale. I needed to mount the bridge .75" closer to the neck (25.5" - 24" = 1.5". Half of that is .75".) In theory this should work. Cutting the pickguard was a pain since all I had was my hand drill, small hack saw, and files. I soldered 3 500K audio pots, 3-way switch, Gibson BB2 (neck), BB3 (bridge) from my JB Studio LP.


Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Mon May 19, 2014 4:13 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Dec 31, 2009 10:34 pm
Posts: 10760
Location: Athens, Greece
Oh my bad, forgot to read the post! :shock: Thanks for the reminder!


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Mon May 19, 2014 9:11 am
Offline
Hobbyist
Hobbyist

Joined: Sat Jun 11, 2011 10:40 pm
Posts: 17
Again, thank you all for you support.

I posted a question to the forum "Strat Wiring Question" earlier. That explains the mini-toggle.

In a nutshell, I wanted a 3-way switch (like the Blackmore signature strat), with separate tones (each pickup has it's own tone and different cap), and with 50s wiring (which wires the pickups to the volume pot and then to the tone pots. Like how vintage LPs are wired.) To do this and still be able to select both pickups, I needed the toggle which turns on the neck pickup. The middle position does nothing - I'm telling myself it's a hidden kill switch :lol:


Top
Profile
Post subject: Re: 24" Scale Strat Build
Posted: Mon May 19, 2014 3:47 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
gtr5150 wrote:
The middle position does nothing - I'm telling myself it's a hidden kill switch :lol:


The unused detent may provide some "growth potential" should you decide to rearrange the wiring in the future......

:wink:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
