Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 4:29 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
According to Tony Bacon in his History of Fender Stratocaster the 5 way switch was introduced in Fender guitars in 1977, but had been available as an aftermarket item.

No one seems to know when the RW/RP middle pickup became the standard in Strats. The reverse wound, reverse polarity was offered by Seymour Duncan shortly after the 5 way became available, and those pickups may have been used on MIJ Strats.

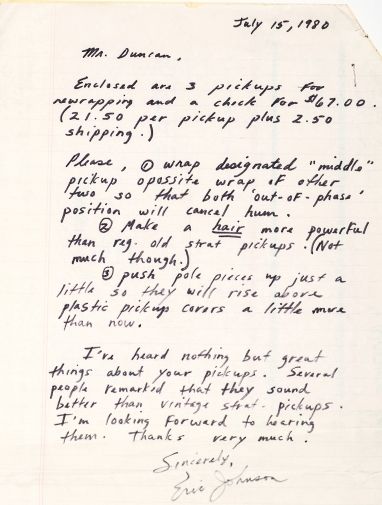

I did come across this letter, dated July 15, 1980, purported to be from Eric Johnson to Seymour Duncan ordering three pickups rewound and the middle to be "opossite wrap of other two so that both 'out of phase' position will cancel hum". Total cost $67.00 inc. s&h. :D


_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 5:10 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jun 28, 2009 6:57 pm
Posts: 1868
Location: Kansas City Mo
ZZDoc wrote:
Xhefri wrote:
That the old Strats has 3 regular wound pickups and then later, after the introduction of the 5-way switch they started RW the middle pickup to cut on hum in 2 & 4. At least I think that is what happened. I don't think that would have change the tone too much, if so.

However, if memory serves, when I set the 2 or 4 position using the 3-way switch, it cut the hum. :shock: :wink:



I just cant remember if it was hum canceling or not all I can remember was it had a 5 way already installed and I didnt even know back then that was not stock. I was 16 and just to be jammin on a real American Icon that Jimi Hendrix David Gilmour and Ritchie Blackmore played was magical. But I do recall the guy at the store talking to my mom about rewiring and doing some things to it so I suspect that was it.

_________________
https://www.facebook.com/groups/fenderguitarandamp/


Top
Profile
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 6:09 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
I was told years ago, and Eric Johnson seems to think the same way, that by Reverse Winding the middle pickup it canceled any hum one would get in 2 & 4— by having all the pickups wounds normal. Odd sidelight it, all the Texas Special pickups are RW.... I never did understand that. :?

_________________
Xhefri's Guitars
www.xhefriguitars.com


Last edited by Xhefri on Sat Mar 01, 2014 6:23 pm, edited 1 time in total.

Top
Profile
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 6:09 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jun 28, 2009 6:57 pm
Posts: 1868
Location: Kansas City Mo
danagos wrote:
According to Tony Bacon in his History of Fender Stratocaster the 5 way switch was introduced in Fender guitars in 1977, but had been available as an aftermarket item.

No one seems to know when the RW/RP middle pickup became the standard in Strats. The reverse wound, reverse polarity was offered by Seymour Duncan shortly after the 5 way became available, and those pickups may have been used on MIJ Strats.

I did come across this letter, dated July 15, 1980, purported to be from Eric Johnson to Seymour Duncan ordering three pickups rewound and the middle to be "opossite wrap of other two so that both 'out of phase' position will cancel hum". Total cost $67.00 inc. s&h. :D




Thats very cool yeah my first strat was a 1976 I got it in June 1980 it was exactly like this



_________________
https://www.facebook.com/groups/fenderguitarandamp/


Top
Profile
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 6:24 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
donnycraven wrote:
Thats very cool yeah my first strat was a 1976 I got it in June 1980 ...

Cool! Mine was a 72 or 73. Then a few years later I picked up a 68. Man I wished I would have kept them!

_________________
Xhefri's Guitars
www.xhefriguitars.com


Top
Profile
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 6:50 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jun 28, 2009 6:57 pm
Posts: 1868
Location: Kansas City Mo
Xhefri wrote:
donnycraven wrote:
Thats very cool yeah my first strat was a 1976 I got it in June 1980 ...

Cool! Mine was a 72 or 73. Then a few years later I picked up a 68. Man I wished I would have kept them!




I have been tempted many times to buy one of the American Vintage Reissues :)

_________________
https://www.facebook.com/groups/fenderguitarandamp/


Top
Profile
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 8:47 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
Xhefri wrote:
I was told years ago, and Eric Johnson seems to think the same way, that by Reverse Winding the middle pickup it canceled any hum one would get in 2 & 4— by having all the pickups wounds normal.


Without having the magnets in reverse polarity?

Well, I guess if you only do the RW, you will get the hum canceling out, but you will also get a lot of the tones canceling out too. So you will get a real thin and weak sound, but it won't hum!. (That's seeing the silver lining.)

BTW, you can get the RW effect by simply swapping where you solder the black and white leads of the middle pickup.

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 10:22 pm
Offline
Professional Musician
Professional Musician

Joined: Wed May 25, 2011 12:45 pm
Posts: 1169
bluesky636 wrote:
markara wrote:
Back in the day of the 3 way switch being standard, players found that they could set the switch in between the 3 positions and get a whole new tone (strat quack for example) and with a RWRP mid, buck hum. Hence the birth of the 5 way switch.

I don't use the 2 and four much, but find them to be very useful as a tool to quiet the beast between songs.


SCN pickups are noiseless so 2 and 4 have no noise reducing effect.

Isn't signal phasing still produced (AKA Quack)?

_________________
In my opinion Leo Fender had essentially perfected the guitar amplifier by 1964.


Top
Profile
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sat Mar 01, 2014 11:55 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
mhowell wrote:
bluesky636 wrote:
markara wrote:
Back in the day of the 3 way switch being standard, players found that they could set the switch in between the 3 positions and get a whole new tone (strat quack for example) and with a RWRP mid, buck hum. Hence the birth of the 5 way switch.

I don't use the 2 and four much, but find them to be very useful as a tool to quiet the beast between songs.


SCN pickups are noiseless so 2 and 4 have no noise reducing effect.

Isn't signal phasing still produced (AKA Quack)?


Yes.

_________________
Bill



Top
Profile
Post subject: Re: 5-way to 3-way Switch Change
Posted: Sun Mar 02, 2014 6:15 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Jul 13, 2007 1:10 pm
Posts: 13467
Location: Palm Beach County FL
bluesky636 wrote:
SCN pickups are noiseless so 2 and 4 have no noise reducing effect.

Evolution of pickup design, wiring schemes, and sound reproduction is the reason why I was very specific as to the gear I was using and referencing. You'd have to find an 'original' '58 and a similar vintage amp for the comparison. Just as an aside, it boggles me that Fender put a 5-way switch in the 60th Anniv '54 Heavy Relic and American Vintage Guitars, with a 9.5r neck and 'contemporary' bridge on the former, but a 7.5r and vintage bridge on the latter. Yet they charging 'bucks' to beat the crap out of the former in the Custom Shop. They should have done both guitars with an NOS platform, a relic finish on one just like they did with the Gilmour, and give the customer their choice. IMHO the '54 American Vintage gives you more vintage vibe and bang for the buck. However, they should have factory wired it with a 3-way. Once the buyer changes it out, the warranty is voided. :lol: :lol:
