Post subject: Re: Soldering IronS
Posted: Fri Feb 28, 2014 9:20 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
Thanks for all the tips. I am self taught and have not really talked to other people about this. The Forum has been a nice place to get a little more exposure. I will definitely get a bigger tip and I got how the heat sinks work.

_________________
Xhefri's Guitars
www.xhefriguitars.com


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Soldering IronS
Posted: Fri Feb 28, 2014 9:20 am
Offline
Professional Musician
Professional Musician

Joined: Tue Sep 11, 2012 2:14 pm
Posts: 2561
danagos wrote:
I think you make a good point here, using a Heat Sink to dissipate unwanted energy seems like a simple and inexpensive way to prevent damaging components. Although, from what I can hear, I don't think I've ruined any components due to excessive heat in one of my projects. :shock:

I've been mildly concerned enough to attach alligator clips as a poor mans Heat Sink to the leads on Caps before.

Costs nothing and "Perfects" my Tone & Sustain, I'm sure. :lol:

On other "sensitive" components, my clips weren't large enough to help. I'd like to hear how you go about attaching a Heat Sink to a Pot (Potentiometer)? By attaching to the Case away from the solder point? Is your "Heat Sink" jaw wide enough for that? :?:


Actually, for a Pot, the issue is usually one of too little heat, not too much. The Pot itself acts like a heat sink so I doubt the innards get too hot.

Besides, these wouldn't suffer irreversable effects of excessive heat exposure the way a Resistor or Capacitor can.

I'm sure there are many here, incl. myself, who've gotten away with not using them. Not using a heat sink isn't a guarantee your component will 'grenade', only that it could.

When the solution is so easy and inexpensive, why not go for it? I think it's just good practice so I use them.

cheers!

_________________

'11 FSR Am. Vtg. Ltd. Ed. CAR '57 Stratocaster (SN# LE02639)
'14 American Deluxe Ash Stratocaster
'12 Telebration Empress Telecaster
'99 Deluxe Nashville Telecaster
'12 FSR Telecaster HH
'10 Heritage H-535
'99 Martin DC-1E
'13 Lanikai Tenor Ukulele


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sat Mar 01, 2014 4:01 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
OK, I just plugged in this Weller soldering station and set it on 750 degrees. WOW. touched the back of a pot and instant melt and solder! Why didn't I get something like this years ago??? And for soldering switches, turned it down to 600 and fast and easy wire soldering. I am happy!

_________________
Xhefri's Guitars
www.xhefriguitars.com


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sat Mar 01, 2014 11:44 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Sep 11, 2012 2:14 pm
Posts: 2561
Xhefri wrote:
OK, I just plugged in this Weller soldering station and set it on 750 degrees. WOW. touched the back of a pot and instant melt and solder! Why didn't I get something like this years ago??? And for soldering switches, turned it down to 600 and fast and easy wire soldering. I am happy!


Yup...

Others may work, but you really appreciate having the right tools for the job !!

cheers!

_________________

'11 FSR Am. Vtg. Ltd. Ed. CAR '57 Stratocaster (SN# LE02639)
'14 American Deluxe Ash Stratocaster
'12 Telebration Empress Telecaster
'99 Deluxe Nashville Telecaster
'12 FSR Telecaster HH
'10 Heritage H-535
'99 Martin DC-1E
'13 Lanikai Tenor Ukulele


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 7:51 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jun 28, 2009 6:57 pm
Posts: 1868
Location: Kansas City Mo
Xhefri wrote:
I need to get a new soldering iron for custom guitar wiring. Any suggestion for one that gets hot really fast and is trouble free?




After having a Weller iron burn up about a million tips and buying another one and it doing the same thing.... I was at Sears and decided to try their Craftsman brand it has a warranty and they sell a pack of 3 tips there, a flat a point and a fine point. It has been much better than the Weller and I use it a lot.

_________________
https://www.facebook.com/groups/fenderguitarandamp/


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 8:02 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
donnycraven wrote:
Xhefri wrote:
I need to get a new soldering iron for custom guitar wiring. Any suggestion for one that gets hot really fast and is trouble free?


After having a Weller iron burn up about a million tips and buying another one and it doing the same thing.... I was at Sears and decided to try their Craftsman brand it has a warranty and they sell a pack of 3 tips there, a flat a point and a fine point. It has been much better than the Weller and I use it a lot.

Do you remember what Weller you had? I just picked up a new Weller WESD51 soldering station. Seems to work well. I had a lot of trouble with the tip on my Weller 100/140 soldering gun making contact, thus not heating properly. Guess I will see how this station holds up...

_________________
Xhefri's Guitars
www.xhefriguitars.com


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 8:35 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jun 28, 2009 6:57 pm
Posts: 1868
Location: Kansas City Mo
Xhefri wrote:
donnycraven wrote:
Xhefri wrote:
I need to get a new soldering iron for custom guitar wiring. Any suggestion for one that gets hot really fast and is trouble free?


After having a Weller iron burn up about a million tips and buying another one and it doing the same thing.... I was at Sears and decided to try their Craftsman brand it has a warranty and they sell a pack of 3 tips there, a flat a point and a fine point. It has been much better than the Weller and I use it a lot.

Do you remember what Weller you had? I just picked up a new Weller WESD51 soldering station. Seems to work well. I had a lot of trouble with the tip on my Weller 100/140 soldering gun making contact, thus not heating properly. Guess I will see how this station holds up...



I had this one made in Mexico, imagine that? Another made in Mexico piece of junk.



I imagine if you got that station its probably a lot better I will look into those too.

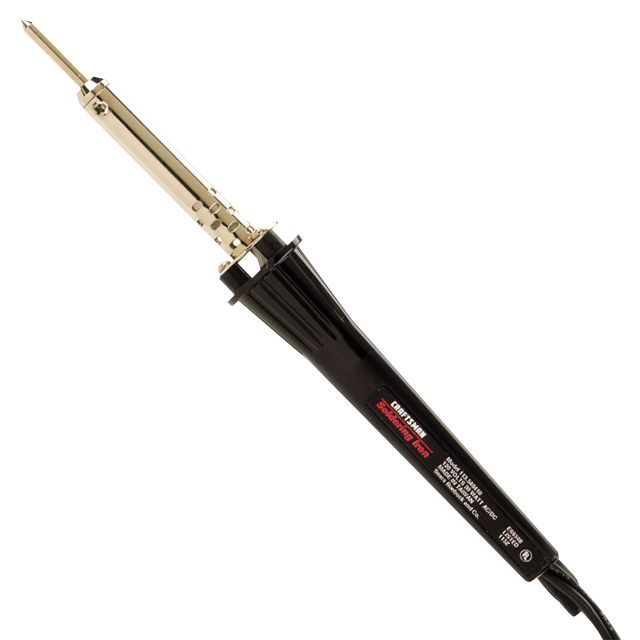

I got this at Sears and I was just like well I will try this anything has got to be better than that Mexican Junk. It is just awesome I can do pot kettle grounds and everything.


They have replacement tips at the store too.

_________________
https://www.facebook.com/groups/fenderguitarandamp/


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 9:14 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
This is the one I bought. I think it is several steps up from the Weller pencil iron you had. Seems to have great reviews. I watched this tread and read a lot of reviews before buying it and this seems to have a lot of goods ones. A few people said they had it die on them.... and like most things these days, is most likely made in China or some place! :(


_________________
Xhefri's Guitars
www.xhefriguitars.com


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 10:31 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jun 28, 2009 6:57 pm
Posts: 1868
Location: Kansas City Mo
Xhefri wrote:
This is the one I bought. I think it is several steps up from the Weller pencil iron you had. Seems to have great reviews. I watched this tread and read a lot of reviews before buying it and this seems to have a lot of goods ones. A few people said they had it die on them.... and like most things these days, is most likely made in China or some place! :(




It didnt show the pic. I find the made in Taiwan pencil I have now is much better than Wellers made in Mexico one.



This is yours and it looks very cool and Im sure it works great.
I just wanted an old school one that worked like they used to. The Mexican Weller pencil seems to be a disposable one nowadays. I had one of them back in the 80s and it was not made in Mexico. Oh well progress and all right?

_________________
https://www.facebook.com/groups/fenderguitarandamp/


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 10:44 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
To be honest, when I first started wiring guitars I went through a couple of those pencil irons. I remember holding them for a looooong time trying to solder a pot. I threw them away and thought to myself they all must be junk. So I resorted to the Weller 100/140 BIG soldering gun. Man when it works it does the job! So that is one reason I created this thread. I had fear about any type of pencil irons. I see now that you can get them that really do work! :shock: I just finished wiring up a custom curly maple top Strat and man this was nice!

_________________
Xhefri's Guitars
www.xhefriguitars.com


Last edited by Xhefri on Sun Mar 02, 2014 11:56 am, edited 1 time in total.

Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 10:58 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jun 28, 2009 6:57 pm
Posts: 1868
Location: Kansas City Mo
Xhefri wrote:
To be honest, when I first started wiring guitars I went through a coupe of those pencil irons. I remember holding them for a looooong time trying to solder a pot. I threw them away and thought to myself they all must be junk. So I resorted to the weller 100/140 BIG soldering gun. Man when it works it does the job! So that is one reason I created this thread. I had fear about any type of pencil irons. I see now that you can get them that really do work! :shock: I just finished wiring up a custom curly maple top Strat and man this was nice!



Well cool I will check into one too as I use the crap out of them.

_________________
https://www.facebook.com/groups/fenderguitarandamp/


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 4:08 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
Ok, just finished the guitar below with this new soldering work station. WOW, made things go fast and much easier. This is a 1998 deluxe Strat Neck on a chambered Mahogany body with a curly Maple top—made by Warmoth. I did the Lace Sensor Chromes Domes—Hot Dually in the bridge with standard domes in the neck and middle positions. This is wired like a Strat Ultra. Position 3 is Neck + Bridge. The guitar tuned in perfect. Custom Shop quality really. Action is great all the way down to the end with no buzzing.


_________________
Xhefri's Guitars
www.xhefriguitars.com


Top
Profile
Post subject: Re: Soldering IronS
Posted: Sun Mar 02, 2014 5:22 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jun 28, 2009 6:57 pm
Posts: 1868
Location: Kansas City Mo
Xhefri wrote:
Ok, just finished the guitar below with this new soldering work station. WOW, made things go fast and much easier. This is a 1998 deluxe Strat Neck on a chambered Mahogany body with a curly Maple top—made by Warmoth. I did the Lace Sensor Chromes Domes—Hot Dually in the bridge with standard domes in the neck and middle positions. This is wired like a Strat Ultra. Position 3 is Neck + Bridge. The guitar tuned in perfect. Custom Shop quality really. Action is great all the way down to the end with no buzzing.




Beautiful man :)
