Post subject: Relic '60 cs setup help
Posted: Mon Dec 23, 2013 4:31 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Dec 23, 2013 3:48 pm
Posts: 8
A bit of a cross post here but maybe someone can help?
I've just picked up my first Fender which is a limited edition cs relic strat 1960 made in 2007. It needs a setup but the saddle grub screws don't appear to be adjustable with Allan keys. I've also noticed that there appears to be a small amount of solder fixed to the grub screws on the high and low e strings.
Can anyone give me any pointers on this one?
Thanks in advance.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Relic '60 cs setup help
Posted: Mon Dec 23, 2013 4:45 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14050
Location: Province de Québec, Canada
Any close-up of these screw ?

Defective allen screw ? Can you remove this dirt with needle ?

Stratocaster ?


Top
Profile
Post subject: Re: Relic '60 cs setup help
Posted: Tue Dec 24, 2013 10:52 am
Offline
Hobbyist
Hobbyist

Joined: Mon Dec 23, 2013 3:48 pm
Posts: 8

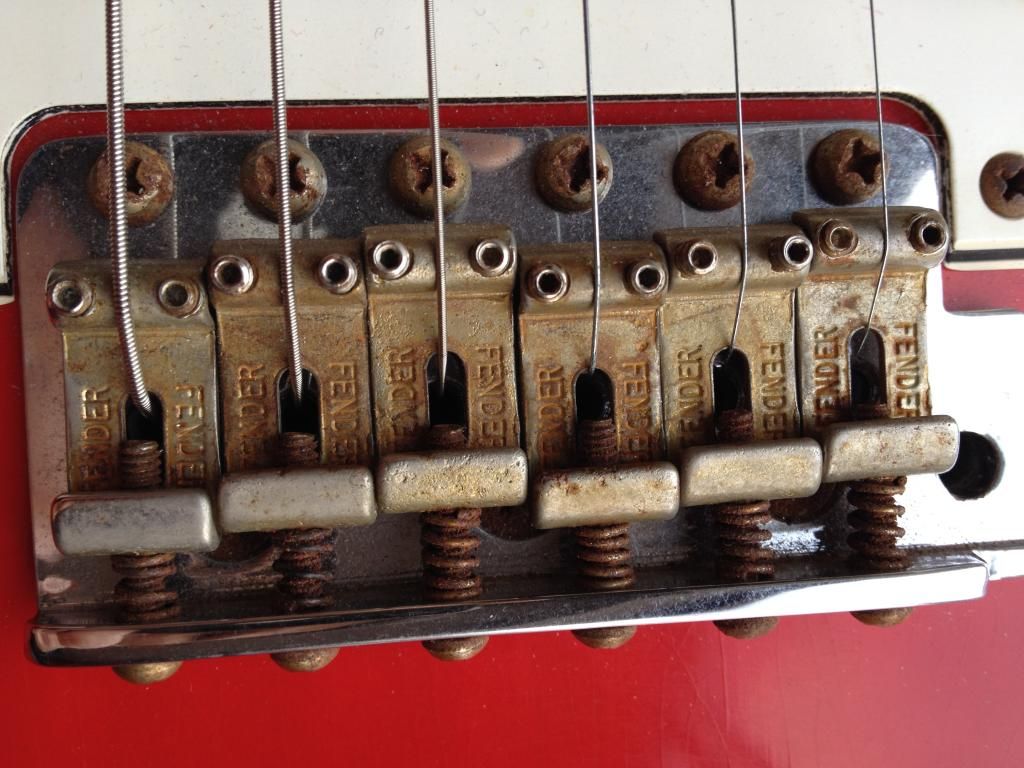

Images:




Any thoughts anyone? Thanks


Top
Profile
Post subject: Re: Relic '60 cs setup help
Posted: Tue Dec 24, 2013 11:13 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14050
Location: Province de Québec, Canada
Look dirty like old Strat but Allen key may work , Did you try with quality Allen key ?


Top
Profile
Post subject: Re: Relic '60 cs setup help
Posted: Tue Dec 24, 2013 1:21 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Dec 07, 2010 2:39 pm
Posts: 1340
Strange ...I would remove the string then the saddle and see if you could drive the screw down instead of up to remove it from the underside if the saddle.
With the screw out try to remove the solder. It may not have bonded well to the screw. If it has you could try various methods e.g. Heat and suction or copper wIck?
If the screws are bound in the saddles remove them and try soaking them in WD40 or similar to free them up. Do not use too much force since you risk ruining the Hex slot or the thread.
Hope this helps :D


Top
Profile
Post subject: Re: Relic '60 cs setup help
Posted: Tue Dec 24, 2013 1:38 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Jan 10, 2013 7:02 pm
Posts: 1978
Location: Manchester
I'd dismantle the bridge and replace the grub screw, even if you shift most of the solder the screw will remain tight in future and you'd run the risk of stripping the hex key hole. I had to do this on a Telecaster someone had done a similar job on with threadlock adhesive. Maybe he thought the guitar was immune to neck movement. It wasn't, neither is yours.

_________________
Image my stuff on soundcloud


Top
Profile
Post subject: Re: Relic '60 cs setup help
Posted: Wed Dec 25, 2013 4:50 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14050
Location: Province de Québec, Canada
Try to clean the hole with a needles .


Top
Profile
Post subject: Re: Relic '60 cs setup help
Posted: Wed Dec 25, 2013 5:51 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
The correct wrench should be a .05", that's SAE not Metric.

I see what appear to be good edges on at least some of your Height Adjustment Screws. If you use the correct wrench and don't get a good connection, whether from dirt or deformity, you could strip the screw even more and you'd need to replace it.

Shame to replace authentic, dirty "relic-ed" screws with bright, shiny, new stainless steel, but you need to be able to adjust them.

If you do replace them there are tutorials on relic-ing hardware. Don't forget that they come in 3 sizes to alleviate scratching your palm while playing.

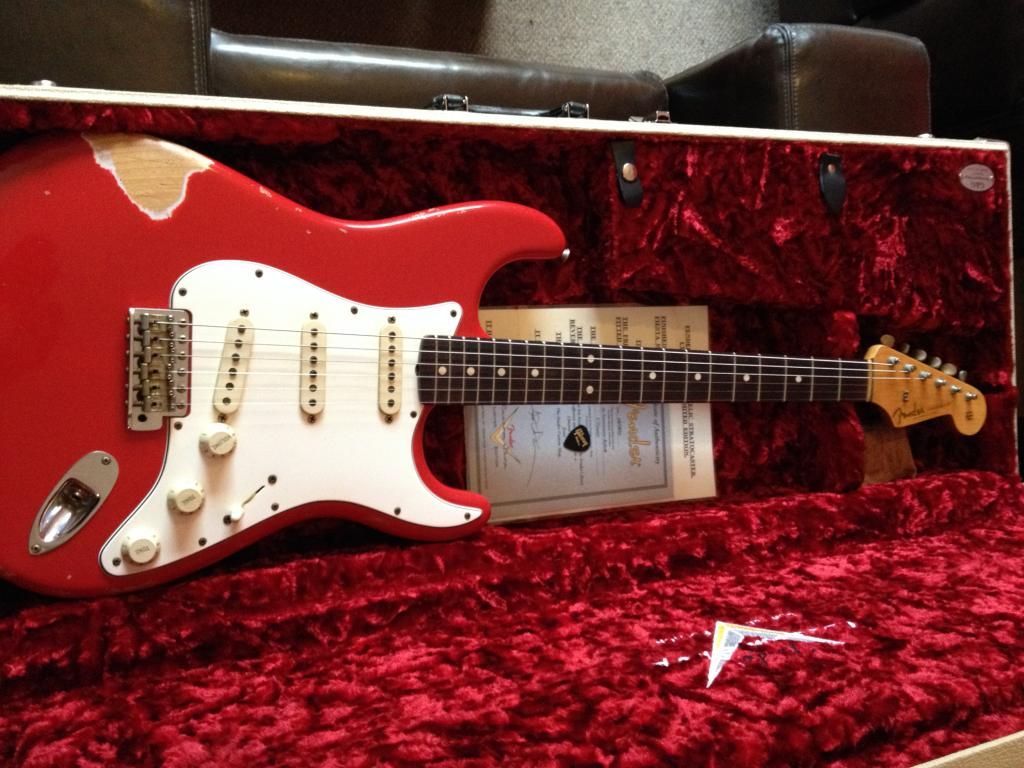

BTW, I like that Red Relic Guitar. :D

Merry Christmas everyone!

_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Post subject: Re: Relic '60 cs setup help
Posted: Thu Dec 26, 2013 10:39 am
Offline
Hobbyist
Hobbyist

Joined: Thu Dec 26, 2013 10:03 am
Posts: 10
nice guitar


Top
Profile
Post subject: Re: Relic '60 cs setup help
Posted: Thu Dec 26, 2013 11:50 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Mon Jul 16, 2007 6:52 pm
Posts: 505
Location: East Bay Area - California, USA
Make sure and loosen the string before making any adjustment to the saddle. Then retune string to proper pitch and measure your adjustment.

_________________
-Kirk

GUITARS
'12 Sonoran Acoustic - black (dated 10/31/12)
'13 Standard Strat
AMP
Vox ac4c1-bl
PEDALS
Compressor
Big Muff
Vox Stomplab 1G
Carbon Copy Delay
