Post subject: Re: Jimmie Vaughn Strat
Posted: Fri Feb 28, 2014 12:38 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Sat Apr 28, 2012 6:05 pm
Posts: 336
Location: Oregon, USA
[/quote] I have a push/pull pot my '79 Strat to activate the neck and bridge pickups. It's a very Blind Faith Clapton-like sound. [/quote]


This is how this one is set up as well although I'm considering replacing it with a standard pot and wiring. I just got done replacing all the wiring with pushback cloth wire, orange drop cap, new pots, new 5 way switch, Switchcraft jack, and copper foil along with a new 8 hole pick guard. Someone along the way had used an 11 hole pickguard so it was time to return to an original style version.



Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Jimmie Vaughn Strat
Posted: Fri Feb 28, 2014 12:57 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Sat Apr 28, 2012 6:05 pm
Posts: 336
Location: Oregon, USA

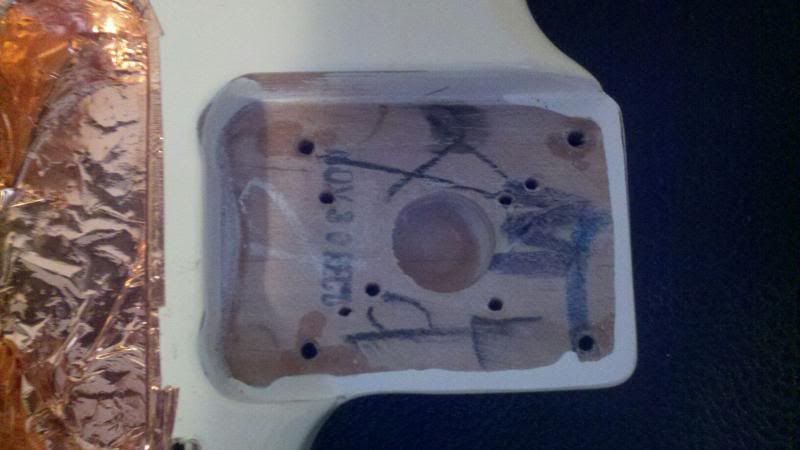

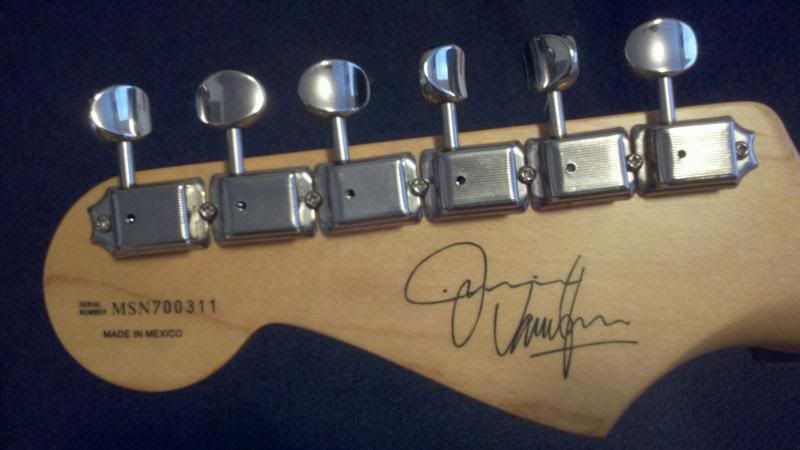

More JV Strat pictures, 1997 model it appears.



Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Fri Feb 28, 2014 1:06 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Aug 07, 2009 7:48 pm
Posts: 1546
Location: Phoenix, AZ
Nice. I used to have a 97 also. Here's a pic.


I don't have it anymore, but I have a Tex-Mex strat, which is similar.


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Fri Feb 28, 2014 1:30 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Sat Apr 28, 2012 6:05 pm
Posts: 336
Location: Oregon, USA
JasonSD wrote:
Nice. I used to have a 97 also. Here's a pic.


I don't have it anymore, but I have a Tex-Mex strat, which is similar.


Very nice! I also found an original pickguard with the decals still on it but I decided to put it away and install another one that's a standard 8 hole. I really like the feel of the neck on the JV too, just feels right!


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Fri Feb 28, 2014 6:24 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 4:54 am
Posts: 2573
Location: Laurel, MD
BrittB wrote:
I have a push/pull pot my '79 Strat to activate the neck and bridge pickups. It's a very Blind Faith Clapton-like sound. [/quote]


This is how this one is set up as well although I'm considering replacing it with a standard pot and wiring. I just got done replacing all the wiring with pushback cloth wire, orange drop cap, new pots, new 5 way switch, Switchcraft jack, and copper foil along with a new 8 hole pick guard. Someone along the way had used an 11 hole pickguard so it was time to return to an original style version.

Image[/quote]

I saw that you had a quote about a '79 Strat with a push/pull pot that allows you to use the bridge and neck pup. Was that quoted from me? I have a Strat with the same configeration, and I often tell people that it gives me that, "EC/Blind Faith" sound.


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 6:13 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Jul 13, 2007 1:10 pm
Posts: 13467
Location: Palm Beach County FL
Interesting how these guitars wind up getting 'modded.' The feature with the stock Vaughn is in the wiring for the bridge pup. Once you start changing out the innards you've got an MIM V-neck Strat with an autograph. The playability of your guitar may then simply be a reflection of how that particular neck and body were hand finished in the assembly process. In this case, and most fortunately, if you love your guitar, you can keep your guitar. :wink: 8)

_________________
"Another day in paradise!"


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 9:31 am
Offline
Aspiring Musician
Aspiring Musician

Joined: Sat Apr 28, 2012 6:05 pm
Posts: 336
Location: Oregon, USA
paris wrote:
BrittB wrote:
I have a push/pull pot my '79 Strat to activate the neck and bridge pickups. It's a very Blind Faith Clapton-like sound.



This is how this one is set up as well although I'm considering replacing it with a standard pot and wiring. I just got done replacing all the wiring with pushback cloth wire, orange drop cap, new pots, new 5 way switch, Switchcraft jack, and copper foil along with a new 8 hole pick guard. Someone along the way had used an 11 hole pickguard so it was time to return to an original style version.

Image[/quote]

I saw that you had a quote about a '79 Strat with a push/pull pot that allows you to use the bridge and neck pup. Was that quoted from me? I have a Strat with the same configeration, and I often tell people that it gives me that, "EC/Blind Faith" sound.[/quote]

Yes, it was your quote but it got botched up in the rewrite of my post.


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 9:41 am
Offline
Aspiring Musician
Aspiring Musician

Joined: Sat Apr 28, 2012 6:05 pm
Posts: 336
Location: Oregon, USA
ZZDoc wrote:
Interesting how these guitars wind up getting 'modded.' The feature with the stock Vaughn is in the wiring for the bridge pup. Once you start changing out the innards you've got an MIM V-neck Strat with an autograph. The playability of your guitar may then simply be a reflection of how that particular neck and body were hand finished in the assembly process. In this case, and most fortunately, if you love your guitar, you can keep your guitar. :wink: 8)


This one had already been modded when I got it but the job wasn't the best so I used their setup. I'm looking around for the original wiring schematics so I can take it back to the way it originally was. I'll save the push pull pot for another project.


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 9:43 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
I've been thinking of rewiring an SSS strat this way: simply swap the positions of the neck and middle pickups' hot leads at the selector switch.

That would give me the neck+bridge combo in position 2 (at the cost of losing the bridge+middle combo). I 'd have to get used to the neck pickup in position 3, however, as that's my favorite.

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 10:04 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Aug 07, 2009 7:48 pm
Posts: 1546
Location: Phoenix, AZ
Quote:

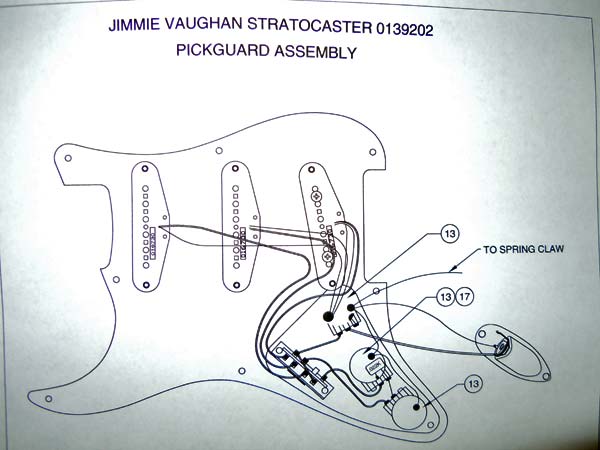

I'm looking around for the original wiring schematics so I can take it back to the way it originally was.




Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 10:07 am
Offline
Professional Musician
Professional Musician

Joined: Wed Aug 26, 2009 4:50 pm
Posts: 1339
Location: Denver, CO, USA
ZZDoc wrote:
Interesting how these guitars wind up getting 'modded.' The feature with the stock Vaughn is in the wiring for the bridge pup. Once you start changing out the innards you've got an MIM V-neck Strat with an autograph. The playability of your guitar may then simply be a reflection of how that particular neck and body were hand finished in the assembly process. In this case, and most fortunately, if you love your guitar, you can keep your guitar. :wink: 8)


There's more to the Jimmie Vaughan than just the wiring. It has the AVRI all-steel 2 7/32" bridge.

Some of its unique features have become less unique over time. When it was introduced it was one of the few MIMs with medium jumbo frets, but now lots of MIM's have those. Originally it was the only MIM with a V neck and head-adjust truss rod -- there may be some others now. The tuners were better quality vintage-style Gotohs like the AVRI's, not vintage-style Pings like the MIM Classics. Back in its first decade, the wiring was one of the least significant special features.

The JV's uniqueness may have become diluted with the improvements/changes to other MIM models, but it still offers a set of features that aren't all available in any other single MIM model. And the AVRI bridge is a big difference -- the MIM Classics/Deluxes have 2 7/32" bridges but they have zinc blocks and cheaper saddles, and other MIM's have narrow metric bridges (with zinc blocks and cheaper saddles).

I'm curious about new JV's now that the AVRI's have been upgraded. I wonder if they're getting the new saddles stamped "Pat Pend" or if they're still making the old AVRI "Fender Fender" saddles.


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 10:37 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Aug 07, 2009 7:48 pm
Posts: 1546
Location: Phoenix, AZ
The Tex-Mex strats that came out before the JV strat has the same bridge and tuners as the JV strat, it also had medium Jumbo frets, but it's not a V neck.


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 11:02 am
Offline
Professional Musician
Professional Musician

Joined: Wed Aug 26, 2009 4:50 pm
Posts: 1339
Location: Denver, CO, USA
JasonSD wrote:
The Tex-Mex strats that came out before the JV strat has the same bridge and tuners as the JV strat, it also had medium Jumbo frets, but it's not a V neck.


Yes, the Tex-Mex was the predecessor to the JV -- they discontinued that model, changed the neck profile, added a signature decal, and turned it into the Jimmie Vaughan Tex-Mex Signature.

So one MIM that was unlike other MIMs turned into a slightly different MIM that was unlike other MIMs. For a long time, the JV was a very distinctive MIM. Some of its then-unique features have now spread to other MIM models, but other than the original Tex-Mex (which went out of production when the JV replaced it), it's the only MIM with an all-steel, US made, AVRI bridge.

My point was that the wiring isn't the only thing that makes the JV different than other MIMs. Even though many of its features have spread to other MIMs, you still can't get all the other features besides the wiring together on any MIM.


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 11:12 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Jul 13, 2007 1:10 pm
Posts: 13467
Location: Palm Beach County FL
strayedstrater wrote:
....... it's the only MIM with an all-steel, US made, AVRI bridge....

If you're citing this as a plus for you it's something which is not specifically listed in the current bridge specs for the guitar. Let's hope it still remains true yet not touted.

_________________
"Another day in paradise!"


Top
Profile
Post subject: Re: Jimmie Vaughn Strat
Posted: Sat Mar 01, 2014 11:21 am
Offline
Aspiring Musician
Aspiring Musician

Joined: Sat Apr 28, 2012 6:05 pm
Posts: 336
Location: Oregon, USA
Well, all I can say for sure is I like playing it. I've had many other Strats and this is the second Strat that I truly enjoy, my other being a hard tail parts caster with a CIJ 62 rosewood neck, the Dick Dale autograph is cool too! I like other Strats and the one that is still on my bucket list is the recent 54 MIJ reissue. That being said, this JV makes me happy and that's really all that matter! ;-)
