Post subject: strat trem spring
Posted: Thu Sep 19, 2013 11:44 am
Offline
Hobbyist
Hobbyist

Joined: Mon Mar 14, 2011 2:20 pm
Posts: 13
Hi

I bought a USA fender strat standard a while back and I have not put the spring in the tremelo arm chamber as it seemed like the tremelo arm wouldn`t go in, I was afraid of pushing down too hard, is this common do I just need to be bold and press harder ?

I have been using the trem without the spring but recently its started drooping

any advice appreciated

Regards

Bob


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: strat trem spring
Posted: Thu Sep 19, 2013 12:18 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14050
Location: Province de Québec, Canada
Tremolo arm with a spring is a " screw on" arm .

" Push in" arm don't need a spring . Yes it is hard to push / clip in. There is a Allen screw to adjut it on the tremolo block, back on the body by removing the back plate.


Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 19, 2013 12:25 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Mar 14, 2011 2:20 pm
Posts: 13
thanks for the reply

The hole where the arm goes had a spring inside and a round piece of sticky paper holding it in, if I take the spring out the arm clicks in nicely but if I put the spring in the hole the arm will not click in, is this the type you are thinking of ? The guitar came like this new

Bob


Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 19, 2013 2:52 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
Hi Bob,

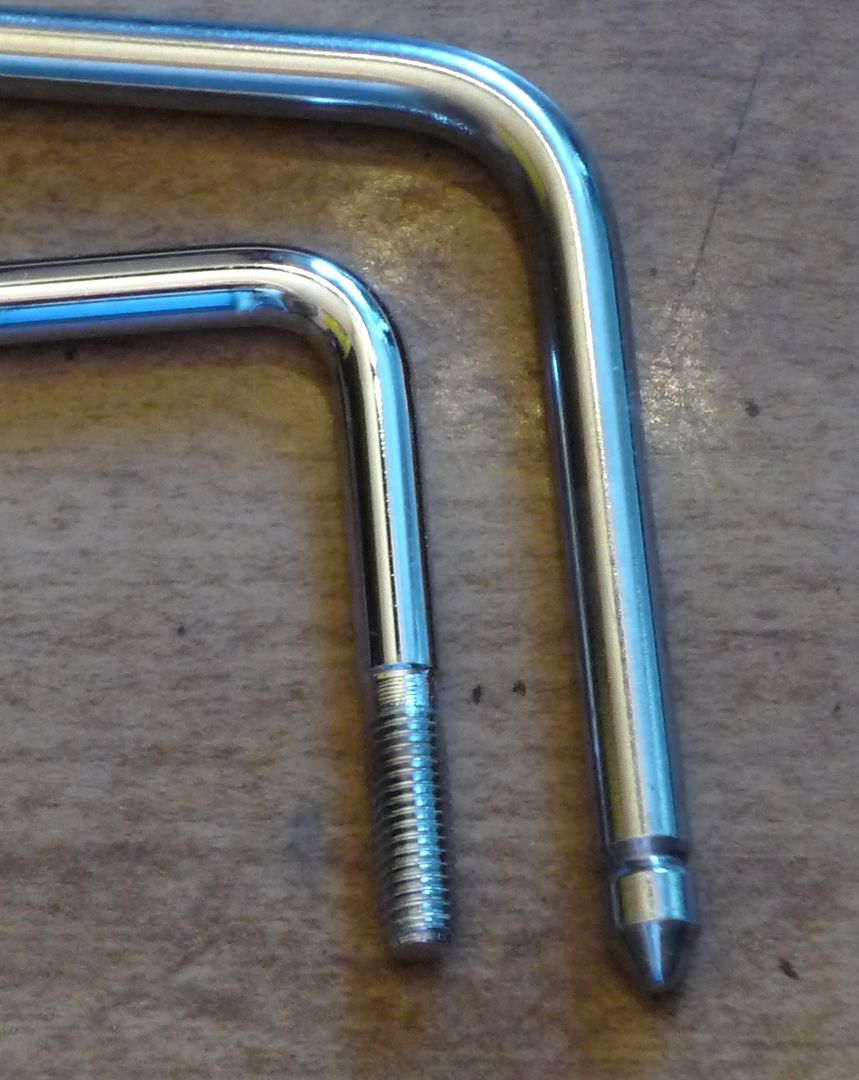

It's easier to see than explain so I photographed each kind of Tremolo Arm (Whammy Bar).

On top/right is a push in type, the bottom is a screw in.

Stratele52 is right, no spring needed with the push in type, but you may need to push firmly.

Whichever type you have, make sure nothing else (extra spring, gummy bear, etc.) is in there first. :)

- Dan


_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 19, 2013 4:48 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
An American Standard Strat comes with a screw in trem arm. If a pop in arm was received, it is incorrect.

_________________
Bill



Top
Profile
Post subject: Re: strat trem spring
Posted: Fri Sep 20, 2013 11:15 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Aug 23, 2007 1:57 pm
Posts: 1089
Location: Rossendale UK
Throw the little spring away - it's more likely to foul the thread on the tremolo arm.


Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 26, 2013 1:44 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
stratmangler wrote:
Throw the little spring away - it's more likely to foul the thread on the tremolo arm.

Or just send it to me for safekeeping! :lol:

_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 26, 2013 2:46 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
stratmangler wrote:
Throw the little spring away - it's more likely to foul the thread on the tremolo arm.


Bad advice! The spring never touches the arm threads. :roll:

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 26, 2013 3:11 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Aug 23, 2007 1:57 pm
Posts: 1089
Location: Rossendale UK
shimmilou wrote:
stratmangler wrote:
Throw the little spring away - it's more likely to foul the thread on the tremolo arm.


Bad advice! The spring never touches the arm threads. :roll:


You might as well throw it away regardless.
The spring will fall out when you unscrew the arm anyway :wink:


Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 26, 2013 4:15 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Sep 11, 2012 2:14 pm
Posts: 2561
Personal preference...

The spring is not necessary, though I do use it on my Strat.

It's purpose is to keep the Whammy Bar from drooping - some players like it right at hand, others prefer it out of the way.

The spring tension keeps it where you left it (sort of), whereas without it, Gravity does it's thing.

Personally, when I'm done using it, instead of just letting it go, I move it downward a bit so it doesn't interfere.

It's gonna get lost in short order and then I won't replace it.

cheers!

_________________

'11 FSR Am. Vtg. Ltd. Ed. CAR '57 Stratocaster (SN# LE02639)
'14 American Deluxe Ash Stratocaster
'12 Telebration Empress Telecaster
'99 Deluxe Nashville Telecaster
'12 FSR Telecaster HH
'10 Heritage H-535
'99 Martin DC-1E
'13 Lanikai Tenor Ukulele


Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 26, 2013 7:23 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
bobz1b wrote:
I bought a USA fender strat standard a while back and I have not put the spring in the tremelo arm chamber as it seemed like the tremelo arm wouldn`t go in, I was afraid of pushing down too hard, is this common do I just need to be bold and press harder?


This is confusing.

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 26, 2013 7:27 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
bluesky636 wrote:
An American Standard Strat comes with a screw in trem arm. If a pop in arm was received, it is incorrect.


I have the exception to that rule. A few years back, I discovered that my new American Standard had a pop in trem block. I've told that story here before. It came with a screw in arm, which I swapped out at my local Fender dealer.

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 26, 2013 9:18 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
orvilleowner wrote:
bluesky636 wrote:
An American Standard Strat comes with a screw in trem arm. If a pop in arm was received, it is incorrect.


I have the exception to that rule. A few years back, I discovered that my new American Standard had a pop in trem block. I've told that story here before. It came with a screw in arm, which I swapped out at my local Fender dealer.


Well, I guess if Fender can provide the wrong arm for the correct trem block they can certainly provide the wrong trem block for the correct arm. :wink:

_________________
Bill



Top
Profile
Post subject: Re: strat trem spring
Posted: Thu Sep 26, 2013 9:28 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
bluesky636 wrote:
Well, I guess if Fender can provide the wrong arm for the correct trem block they can certainly provide the wrong trem block for the correct arm. :wink:


I was quite surprised, wondering why the heck I couldn't screw the arm in. I thought the threads were missing!

So my Standard was part Deluxe.

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject: Re: strat trem spring
Posted: Fri Sep 27, 2013 3:49 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Fri Nov 16, 2012 10:43 pm
Posts: 26
Lightnin describes the screw-in arm and spring well - at least in my vintage '65 - without the spring the arm just flops around, with the spring it stays where you leave it. The spring provides friction by pushing up on the base of the arm.

But as some have implied it can either get lost or they get stuck inside (you can buy them in replacement packs of 6 or so). My arm broke off in the block back in the 70's, I got a machinist to remove it but the threads were never right since then.

Currently a spring is stuck in the bottom, I can get the arm back in but the 'sweet spot' between having it flop around and being all the way in is very small. I'm still trying to get the spring out without doing more damage to the threads.
