Fender Deluxe Locking Bridge on Strat Plus Deluxe

CozmkDebris · **Joined:** Sat Feb 23, 2008 8:50 pm **Posts:** 7

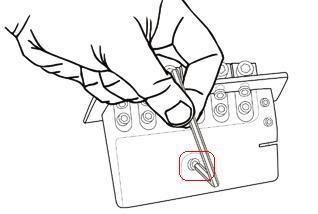

Can anyone tell me what this screw is for?

It goes through the block, touches nothing other than the block, and for the life of me I can't see a reason for it.

I have tried to do a forum search but regardless on how I input my search terms I get about 2,000+ results. I just don't have the time to read all those post lol.

I love my Strat Plus Deluxe and its locking bridge. I am putting another Delxue locking Bridge in my Strat Plus.

I would greatly appreicate your help.

Thanks
Don

Here are two pics of my all time favorite guitars.

Mr Bill · **Posted:** Wed Apr 02, 2008 8:13 pm

Hello Cosmkdebris,

I have no experience with this bridge,
but I'm thinking the screw is used to
limit and/or vary travel of the tremolo.
Keep us posted.

Cheers.

Strataholic · **Joined:** Fri Jan 11, 2008 6:28 pm **Posts:** 1956

Mr Bill wrote:

Hello Cosmkdebris,

I have no experience with this bridge,
but I'm thinking the screw is used to
limit and/or vary travel of the tremolo.
Keep us posted.

Cheers.

That was my first thought too. Sweet looking guitar BTW!

uteowl · **Posted:** Thu Apr 03, 2008 8:33 am

The location on the diagram is interesting and confusing. I have an Am Deluxe with the hex screw located in line with the trem arm. The screw on mine is for tightening the trem arm in place. I had a problem with the arm falling out until I gave this little puppy a slight turn, now she stays in and is a bit less "floppy".

CozmkDebris · **Joined:** Sat Feb 23, 2008 8:50 pm **Posts:** 7

uteowl wrote:

The location on the diagram is interesting .

Agreed, it is not long enough (about 7mm) to come out to prohibit bridge travel. If one were to screw it out far enough to touch the body it would fall out before it hit wood.

The two allen screws inline with the trem arm are used for adjusting the freeplay of the trem arm.

The only thing I can figure is it was used in the production of the block for milling purposes and the screw was added to mass or to fill the hole.

It is just a hole in the block with a screw in it with some threadlock on it. It does not do anything.

Tis' a puzzle indeed friends.

CozmkDebris · **Joined:** Sat Feb 23, 2008 8:50 pm **Posts:** 7

Still curious as to why it is there.

straycat113 · **Posted:** Sun Jun 28, 2009 7:43 am

Coz, go to this site if this guy cant tell you no one can. www.xhefriguitars.com his name is pronounced Jeff but he is the strat plus and ultra guru. He has a whole site dedicated to these guitars he will be able to help you out.

miloha · **Joined:** Thu Aug 27, 2009 4:42 pm **Posts:** 3

Maybe it's just a spare screw

rapZa · **Posted:** Tue Sep 01, 2009 9:48 am

straycat113 wrote:

Coz, go to this site if this guy cant tell you no one can. www.xhefriguitars.com his name is pronounced Jeff but he is the strat plus and ultra guru. He has a whole site dedicated to these guitars he will be able to help you out.

Jeff is an awesome guy. I actually emailed him and he did respond a few times.
