Post subject: Players Deluxe replacing push-button switch
Posted: Wed Apr 25, 2012 9:15 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Apr 25, 2012 9:10 pm
Posts: 4
Hello all,

I have a question in regards to replacing the push-button switch on a Players Deluxe Stratocaster with a mini-toggle switch. Please forgive my noobity with many questions, as I am very new to this.

I have learned that the standard push-button switch is of the dual-position, dual-throw (DPDT) type, and I have seen that this type of mini-toggle switch is available for guitars. So my first question is: What type of DPDT mini-toggle would I need to get... would it be an On-On type (which is what I assume I should get), or an On-Off-On type? I assume it should be On-On, but I'd like to know for sure before I go ahead and order parts.

And the other part of the question... I have seen in the service diagram that there are only 2 wires that go to the standard push-button switch. I assume it would be the same with the new toggle switch? What are the chances that the pins are numbered the same on both switches, so it's simply a matter of putting the wires in the same positions on the new switch? Or would it take extra wiring for the new toggle-type switch?

And lastly, for testing purposes is there a way I'd be able to test the new switch (by sound) while it's all apart to see if it's working? In case, for instance, the pins didn't match and I'd need to try a different configuration.

Hard as it is to believe, I haven't been able to find the specifics for exactly how to go about this change, so any and all help is much appreciated. Thanks to all the guitar gurus who might be able to help!


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Wed Apr 25, 2012 10:27 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
DPDT means double pole/double throw, not dual position/double throw. See the switch schematic here:

http://www.1728.org/project2.htm

_________________
Bill



Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Thu Apr 26, 2012 4:52 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
Xigmastrat wrote:
Hello all,

I have a question in regards to replacing the push-button switch on a Players Deluxe Stratocaster with a mini-toggle switch. Please forgive my noobity with many questions, as I am very new to this.

I have learned that the standard push-button switch is of the dual-position, dual-throw (DPDT) type, and I have seen that this type of mini-toggle switch is available for guitars. So my first question is: What type of DPDT mini-toggle would I need to get... would it be an On-On type (which is what I assume I should get), or an On-Off-On type? I assume it should be On-On, but I'd like to know for sure before I go ahead and order parts.

And the other part of the question... I have seen in the service diagram that there are only 2 wires that go to the standard push-button switch. I assume it would be the same with the new toggle switch? What are the chances that the pins are numbered the same on both switches, so it's simply a matter of putting the wires in the same positions on the new switch? Or would it take extra wiring for the new toggle-type switch?

And lastly, for testing purposes is there a way I'd be able to test the new switch (by sound) while it's all apart to see if it's working? In case, for instance, the pins didn't match and I'd need to try a different configuration.

Hard as it is to believe, I haven't been able to find the specifics for exactly how to go about this change, so any and all help is much appreciated. Thanks to all the guitar gurus who might be able to help!


Welcome.

It would simply be an, "On-On" type.

The pin assignment would be the same; no extra wiring is required. You could even get away with a SPDT switch as the switch itself is only used for 'manually' turning on and off the bridge pickup, thus overriding the pickup selector switch.

For testing purposes, all you'd have to do is gently tap a polepiece of the bridge pickup to see if it's working with the pickguard still off the guitar.

You're welcome.

_________________
You dig?


Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Thu Apr 26, 2012 8:20 am
Offline
Hobbyist
Hobbyist

Joined: Wed Apr 25, 2012 9:10 pm
Posts: 4
Ok great, thanks a lot for your help and advice! Once I get it built I'll post a picture.


Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Thu Apr 26, 2012 8:29 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
Xigmastrat wrote:
Ok great, thanks a lot for your help and advice! Once I get it built I'll post a picture.


Anytime. And yes, please do, we all like pictures!!

_________________
You dig?


Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Thu Apr 26, 2012 10:19 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Actually, a simple on-off switch (SPST) will work as there is only one pole used on the existing switch, and it's either open or closed. :idea:

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Thu Apr 26, 2012 8:13 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Apr 25, 2012 9:10 pm
Posts: 4
So to take it a bit further, as shimmilou and Martian said, it really is the simplest kind of switch: a single-pole on-off switch? That does make it easy. And thanks bluesky for the diagram & explanation, it really is what I need to help understand!

I went ahead and ordered a DPDT switch because it was the only kind they had in the style I wanted. It may be more than I need, but at least some options will be there if I decide on more complex modifications later. What would that be? I don't know! But the help here has gotten me started and I appreciate it. I will take some before and after pictures once it's all done. It's just to recreate my new guitar in the style of one I had 20+ years ago (not a Fender, but an imitation style), so I'll be sure and put some pictures up. Now, playing it...that's another matter altogether! :wink:


Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Sun Apr 29, 2012 4:07 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 07, 2009 7:27 pm
Posts: 3448
Location: Connecticut
OP you do know that the PP switch allows you pickup configurations which are not reachable with only a 5 way switch....

That being said, I deleted mine on a crimson strat, actually put in SCN pups and used the three vintage pups in the crimson for my Stratopartster Build I.. I did use 2 TBX controls for tone which solved my problem of not liking the pick ups. I had found them lacking in versatility but not with a TBX and a 220 cap....
As far as wiring up for the TBX, Premier Guitar online did a DIY.
As I also must add Andy Big Hair was the electronic schematic help...
Speaking of that, I'm back in the process of redoing pickguard and wiring on Strato #II

_________________
"C'est parti mon Kiki "


Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Sat May 05, 2012 12:21 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Apr 25, 2012 9:10 pm
Posts: 4

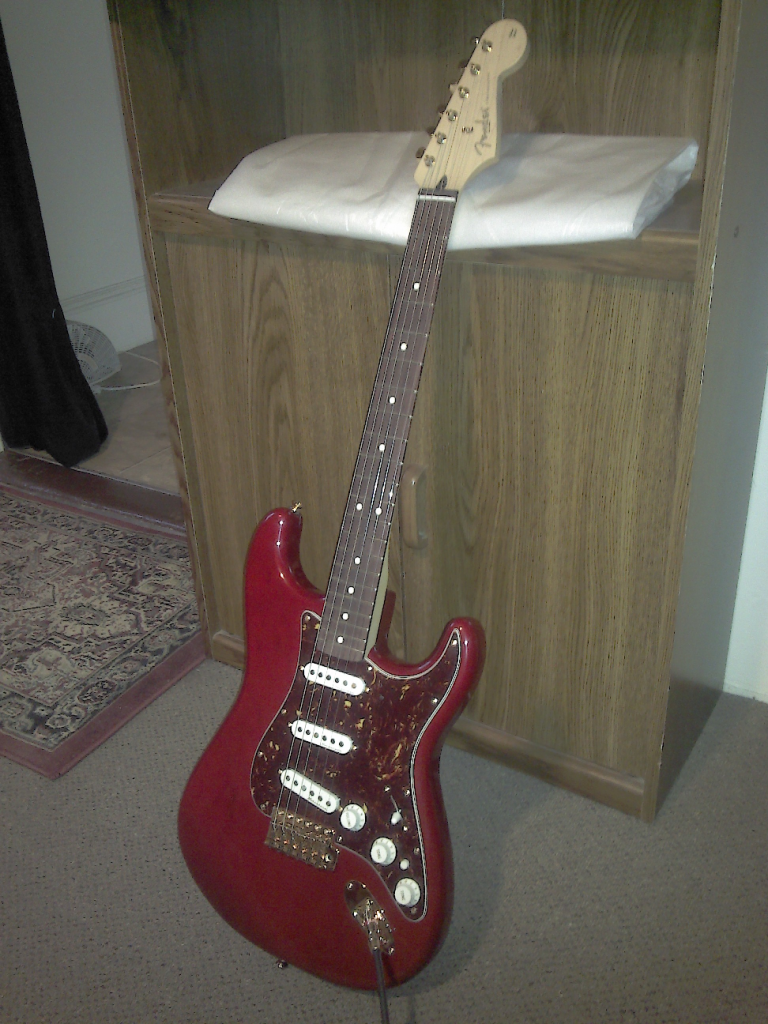

As promised, before:


And after:



Don't mind the missing knob; I'm waiting for a replacement.

So, all in all, it wasn't too bad. I was glad I wasn't re-using the old pickguard and have to mess with getting the old switch housing/fixture off. Now I have a perfect Deluxe Players tortoiseshell pickguard with the protective film still on and pushbutton installed for the offering.

Oh yes, 53magnatone, I do understand. It's working with the new switch as well.

I had posted last night in-process with a question regarding the wires to the new switch being reversed from the service diagram and others, but I deleted it. Even though I marked the wires as one being "middle" from the old pushbutton switch, and reconnected them in the same fashion on the new switch, I noticed that the wiring was reversed with respect to vol pot/5-way VS. middle/outside lug on the switch (Even though I marked the wires coming off the original and put them back the same way). I posted a concern about it asking for advice, but after examing the wiring layout I decided it's only a hot-wire switch and wouldn't make any difference.

I hope that's true, anyway. In the end, thanks to all the kind guitar gurus and enthusiasts who found time to help me out.


Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Thu May 10, 2012 10:24 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 08, 2009 7:58 am
Posts: 2187
Red looks so much better with a Black PG. Looks great!

_________________
"Epitaph on a blues musician’s tombstone: “I didn’t wake up this morning”" Davy Knowles


facebook.com/313DBC


Top
Profile
Post subject: Re: Players Deluxe replacing push-button switch
Posted: Thu May 10, 2012 1:16 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Xigmastrat wrote:
...I decided it's only a hot-wire switch and wouldn't make any difference. I hope that's true, anyway..


You got it!

Nice Strat, a real beauty, nice job.
