ok guys need your help now on pic two at the top of the page there are two white wires ones in the middle of the tone pot with the cap on it ,the others on the vol pot which is also white the middle white on the vol pot was the white for the jack and is now on the middle position along with the brown and purple from the pcb to the new tone pot do i solder these back in the same position as per original or do the go else where .... im confused dot com .

I feel your pain, first time I wired mine up it didnt' work. Turns out I left off soldering one wire. . .

I don't really follow what your asking, but, really, if you look at nikininja first link to the actual Fender wiring diagram, that really should do it. Just be patient and go from pot to pot, pickup to pickup and wire it the same. (As I type this, I notice that the "YLW" label below the center pickup seems to be in error, might ought to be white.)

If you can attach a pic where you're stuck, might help. . .

http://i279.photobucket.com/albums/kk151/sxvmark/mobileuploads367.jpg




http://i279.photobucket.com/albums/kk15 ... ads370.jpg

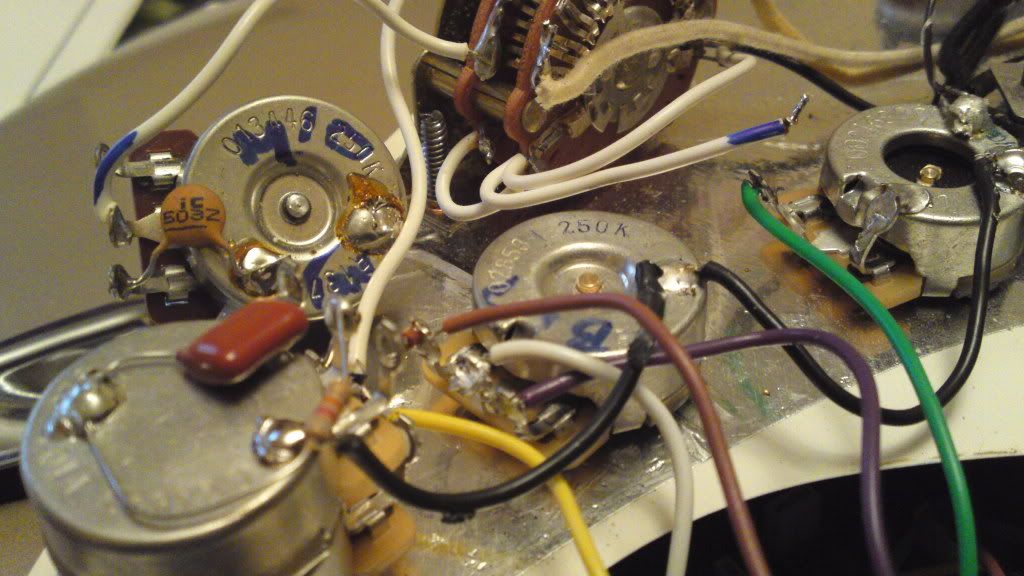

ok i will try to explain better, if you look at the pic that ive posted up you can see the original wires to the vol [ white with blue mark ] and tone pot [same] i dont have an s1 pot just the 50k 3 terminal type as in the pic. on the vol pot there is a green wire from the mbx pcb the white is above, on the original pot this was in where the green is now does this go in with the green wire ? now if you see the tone pot with the capassitor on does this go to the new pot in the same position and do i fit the cap as it is on the pot shown as it doesnt appear to be on any off the diagrams for the mbx am i exsplaining myself ok ?

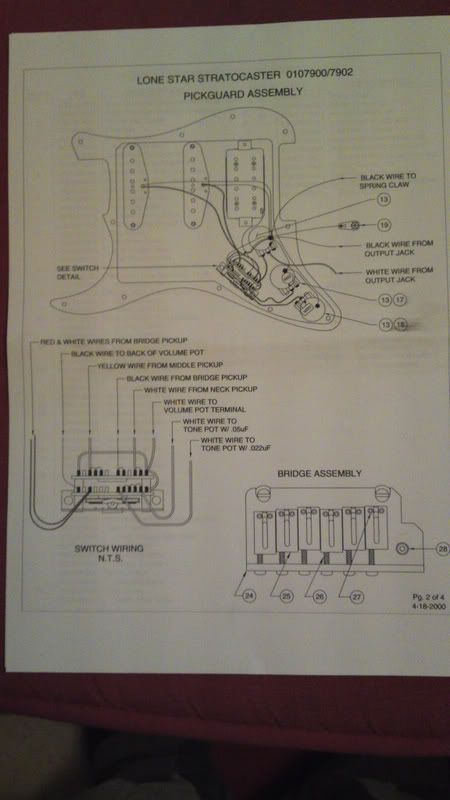

heres my wiring diagram


http://i279.photobucket.com/albums/kk15 ... ads367.jpg

Aren't you replacing the 5 way switch?

And honestly, your high school English teacher would hang herself. Punctuation and capitalization would certainly help a bit here. . .

Aren't you replacing the 5 way switch?

And honestly, your high school English teacher would hang herself. Punctuation and capitalization would certainly help a bit here. . . [/quote

not my strong point no im keeping the switch why change it ? is there a problem with the super switch .
