Post subject: Re: 1st Strat mod project... oops! pg.2
Posted: Sun Apr 03, 2011 3:37 am
Offline
Hobbyist
Hobbyist

Joined: Sat Apr 02, 2011 2:43 am
Posts: 43
By the way, I have a tele that has exactly that color as well. I, too, have no idea what the color is called. I heard it might be "Midnight Blue"


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 1st Strat mod project... oops! pg.2
Posted: Sun Apr 03, 2011 1:49 pm
Offline
Roadie
Roadie

Joined: Sun Feb 27, 2011 10:41 am
Posts: 206
Location: Canada
That color body with that pick guard is killer dude...

_________________
He who dies with the most Strats wins.


Top
Profile
Post subject: Re: 1st Strat mod project... oops! pg.2
Posted: Sun Apr 03, 2011 6:00 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 04, 2007 10:17 am
Posts: 78
nikininja wrote:
Don't worry about it, Seymour Duncan stand right behind their products. They'll exchange that no sweat at all.

I got them from Musicians Friend, they are exchanging them, and are due to ship 4/11/11.
V wrote:
By the way, I have a tele that has exactly that color as well. I, too, have no idea what the color is called. I heard it might be "Midnight Blue"

Great!... it's good to know what the color is called! BTW, does your Tele appear purple under certain lighting conditions?
Oskar555 wrote:
That color body with that pick guard is killer dude...

Thanks!

_________________
2005 MIA Strat HH Hardtail
Modified 2000 MIM Strat HSS


Top
Profile
Post subject: Re: 1st Strat mod project... oops! pg.2
Posted: Sun Apr 17, 2011 4:23 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 04, 2007 10:17 am
Posts: 78
All the parts for my upgrade have finally arrived! What I've decided to do is wire it up like a 2005 American Deluxe Stratocaster HSS (the latest that is availble in the service diagrams is the 2005 version). I've printed out the wiring diagram and I believe I have all the parts necessary to start soldering. But since this is my first time, I covet the knowledge and experiance of the good people on this forum. This should work... right?

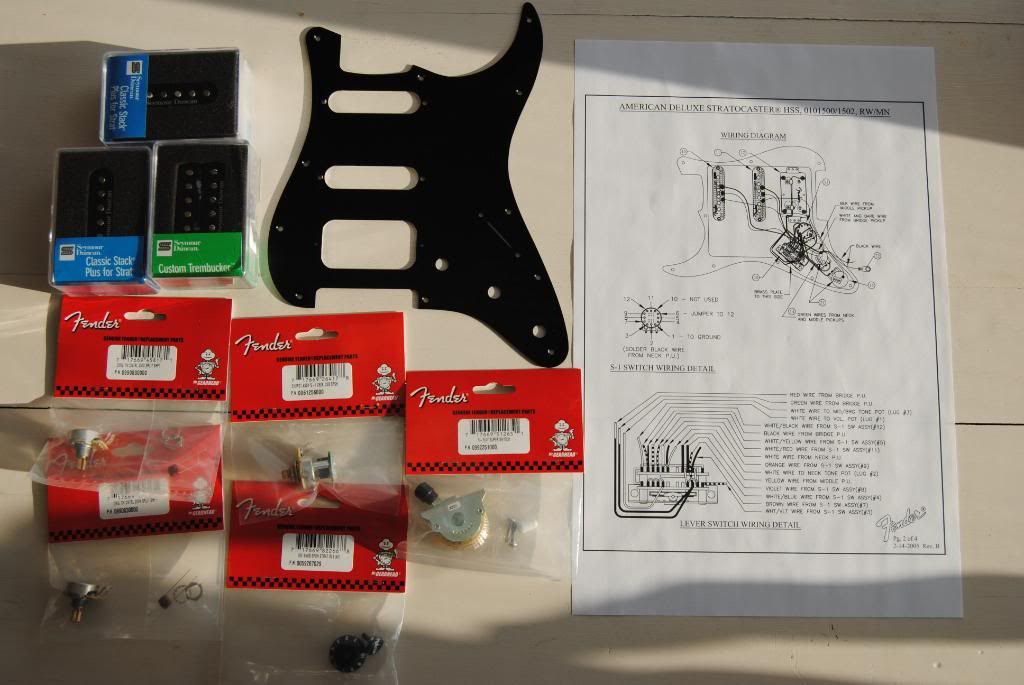

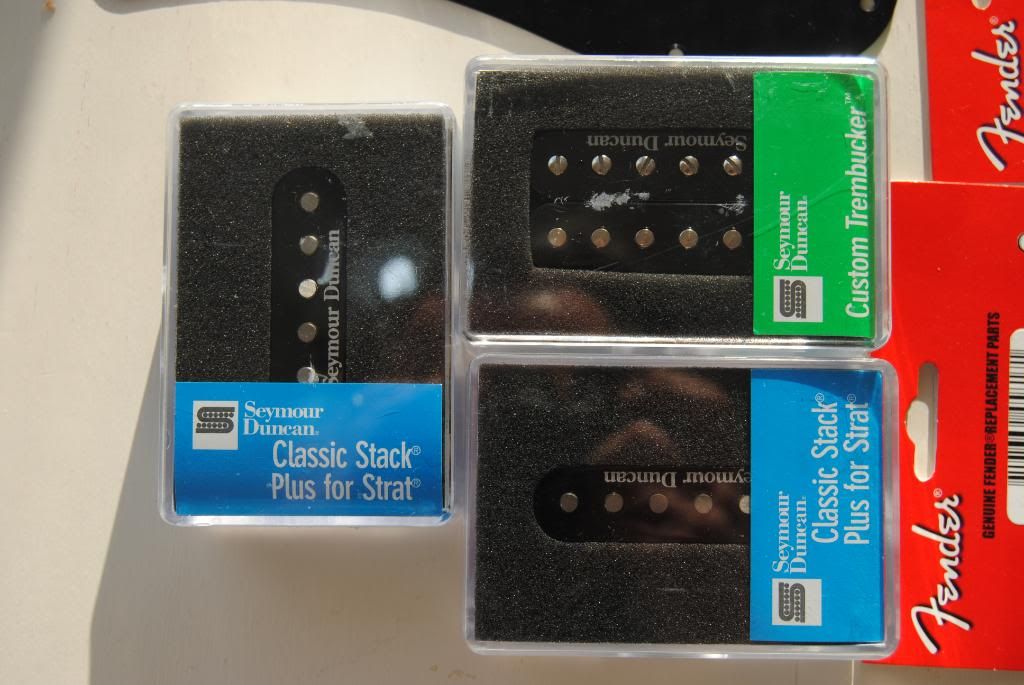

Here are pics of the parts:



_________________
2005 MIA Strat HH Hardtail
Modified 2000 MIM Strat HSS


Top
Profile
Post subject: Re: 1st Strat mod project... parts have arrived! Pg.3
Posted: Tue Aug 02, 2011 6:56 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 04, 2007 10:17 am
Posts: 78

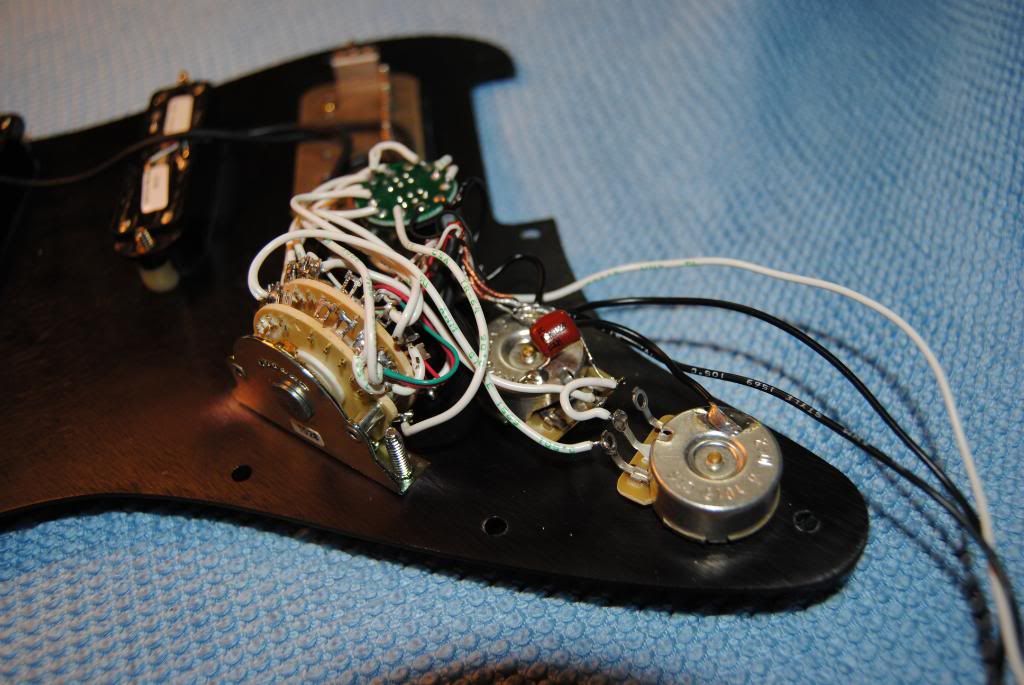

I finally got around to wiring up the new pickguard for my MIM strat! I used the wiring diagram as shown in the post above, with some help from the diagrams that came with the pickups. I didn't have the multi-colored wire that Fender uses, I just used white and black. I plan to put my strat back together and test it sometime this week (hopefully I won't let out the protective smoke, lol!).

Here are some pics and, since this is my first time, if anyone sees a problem in that rats nest of wires, please let me know!




_________________
2005 MIA Strat HH Hardtail
Modified 2000 MIM Strat HSS


Top
Profile
Post subject: Re: 1st Strat mod project... pickguard wired! Pg.3
Posted: Tue Aug 02, 2011 7:16 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Dec 25, 2009 6:49 pm
Posts: 649
Location: Under rocks, shrubs, and trees
Very, very, very cool dude. 8)

And I was thinking about your question about messing with your pedal options. Have you ever thought about getting a multiprocessor?

I have a couple of other pedals, but I find myself constantly fiddling with my RP250. The thing I like about it is that I got all my specifics saved for certain songs we play in church.

Like "DESERT" for "Desert Song", or "SINGX3" for "Sing, Sing, Sing"

Here's a pic:

_________________
Kid: "Hey Smokey! Where did you get your name?"
Smokey the Bear: "Well..."
(former user jimbo612)


Top
Profile
Post subject: Re: 1st Strat mod project... pickguard wired! Pg.3
Posted: Wed Aug 03, 2011 6:03 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Aug 02, 2008 7:11 am
Posts: 1344
Location: Portugal
amen for multiprocessors!!! ;) my ME-70 is the best investment i've ever made... for fiddling around with various effects it is just perfect


Top
Profile
Post subject: Re: 1st Strat mod project... pickguard wired! Pg.3
Posted: Wed Aug 03, 2011 5:22 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 04, 2007 10:17 am
Posts: 78
SmokeythaBear wrote:
Very, very, very cool dude. 8)

And I was thinking about your question about messing with your pedal options. Have you ever thought about getting a multiprocessor?

I have a couple of other pedals, but I find myself constantly fiddling with my RP250. The thing I like about it is that I got all my specifics saved for certain songs we play in church.


Hey Smokey... it's good to hear from somebody else that has a regular Sunday gig! :D

I have seriously thought about a multiprocessor, but I'm used to using my pedals (even though I have been known to step on the wrong one at the wrong time, lol!).

_________________
2005 MIA Strat HH Hardtail
Modified 2000 MIM Strat HSS


Top
Profile
Post subject: Re: 1st Strat mod project... pickguard wired! Pg.3
Posted: Tue Aug 09, 2011 5:37 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 04, 2007 10:17 am
Posts: 78
I finally assembled my strat and it actually works! :shock: And I'm very happy with the way it sounds even though the pickups (to me) don't quite sound like the audio clips on the Seymour Duncan site.
I do have one minor hiccup, however. When the 5-way superswitch is in the first position, I get the same sound whether the s-1 switch is in or out. In all the other positions I do get a different sound when the s-1 is in than when it is out. How can you tell if a pickup is selected? I've tried tapping them with my pick, but I really can't hear anything (is this even a real test? :oops: ).

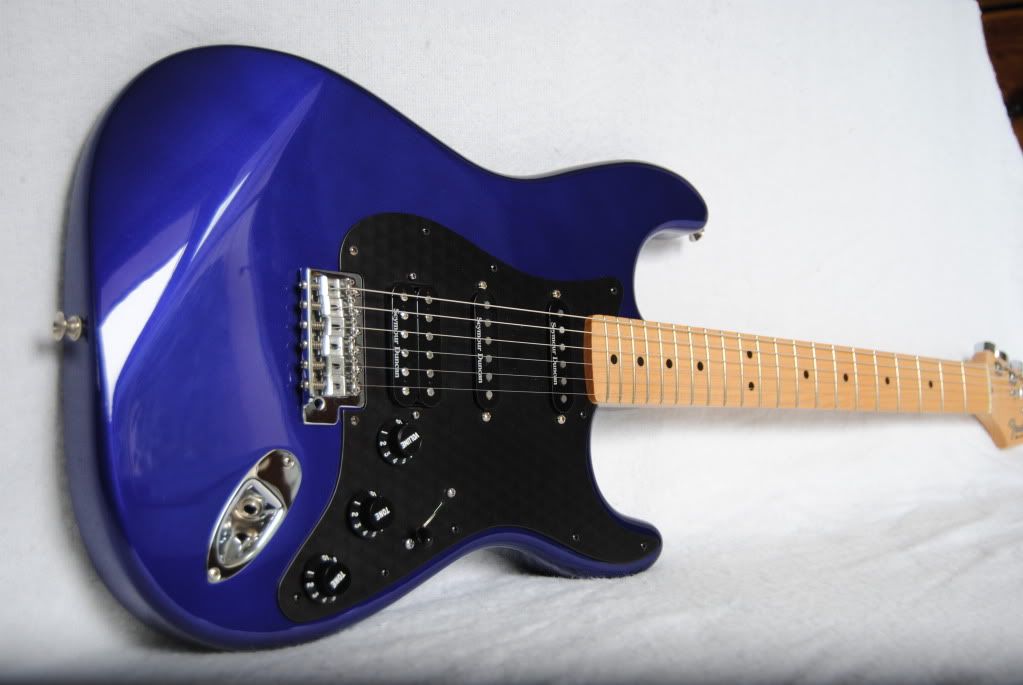

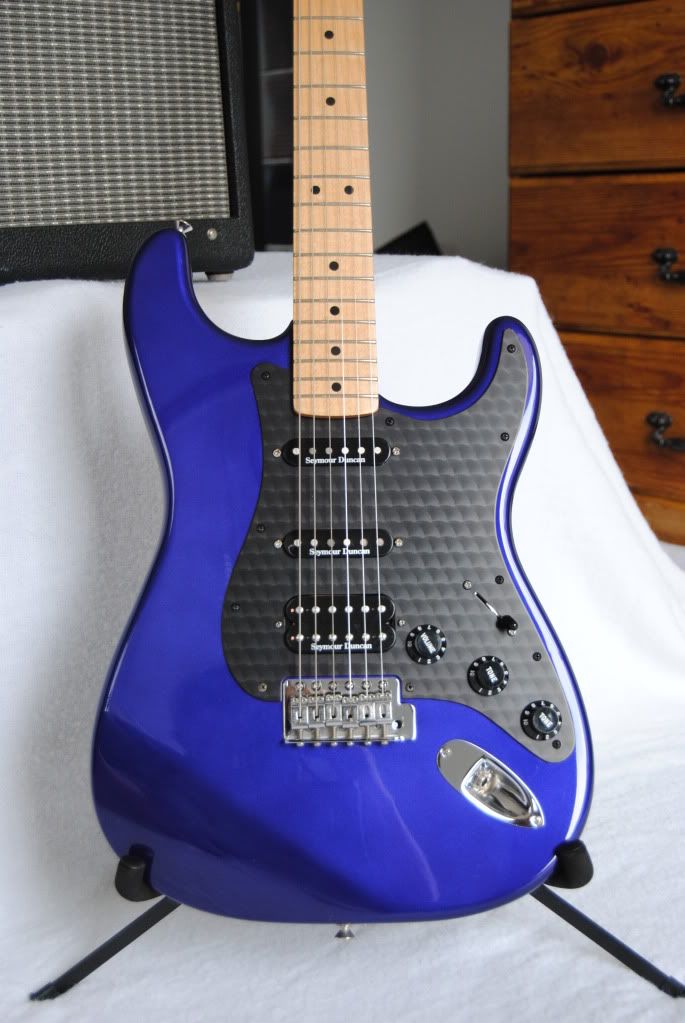

Anyway, here's some pics...

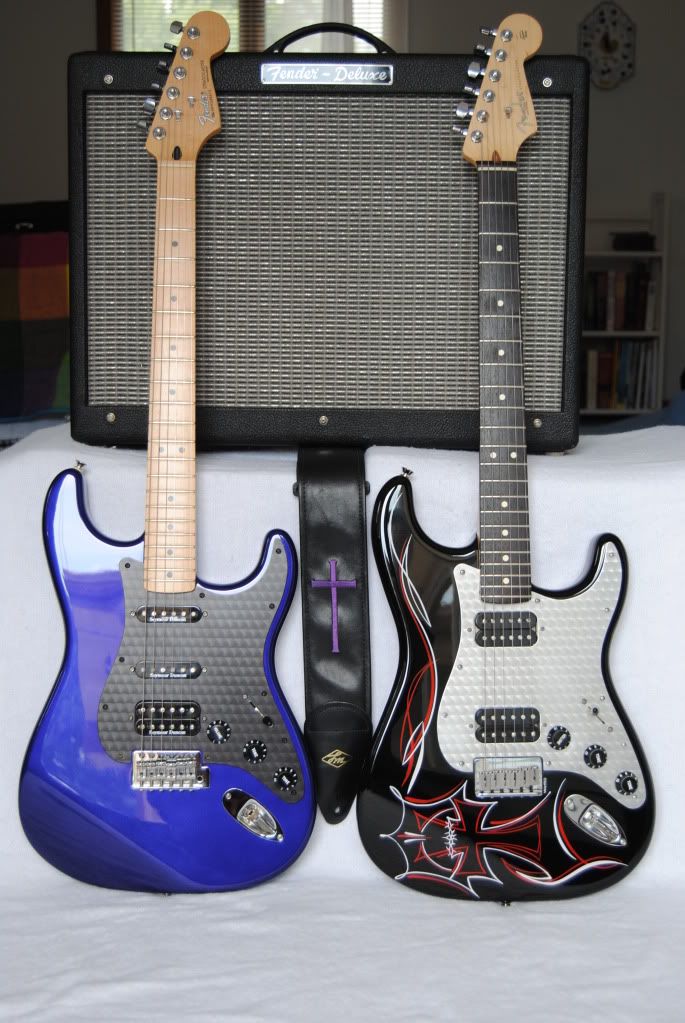

My Fender Trinity

_________________
2005 MIA Strat HH Hardtail
Modified 2000 MIM Strat HSS


Top
Profile
Post subject: Re: 1st Strat mod project... Finished!!!!! Pg.3
Posted: Tue Aug 09, 2011 6:16 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Tue Dec 23, 2008 4:06 pm
Posts: 534
Location: Northern Virginia
Nice, but would have kept the pearloid pick guard (no offense to your efforts, but it's just my personal preference). How are you liking those Classic Stacks? BTW, your two Strats complement each other nicely.


Top
Profile
Post subject: Re: 1st Strat mod project... Finished!!!!! Pg.3
Posted: Tue Aug 09, 2011 6:46 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 04, 2007 10:17 am
Posts: 78
No offense taken... I like the look of the original pickguard also! The main reason I changed the pickguard was to give my strats a kind of "family resemblance". I love the Classic Stacks- especially when running clean.

_________________
2005 MIA Strat HH Hardtail
Modified 2000 MIM Strat HSS


Top
Profile
Post subject: Re: 1st Strat mod project... pickguard wired! Pg.3
Posted: Wed Aug 10, 2011 1:22 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sun Oct 12, 2008 11:20 am
Posts: 27
fontana wrote:
I finally assembled my strat and it actually works! :shock: And I'm very happy with the way it sounds even though the pickups (to me) don't quite sound like the audio clips on the Seymour Duncan site.
I do have one minor hiccup, however. When the 5-way superswitch is in the first position, I get the same sound whether the s-1 switch is in or out. In all the other positions I do get a different sound when the s-1 is in than when it is out. How can you tell if a pickup is selected? I've tried tapping them with my pick, but I really can't hear anything (is this even a real test? :oops: ).


Tap the pole-pieces with a screwdriver.

cheers,

Serge


Top
Profile
Post subject: Re: 1st Strat mod project... pickguard wired! Pg.3
Posted: Wed Aug 10, 2011 5:37 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 04, 2007 10:17 am
Posts: 78
serge01 wrote:
fontana wrote:
I finally assembled my strat and it actually works! :shock: And I'm very happy with the way it sounds even though the pickups (to me) don't quite sound like the audio clips on the Seymour Duncan site.
I do have one minor hiccup, however. When the 5-way superswitch is in the first position, I get the same sound whether the s-1 switch is in or out. In all the other positions I do get a different sound when the s-1 is in than when it is out. How can you tell if a pickup is selected? I've tried tapping them with my pick, but I really can't hear anything (is this even a real test? :oops: ).


Tap the pole-pieces with a screwdriver.

cheers,

Serge


Thanks Serge! I will try that when I get home. :D

_________________
2005 MIA Strat HH Hardtail
Modified 2000 MIM Strat HSS


Top
Profile
Post subject: Re: 1st Strat mod project... Finished!!!!! Pg.3
Posted: Wed Aug 10, 2011 7:46 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Jul 13, 2011 1:48 pm
Posts: 23
Wow, guitar looks great, as does the other one.


Top
Profile
Post subject: Re: 1st Strat mod project... Finished!!!!! Pg.3
Posted: Sat Nov 12, 2011 2:32 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 04, 2007 10:17 am
Posts: 78
I know it's been a while, but thanks to serge01's advise, I did find a wiring error and now s-1 and 5-way select the pickup combos correctly. I took my modded Strat to a guitar tech who set it up beautifully. It stays in tune and I no longer have fret buzz (well, maybe a little, but you can't hear it when plugged into an amp, and I didn't want the action any higher- it's perfect now).

BTW, is my Strat now a Partscaster? I only used new parts, and I didn't change the body or neck, so I'm afraid I might not qualify for that honor. :(

_________________
2005 MIA Strat HH Hardtail
Modified 2000 MIM Strat HSS


Top
Profile
