Post subject: Re: Stratopartster Rebuilds I and II
Posted: Tue Mar 08, 2011 3:33 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 07, 2009 7:27 pm
Posts: 3448
Location: Connecticut

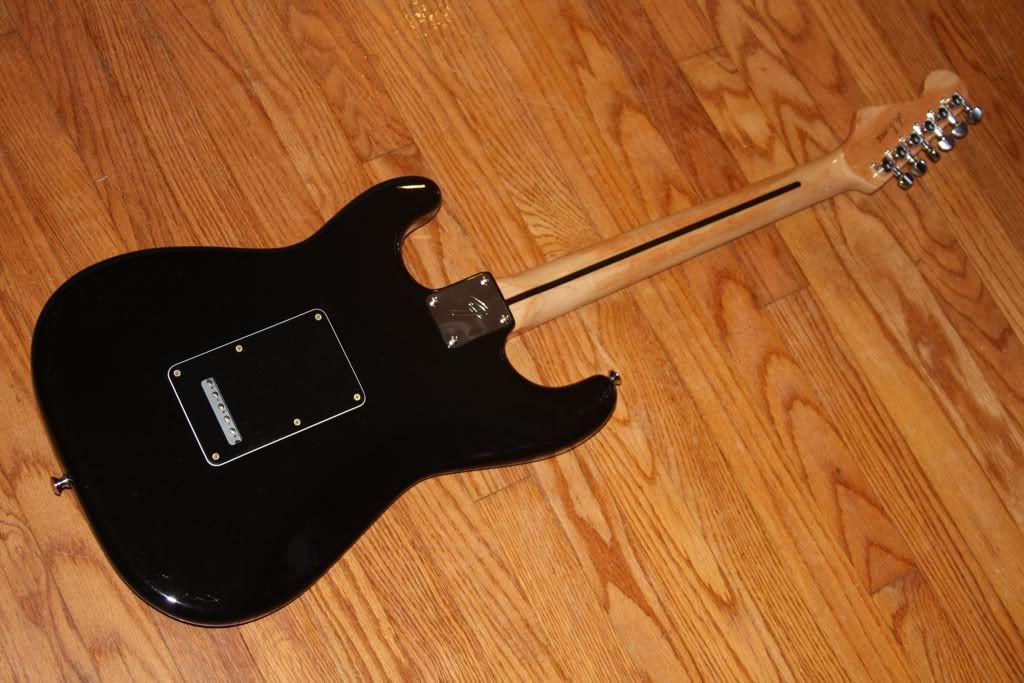

These are the final pics of the 1st rebuild, I would say that total cost has been well under $400 for the entire project. Rebuilding not one but two guitars is definitely a plus but the secret was That I was willing to compromise and use left-over parts as much as possible.


So in all, this guitar comprises of Grover Locking tuners, Fender vintage pups from a Players Deluxe MIM, 2 TBX tone pots, 5 way switch, ( All pick-ups controlled by a TBX ) while I'm on the subject, the funny hum I was getting was from either my living room lights or some other appliance being on last I mentioned it. It was gone and they are as quiet as can be hoped from single coils, only the pickguard is insulated. The bridge is standard but will more than likely undergo a change in the future if at all. Depends how sound/tone works out as I dial in the TBX's and the MIM Vin pups. So far it is a classic strat sound, a little quacky on the BM and NM settings but it was what I was looking for.
Tomorow it will undergo a more thorough test with the HRD... 8)

Now it is back to the Stratopartster II, but that will be tomorrow... :?: :?:

_________________
"C'est parti mon Kiki "


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Tue Mar 08, 2011 4:05 pm
Offline
Amateur
Amateur
User avatar

Joined: Fri Mar 14, 2008 6:30 pm
Posts: 146
Nice work man!!!

_________________
"Blues, as a human you get it right"-

John Mayer
'84 MIJ(#1)
90's Samick S-Type (Slim)
Vox AD50VT-XL w/Footswitch
Peavy Audition Chorus 10 watt


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Wed Mar 09, 2011 11:50 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 07, 2009 7:27 pm
Posts: 3448
Location: Connecticut

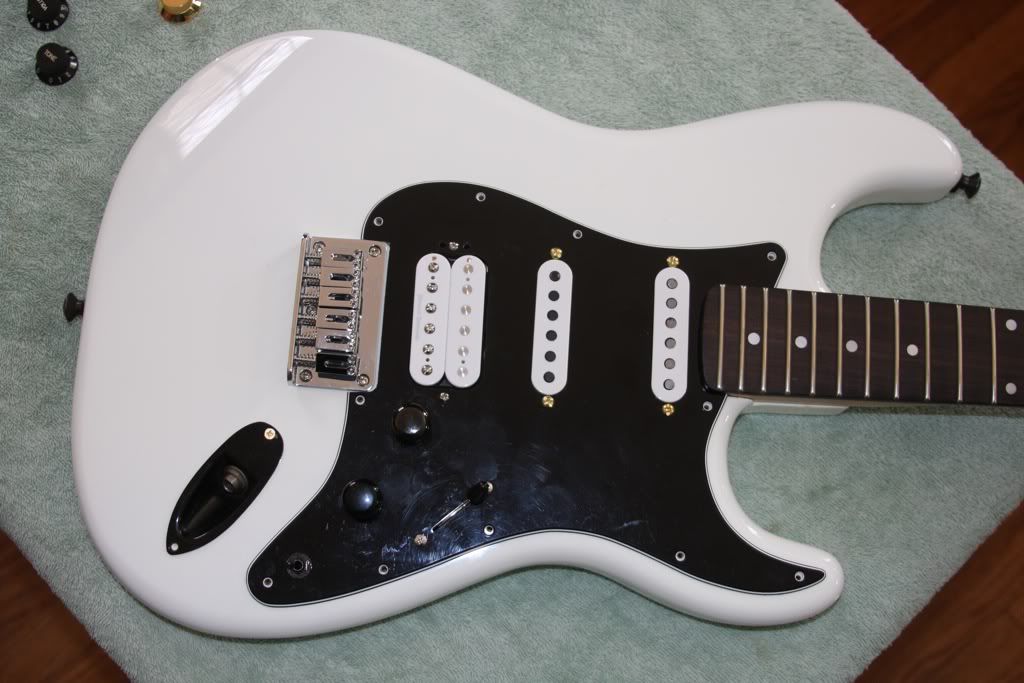

We are back now to continuing the Stratopartster II project.

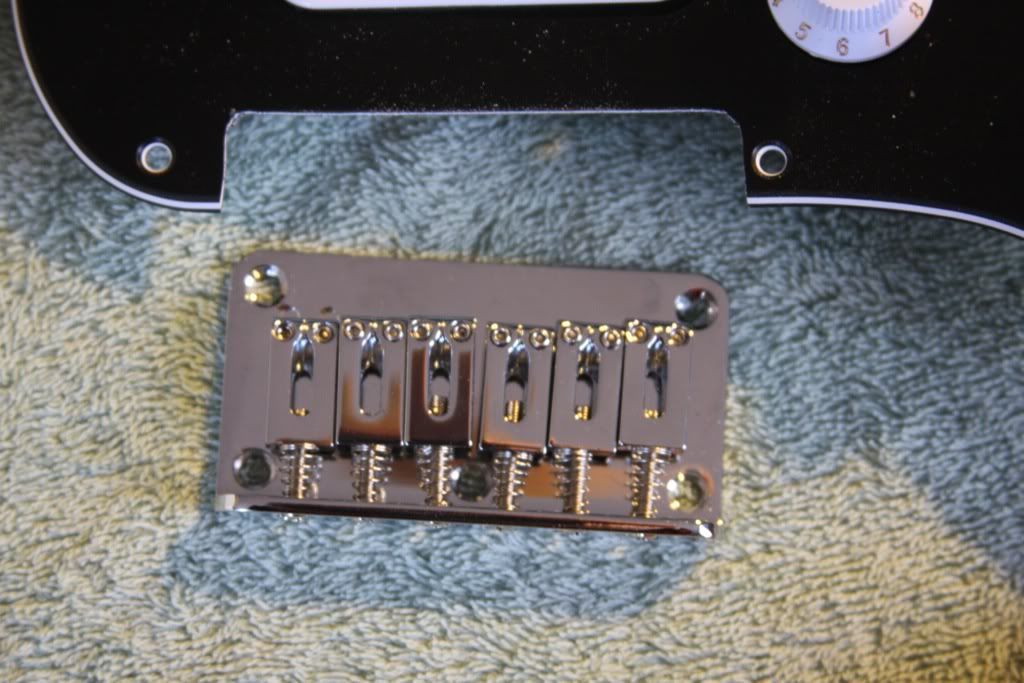

A bit of a hangup with the HT bridge fitting inside the pickguard cutout.
Again another simple mod, attach the pick guard with 3 or 4 screws, attach the bridge with 2 rear screws tighten down so that the screws sit in their recessed slots and the bridge sits flat somewhat on the pickguard.
With a Sharpie I marked where the routing needed to be enlarged.
I said routing but it is just overkill for this situation. A half round and a round file did the trick.

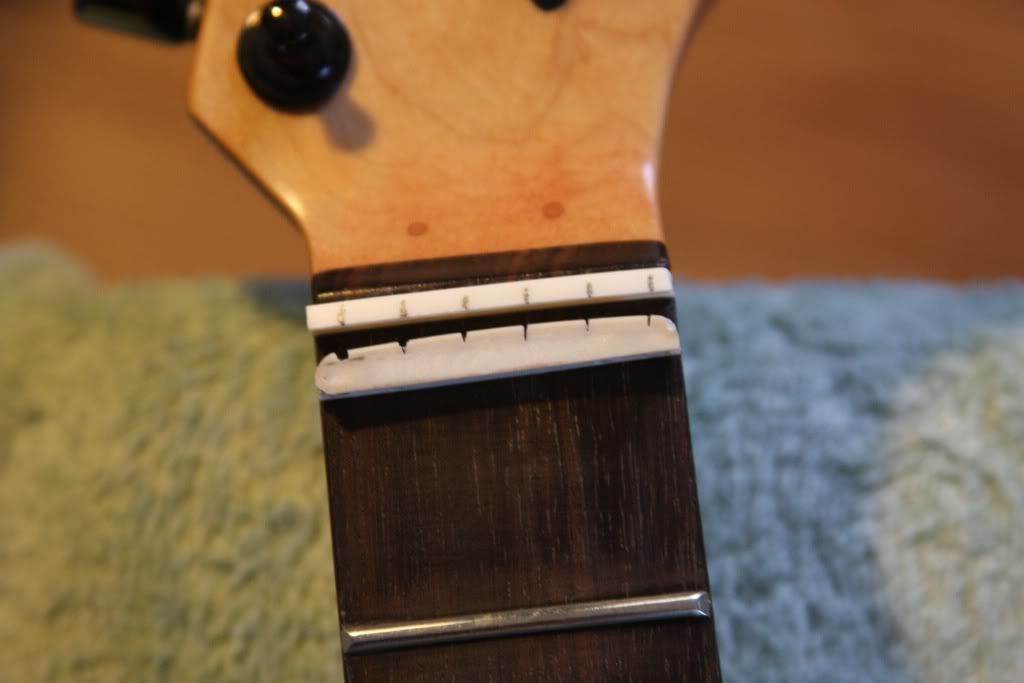

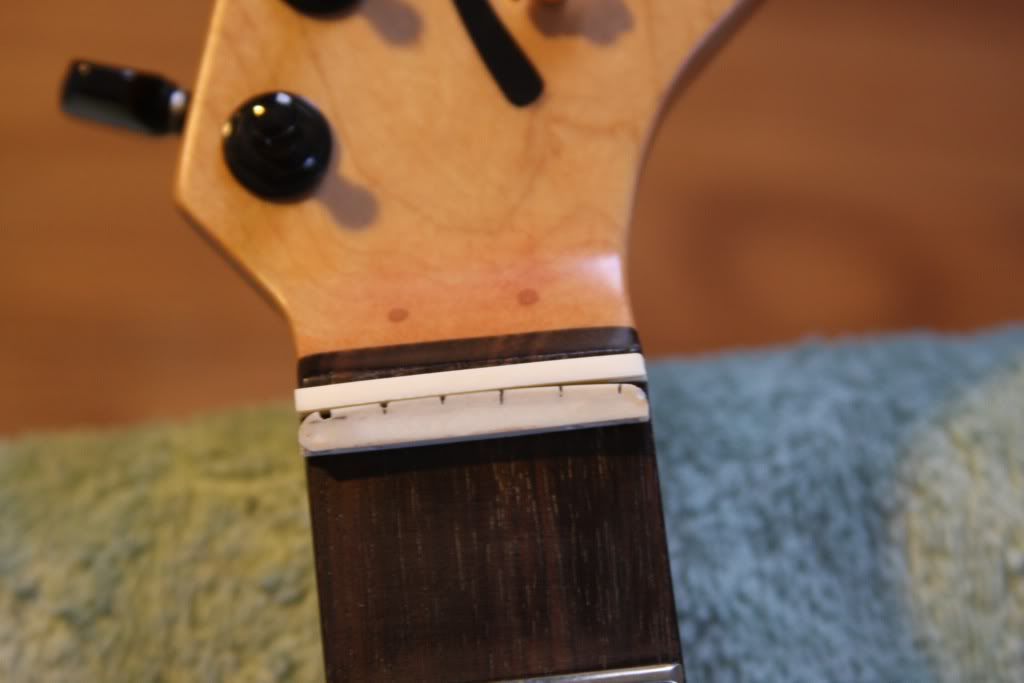

That being done it is to the nut for a brief moment. nut blank was clamped down for the glue to dry, it has been matched to an old nut for slotting marks.
I will get back to this after the pickguard and all electronics are connected as I will need to string it up.. :lol: to adjust the slot depths and string to fret height.

Before

After

_________________
"C'est parti mon Kiki "


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Wed Mar 09, 2011 12:15 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 07, 2009 7:27 pm
Posts: 3448
Location: Connecticut

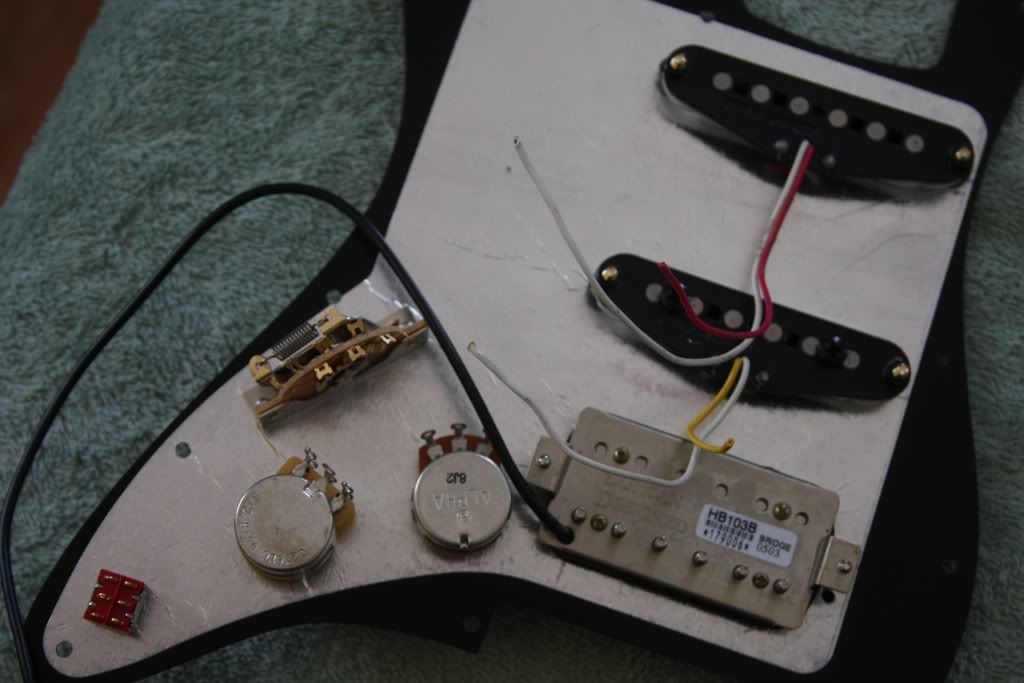

Now we are down to the electronics. I have a problem which I will need some advice from Xhefri, Ceri, NikiNinja, and Martian, Nutter or all of the above...???

As can be seen in the pics, this is a HSS set up going to a Master Volume, a Master TBX Tone, a (edit) DPST switch and a 5 way switch. Now I'm sure about how to hook up the TBX but I'm having a problem finding a schematic for hooking all this up so that I can split the HB coils and use that pick up as a split single coil in the normal fashion of ( NM, MB, B, M, N.) all the while using the bridge in any of the combination as a Humbucker or as a single coil.
I also wish I could do a NB selection but that would require a Superswitch or an SI switch.

So can anyone suggest a schematic for my set up :?: Thank You.


_________________
"C'est parti mon Kiki "


Last edited by 53magnatone on Sat Mar 19, 2011 11:10 am, edited 1 time in total.

Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Fri Mar 11, 2011 2:10 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Dec 01, 2009 9:22 am
Posts: 2175
Howdy!

Dang! You put your guitars together way quicker than I can! I seem to have missed the last few updates here. All look good!

I can provide you with a wiring diagram that will give you standard Strat switching on the 5 , with a Master Vol, Mater TBX tone and a coil tap for the Humbucker.

Can you confirm what type of DPDT switch that is (on/on/on or on/off/on)?

If you have a push/pull pot you could use that as the master Vol and a bridge on/off switch...

Good thread mate! :D

Andy

Edit: I've just seen that the X man has given you some top info over in his thread. May well be all you need! 8)

_________________
Pending Greatness


Last edited by Andybighair on Fri Mar 11, 2011 2:47 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Fri Mar 11, 2011 2:31 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Oct 11, 2007 3:31 pm
Posts: 2638
Location: Pacific North West, USA
53magnatone wrote:
Now we are down to the electronics. I have a problem which I will need some advice from Xhefri, Ceri, NikiNinja, and Martian, Nutter or all of the above...???

As can be seen in the pics, this is a HSS set up going to a Master Volume, a Master TBX Tone, a DPDT switch and a 5 way switch. Now I'm sure about how to hook up the TBX but I'm having a problem finding a schematic for hooking all this up so that I can split the HB coils and use that pick up as a split single coil in the normal fashion of ( NM, MB, B, M, N.) all the while using the bridge in any of the combination as a Humbucker or as a single coil.

I left a post on my thread for this. You could use a simple 3-lug on/off mini-switch to tap the HM. This is look'in great!

_________________
Xhefri's Guitars
www.xhefriguitars.com


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Fri Mar 11, 2011 2:54 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 07, 2009 7:27 pm
Posts: 3448
Location: Connecticut
Xhefri wrote:
53magnatone wrote:
Now we are down to the electronics. I have a problem which I will need some advice from Xhefri, Ceri, NikiNinja, and Martian, Nutter or all of the above...???

As can be seen in the pics, this is a HSS set up going to a Master Volume, a Master TBX Tone, a DPDT switch and a 5 way switch. Now I'm sure about how to hook up the TBX but I'm having a problem finding a schematic for hooking all this up so that I can split the HB coils and use that pick up as a split single coil in the normal fashion of ( NM, MB, B, M, N.) all the while using the bridge in any of the combination as a Humbucker or as a single coil.

I left a post on my thread for this. You could use a simple 3-lug on/off mini-switch to tap the HM. This is look'in great!


Thanks, I'm anxious to finish it up as the last hold out are the electronics. I have to do a bit of reading in that book I've had for ages " Guitar Electronics for Musicians " for some reason, that little switch with the six contact points is throwing me for a loop.... :?

_________________
"C'est parti mon Kiki "


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Fri Mar 11, 2011 3:07 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 07, 2009 7:27 pm
Posts: 3448
Location: Connecticut
Andybighair wrote:
Howdy!

Dang! You put your guitars together way quicker than I can! I seem to have missed the last few updates here. All look good!

I can provide you with a wiring diagram that will give you standard Strat switching on the 5 , with a Master Vol, Mater TBX tone and a coil tap for the Humbucker.

Can you confirm what type of DPDT switch that is (on/on/on or on/off/on)?

If you have a push/pull pot you could use that as the master Vol and a bridge on/off switch...

Good thread mate! :D

Andy

Edit: I've just seen that the X man has given you some top info over in his thread. May well be all you need! 8)


Thank You Andy,
But in case any one missed the fine print :lol: , I started posting this thread at the end of the projects, well after the necks and bodies were refinished, so that gave me quite a head-start.
I'm also working nights @ Fed-EX for the time being, had an interview for a managerial position yesterday. I just don't see my industry coming back to full strenght for some time yet. I hope I'm wrong, but the high-end Custom residential remodeling/renovations customers are not banging down my door, so it's back to school online and we'll see.

Yes, ( sorry I digressed there for a moment ) I could use that schematic..
OK looking at this little switch, I see on/on, 3A 250vac, 5A 125vac.
on the other side of the switch it says TBO-T SALECOM and it has six contact points.
You said On/Off/On :?: Does that mean ON/ON will not work :?: Do I need to go to Radioshack for a change :?:

Thanks..

_________________
"C'est parti mon Kiki "


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Sat Mar 12, 2011 9:52 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Dec 01, 2009 9:22 am
Posts: 2175
Howdy!

Whoops! I did indeed miss the small print! Ah well, hopefully the following will redeem myself.

Here ya go buddy! :D


BTW: Your mini switch is an DP/ST (double pole/single throw) switch. :D

Hope the interview went well.

Enjoy!

Andy

_________________
Pending Greatness


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Sat Mar 12, 2011 5:22 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 07, 2009 7:27 pm
Posts: 3448
Location: Connecticut
Andybighair wrote:
Howdy!

Whoops! I did indeed miss the small print! Ah well, hopefully the following will redeem myself.

Here ya go buddy! :D


BTW: Your mini switch is an DP/ST (double pole/single throw) switch. :D

Hope the interview went well.

Enjoy!

Andy


8) :D 8) :D 8) :D 8) :D 8) :D 8) :D 8) :D 8) :D :idea: :idea:

More than I expected, this solves my :? most definitely. A million Thank You's....
I may have to get on this tonight as I'm dying to see/hear what this Stratopartster II will sound like.
Not to mention the fact that I still have the Precision Bass, awaiting a complete rebuild and the 3/4 axe all ready to be reassembled...
I couldn't resist the P bass, I walked into Guitar Center last fall and there it was, a Squier precision Bass, painted in a hideous dayglow red/orange, however the price was :shock: $10.00....
" NO... I did not mistype ". But that's for another thread rebuild.

The interview seemed to go well, at least they said they liked what they heard, but there are couple other potential managers with more tenure than I. We'll See..
Thank's for asking...

Sweet !!!

_________________
"C'est parti mon Kiki "


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Sat Mar 12, 2011 6:46 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Mar 13, 2009 12:06 pm
Posts: 479
Location: Devon,England
Wow you've been patient with this :) and it has evidently paid off! glad to have come back on after a while away and found a superb quality build thread :P
last one i saw was AndyBigHairs big hairy strat build. :P

_________________

A painter paints pictures on canvas. But musicians paint their pictures on silence. ~Leopold Stokowski~


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Tue Mar 15, 2011 8:04 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 07, 2009 7:27 pm
Posts: 3448
Location: Connecticut
ClassicRock92 wrote:
Wow you've been patient with this :) and it has evidently paid off! glad to have come back on after a while away and found a superb quality build thread :P
last one i saw was AndyBigHairs big hairy strat build. :P


Thank's, Yeah, " PATIENCE " is key, I've done a couple Frankenstein's in te past where I rushed and it always ends up a mess... :oops:

_________________
"C'est parti mon Kiki "


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Tue Mar 15, 2011 4:48 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Aug 13, 2010 11:07 am
Posts: 1530
Location: On a pebbly beach, UK
ClassicRock92 wrote:
Wow you've been patient with this :) and it has evidently paid off! glad to have come back on after a while away and found a superb quality build thread :P
last one i saw was AndyBigHairs big hairy strat build. :P


Hey Mr ClassicRock, good to see you around. How are you these days?

Cheers

Nutter


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Tue Mar 15, 2011 4:50 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Aug 13, 2010 11:07 am
Posts: 1530
Location: On a pebbly beach, UK
53magnatone wrote:
Now we are down to the electronics. I have a problem which I will need some advice from Xhefri, Ceri, NikiNinja, and Martian, Nutter or all of the above...???


Electronics!? Scratch me, ask Andy instead. ;)

(I know I'm late, I just want to own up. He's Mr Universum when it comes to wiring diagrams. And epic socks.) :lol:

Cheers

Nutter


Top
Profile
Post subject: Re: Stratopartster Rebuilds I and II
Posted: Tue Mar 15, 2011 6:26 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Mar 13, 2009 12:06 pm
Posts: 479
Location: Devon,England
The_Nutter wrote:
ClassicRock92 wrote:
Wow you've been patient with this :) and it has evidently paid off! glad to have come back on after a while away and found a superb quality build thread :P
last one i saw was AndyBigHairs big hairy strat build. :P


Hey Mr ClassicRock, good to see you around. How are you these days?

Cheers

Nutter

Well hello there Mr TheNutter! im not too bad! I have changed career paths now so im trying to become an apprentice in mechanical engineering with Babcock Group the company contracted at my Dockyard. though this is more information than necessary im very fond of the "family" on here so I like to share :)
Btw they gave me the interview and im hoping to go through to the final interview now find out at the months end :) ill let everyone know!

Hope you and anyone else who reads this has been well :)
