Post subject: Strat Build Info
Posted: Mon Feb 21, 2011 9:01 pm
Offline
Professional Musician
Professional Musician

Joined: Sat Jul 21, 2007 1:08 pm
Posts: 1307
I'm terribly sorry, but I searched and searched and could not find the threads. I'm old, burnt out, and medicated. I am going to build a strat copy and need info. In particular, I was looking for Sir Ceri's tremolo picks. I bought a two piece ash body, and I am thinking about ordering a boatneck contour neck from Warmoth. Any comments? I ordered some cs-69s. So that's about it. Thanks.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Strat Build Info
Posted: Mon Feb 21, 2011 9:08 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Dec 31, 2008 9:31 am
Posts: 1282
Location: Hunterdon County NJ
Here is the thread that listed many of the build projects ...

viewtopic.php?f=6&t=43152&hilit=build+listing

_________________


Top
Profile
Post subject: Re: Strat Build Info
Posted: Mon Feb 21, 2011 9:11 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Hi GTG,

Here is a collection of lots of build thread links, courtesy of The_Nutter. Each post has a link to a different build thread. :idea:

http://www.fender.com/community/forums/viewtopic.php?p=518530

Edit:
same link that Kong already posted, sorry.

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: Strat Build Info
Posted: Mon Feb 21, 2011 10:36 pm
Offline
Professional Musician
Professional Musician

Joined: Sat Jul 21, 2007 1:08 pm
Posts: 1307
Thanks guys. Much appreciated.


Top
Profile
Post subject: Re: Strat Build Info
Posted: Tue Feb 22, 2011 6:19 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
GTG wrote:
In particular, I was looking for Ceri's tremolo pics.

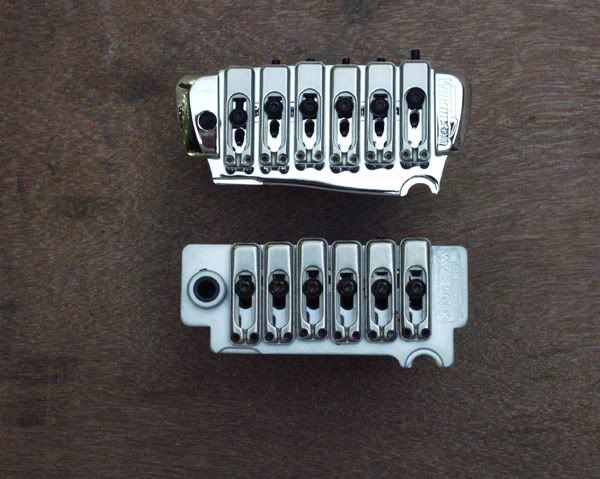

Hi GTG: if it's just the bridge pics you're after let me save you the search. On the Burnt Strat I used a Wilkinson VS401. It is the one on the top/right in these pics, seen alongside the older Wilkinson VS50 MkII on the bottom/left:

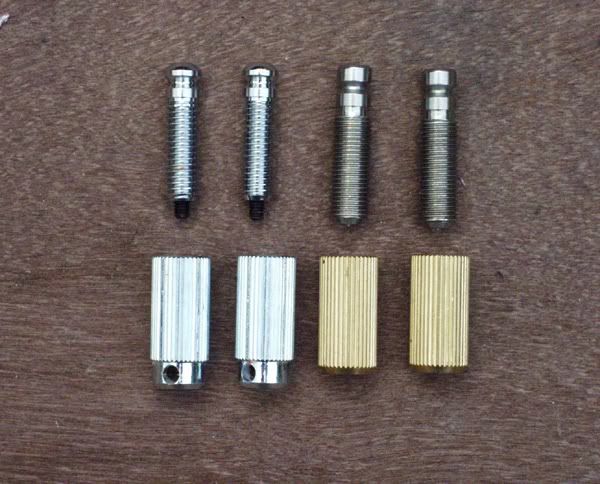

And here is a comparison between the posts and bushings for those two bridges. This time the VS401 parts are on the left; you can see that the newer model has the extra central screws to the post which allow it to be locked firmly to the exact chosen height setting - not vital, but a nice extra detail:


Also, good features of both those bridges are a little grub screw that allows you to control the exact stiffness with which the trem arm turns in it's hole, so you can have it fall-away loose or stay-firmly-in-place tight, or somewhere between (my choice). Also, both bridges have the same Wilkinson saddles which lock in place both heightwise and for intonation, which makes the whole system as rigid as can be for ultimate transfer of string vibration to the block. Which can't be bad!

Many top makers have been using the VS50 and VS100 bridges for a long time, including the likes of James Tyler, Martyn Booth and others. And now we're starting to see the newer VS401 (above) appearing on top-end guitars, not least Trev Wilkinson's own Green Label Fret-King models.

None of which makes it the "best" bridge. But I'm here to say it's pretty good!

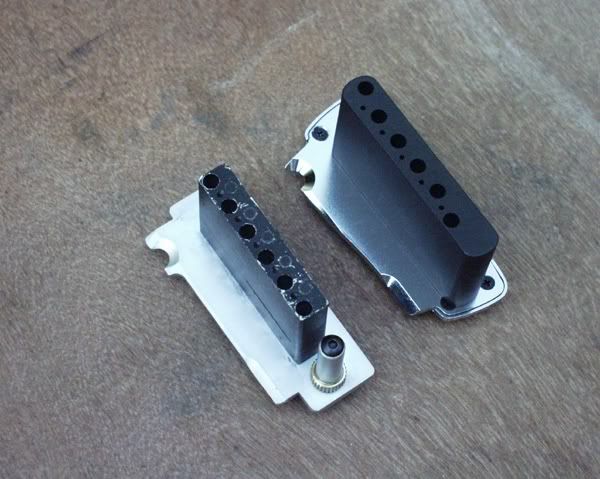

As mentioned, the older bridge above is a VS50; save a couple of details (particularly the trem posts) it is pretty much the same as the VS100 which I used on my Black Strat project:

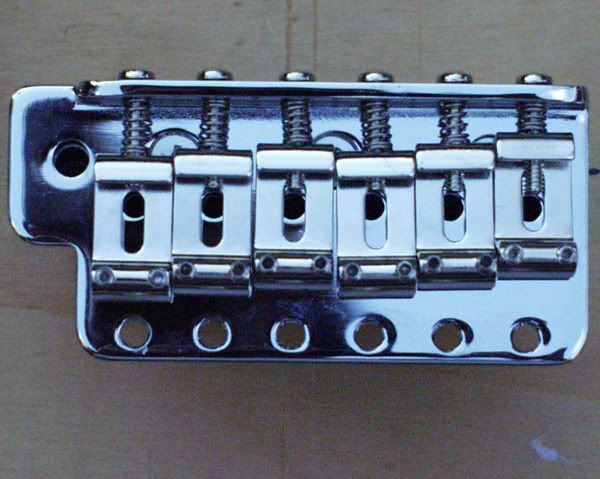

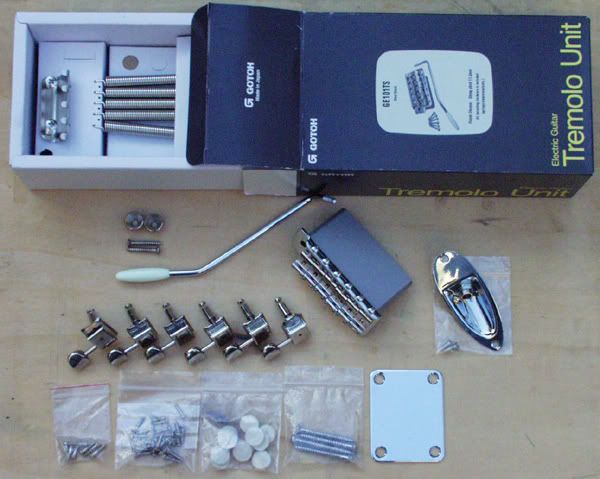

Alternatively, if it was a six-screw bridge you were remembering then on the Pale Blue Strat I used a top-of-their-line Gotoh "vintage" trem, model GE101TS:



That one has the full sized steel block and does a very nice job. Or any of the previously mentioned Wilkinson bridges are also available in six-screw versions.

'Bout everything I can think of to say about bridges at this time. Any use?

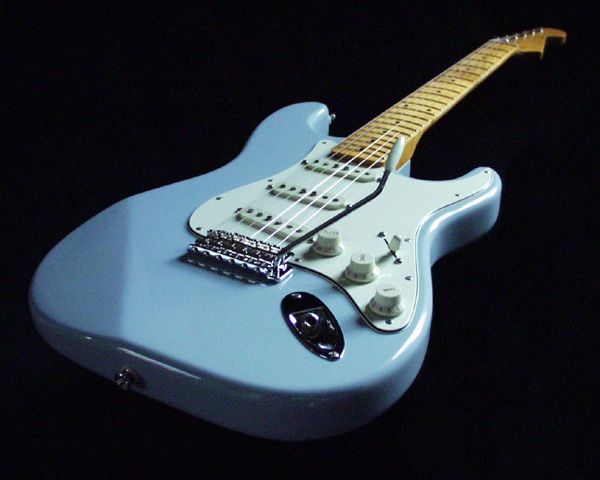

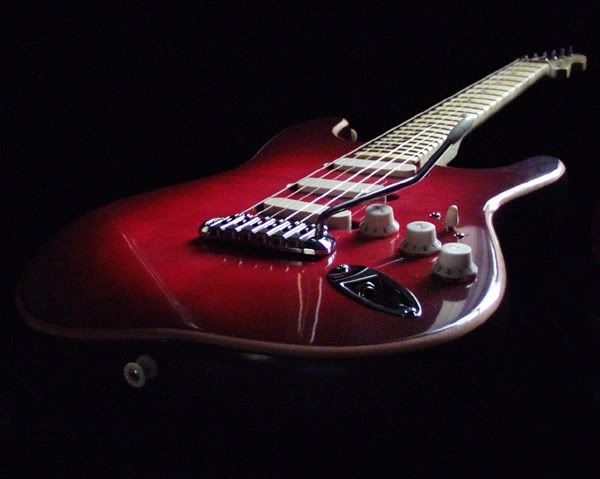

Anyway. A couple of those bridges in action:



Cheers - C

_________________


Top
Profile
Post subject: Re: Strat Build Info
Posted: Tue Feb 22, 2011 8:56 am
Offline
Professional Musician
Professional Musician

Joined: Sat Jul 21, 2007 1:08 pm
Posts: 1307
Very useful, thank you. I saw some Wilkinson/Gotoh trems on Stew Mac I believe, and thought they looked familiar. I will study your thread. Already saw the part about drilling the big hole with a smaller one in the bottom. That is probably a hair saver. Thanks again. G


Top
Profile
Post subject: Re: Strat Build Info
Posted: Tue Feb 22, 2011 7:28 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Feb 19, 2010 4:55 pm
Posts: 723
warning... thread hijack:

Mr Shields, you're collection of pics to show off "bridges" is more like a gallery of glutenous guitar greatness, a cavalcade of capital craftsmanship or a spectacle of superior strat synthesis.... Tip of the hat to you sir

</end hijack/brown-nosing>

_________________
My Rig: Guitar into Pedals then into Amps and out into Speakers.


Top
Profile
Post subject: Re: Strat Build Info
Posted: Tue Feb 22, 2011 9:13 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 20, 2008 11:08 am
Posts: 2265
Impulse7 wrote:
warning... thread hijack:

Mr Shields, you're collection of pics to show off "bridges" is more like a gallery of glutenous guitar greatness, a cavalcade of capital craftsmanship or a spectacle of superior strat synthesis.... Tip of the hat to you sir

</end hijack/brown-nosing>


lol.. at first glance, i was like whuht :? , then shortly after that, i got it.
sorry getting close to bed time...

_________________
"Yesterday is history, tomorrow is a mystery, but today is a gift. That is why it is called the present."

oogway, kungfu panda 2008


Top
Profile
Post subject: Re: Strat Build Info
Posted: Tue Feb 22, 2011 9:38 pm
Offline
Professional Musician
Professional Musician

Joined: Sat Jul 21, 2007 1:08 pm
Posts: 1307
Dammit, Impulse7. No thread hijacking for purposes of brown nosing. It's unheard of.


Top
Profile
Post subject: Re: Strat Build Info
Posted: Wed Feb 23, 2011 3:11 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
Impulse7 wrote:
warning... thread hijack:

Mr Shields, you're collection of pics to show off "bridges" is more like a gallery of glutenous guitar greatness, a cavalcade of capital craftsmanship or a spectacle of superior strat synthesis.... Tip of the hat to you sir

</end hijack/brown-nosing>

Uh... who?

:| - C

(PS: g'day to you too, Mr Impulse. :) )

_________________


Top
Profile
Post subject: Re: Strat Build Info
Posted: Wed Feb 23, 2011 7:13 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Dec 01, 2009 9:22 am
Posts: 2175
Ceri wrote:

Man, That really is a seriously good looking Strat! 8)

Andy

_________________
Pending Greatness


Top
Profile
Post subject: Re: Strat Build Info
Posted: Wed Feb 23, 2011 7:52 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
Andybighair wrote:
Man, That really is a seriously good looking Strat! 8)

I've been quietly waiting all this time for someone to point out that the strings look very high. Just look at that bottom E. I don't think I bothered to set it up before taking the pics. Just threw it together and started snapping! :lol:

Cheers - C

_________________


Top
Profile
Post subject: Re: Strat Build Info
Posted: Wed Feb 23, 2011 8:33 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Dec 01, 2009 9:22 am
Posts: 2175
Ceri wrote:
Andybighair wrote:
Man, That really is a seriously good looking Strat! 8)

I've been quietly waiting all this time for someone to point out that the strings look very high. Just look at that bottom E. I don't think I bothered to set it up before taking the pics. Just threw it together and started snapping! :lol:

Cheers - C

Nah, doesn't look too bad at all. Too busy gawking at the lovely shine you've captured in that pic. Guitars are bloody hard to photograph well, something you have cracked here Mr C.

Andy

_________________
Pending Greatness


Top
Profile
Post subject: Re: Strat Build Info
Posted: Wed Feb 23, 2011 8:43 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
Andybighair wrote:
Nah, doesn't look too bad at all.

At that point in the thread people were excitedly asking; "how does it sound?" I was secretly thinking to myself; "I have no idea - I haven't even soldered up the output jack yet...!"

Hey-ho, build threads. It's a bonny life if you don't weaken. 8)


Andybighair wrote:
Guitars are bloody hard to photograph well, something you have cracked here Mr C.

How tactful. ...How improbable. :lol: :lol: :lol:

Cheers - C

_________________


Top
Profile
Post subject: Re: Strat Build Info
Posted: Wed Feb 23, 2011 11:17 am
Offline
Professional Musician
Professional Musician

Joined: Sat Jul 21, 2007 1:08 pm
Posts: 1307
Well, I've ordered everything, so now I wait.
