Post subject: HELP: Aluminium foil "shield" on new pickguard nec
Posted: Fri Jan 25, 2008 8:10 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Jan 12, 2008 6:07 pm
Posts: 46
I just instaled a new pickguard and it occurred to me that theres no aluminium foil on the inside.


Does the "shielding foil" have any purpose?


should I put something on the back of my new pickguard too then?


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Fri Jan 25, 2008 9:49 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jul 16, 2007 3:47 pm
Posts: 4294
Location: Somewhere near Seattle
The copper shielding is to reduce hum and other interference. It's pretty important.

_________________
"is that a real poncho...i mean
Is that a mexican poncho
Or is that a sears poncho?
Hmmm...no foolin ...." FZ


Top
Profile
Post subject:
Posted: Mon Jan 28, 2008 7:55 am
Offline
Hobbyist
Hobbyist

Joined: Sat Jan 12, 2008 6:07 pm
Posts: 46
Copper? you must mean the silver colored foil, right?


Top
Profile
Post subject:
Posted: Mon Jan 28, 2008 9:18 am
Offline
Roadie
Roadie
User avatar

Joined: Thu Jun 28, 2007 9:40 am
Posts: 261
Don't EVER use aluminium foil for shielding. Always use copper or steel. Copper shielding tape will work on a pickguard like yours just fine. To get some go to the Stewert MacDonald website at stewmac.com. Won't be too hard to find and it's notr that expensive.

Copper shielding on your pickguard will help reduce noise created by the electronics in your guitar, it's just a standard measure yu should take to make sure your guitar sounds as good as possible.

_________________
"The beauty of grace is that it makes life unfair" - Reliant K


Top
Profile
Post subject:
Posted: Mon Jan 28, 2008 2:08 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Jan 12, 2008 6:07 pm
Posts: 46
So I just tape it on the whole back side of my pickguard?


Cause on my original one, theres only foil where the knobs are...


And will it make a lot of difference if I dont?


Top
Profile
Post subject:
Posted: Mon Jan 28, 2008 2:11 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jan 28, 2008 2:04 pm
Posts: 12
You can skip all that mess. I'm using an Axeguard. The days of foil are over...

AxeGuardz


Top
Profile
Post subject:
Posted: Tue Jan 29, 2008 3:43 pm
Offline
Roadie
Roadie
User avatar

Joined: Thu Jun 28, 2007 9:40 am
Posts: 261
Yeah for like $55 though?

Settle for the tape I told you about. It has adhesive glue on the back. It's like covering the controls part of your pickguard with duct tape. It's easy. Just make sure it's nice and flat and you can sheild your guitar just fine. And you'll even have enough for other projects. Definately the easier route.

_________________
"The beauty of grace is that it makes life unfair" - Reliant K


Top
Profile
Post subject:
Posted: Tue Jan 29, 2008 4:06 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jan 28, 2008 2:04 pm
Posts: 12
Easier? Clearly you don't understand what you were looking at. It's not a pickguard, but a different product that replaces it, and adds new function above the old plastic pickguard.


Top
Profile
Post subject:
Posted: Tue Jan 29, 2008 4:32 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jul 16, 2007 3:47 pm
Posts: 4294
Location: Somewhere near Seattle
It's a lot easier then moving all the electronics onto a $55 pickguard. At least in my book. I don't see any new function other then slightly better shielding. The copper tape and proper grounding does just fine for a whole lot cheaper and much less work involved.

_________________
"is that a real poncho...i mean
Is that a mexican poncho
Or is that a sears poncho?
Hmmm...no foolin ...." FZ


Top
Profile
Post subject:
Posted: Tue Jan 29, 2008 8:23 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Wed Jul 04, 2007 2:32 pm
Posts: 3

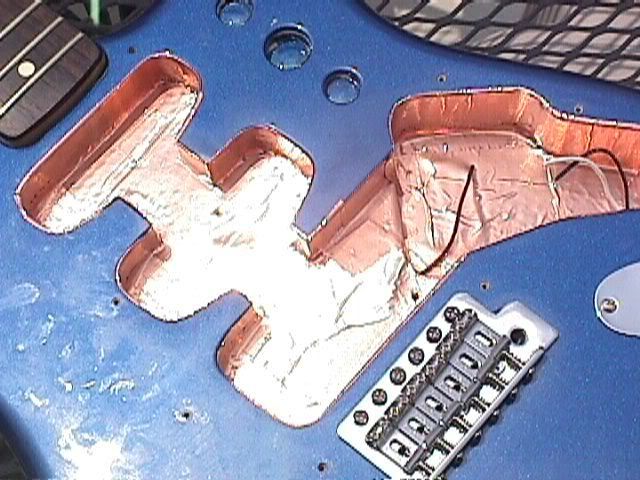

I went with the copper shielding inmy strat before I replaced the whole pickguard assembly. It wasnt to hard to do. Cost me about $8
http://i236.photobucket.com/albums/ff16 ... C-006F.jpg[/img]


Top
Profile
Post subject:
Posted: Tue Jan 29, 2008 9:11 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jul 16, 2007 3:47 pm
Posts: 4294
Location: Somewhere near Seattle
That's what I'm talkin about.

_________________
"is that a real poncho...i mean
Is that a mexican poncho
Or is that a sears poncho?
Hmmm...no foolin ...." FZ


Top
Profile
Post subject:
Posted: Wed Jan 30, 2008 9:16 am
Offline
Roadie
Roadie
User avatar

Joined: Thu Jun 28, 2007 9:40 am
Posts: 261
Yeah, and while yer at it, why don't you use the excess tape to sheild the4 control cavities if that hasn't been done yet. Just a thought.

_________________
"The beauty of grace is that it makes life unfair" - Reliant K


Top
Profile
Post subject:
Posted: Wed Jan 30, 2008 9:19 am
Offline
Roadie
Roadie
User avatar

Joined: Thu Jun 28, 2007 9:40 am
Posts: 261
:!: WAIT hold up. Just realized what you're talking about. Don't cover the ENTIRE pickguard with tape, just where the controls are. Very sorry for the misunderstanding, I hope you haven't done it already.

_________________
"The beauty of grace is that it makes life unfair" - Reliant K


Top
Profile
Post subject:
Posted: Wed Jan 30, 2008 9:25 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Wed Jun 20, 2007 11:31 am
Posts: 940
Bloozinay wrote:
Easier? Clearly you don't understand what you were looking at. It's not a pickguard, but a different product that replaces it, and adds new function above the old plastic pickguard.


Easy, big feller, we all understood it perfectly. You bought one, so it's the greatest thing since sliced bread. And yes, it's a pickguard. A highly shielded, 55-dollar pickguard.

This quote from the website kills me.

"It's been twenty-five years since the music industry has witnessed such a revolutionary new product. "

Golly. I can think of some pretty revolutionary music products in the past 25 years. But, hey, I guess this one's the most-est, huh? I mean... they couldn't say it if it wasn't true...


Top
Profile
Post subject:
Posted: Wed Jan 30, 2008 2:41 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jul 16, 2007 3:47 pm
Posts: 4294
Location: Somewhere near Seattle
Gravity Jim wrote:
Bloozinay wrote:
Easier? Clearly you don't understand what you were looking at. It's not a pickguard, but a different product that replaces it, and adds new function above the old plastic pickguard.


Easy, big feller, we all understood it perfectly. You bought one, so it's the greatest thing since sliced bread. And yes, it's a pickguard. A highly shielded, 55-dollar pickguard.

This quote from the website kills me.

"It's been twenty-five years since the music industry has witnessed such a revolutionary new product. "

Golly. I can think of some pretty revolutionary music products in the past 25 years. But, hey, I guess this one's the most-est, huh? I mean... they couldn't say it if it wasn't true...


Ronco Pocket Fisherman anyone?

_________________
"is that a real poncho...i mean
Is that a mexican poncho
Or is that a sears poncho?
Hmmm...no foolin ...." FZ
