Post subject: tremolo bar wont go down
Posted: Sat Jul 24, 2010 1:41 am
Offline
Hobbyist
Hobbyist

Joined: Tue May 25, 2010 7:33 pm
Posts: 11
i got a new strat a little while ago nothings wrong without besides the whammy bar wont go down i don't know what screws to loosen cause i don't want to break it i searched all of freakin youtube and nothing please i need help!!!!!


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Sat Jul 24, 2010 4:22 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Apr 20, 2010 8:41 pm
Posts: 15
Is there a wood block wedged behind the trem block? In case you're not sure where that is, it's under that rectangle plate with 6 screws on the backside of the body.


Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 4:59 am
Offline
Hobbyist
Hobbyist

Joined: Tue May 25, 2010 7:33 pm
Posts: 11
i don't think so im not 100% sure where ur talkin about but i don't think i see a wood block if you could show me where exactly


Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 5:15 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Apr 20, 2010 8:41 pm
Posts: 15
Here's a picture of mine. This is the only thing I can think of that would prevent trem arm movement. It may not look exactly like this, but it's the unpainted wood block screwed into the body.



Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 5:16 am
Offline
Rock Star
Rock Star
User avatar

Joined: Fri Nov 09, 2007 5:59 pm
Posts: 3439
Location: ohio
here's something that happened to me- it may or may not help.

i went from 9 gauge to 10 gauge strings. went i brought it into tune, the whammy would not work. when i loosened the strings, the whammy would work.

i went back to 9's, and all is well. i may also have wound the strings too tight

see if the above works for you- good luck


Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 5:18 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Apr 20, 2010 8:41 pm
Posts: 15
Dang, I didn't think of that. But that sounds like a possible cause, too.


Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 5:23 am
Offline
Professional Musician
Professional Musician

Joined: Fri May 15, 2009 12:39 pm
Posts: 1466
Location: Birmingham UK
Even with heavier strings, the trem arm should still depress under modest pressure. If it won't move at all, then it's blocked.

How many big springs are in the unit? 3 or 5?

With all due respect, if this is confusing to you I would ask the shop where you bought the guitar to set it up for you.

_________________
Fender Highway & Classic 60s Strats, Fender Toronado, Telecaster, Gretsch Projet, Charvel 3, PRS SE Soapbar II & Custom 24, Burns Batwing and many others!


Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 7:57 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
adey wrote:
With all due respect, if this is confusing to you I would ask the shop where you bought the guitar to set it up for you.


I agree with this.

Do you have a friend who has more experience with Strats? Show it to him.

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 8:31 am
Offline
Hobbyist
Hobbyist

Joined: Tue May 25, 2010 7:33 pm
Posts: 11

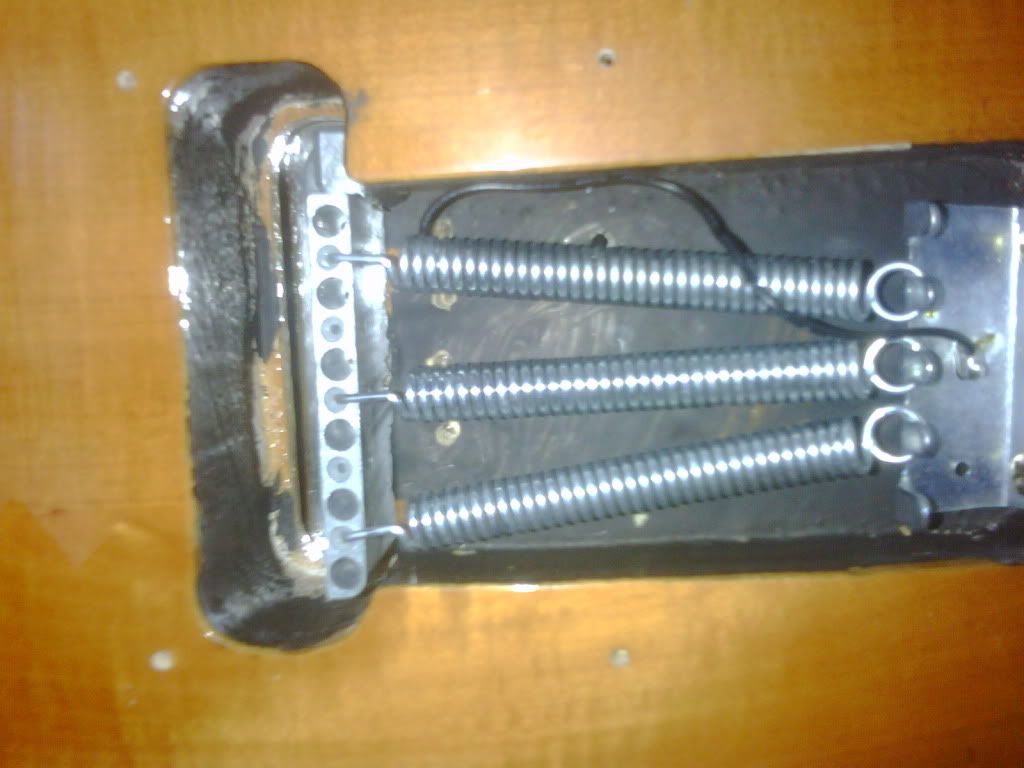

i don't have alot of friends that play and even fewer that play with strats im in high school and most of my friends have like epiphone guitars ones without the tremolo arm. i got the guitar a couple of cities from where i live and i don't want to make that journey without at least trying to fix it on my own. i have 3 springs i could take a picture if that could help at all


Top
Profile
Post subject: blocked
Posted: Sat Jul 24, 2010 8:54 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 20, 2008 11:08 am
Posts: 2265
handel wrote:
i don't have alot of friends that play and even fewer that play with strats im in high school and most of my friends have like epiphone guitars ones without the tremolo arm. i got the guitar a couple of cities from where i live and i don't want to make that journey without at least trying to fix it on my own. i have 3 springs i could take a picture if that could help at all


what strat is it,
1. have you removed the back plate to take a peek. some places will block the trem temp so you wont use it.
2. is it ej strat, eric clapton strat, or a squier bullet?
some of those are blocked, for "X" reasons.

why dont you remove the back plate, take a couple of photos, and post them, that might be a little helpful.
dont worry man, im sure we can sort it out.

_________________
"Yesterday is history, tomorrow is a mystery, but today is a gift. That is why it is called the present."

oogway, kungfu panda 2008


Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 9:42 am
Offline
Hobbyist
Hobbyist

Joined: Tue May 25, 2010 7:33 pm
Posts: 11
yea its a squier bullet


Top
Profile
Post subject: strat
Posted: Sat Jul 24, 2010 11:06 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 20, 2008 11:08 am
Posts: 2265
handel wrote:
yea its a squier bullet

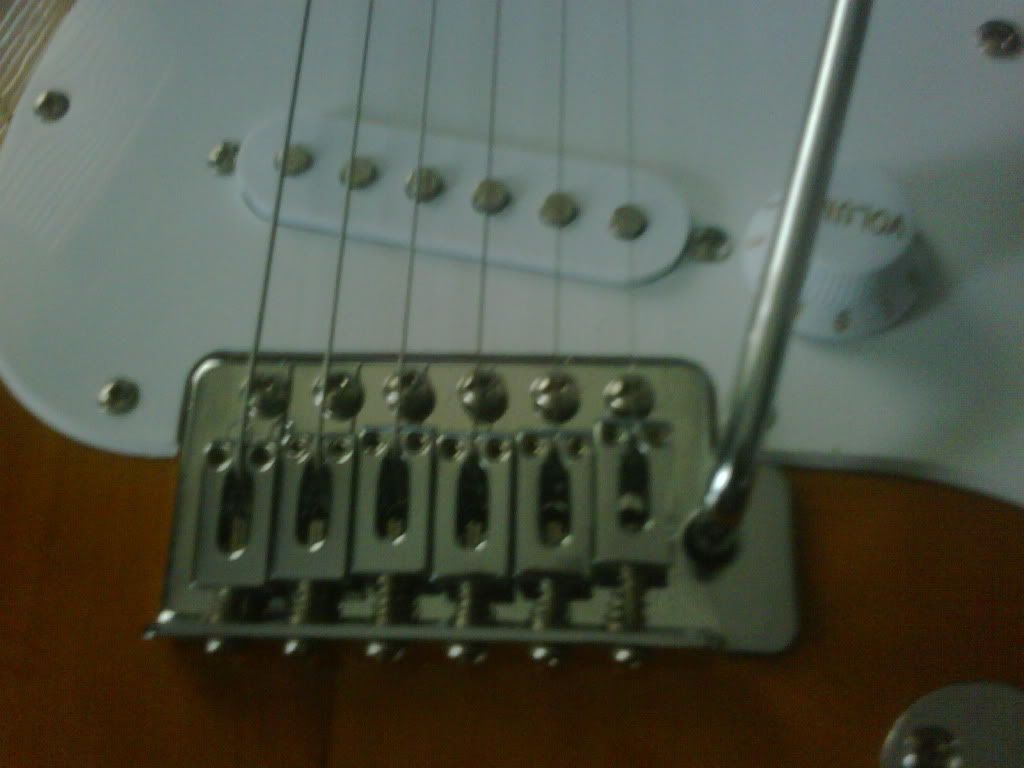

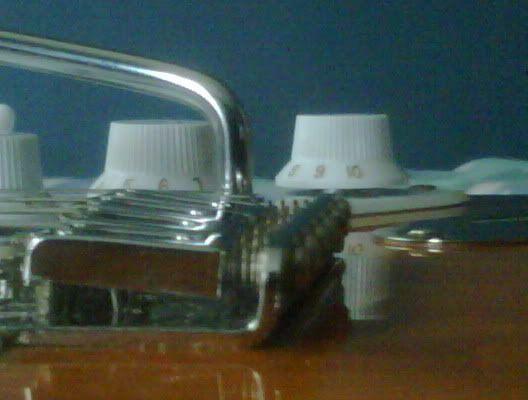

looks like the bridge is totally flushed up against the body.
theyre isnt blocking underneath, im really not sure, bu tmaybe the 6 screws may be on too tight.
anyonelse with better insight? :?

_________________
"Yesterday is history, tomorrow is a mystery, but today is a gift. That is why it is called the present."

oogway, kungfu panda 2008


Top
Profile
Post subject: Tremolo stuck
Posted: Sat Jul 24, 2010 11:32 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Something that you might try is to loosen all six of the bridge screws under the strings one full turn each. You may have to tune down to be able to move the strings aside to get to the screws. Then loosen the two screws on the trem spring claw in the back about four or five turns. This will make sure that those two things are not binding the trem.

It may be that the bridge plate is actually "stuck" to the finish. With the above screws loosened, firmly push down on the trem arm until the bridge "unsticks" from the finish. You may bend the arm or even break it off if you push too hard. If it doesn't move by pushing the trem arm, then turn the guitar onto it's front, looking at the back, and carefully stick a flat-blade screwdriver between the trem block and the body cavity on the trem spring side of the block. Pry the block away from the body, which will be the same movement as if you were pushing down on the trem arm. This should get the trem loose from the body.

Then go here to set up the trem properly.

http://www.fender.com/support/stratocaster_setup_guide.php

Hope that helps! Let us know. :)


Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 12:33 pm
Offline
Hobbyist
Hobbyist

Joined: Tue May 25, 2010 7:33 pm
Posts: 11
thanks a plenty i'll tell u how it goes


Top
Profile
Post subject:
Posted: Sat Jul 24, 2010 1:31 pm
Offline
Hobbyist
Hobbyist

Joined: Tue May 25, 2010 7:33 pm
Posts: 11
IT WORKS!!!!!!! i unscrewed the 4 screws and kept the the one one the far right and left and unscrewed them a little i put the screw driver where u told me at the exspense of getting wood chipped a little under the bridge which can be replaced by a sticker or sumthin it works man thanks
