Thanks DetroitBlues!

OK -- got the new body. looks GREAT:

[img][img]http://i230.photobucket.com/albums/ee34/Mercury7Music/body-1.jpg[/img]

The workmanship is much nicer, and this body is lighter than the last one. Fantastic woodgrain! And as you can see the trem cavity is how you'd expect it 8). I bolted the neck on and it fit right snug in the neck cavity.

I'm in a happy place right now. My only problem is I won't be able to work on it this weekend. The band's playing on Saturday night which will take up most of Sat. Maybe I'll play with it some on Sunday... :wink:

_________________
'78 Fender Stratocaster
Epi USA Texan '64 RI signed by Paul McCartney
'73 Fender Mustang
Gibson LP Deluxe RI '69
Fender Active Jazz Bass
Guild GADm20e Acoustic Guitar
Epi Casino RI
Gretsch Pro Jet w/Bigsby
And My Frankenstein-O-Caster


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Thu Jul 08, 2010 6:58 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Feb 19, 2010 4:55 pm
Posts: 723
Sweet koz looking forward to it. Any hints on how you're gonna make that woodgrain pop? (as you so eloquently put it :p)

_________________
My Rig: Guitar into Pedals then into Amps and out into Speakers.


Top
Profile
Post subject:
Posted: Fri Jul 09, 2010 3:25 am
Offline
Roadie
Roadie
User avatar

Joined: Wed Jun 02, 2010 9:14 am
Posts: 278
Location: D-Town
Impulse7 wrote:
Sweet koz looking forward to it. Any hints on how you're gonna make that woodgrain pop? (as you so eloquently put it :p)


Well, my thinking is I'd like to do a blonde type of finish to play off the yellowed pups. Not quite butterscotch, and not really a banana color either. Maybe more like a vintage white with a bit of age -- but the grain will show thru an even haze of aged white tinted laquer.

The ReRanch has the laquers I need to accomplish this look. First up, sanding sealer...

_________________
'78 Fender Stratocaster
Epi USA Texan '64 RI signed by Paul McCartney
'73 Fender Mustang
Gibson LP Deluxe RI '69
Fender Active Jazz Bass
Guild GADm20e Acoustic Guitar
Epi Casino RI
Gretsch Pro Jet w/Bigsby
And My Frankenstein-O-Caster


Top
Profile
Post subject:
Posted: Fri Jul 09, 2010 11:37 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Jul 13, 2007 1:10 pm
Posts: 13467
Location: Palm Beach County FL
[img][img]http://i230.photobucket.com/albums/ee34/Mercury7Music/body-1.jpg[/img]
Nice grain pattern. However, are you planning HB's for this baby? If not, why not a vintage routing instead of this "Fender" generic type one size fits all? Gets you more wood. :idea:

_________________
"Another day in paradise!"


Top
Profile
Post subject:
Posted: Fri Jul 09, 2010 1:37 pm
Offline
Roadie
Roadie
User avatar

Joined: Wed Jun 02, 2010 9:14 am
Posts: 278
Location: D-Town
ZZDoc wrote:

Nice grain pattern. However, are you planning HB's for this baby? If not, why not a vintage routing instead of this "Fender" generic type one size fits all? Gets you more wood. :idea:


Nope -- SSS config. Truth is, it's no great shakes for me. And this is a licensed generic Fender body, so I expected the HSH cavity...

_________________
'78 Fender Stratocaster
Epi USA Texan '64 RI signed by Paul McCartney
'73 Fender Mustang
Gibson LP Deluxe RI '69
Fender Active Jazz Bass
Guild GADm20e Acoustic Guitar
Epi Casino RI
Gretsch Pro Jet w/Bigsby
And My Frankenstein-O-Caster


Top
Profile
Post subject:
Posted: Sat Jul 10, 2010 8:57 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
Nice looking body.

Please get to work on it and show us the pictures!

We love to watch builds ...

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject:
Posted: Sat Jul 10, 2010 9:16 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Jul 13, 2007 1:10 pm
Posts: 13467
Location: Palm Beach County FL
[
Quote:
quote="kozy814 Nope -- SSS config. Truth is, it's no great shakes for me. And this is a licensed generic Fender body, so I expected the HSH cavity...
Roger that! So as Orville suggests...."waiting on you all." :wink:

_________________
"Another day in paradise!"


Top
Profile
Post subject:
Posted: Sat Jul 10, 2010 10:19 am
Offline
Roadie
Roadie
User avatar

Joined: Wed Jun 02, 2010 9:14 am
Posts: 278
Location: D-Town
ZZDoc wrote:
[
Quote:
quote="kozy814 Nope -- SSS config. Truth is, it's no great shakes for me. And this is a licensed generic Fender body, so I expected the HSH cavity...
Roger that! So as Orville suggests...."waiting on you all." :wink:


If I didnt have a bunch of errands to run before haulin' gear tonight, I'd have the pile o' parts out on the table. I did "strum" the body and neck assembly, tho... :wink:

_________________
'78 Fender Stratocaster
Epi USA Texan '64 RI signed by Paul McCartney
'73 Fender Mustang
Gibson LP Deluxe RI '69
Fender Active Jazz Bass
Guild GADm20e Acoustic Guitar
Epi Casino RI
Gretsch Pro Jet w/Bigsby
And My Frankenstein-O-Caster


Top
Profile
Post subject:
Posted: Sat Jul 10, 2010 10:22 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Mar 11, 2008 10:08 am
Posts: 9034
Location: Louisiana
A much better looking body Kozy!! Looking forward to watching and reading about your build. Congrats!! :)


Top
Profile
Post subject:
Posted: Mon Jul 12, 2010 4:41 pm
Offline
Roadie
Roadie
User avatar

Joined: Wed Jun 02, 2010 9:14 am
Posts: 278
Location: D-Town
Ceri wrote:

... Try this: put the neck snug into its cavity and clamp it in place (with padding to prevent the clamp denting the wood or hurting the neck). Now measure 25 1/2 inches from the front (fingerboard side) of the nut, and place the bridge with the breaking point of the top e string saddle in that spot. Like this:

Now pencil some dots through the screw holes, like this:

Then take a photo and let us see where those dots end up, please. That'll show how close to the cavity the bridge screws will really come and you and we can make our judgements accordingly.

Be aware, there is more to correctly placing the bridge than this! We'll cover that later...

All for now. You'd better give your employer some of your time... :wink:

Cheers - C


Back on the bench gents...

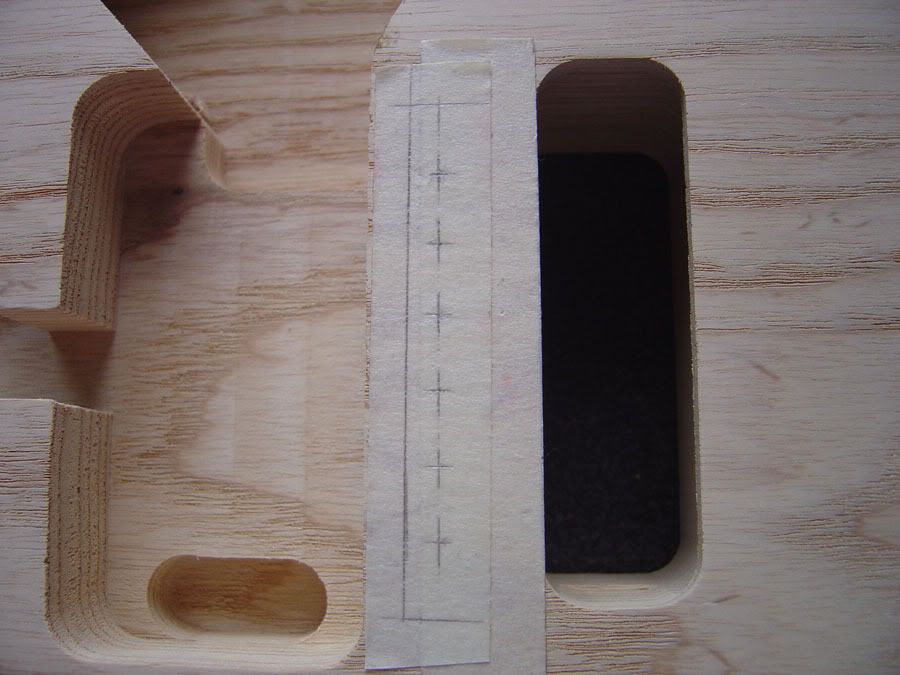

Took Ceri's notes from above -- with the neck bolted on, and positioning the bridge, I left pencil marks with the trem (high E and D saddles) positioned 25.5 inches from the fretside edge of the nut. Below is a photo:
