Hi. I have a 1990's Strat Ultra (lace sensors blue, gold, double red) Serial number CN 200700, Model number 110-9800. How can I get an owners manual for this guitar, and if no manual is available, at least the specifications.
Thanks to all in advance.

I would say that you would have to be really lucky and try to get one on ebay. The way to go about it as very few even come up for auction let alone an owners manual but you might catch a guy who has one up for sale who still has the manual and ask him if he would just sell it to you separately. I do not have an owners manual for mine, but everything else is correct and I just love those axes. If you are looking for any info on the guitar Xhefri is the guy to talk to as he is the biggest expert on that series that you will find.

I wish I had a Strat Ultra from 1191. I think it would be worth something by now.

_________________
AmDlx HSS
62 Hot Rod
Luke w/Piezo
Carvin Belair

Thanks everybody. I love the ultra strat. Until I bought a Les Paul last month, it was my only guitar, and it's still my favorite.

I know the manuals are pretty generic, but I do have these in my closet- Ill dig them out and see if there is anything about the ultra:

_________________

Thanks. Are you able to email the manual to me, post a link, or tell me where you got it?

Hiya, I cant really post a link- but ill post pics below.

Like I said, they are generic and they are for all models of that era. Please note that this is circa first half of 1993, so as you will see there is no reference to LSR nut in here at all, and the Ultra has the locking bridge. I have only taken photos of the pages that are relevant to your guitar.

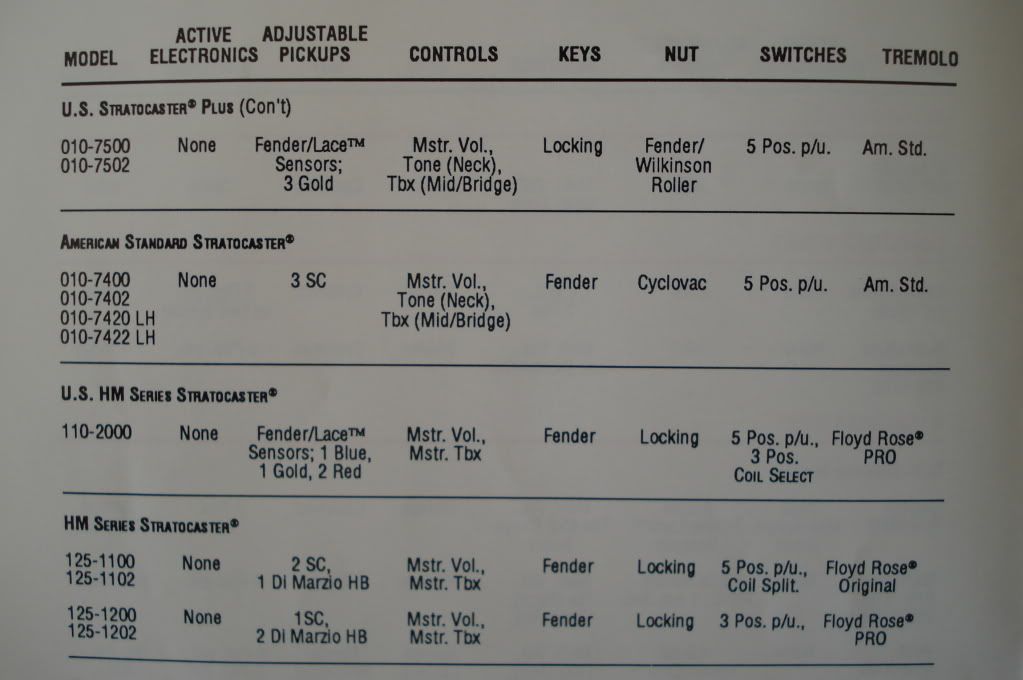

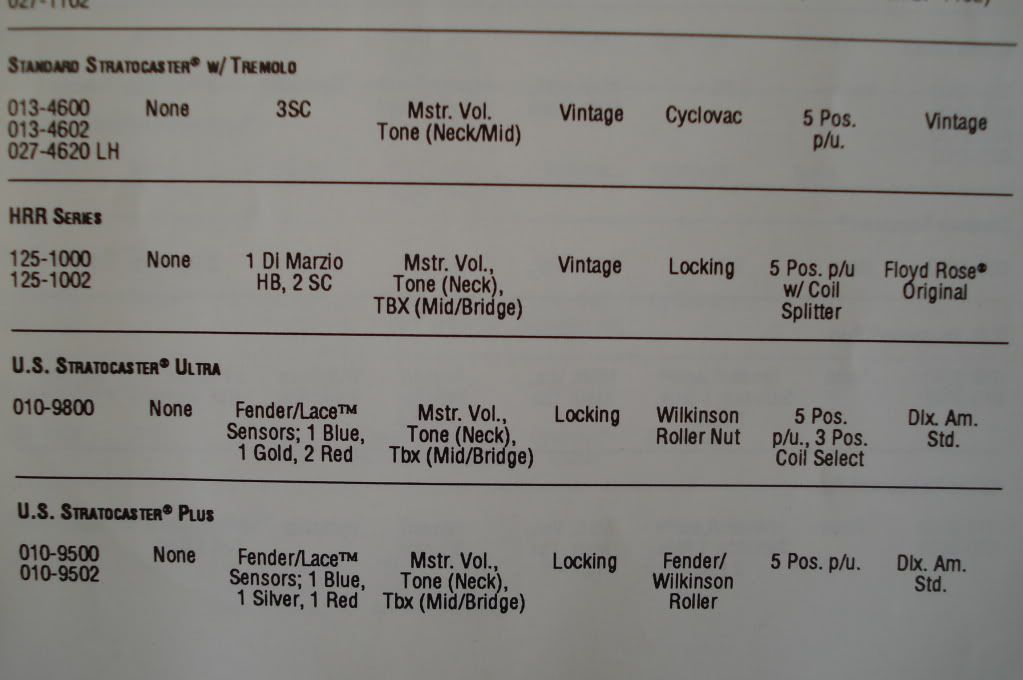

Check it out, from specs manual:









Now that was jolly interesting indeed, it showed that the normal Wilknson Nut was an alternative to the split nut, as it accomodated heavier gauge strings.

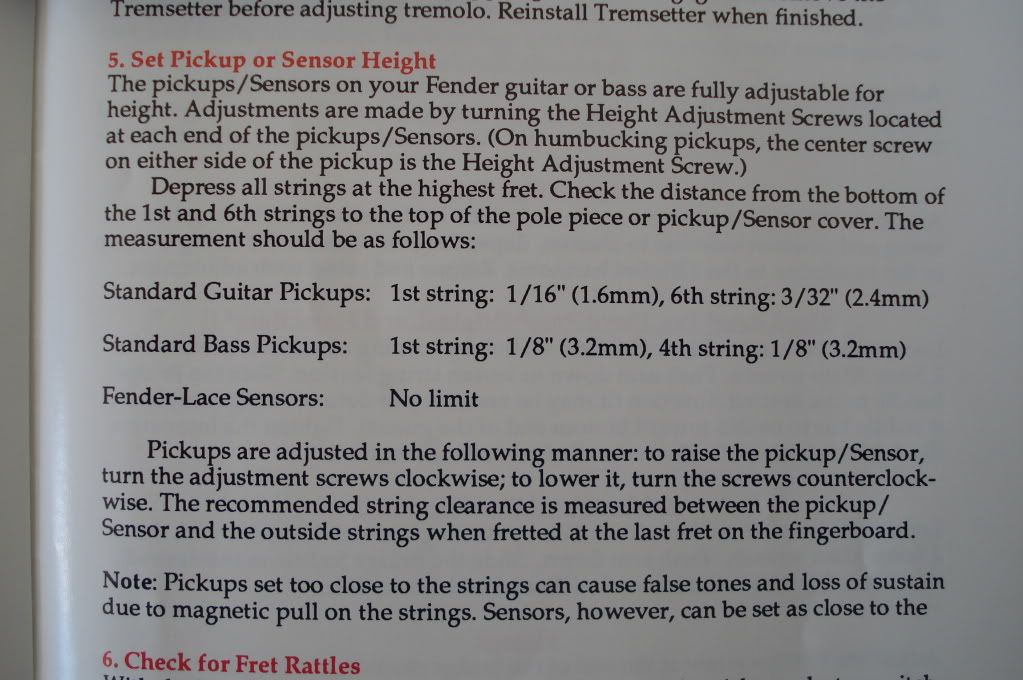

Sensor Height:



I hope this all helps. For the sensors, I will post in another topic. I have a feeling Martian or Xhefri may be intrigued by the wiring diagrams... I have posted them here: http://www.fender.com/community/forums/ ... 271#457271

_________________

Wow! Thanks for the specs.
