Hi again everyone, i'm seriously needing to find out if i can get my hands on a thorough list of American standard strat specs. Mine's a 97' model. I'm hoping to find information on things like fret wire size, neck radius, body wood, finish color name, type of pickups etc. I can't find a list anywhere! Thanks very much!

_________________
I believe in Christianity as i believe that the sun has risen. not only because i see it, but because by it, i see everything else. C.S. Lewis

It's a 1st gen American Standard. Medium Jumbo frets, 9" radius neck, American Standard pickups with Delta Tone, Alder, etc...

Either you're not looking hard enough, or you fail at the internet. Info is everywhere.

_________________
Some Guitars played through an amp...

I thank you for your input, however, i'll pass on the negative comment.

_________________
I believe in Christianity as i believe that the sun has risen. not only because i see it, but because by it, i see everything else. C.S. Lewis

To each his own... I don't enjoy rewarding the lazy... and if I do, I make sure to slip in a horribly degrading comment so people will laugh at you.

Merry Christmas!

_________________
Some Guitars played through an amp...

This is for the 2008 - 09 models. There were some changes starting in '08. Are you sure yours is an '07? What's the starting numbers to the serial number?

Type: Stratocaster®
Model Name: American Standard Stratocaster®
Model Number: 011-0400-(Color #) and 011-0402-(Color #)
Series: American Standard Series
Colors: (700)* 3-Color Sunburst, *add $90.00,
(705) Olympic White,
(706) Black,
(712) Candy Cola,
(747)** Sienna Sunburst, (Ash Body),**add $190.00 for Special Wood Requirements,
(755) Blizzard Pearl,
(769) Charcoal Frost Metallic,
(Urethane Finish)
Body: Alder on:
(700) 3-Color Sunburst,
(705) Olympic White,
(706) Black,
(712) Candy Cola,
(755) Blizzard Pearl,
(769) Charcoal Frost Metallic,
Ash on:
(747)** Sienna Sunburst, **add $100.00 for Special Wood Requirements,
Neck: Maple, Modern C Shape,
(Gloss Headstock Face with Satin Urethane Finish on Back of Neck)
Fingerboard: Rosewood (P/N 011-0400) or Maple (P/N 011-0402), 9.5 Radius (241 mm)
No. of Frets: 22 Medium Jumbo Frets
Pickups: 3 American Strat® Single-Coil Pickups
Controls: Master Volume,
Tone 1. (Neck Pickup),
Tone 2. Delta Tone™
(Delta Tone system includes high output bridge pickup and special No-Load tone control for Middle and Bridge Pickups)
Pickup Switching: 5-Position Blade:
Position 1. Bridge Pickup
Position 2. Bridge and Middle Pickup
Position 3. Middle Pickup
Position 4. Middle and Neck Pickup
Position 5. Neck Pickup
Bridge: 2-Point Synchronized Tremolo with New American Standard Bent Steel Saddles
Machine Heads: Fender® Deluxe Staggered Cast/Sealed Tuning Machines
Hardware: Chrome
Pickguard: 3-Ply Parchment
Scale Length: 25.5 (648 mm)
Width at Nut: 1.685 (42.8 mm)
Unique Features: New Bent Steel Saddles with Elongated String Slots,
Copper Infused High Mass 100% Metal Bridge Block,
Thinner Undercoat Finish for Improved Body Resonance,
Tinted Neck,
Maple Fingerboard Neck: Satin Finish on Back, Gloss Finish on Front;
Rosewood Fingerboard Neck: Satin Finish on Back, Gloss Finish on Headstock Front with Buffed Fingerboard,
4-Bolt Neck Attachment with Micro-Tilt™ Adjustment,
Bi-Flex Truss Rod System,
Parchment Knobs and Pickup Covers,
Rolled Fretboard Edges,
Staggered Tuning Keys,
H/S/H Pickup Routing,
New Molded Fender/SKB Case with TSA Locks, Glass Reinforced Nylon Trigger Latches, and Form Fitted Plush Interior
Strings: Fender® Standard Tension™ Bullet ST3250L, Nickel Plated Steel, (.009 to .042), p/n 073-3250-203
Accessories: Fender/SKB® Case, Cable, Strap, Polishing Cloth
Case: High-Tech, Molded Rectangular SKB® Case
Introduced: 1/2008
Notice: Product Prices, Features, Specifications and Availability Are Subject To Change Without Notice

_________________
-Kirk

GUITARS
'12 Sonoran Acoustic - black (dated 10/31/12)
'13 Standard Strat
AMP
Vox ac4c1-bl
PEDALS
Compressor
Big Muff
Vox Stomplab 1G
Carbon Copy Delay

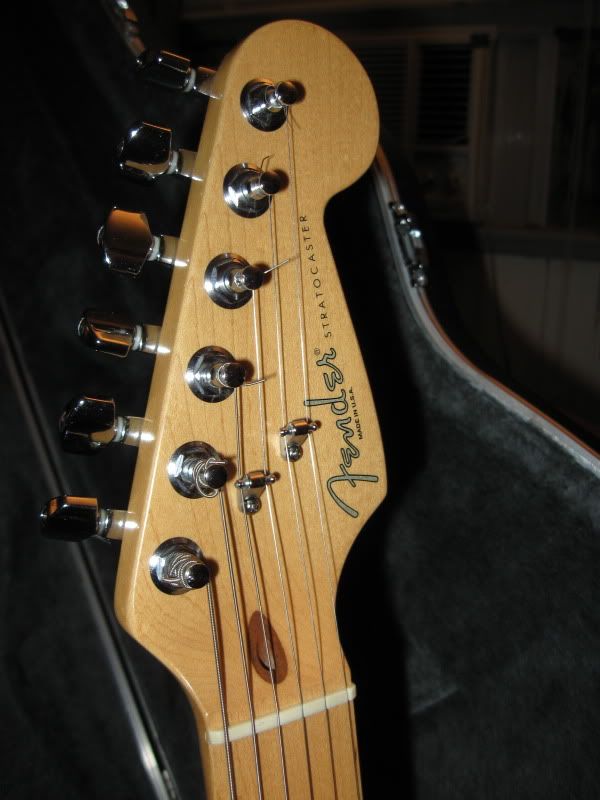

I really do appreciate your taking time to help, you sure typed a lot there! I have searched quite a bit under things like fender american stratocaster specifications, fender guitar specs etc, with little luck, and i honestly would be grateful if you could share a link to any website you may have found, if that's what you use, rather than books. My serial number checks out at this site as a 97' model, and that's what i posted above. anyway, here's the guitar:

Merry Christmas to you too!

_________________
I believe in Christianity as i believe that the sun has risen. not only because i see it, but because by it, i see everything else. C.S. Lewis

Beautiful guitar Dave.......... Mike

_________________
The blues ain't nothin but a good man feelin bad.

Thanks Mike, i was thrilled to get her for $600!

_________________
I believe in Christianity as i believe that the sun has risen. not only because i see it, but because by it, i see everything else. C.S. Lewis

It is possible that it could be poplar with an Alder veneer. Some time in the 90s Fender was using poplar on the guitars because Alder got scarce/expensive. I'm not sure of the years though.

Thanks for your input, i saw a post at harmony central stating that his 97' body was ash, so who knows for sure?! ANYONE?? PLEASE? *SOB*!..... whine.......

_________________
I believe in Christianity as i believe that the sun has risen. not only because i see it, but because by it, i see everything else. C.S. Lewis

Send a request complete with serial number to Fender consumer relations. They are usually very prompt and helpful.

_________________
Ignorance IS bliss - and I am the happiest person here!

TC is correct. They will send you all the info on your guitar. She is nice BTW!!

Wow, thanks SOOOOO very much for the tip on who to ask for information! You guys are awesome!
