OK: the top seems to have glued up pretty well. There is an inch or so at the far left of the join where the two pieces didn't quite meet perfectly. We could easily sand that flat, but on this job there is no need because it will get cut off anyway. The rest is pretty nice and flat, and after a spot of all-over sanding I can't find the join on either side with my fingers:

In order to get that wiggly grain to meet evenly across the join I had found that I needed to take off as little as possible on the planing machine. The result was that I left part of that small knot in the center, knowing I could place it where it will get removed by a pickup cavity.

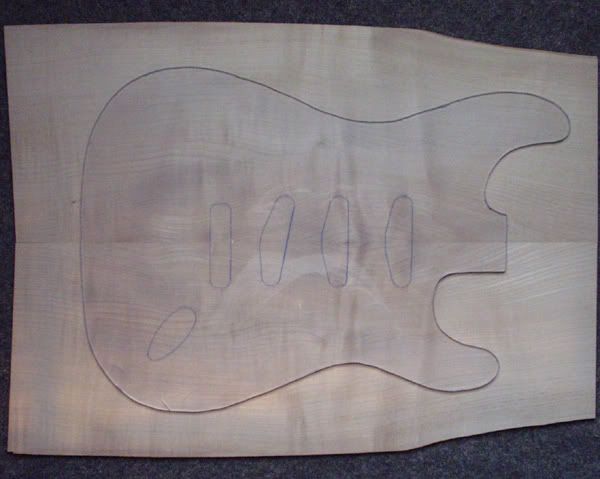

However, placing that cavity is tricky, and anyway I wanted to be able to experiment with different placings of the top in order to make the most of the rather modest flame on this thing. So I quickly cut myself out a Perspex body template and marked the important positions onto it. Then I could just slide it around to find the best position - as you see in the picture above.

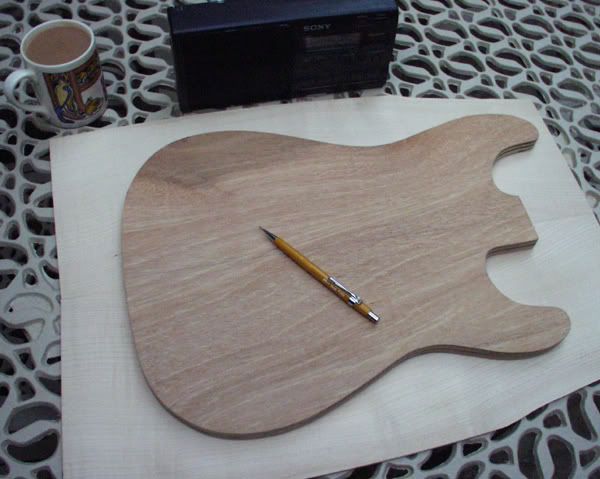

But I haven't tidied up the edges of that template yet, so to draw the actual outline I used my best plywood jig. This one was made from my American Strat and I took a lot of trouble when I made it, so it is as kosher as I can get it. The center line on the template lines up with the join on the sycamore top, et voila:

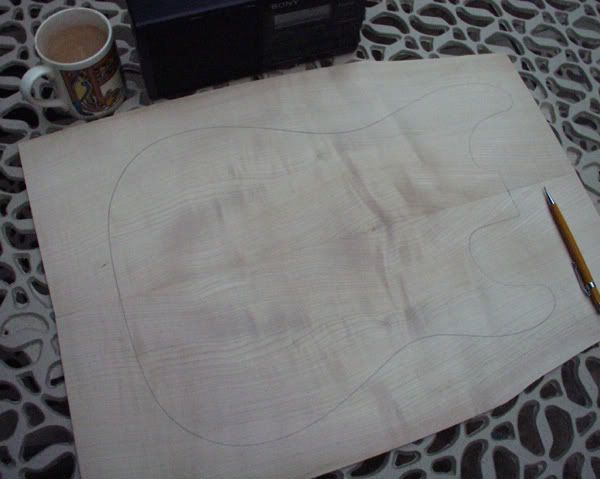

Here's the resulting outline:

Apologies for the darkness of these photos, by the way. It has been a filthy grey day, threatening rain all the way.

As I say, that outline is derived from a US Strat, and what we are working with here is a Mexican body (what's left of it). That shouldn't make a difference, but we just need to check to make sure:

And a good thing we did because the curves are slightly but distinctly different in a couple of places, particularly round the treble cutout. I've marked those onto the board and will cut it out with plenty of margin for error:

You wouldn't dream of using a handheld jig saw to cut out a body blank - that blade will never stay vertical around the corners (...I happen to know). But on a 4mm / 0.16" piece like this it is fine.

Now then. The bit that has worried several here: rounding over that forearm contour. First I marked it up like this:

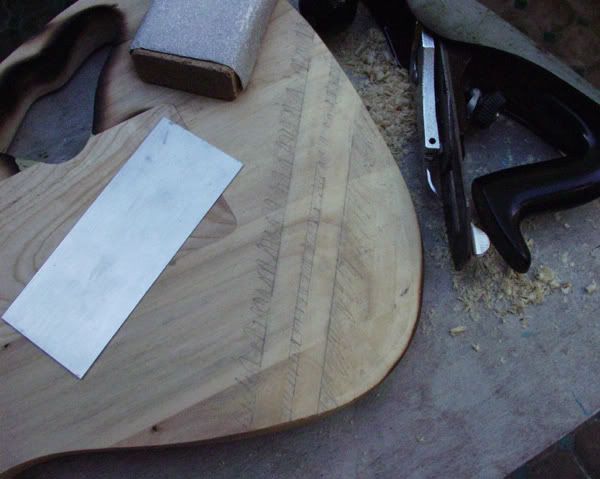

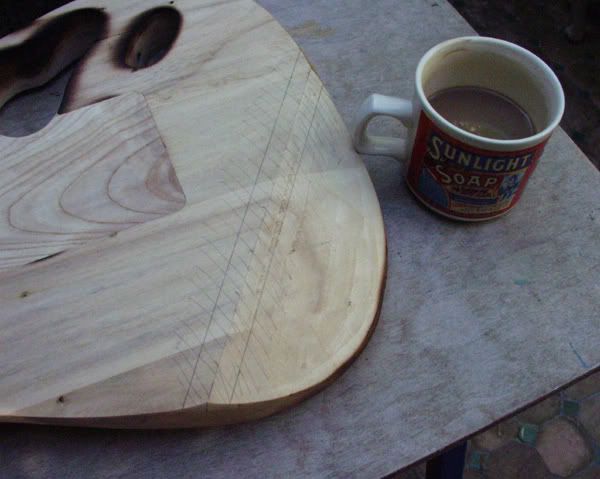

And then drew plenty of cross-hatching on, so that I can see where I've taken wood off:

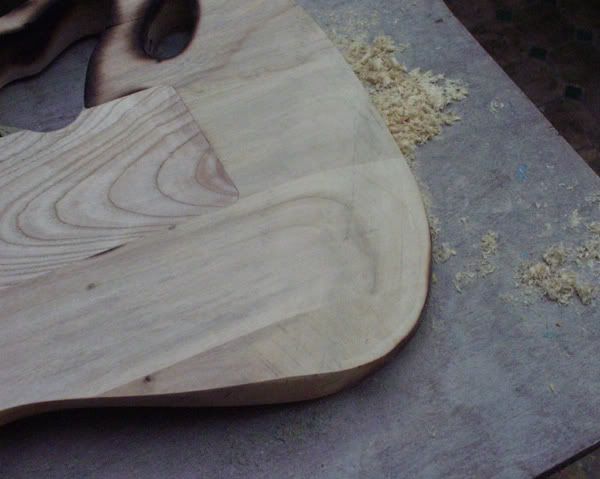

Then using a smoothing plane I took it down as you see here, doing my level best (ho-ho) to keep it level:

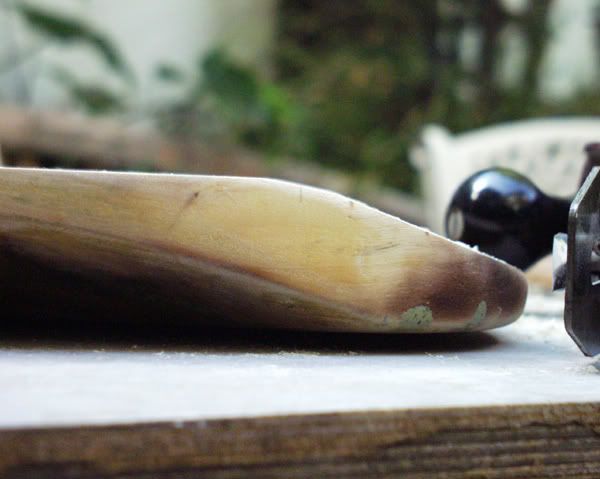

I found it amazingly hard to get a useful photo from the side. I can see clearly enough what is happening by eye, but getting the camera to capture it seems to be beyond me. This is the best I could get:

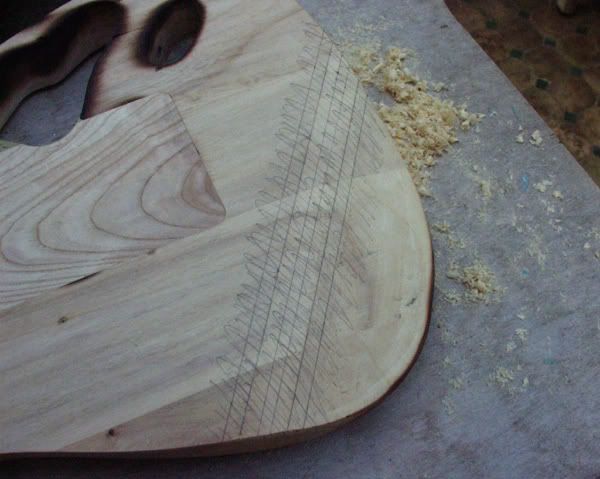

Then I marked the job up a second time:

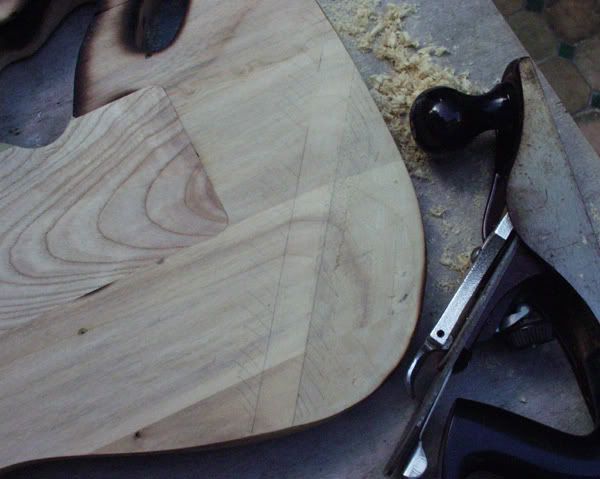

And using the plane again created two more steps of the curve (that cabinet scraper comes in shortly):

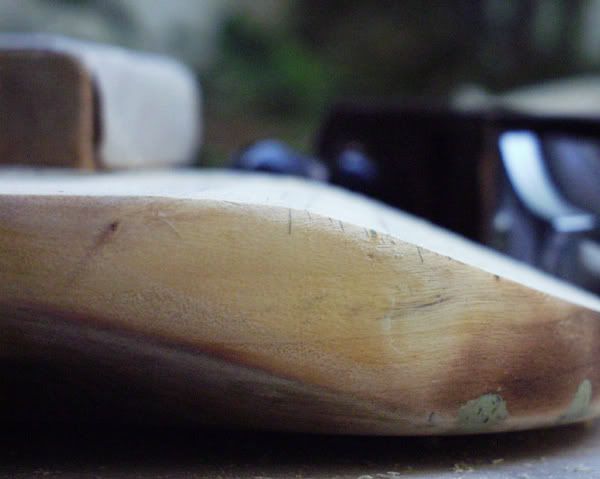

Again, this shot probably doesn't help much:

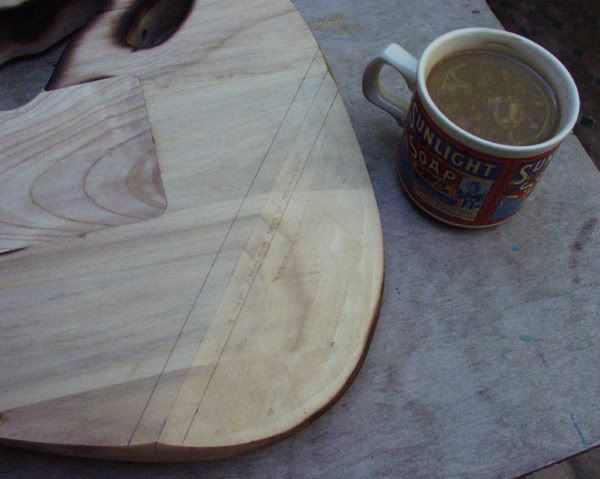

Now the surface travels from front to forearm contour in five flat steps. Lastly using the cabinet scraper and a block and sandpaper I rounded those carefully into a curve. The object is to keep it as much as humanly possible like the side of a cylinder, without it curving at all from one end to the other:

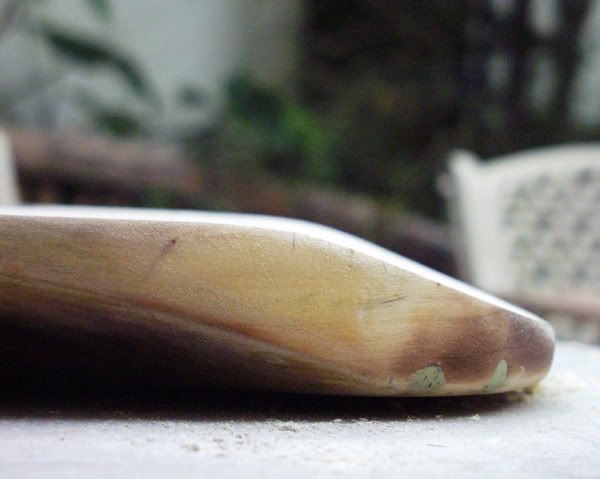

And for what it's worth, one last side shot:

My eye and fingertips tell me what I'm failing to capture with the camera: that curve is as regular as I can possibly make it.

Rain and darkness have now arrived and stopped play. Tomorrow is the moment of truth when we'll see if I can bend the wood round that 20 degree corner. I am seriously nervous about that bit...!

Cheers - C
