[Wednesday evening] Picking up where we left off...

It's obvious we're going to access the control cavity from the back of the guitar from now on. I don't need a trem cover, but a cover for the control cavity seems more sensible. Don't want clothes getting hooked on wiring or whatever:

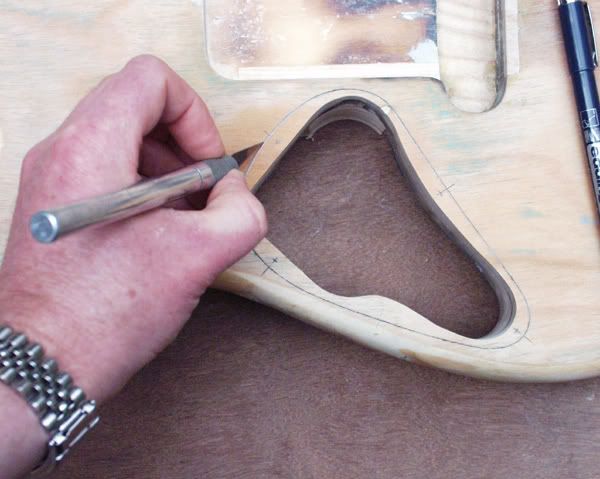

In that pic I've drawn a line to indicate where the cover should go, allowing space for five fixing screws. I've inked it in to make it easier to photograph. Next, score around the line with a sharp knife so that the grain on the surface doesn't split beyond that point when we start to excavate:

Now a normal process here would be to put the Dremel in a router base and carefully carve the cover lip out, like a bumper sized inlay job. However, round at the edge of the body there is nowhere for a router plate to lie flat, so that is not going to fly.

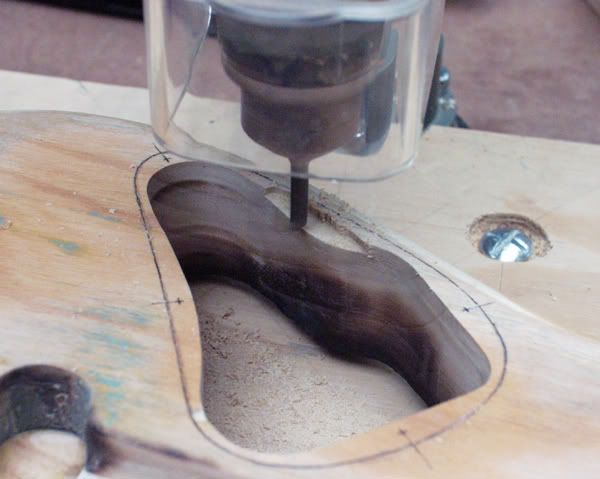

Instead, I put a smallish 6 mil / 1/4 inch router cutter in the pillar drill, lowered to the right depth and then carved by moving the guitar instead of the cutting head:

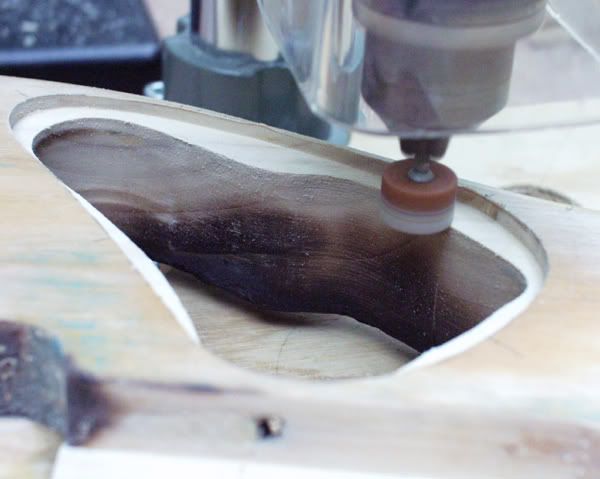

That worked pretty well, but it was fierce work and the result was a little rough. At that point I suddenly had a slightly neat idea (well I thought so) of putting a Dremel grinding bit into the pillar drill and tidying up the lines like that:

Never done that before, but I will again. It works!

A final little trim into the corners with the tip of a small chisel:

And we're done! One rear access control cavity, ladies and gentlemen. We'll cut a cover for it later:

Now then. Tired of that "where shall I shove my nine volt battery" misery? Orville was not far off the mark when he predicted active electronics in this guitar, so let's sort out some sensible quick access storage space for the battery:

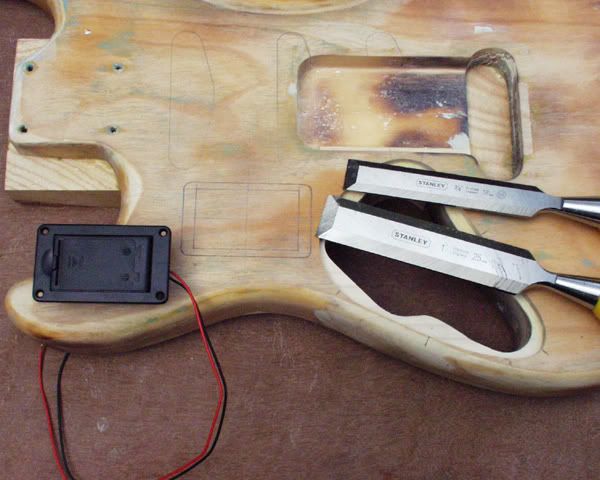

There's a battery holder. You can see I've used my pickup routing jig to map the positions of pickup cavities onto the back of the guitar so that I can avoid running into them, and have chosen a position for the battery box nice and close to the control cavity for ease of joining 'em up.

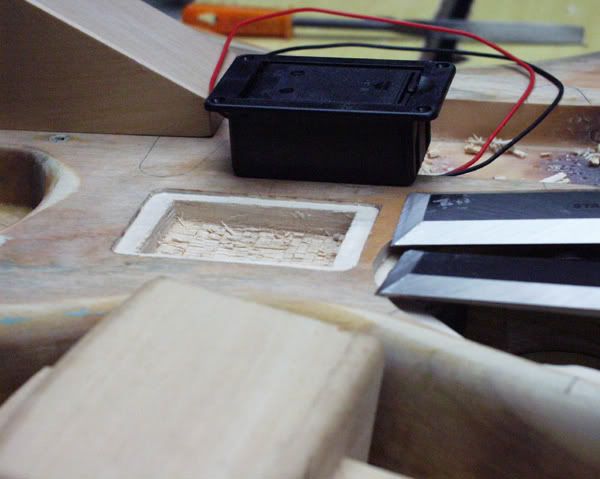

I guess I could make a jig for routing out the cavity - well, two in fact: one for the bulk of the box and one to rebate the top surface. But in the time it would take to do that I might as well just do the job by hand. I don't plan on doing a lot of battery cavities... Here's the cavity halfway through chiselling it out:

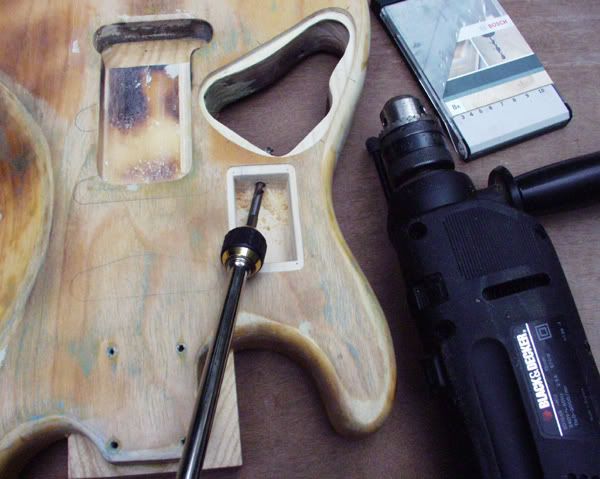

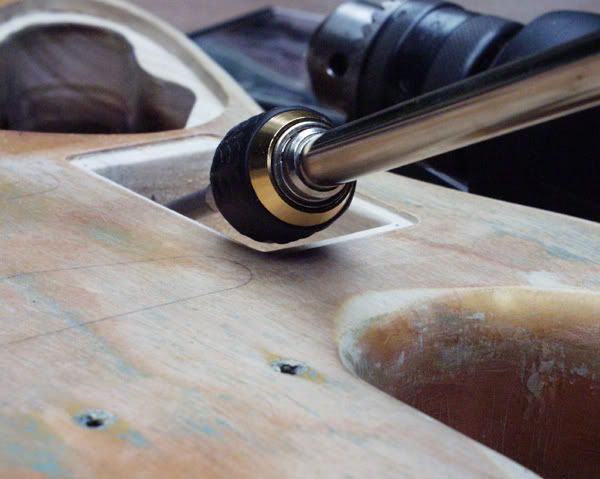

Took me longer than you might think - I'm really not much of a carpenter! When done I used a long bit holder to drill a hole through to the control cavity for the wires, so as not to risk damaging the wood with the drill's chuck (done that before :oops: ):

Even so, the clearance was too close for comfort. Oops - a near thing!:

And here's the completed cavity:

The black dots indicate where the fixing screws go, so you can see there is no room for error in shaping that space. That little worm route leading down to the wire hole is kind of aesthetically displeasing to me. But it has to be there (I discovered) because otherwise there is simply nowhere for the wires to go as you lower the box into position - the fit is that tight:

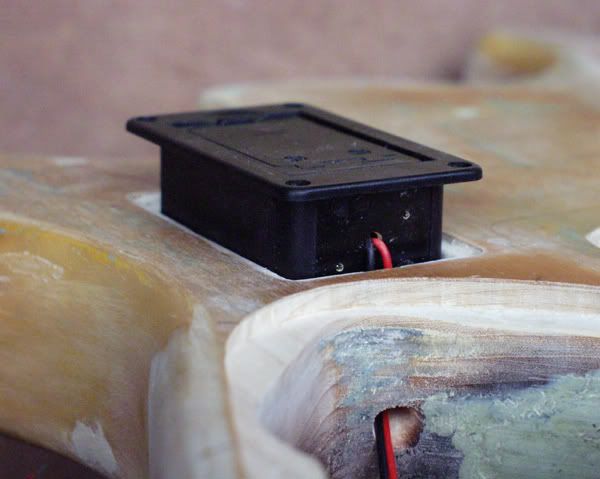

And here it is with the box in place. Nice and flush with the surrounding surface:

That's all for now. I have a couple of little details to take care of tomorrow, and then all being well we have a major plot development coming up on Friday.

Toon in, same time, same place...

Cheers - C
