russianracehorse wrote:
But will it also say "ORIGINAL Eanlaun Badu"? The true connoisseur accepts nothing less. 8)

HA! Well remembered! 8)

Pringle420 wrote:
So... now that there are really not too many secrets left...

Well, will you permit me maybe just one more little detail to discuss...? :D We have ONE LAST INSTALMENT before the Pyrocaster is finished.

Now that we have well and truly touched up Nikininja's body, should we turn our attention to his nuts? :?:

Regulars will remember that Nick got very interested in the issue of low position intonation. He did a heap of research, tried out the Earvana compensated nut - and then, being the man he is, felt that wasn't good enough and started making his own compensated nuts. Here's one he made for me, specially designed to work in conjunction with a set of compensated bridge saddles I have on a particular Telecaster:

http://www.fender.com/community/forums/ ... hp?t=23794

Take my word: that is a nicely made nut. If anyone has questions regarding what compensated nuts are all about - I leave it to Nikininja to handle them. He's the expert.

However, we can't go running to Nick every time we want a compensated nut: we have to learn how to look after ourselves. Nick's never actually shown us his working method, so we'll have to make it up on our own...

In passing, here's a strange thing. Back in the days before The Guitar Player Repair Guide came my way I had a slim volume called Guitar And Amp Maintenance by Ritchie Fliegler. Ritchie was a well known player, tech, builder and general guitar guru in New York, and these days he is Fender's VP in charge of marketing. So he knows a thing or two about guitars. (I wonder if Forum user Martian has run into him?)

One thing that always surprised me in his book was on page 30 where he says: "I know more than one guitar repairman who will cut holes, install Floyds, and refret a guitar without blinking an eye, but dreads making a nut."

Really? REALLY? Well let's see what we can do about that...

Here's where bone nuts come from:

Ah - so trusting...:

I spend half my time in a rural location in the South West of England, and those beasts live in fields just above our house there. They are organically reared and grass fed, and when done to perfection they travel about two miles to a small abattoir, before returning another two miles to the farm shop, from where we buy them... in pieces.

That nut Nick made for me was from one of those creatures' leg bones cleaned and boiled. There is a debate in guitar nut circles about whether fresh bone or aged makes the best nuts. Today we'll try the aged route. Here is a bone that my neighbor's dog has chewed, buried, dug up again and left in the rain and sun for many months. This is the sort of neighborly gift I sometimes find waiting on my doormat when I get home:

Note the teeth marks.

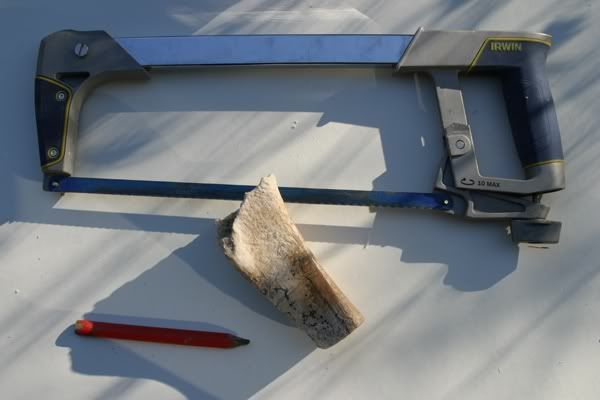

Nikininja is the pro at cutting blanks from bones. We need a piece just the right size and shape for a compensated nut, which is a bit more challenging than an ordinary one:

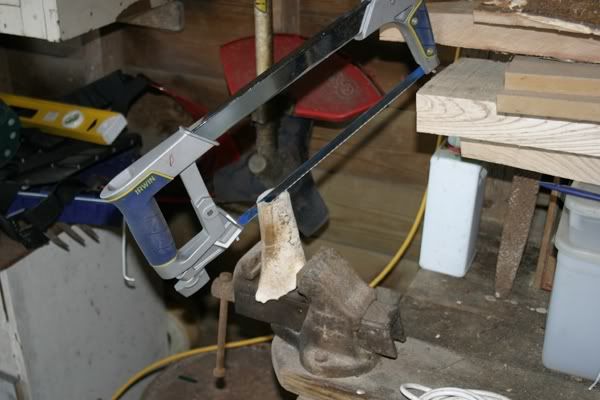

You've never seen inside my garage workshop, the reason being its terrible clutter and mess. Here's the only glimpse you will get of it, because I need that heavy vice (do you spell that vise in North America? Just so's the police don't get confused and arrest a lot of innocent carpenters, is that it? But are there any innocent carpenters? :lol: ):

From which we get this. Sawn bone smells really bad...:

Same piece from another angle, just so's you see the shape we're going to work with:

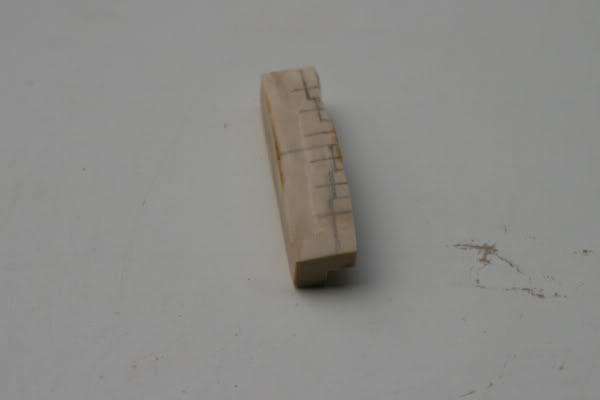

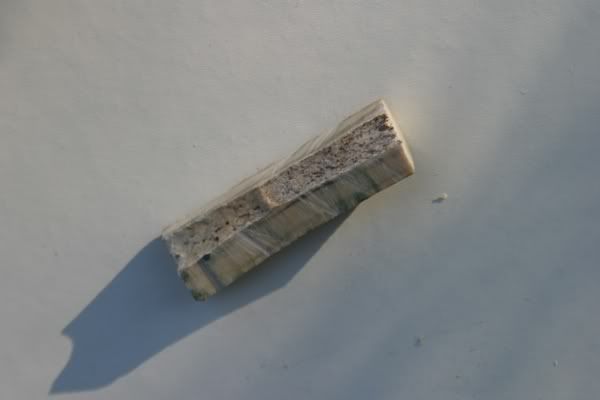

There will be a piece that descends into the fingerboard's nut slot like any other nut, and a "shelf" that comes out over the top of the 'board. To shape that L-profile and form the radius on the shelf's underside I'm just working it on a little grinding wheel fitted to a drill in this small bench top press:

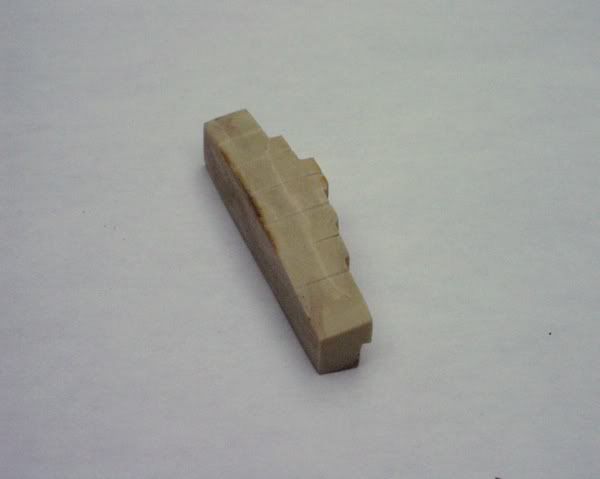

Which produces this:

Then we can sketch in the form of the compensated positions in pencil, crudely for now:

First a bit of rough shaping with diamond files:

To help establish the positions it is useful to drop in some temporary string slots, just to give the eye something to work from:

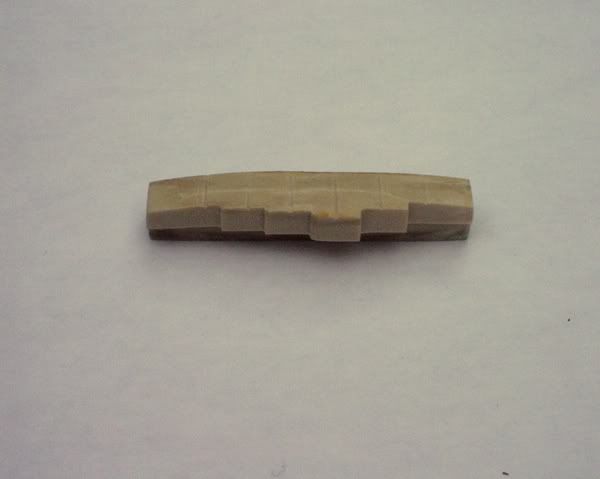

From another angle - it's beginning to look like a nut:

I was doing all of that holding it in the fingers, but now we need to get a bit more precise. My nut making kit makes Stew-Mac's nut vice/vise look like kids' stuff :lol: :

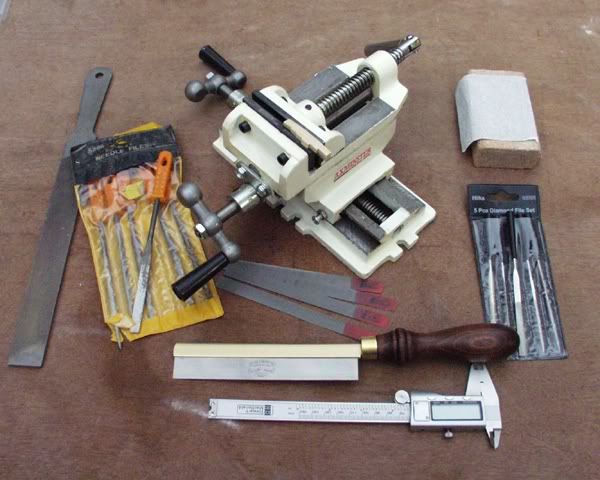

Before anyone else says so, that lot is seriously over the top. We absolutely do not need all of that just to make a simple guitar nut. I'm just being silly. :D

Holding the nut firmly in the vice we can work quite swiftly, filing and sanding away to locate the finished nut hiding within the blank. Soon we need to establish a good right-angle between the bottom and back of the nut, and a neat way to do that is to lay a file flat and then sand the blank back and forth, held firmly against a piece of wood (or cork sanding block, here) that establishes the 90 degree shape:

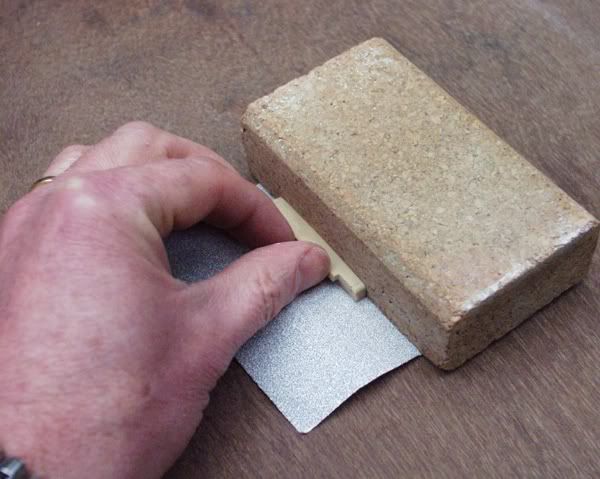

Sand paper also works:

Now we're really getting somewhere:

I'm shaping the nut to fit the slot, so it can go in absolutely perfectly and firmly. No need for glue. At this point we can try that fit out:

I've deliberately left it too long till now. No matter how careful you are you tend to put slight curves into the ends, so by leaving them overhanging we can now just trim off those inaccuracies at this stage:

Looking all right. Now we need to get some slots going. Here's my 0.010" jeweller's saw and some nut files. Also, a diamond file and my feeler gauges, marked in metric and imperial:

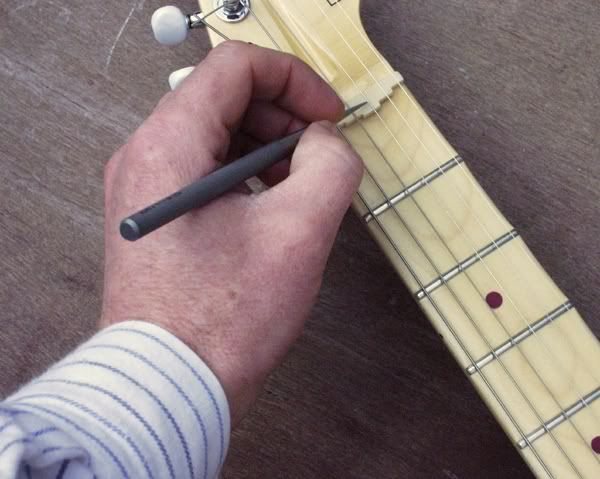

With the neck installed and strung up we can establish some positions for the slots. There is a tool for doing this, but I find it perfectly easy to do by eye. Here I'm using a steel engraver's scribe to mark the positions:

The top of the nut is very high at present so I can make the slots too wide at first, to allow for wiggle room in finding the most pleasing spacing for the strings. As you see here it is not quite perfect yet:

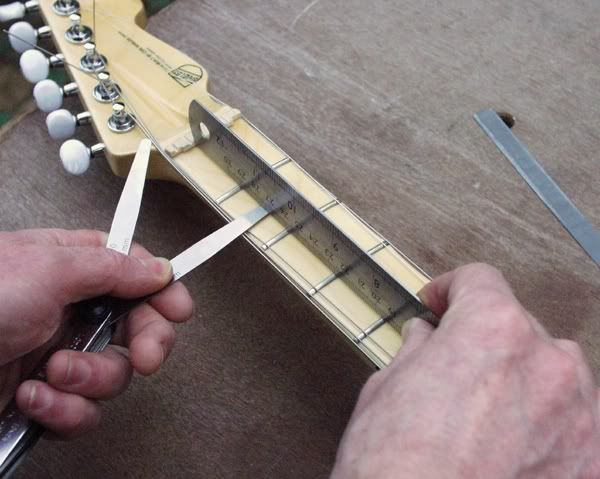

Now. How deep to cut the slots? We first need to know how high our frets are. I have digital callipers, as you saw above. But at this stage I find old fashioned mechanical methods preferable. We run a steel rule along the frets edge on and use the feeler gauges to discover the height of the gap between the fingerboard and the underside of the ruler:

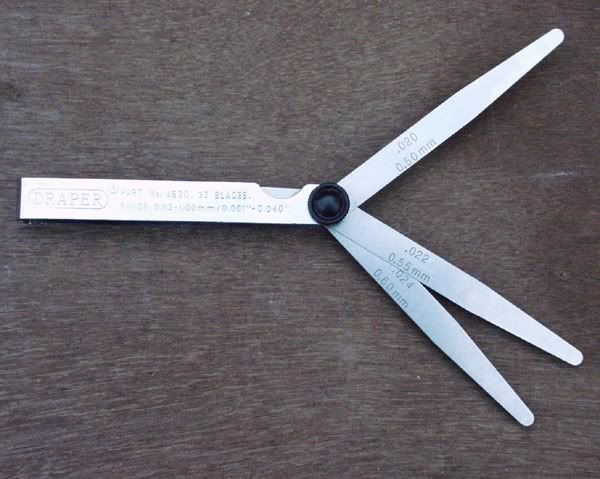

A couple of the gauge blades stack up to make that height. My frets are big: 1.15 mm / 0.046" high. Then we simply add 0.5 mm / 0.020" on top of that, and that will give us the height for the bottom of our nut slots. 0.020 thou is a pretty standard measurement for how much higher the slots need to be than the fret tops:

We can loosen the strings and just hook them out of the way:

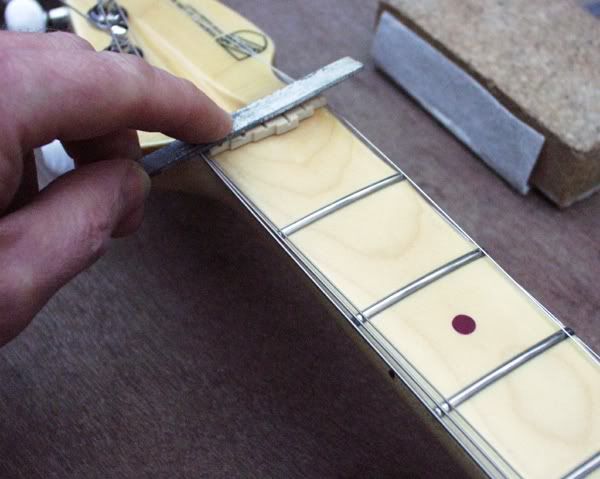

And then start filing our slots, using the correct sized slot file for each one. We do that till the file reaches the stack of feeler blades and - presto - our slots should be the right depth. (My strings are deliberately not clipped short yet in case I have to remove them.):

Obviously, we run the file at an angle to the fingerboard so that the slots tilt gently backwards, for a nice efficient breaking point at the leading edge.

We need to do the fine tuning by measuring the gap beneath the strings themselves:

Then we can shape the top of the nut, bringing it lower to our personal satisfaction. In fact, as soon as I'd taken this photo I removed the nut and did this job in the vice. Much easier and safer for the neck lacquer:

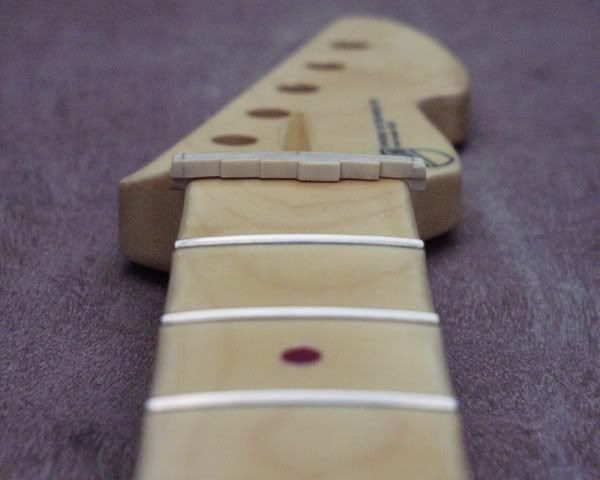

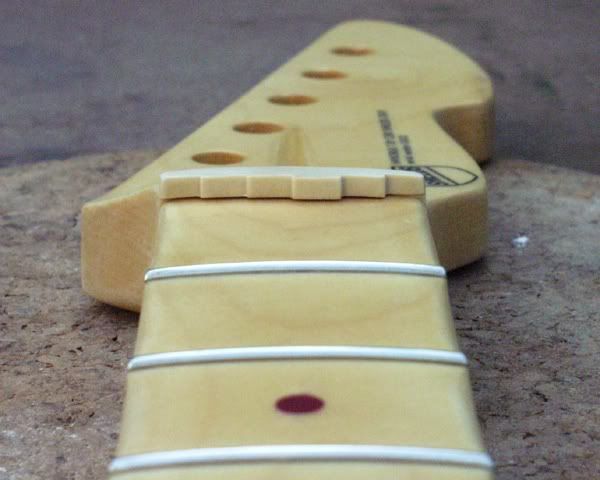

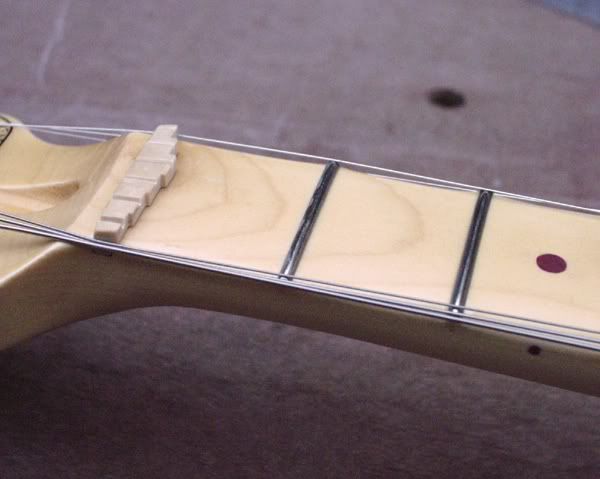

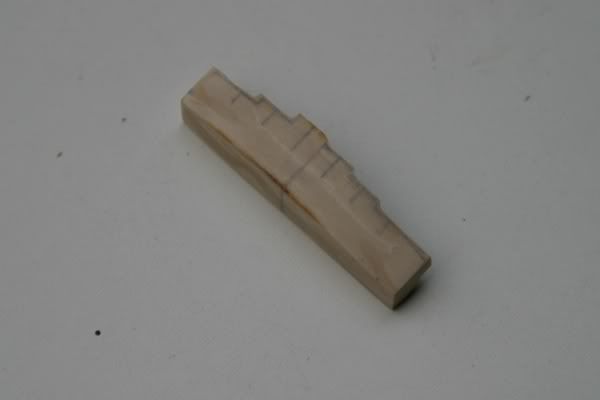

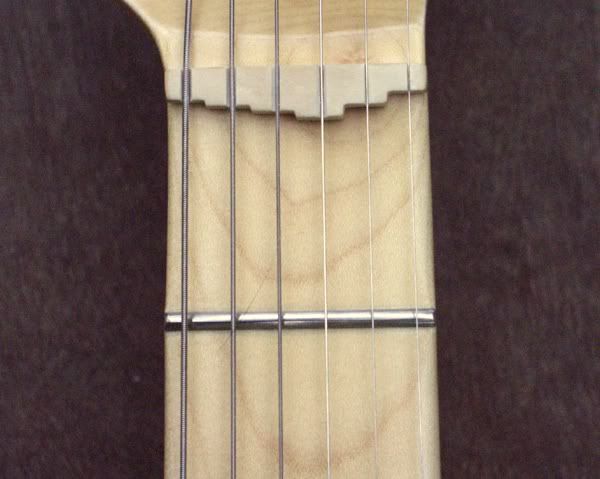

And there ya go - a finished, compensated bone nut. Nuttin' to it:

How difficult was that? Not at all. Give it a try - what's the worst that can happen? :D

I'll leave you for today with a photo that amuses me. Here in one picture is the making of a Ceri neck in three quick, easy stages (ho-ho, ha-ha - sardonic laughter... :lol: ):

Piece of cake, huh? Why isn't everyone doing it...?

Tomorrow - we finish. Y-E-E-E-E-A-H!!!!!

Cheers - C
