orvilleowner wrote:
Ceri, is this a veneered body?

If so, can you tell how many pieces are under the veneer?


Ah, now that's interesting. Yes, it has veneers front and back, over a five piece body. Like The Ninja I am not certain what the core timber is: either poplar or basswood, but I can't say which. I have both those trees in my garden and, have seen the inside of felled timber and... still am not sure??? :?

Anyhow, far as I know they only put the veneers on bodies that get a sunburst finish - is that right? So presumably that's how this guitar started out. But if I rightly remember Nick's own refinishing thread many months ago the paint he took off this body (and famously weighed) wasn't a sunburst - was it?

So Nikininja, can you tell us any more about the history of this Strat?

Now: next chapter coming up in a minute...

Cheers - C


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Sun Dec 06, 2009 12:26 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
OK, not quite such a long post today.

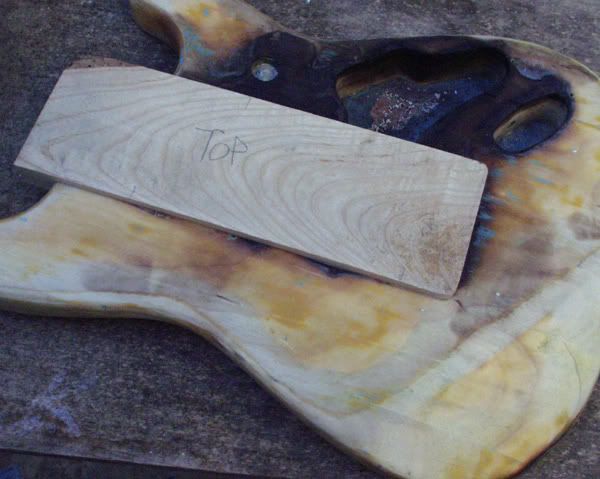

Here's where we got to - a big cavity excavated in the middle of the body, carrying away some of the burnt wood (but what about the rest of that charred timber, you ask...? That's the suspense element of the plot :lol: ):

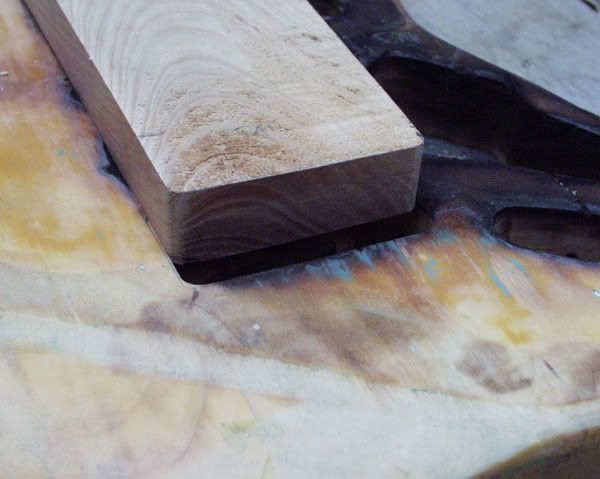

Don't know if you can see a pencil line down the side of the cavity here with the ash block placed above it. That shows how I have deliberately undercut the cavity, because I intend to fine tune the block to fit it. That's probably because I'm not really much of a carpenter. We have genuine joiners and cabinet makers amongst us on the Forum and I suspect they'd be much more confident about cutting out the cavity and block to exactly fit each other straight off:

However, my plan is to use my cabinet scraper to finish shaping the ash block so's it precisely fits the space. Again, neat and snug but not too tight. We don't want it exerting outward pressure on the rest of the body wood; and the glue itself takes up a small but appreciable space:

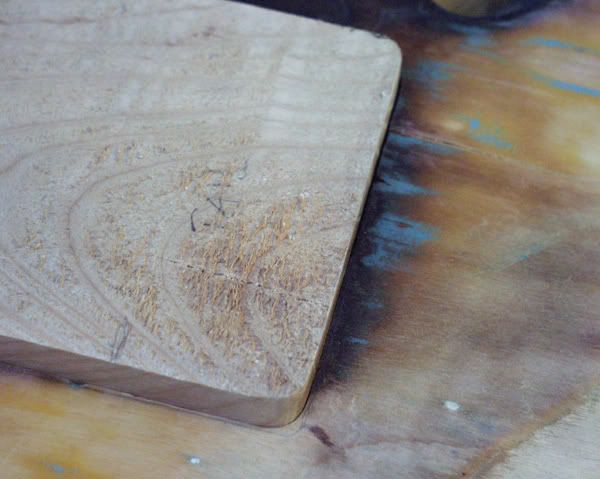

The scraper is good and sharp and removes timber quite efficiently. When we reach the point we can drop the block into position we then discover that the end is not quite square to the cavity. You can just see a small gap over to the far side, so this part too needs further shaping:

Finally the fit seems good:

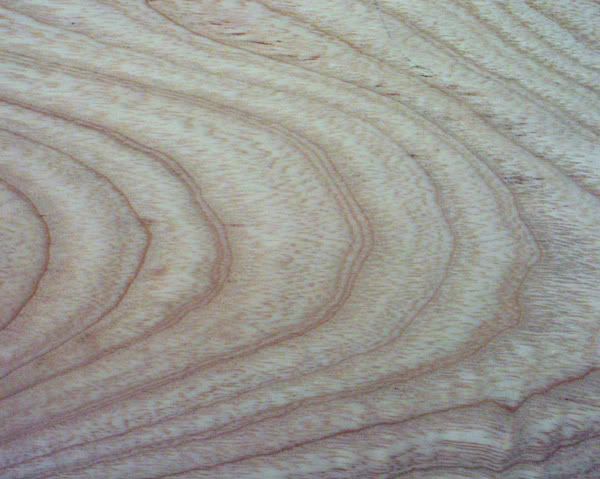

BTW: anyone like me think ordinary non-figured grain can be pretty? Here is the underside of that block, just before it is lost from view forever:

Well I think that's nice anyway... :roll:

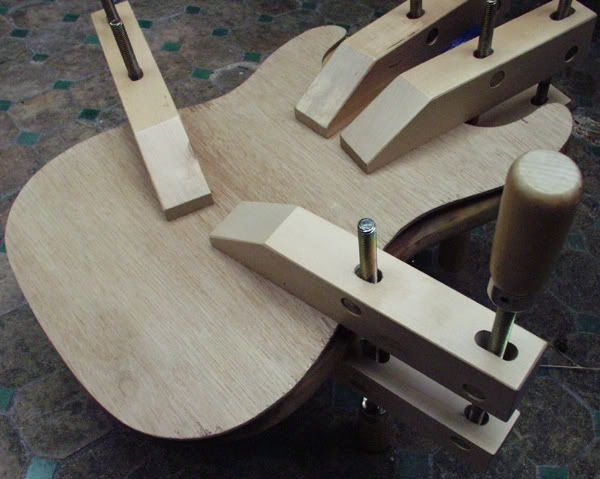

After challenging the fit rather a lot I'm finally ready to glue up the cavity and block and clamp it in place. Here first is the underside of the guitar, with an old body template used as a clamping caul, because it would be difficult to screw down cramps into the tummy contour:

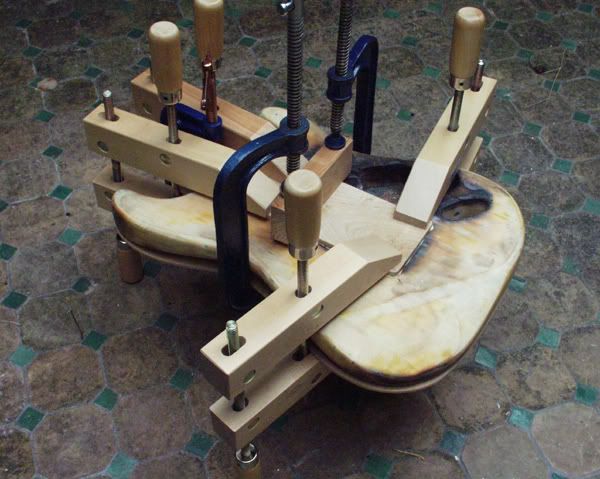

And here is the block with as many cramps as I can get at it on the front, screwed firm but not too firm. The glue does the work:

I want to leave that glue overnight, so that's all, folks.

See y'all.

Cheers - C


Last edited by Ceri on Sun Dec 06, 2009 12:35 pm, edited 1 time in total.

Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 12:32 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Mar 11, 2008 10:08 am
Posts: 9034
Location: Louisiana
What can I say Ceri!! :D :wink: Outstanding as usual!! 8)


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 12:38 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
fhopkins wrote:
What can I say Ceri!! :D :wink: Outstanding as usual!! 8)


Thanks Hop. Wish I could say the same for my typing. No matter how carefully I use the "preview" button the minute I submit the post I find a zillion typos that need editing. D'oh!

Anyhow. Let's try and work up some suspense here. Does Ceri not realise he's left lots of burnt wood on the front of that guitar? What on earth can be done to put that right?

Confused? Me too. :lol:

Cheers - C
____________

The Blue Badger... can't type for toffee.


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 12:52 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 22, 2007 7:00 pm
Posts: 1218
Nice job so far Ceri!


Top
Profile
Post subject: nik
Posted: Sun Dec 06, 2009 1:08 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jun 20, 2008 11:08 am
Posts: 2265
ceri,
great job.

excellent craftsmanship


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 1:14 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Apr 08, 2008 12:58 pm
Posts: 7714
Location: Planet Earth
Looks good My Friend!!!!

_________________
The strongest reason for the people to retain the right to keep and bear arms is, as a last resort, to protect themselves against tyranny in government.

Thomas Jefferson


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 1:25 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
I bought the guitar new for £200 in 95. All the mistakes on the previous refinish's are mine. Its never been sunburst, it was originaly white with a grey undercoat. Lots of the dings and fills came about with me loosing my temper and kicking it around the garden at various times.

_________________
No no and no


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 1:42 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Tue Feb 12, 2008 3:57 pm
Posts: 414
Location: Los Angeles, CA
I feel like a heroin addict needing his next fix... :cry:

_________________
"If I don't see you no more in this world I'll meet you on the next one and don't be late... don't be late." -Jimi Hendrix



Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 2:13 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Sep 20, 2008 1:47 pm
Posts: 18
Ceri,

You're doing a great job here building some suspense: I find myself holding my breath as I'm reading... :lol:

Great thread and I'm going to be logging in regularly to read and see more...

CK


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 2:13 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
A total delight; carry on, Ceri!!

_________________
You dig?


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 2:42 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
nikininja wrote:
I bought the guitar new for £200 in 95. All the mistakes on the previous refinish's are mine. Its never been sunburst, it was originaly white with a grey undercoat. Lots of the dings and fills came about with me loosing my temper and kicking it around the garden at various times.


Well, that's curious isn't it? I'm hardly an expert in the field but I'm surprised to find they veneer the fronts of bodies that get solid finishes. Maybe to stop sinkage into the join lines in the multipart bodies?

I guess the lacquer can always sink a little at those points - though nobody worries about that on two and three part bodies in the American series: no veneers needed there just to stop lacquer sinkage. And MIA urethane is somewhat thinner than MIM polyester.

Or maybe they just veneer everything and then use them indiscriminately?

BTW: £200 new was not a bad price for a MIM in our part of the world in 1995. I think a Squier was over a hundred at that time...

And BTW2: I was under the impression you had this Strat from a friend? I must be mixing it up with another.
____

And to everyone else: as always, many thanks for your endless charm! Appreciated. :D

Cheers - C


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 2:58 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
The squire was around £139 at the time. That guitar was a squire series. It originaly had a lot of squire parts on it. Pickups, tuners, trem, pots and switch. The scratchplate was definately fender (larger than squire).

I guessed that those guitars were a leftover from the squire production at the Mexico plant prior to fenders takeover and production of MIM lines. The neck is definately MIM fender. I suspect the body was just cobbled together from offcuts and various pieces of left over lumber from the squire days. Afterall the squire body of the time is thinner than that or a regular fender. Hence the laminate to bring it up to size.


Thats my theory anyway.

_________________
No no and no


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 3:02 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
nikininja wrote:
I suspect the body was just cobbled together from offcuts and various pieces of left over lumber...


Well, I can't criticise that. That's my approach after all... :lol:

Cheers - C


Top
Profile
Post subject:
Posted: Sun Dec 06, 2009 3:07 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 1:27 pm
Posts: 1151
Location: In.
This reminds me of the soap operas my wife used to watch on t.v. It is reminiscent of the plot where the patient who is near death (Niki's guitar body) is gradually brought back to health over a period of episodes by the brilliant young Doctor (Ceri). The rest of us are the audience who are left hanging each day waiting for the next episode. Keep up the good work Dr. Ceri. :wink:
