Post subject: Take a look at my bridge
Posted: Mon Oct 26, 2009 4:57 am
Offline
Hobbyist
Hobbyist

Joined: Fri Oct 16, 2009 1:03 pm
Posts: 6
Location: N.Ireland
Hey guys.

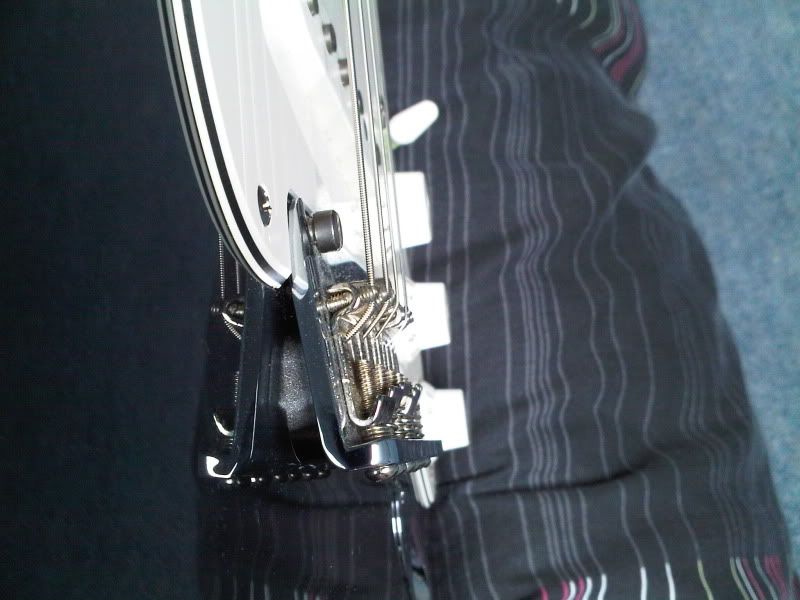

I restrung my 2009 usa strat this week and have just noticed that my bridge is sitting differently.
Im guessing I have done something when restringing it.
Can anyone shed some light on this problem and tell me how to fix it?
Thanks!



Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Mon Oct 26, 2009 5:47 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jul 04, 2008 8:09 am
Posts: 49
Looks like you might have put heavier guage strings on her and needs a complete setup. The increase string tension lifts the bridge.


Top
Profile
Post subject:
Posted: Mon Oct 26, 2009 5:48 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Oct 11, 2009 6:23 am
Posts: 833
I'm no expert, all can tell is that it looks like it's sitting a little high off the body. You may have to tighten up the trem spring claw a bit to bring it closer to the body. And what is that little piece of sponge?


Top
Profile
Post subject:
Posted: Mon Oct 26, 2009 5:49 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Mon Jun 22, 2009 1:44 am
Posts: 407
Location: NAU
Give the trem claw about a half turn on each side, then retune strings. If the bridge height is better, check the intonation, and you are done!


Top
Profile
Post subject:
Posted: Mon Oct 26, 2009 6:00 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
Looks like the way I have mine set. The open G should pull up to around Bb with that. It may be a little high for you though, if so do as others have said. Tighten the screws on the tremclaw. One tip though. Turn both screws the same amount and you will keep your trem equally balanced across the strings. I put a tipex dot on my screwdriver shank so I can acurrately judge when the screw has had a full turn. If I turn one screw 3/4's (example)of a turn, the other screw gets exactly the same amount.

_________________
No no and no


Top
Profile
Post subject:
Posted: Mon Oct 26, 2009 6:24 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
Ditto to all the above. A side point: that bottom E saddle is set absolutely flat to the bridge plate. Perhaps that is where it needs to be, but of itself that just makes me want to check the action on this guitar to be sure.

How does your action feel to you, simpo03?

Also, remember that any of these adjustments will affect your intonation, so once everything else is right you need to recheck that, too.

BTW: Bathead, if I'm understanding what you're looking at then I think that piece of "sponge" you are seeing is the coating on simp03's trem block - no?

Cheers - C
