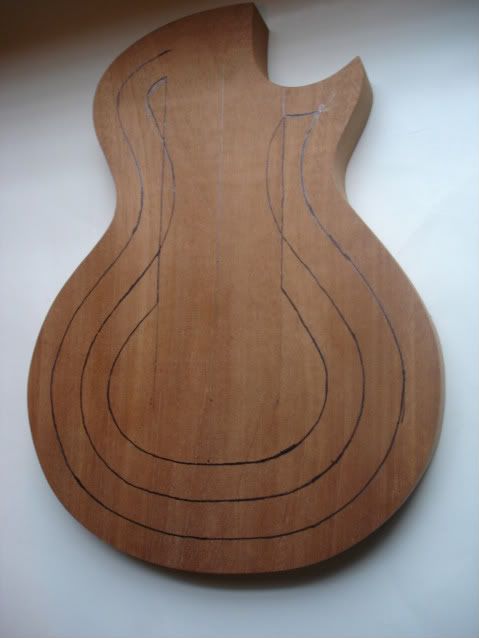

N'kay. Found time today to start the arched top contouring. First I marked out the topography of the arch: Image


Next step is to route each level of the arch starting on the outside edge with at 3/8" deep. Raising the router bit 1/8" sith each new tier.


After thats done, I get to spend some quality time with the sander! :D

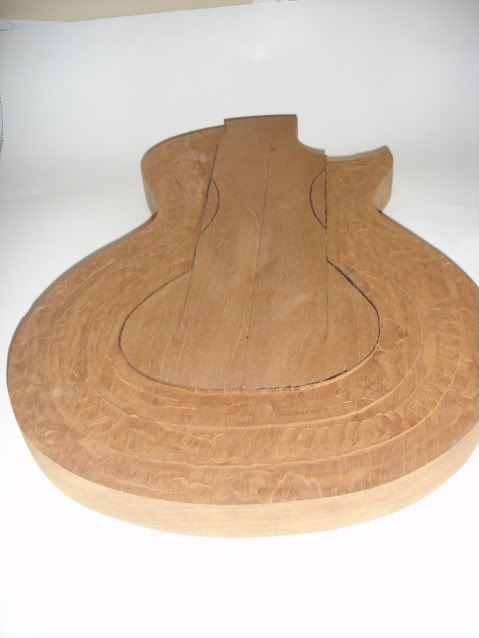

4 Bud Lights and a whole sheet of sandpaper later this is what came out:




Next up is routing for controls and then a trip to the scales to check weight.
