Author Message
Post subject:
Posted: Mon Aug 31, 2009 9:01 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi

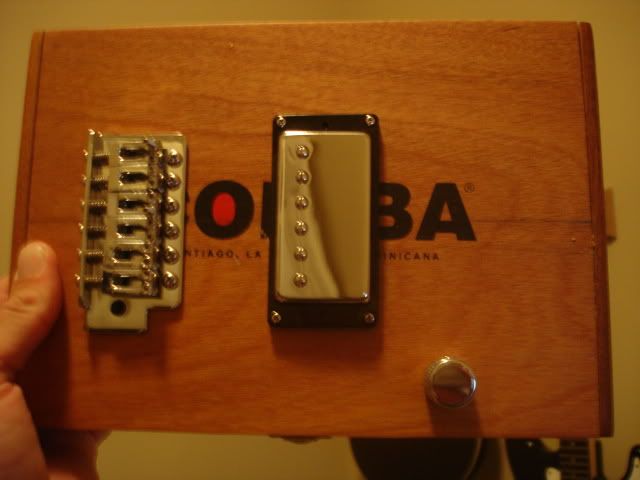

OK. Its later than promised, but here is the rough mock up. I still have to route for the neck pocket.


_________________
"I started out with nothing, and still have most of it"


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Tue Sep 01, 2009 7:06 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi
I'll be milling the mahogony tone block this evening. The neck should be here Thursday. With any luck I should be able to plug it in by saturday.

_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Wed Sep 02, 2009 7:32 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi

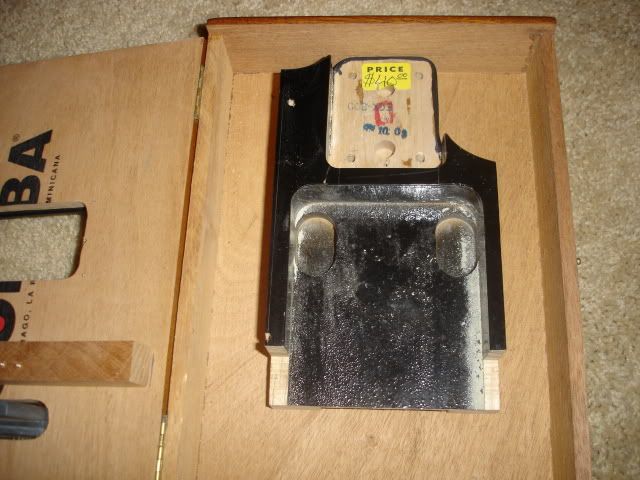

Nkay. My mahogony block fell thru. So I cuised around the local shops till I came up with a beat up Poplar body which I cut down to just the neck pocket and bath tub pickup route. I doubt it will contribute much to tone, but it should keep everything stable so it will keep tune.


_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Wed Sep 02, 2009 10:16 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Sun Dec 28, 2008 11:10 am
Posts: 413
Check out St louis craigslist a week or so ago there was a poster wanting to sell 3 necks they were from jacksons and charvettes if i remember correctly...


Top
Profile
Post subject:
Posted: Thu Sep 03, 2009 4:56 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi
Thanks for the heads up Invader, but I actually found a guy on ebay who was willing to negotiate a deal on his custom made necks. If all goes well he'll be a good source for future CBG necks.

_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Thu Sep 03, 2009 5:17 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
Mr Thumbs

What are you planning for scale length? Is this going to be a regular size guitar? I've never seen one before and am intrigued.

Now where can i get me a good wooden box?

_________________
No no and no


Top
Profile
Post subject:
Posted: Thu Sep 03, 2009 5:50 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi
nikininja wrote:
Mr Thumbs

What are you planning for scale length? Is this going to be a regular size guitar? I've never seen one before and am intrigued.

Now where can i get me a good wooden box?


Aye! It will be full scale. I'm using a strat style 22 fret neck. in all there is only a 1 1/2" difference from bridge to nut than the length of a strat.

As far as boxes go. Any local cigar shop sells empties for $3-$10. But, dont restrict yourself to cigar boxes. You could use near anything from oil cans, ceiling fan bodies, to briefcases. Your imagination is the only limitation with these puppies!

I still need to transfer the neck pocket to the cover of the box and route a trem access hole in the bottum. The neck should arrive either today or tomorrow.

_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Thu Sep 03, 2009 6:24 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
Watch that 1 1/2" difference mate. It may be an idea to move the block insert forward a little to get rid of the difference and keep the scale length of 324/5mm 12th fret to bridge.

Castrol oil cans here i come.

_________________
No no and no


Top
Profile
Post subject:
Posted: Thu Sep 03, 2009 7:49 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi
nikininja wrote:
Watch that 1 1/2" difference mate. It may be an idea to move the block insert forward a little to get rid of the difference and keep the scale length of 324/5mm 12th fret to bridge.

Castrol oil cans here i come.


Actually, its 1 1/2" short, not long but I see your point! Since this is a prototype I expect issues. Especially with intonation. I just want to get this done and get an idea of what I can expect acoustics wise. If intonation is a prob I can strip all the parts and start over with a new box. All I'll be out is a couple of hours of measuring and routing.

_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Thu Sep 10, 2009 4:00 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi

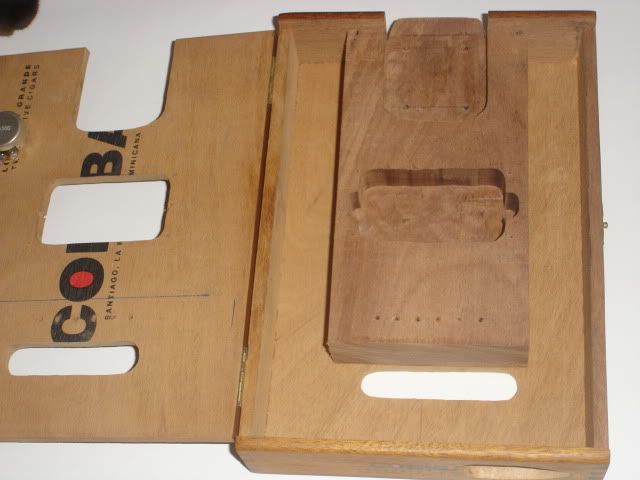

Mahogany tone block complete! all thats left is to wire and bolt it all together. Then its just a matter of waiting on the mail ordered tuning machines.


_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Thu Sep 10, 2009 4:16 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 26, 2008 9:56 pm
Posts: 3941
Location: Great White North, EH!
awesome!!

_________________
I'm not an expert, but I play one on the internet.



Top
Profile
Post subject:
Posted: Sat Sep 12, 2009 7:46 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi
All wired up and neck set! Just need tuning machines (on order) and a set up!


_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Sat Sep 12, 2009 8:06 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
Stunning mate simply stunning. Love the flame on the headstock. We want sound clips.

_________________
No no and no


Top
Profile
Post subject:
Posted: Sat Sep 12, 2009 4:38 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi
Cheers Niki! I thought ya might appreciate it. Still no word on the tuners (serious bummer) as she is otherwise complete.

Yeah, I guess I'll spend the next few days figuring out a means of getting some sound clips uploaded to the net.

_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Sat Sep 12, 2009 4:46 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
Looking good mate. I've the design for the oilcan sussed out. The exhaust pipe guitar looks to be a winner too. My drummer reckons the exhaust pipe could even be used for a neck too. My idea was for a 1 piece slide guitar, but i think I'll run with his idea of pipe and muffler box and see where it takes me. Pictures soon on that one.

_________________
No no and no


Top
Profile
