Post subject: Removing Broken Whammy Bar.
Posted: Fri May 29, 2009 7:48 pm
Offline
Hobbyist
Hobbyist

Joined: Fri May 29, 2009 7:34 pm
Posts: 3
I got a Squire Strat with a combo pack when I first became interested in playing a few years ago. While messing around with a friend, my whammy bar snapped and I've never put much effort into removing the remaining bit until now. I've gone at it with surgical clamps (a roach clip) to no avail.

Any advice?

I'm almost sure that if i take it to sam ash they'd remove it with no cost, but if it can be removed without the 40minute drive, that would be great.

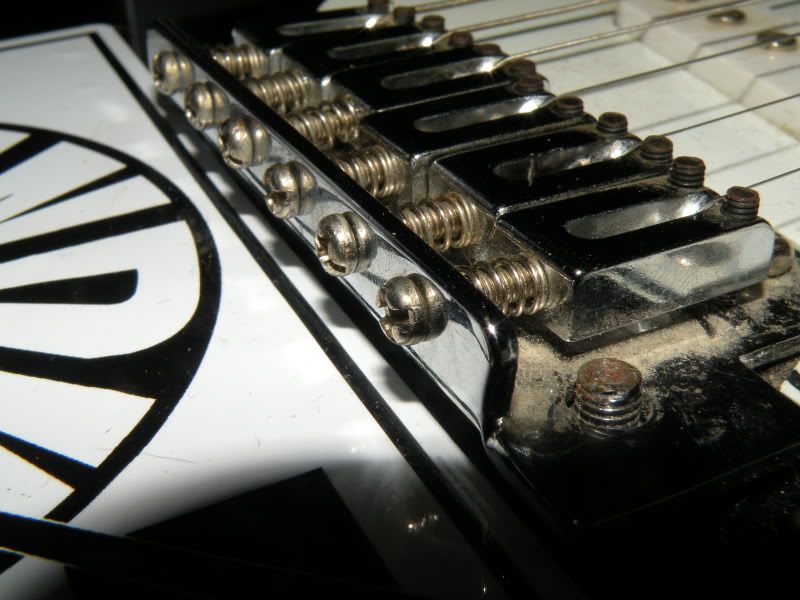

Here's a pic of it.

http://i132.photobucket.com/albums/q16/ ... CN0258.jpg

Thanks much


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Removing Broken Whammy Bar.
Posted: Fri May 29, 2009 7:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Jul 18, 2007 9:53 am
Posts: 5189
Location: Magnolia, Texas (just north of Houston)
RRA_Incognito wrote:
I got a Squire Strat with a combo pack when I first became interested in playing a few years ago. While messing around with a friend, my whammy bar snapped and I've never put much effort into removing the remaining bit until now. I've gone at it with surgical clamps (a roach clip) to no avail.

Any advice?

I'm almost sure that if i take it to sam ash they'd remove it with no cost, but if it can be removed without the 40minute drive, that would be great.

Here's a pic of it.

http://i132.photobucket.com/albums/q16/ ... CN0258.jpg

Thanks much




Try a good pair of needle nose Vice Grips. Should be able to grab it. Hemostats just do not have the grip like a good pair of vice grips. There should be enough of the whammy bar there to grab.

RK

_________________
RK

2007 Fender Highway 1
2012 American Deluxe
2015 MIM Dave Murray HHH
2010 Fender Blacktop
1987 Fender Avalon Acoustic
2012 Marshall DSL 15 watt head


Top
Profile
Post subject:
Posted: Fri May 29, 2009 8:43 pm
Offline
Hobbyist
Hobbyist

Joined: Fri May 29, 2009 7:34 pm
Posts: 3
Thanks man, I've arranged to borrow my father's when i go into town tomorrow. If that doesn't work, I'll probably not bother with it anymore... Never used the Whammy much... Just a bit of an eyesore, haha.


Top
Profile
Post subject:
Posted: Fri May 29, 2009 8:46 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Jun 13, 2007 7:02 am
Posts: 8609
Location: Vacaville, CA USA
Remove the block from the bridge that will give you more of the broken bar to work with. A pair of vice grips should work from there.

_________________
Chet Feathers

Authorized TonePros Dealer
Authorized WD Music Products Dealer
F/A Official Southpaw Compliance Certification Tester http://faamps.com/

http://www.facebook.com/cafeathers


I didn't Lose my mind, I traded it for this guitar.


Top
Profile
Post subject:
Posted: Sat May 30, 2009 6:40 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 24, 2007 7:33 am
Posts: 8461
Location: Mars, the angry red planet.
CAFeathers wrote:
Remove the block from the bridge that will give you more of the broken bar to work with. A pair of vice grips should work from there.


Also, if you meet a lot of resistance when you try to back the arm out, put a few drops of light oil in the block to lube the threads.

_________________
You dig?


Top
Profile
Post subject:
Posted: Sat May 30, 2009 9:42 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
CAFeathers wrote:
Remove the block from the bridge that will give you more of the broken bar to work with. A pair of vice grips should work from there.


And if you can't get it out, just buy a new block (or whole new trem system, you can find them real cheap).

You already have to buy a new bar.

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject:
Posted: Sat May 30, 2009 9:43 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Jun 13, 2007 7:02 am
Posts: 8609
Location: Vacaville, CA USA
orvilleowner wrote:
CAFeathers wrote:
Remove the block from the bridge that will give you more of the broken bar to work with. A pair of vice grips should work from there.


And if you can't get it out, just buy a new block (or whole new trem system, you can find them real cheap).

You already have to buy a new bar.


Yeah, What he said.

_________________
Chet Feathers

Authorized TonePros Dealer
Authorized WD Music Products Dealer
F/A Official Southpaw Compliance Certification Tester http://faamps.com/

http://www.facebook.com/cafeathers


I didn't Lose my mind, I traded it for this guitar.


Top
Profile
Post subject:
Posted: Sun May 31, 2009 8:45 am
Offline
Amateur
Amateur
User avatar

Joined: Wed Sep 17, 2008 8:20 am
Posts: 111
Available at your local hardware store, buy once - use for years and years. Cheap too, under $20 for it all.

http://s722.photobucket.com/albums/ww221/Arcarix/?action=view&current=Trem_removal_tools.jpg

Definite multi-taskers, I've used these two for at least 15 years. Still got half a bottle left, and the vise-grips have more teeth left than I do :P

_________________
For setup help you could go here - http://www.fender.com/support
For a guitars build date, try here - http://www.guitardaterproject.org/


Top
Profile
Post subject:
Posted: Sun May 31, 2009 2:55 pm
Offline
Professional Musician
Professional Musician

Joined: Sun Sep 28, 2008 3:29 pm
Posts: 1162
Location: Lee, MA
You can buy the bits they sell to remove screws with broken heads, they have them at most hardware stores, they just put a threaded hole into the stuck piece, but with the threads going in reverse, then you put the other bit on the drill, screw it into the threaded hole you made, and it screws it right out.


Top
Profile
Post subject:
Posted: Sun May 31, 2009 4:15 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
You could try to saw across the top of the bar with a hacksaw. Then use a screwdriver to undo the trembar. You can even saw in a cross head shape.

That said being as though pliers/clamps wont turn it out it sounds like you've crossed the screw thread. If thats the case you will need a new tremblock anyway.

_________________
No no and no


Top
Profile
Post subject:
Posted: Sun May 31, 2009 8:16 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Jul 28, 2007 8:34 am
Posts: 821
CAFeathers wrote:
Remove the block from the bridge that will give you more of the broken bar to work with. A pair of vice grips should work from there.

I just did this on a guitar!!! Just remember one thing in addition....Torch it!! No really, apply heat to the block if it is not coming out. I just did this recently, and it worked like a charm.


Top
