Post subject: truss rod for custom classic player strat
Posted: Tue Apr 28, 2009 12:22 pm
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 28, 2009 12:03 pm
Posts: 10
hi guys. i got a problem.

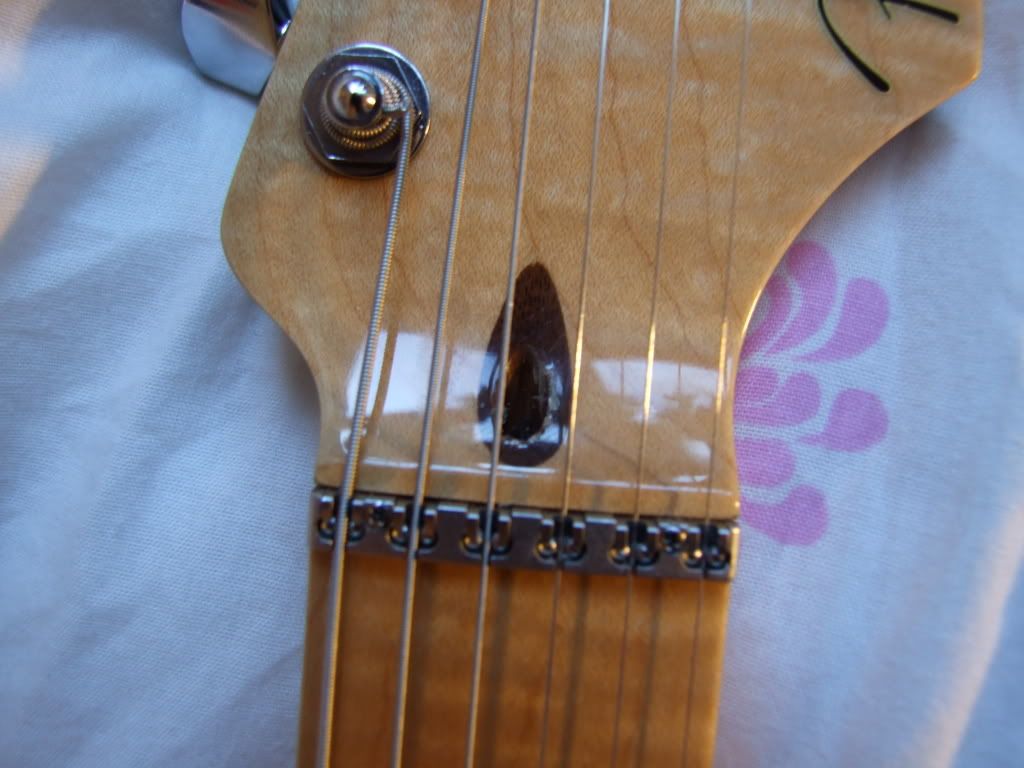

the truss rod in my 2005 custom shop classic player strat isn't turning any direction at all. i tried 3, and 4mm alan keys, but they didn't work, so i bought a 3.5mm one as well, but also no luck.
does anyone know which one it's supposed to be?
neck is straight and plays fine, but i just want to make sure that it will turn if i ever need to adjust it in the future.
thanks
Image[/img]


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Tue Apr 28, 2009 12:44 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Mon Feb 25, 2008 8:47 am
Posts: 2967
Location: Westchester County, NY
Now why does the truss rod hole look off center to me?

Let's wait for more advise...


Top
Profile
Post subject:
Posted: Tue Apr 28, 2009 2:47 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun May 18, 2008 1:35 pm
Posts: 2303
Location: DC
:shock: theres something about that guitar that looks not right


Top
Profile
Post subject:
Posted: Tue Apr 28, 2009 2:52 pm
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 28, 2009 12:03 pm
Posts: 10
yeah it's the lsr nut. it's been modded :D


Top
Profile
Post subject:
Posted: Tue Apr 28, 2009 3:01 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Mon Feb 25, 2008 8:47 am
Posts: 2967
Location: Westchester County, NY
I dont think he was making any assumption concerning the modded nut or tuners.


Top
Profile
Post subject:
Posted: Tue Apr 28, 2009 3:10 pm
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 28, 2009 12:03 pm
Posts: 10
tuners are stock actually. obviously you guys don't know anything abt this model. don't worry tho. i'll go ask the repair person.


Top
Profile
Post subject:
Posted: Tue Apr 28, 2009 5:09 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
lunarstrat wrote:
tuners are stock actually. obviously you guys don't know anything abt this model. don't worry tho. i'll go ask the repair person.


Hi lunarstrat: you're right, I don't know your guitar.

On the other hand, I do have some experience with trussrods and I have discovered that metric and imperial allen keys are not interchangeable. Most of my Fenders take imperial keys, and I expect yours does too.

However, I also have a Korean Lite Ash Tele, and to my surprise my Fender issue imperial trussrod key won't work on it. Luckily I have a set of metric ones too and found the one that fitted. Why the Korean factory should be using trussrods with metric sockets unlike the rest of Fender I don't know...

Even though there is a tiny difference between the three keys you tried it may well be just enough to stop them from fitting. I suggest you either try a set of imperial sized allen keys, or just email Customer Care and ask them which is the correct size for your neck:

consumerrelations@fender.com

Good luck - C


Top
Profile
Post subject:
Posted: Wed Apr 29, 2009 12:25 am
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 28, 2009 12:03 pm
Posts: 10
thanks. i'll definately try the imperial sets. i own a masterbuilt 54' and a ej strat as well, but they both have vintage style truss rods which are placed at the neck heels; these could be adjusted with any screw driver. much simpler/better design to be honest!! but i do like the idea of having a truss rod at the head stock, as i don't have to remove the neck all the time. i'm a bit surprised that you have so many strats with this type of truss rod!! as most strats i know of come with the 'screw driver type'
anyway cheers!!


Top
Profile
Post subject:
Posted: Wed Apr 29, 2009 8:49 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
I've a custom classic too. Its a biflex truss rod in them if its in the center position then it would give the feeling of being broken. The guitar is pretty much a vneck'd deluxe or standard depending on pickup config.
http://www.cranesmusicstore.com/fendercustomclassicstratocaster-p-919.html?zenid=f5pujafc8oc2knnrlp54btgf80

Anyway get over to the customshop section of the forum and check the customshop lifetime care program. That shoud allieviate some of the w.orry

_________________
No no and no


Top
Profile
Post subject:
Posted: Wed Apr 29, 2009 8:59 am
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 28, 2009 12:03 pm
Posts: 10
nikininja wrote:
I've a custom classic too. Its a biflex truss rod in them if its in the center position then it would give the feeling of being broken. The guitar is pretty much a vneck'd deluxe or standard depending on pickup config.
http://www.cranesmusicstore.com/fendercustomclassicstratocaster-p-919.html?zenid=f5pujafc8oc2knnrlp54btgf80

Anyway get over to the customshop section of the forum and check the customshop lifetime care program. That shoud allieviate some of the w.orry

yeah, custom classics are great too, but mine is a slightly different model. it's custom classic 'players' model which was discontinued slightly earlier than the custom classics (i believe?)
anyway i really do hope that i haven't worn off/messed up the thread already, you can see on the pics, the finish around the hole is cracked; cos i applied some brute force as i got frustrated. i'll keep you informed. :D


Top
Profile
Post subject:
Posted: Wed Apr 29, 2009 9:15 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
That chipping on the truss surround looks like your allen key isnt long enough. Note the one that comes with the guitar is about 1.5" either side of the corner.

_________________
No no and no


Top
Profile
Post subject:
Posted: Wed Apr 29, 2009 9:47 am
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 28, 2009 12:03 pm
Posts: 10
nikininja wrote:
That chipping on the truss surround looks like your allen key isnt long enough. Note the one that comes with the guitar is about 1.5" either side of the corner.


the key is long enough i think. i don't think the length is the issue here. when i put 3mm/4mm in, i don't 'feel' anything grabing on the thread, since 3mm one is too small, it does go into the thread, but it turns in mid air, 4mm is too big, so it does not even fit into the thread, so i thought 3.5mm must be the one. untill finding that the 3.5mm one does go in when i use the ball end or a la 'rescue side', but would not turn at all. so perhaps i'm looking for the imperial one sized somewhere between 3mm and 3.5mm. i'll get a set tomorrow perhaps and let you know. i got this one on ebay (used), and i was only given one alan key unfortunately, for adjusting the saddles. cheers
ian


Top
Profile
Post subject:
Posted: Wed Apr 29, 2009 10:58 am
Offline
Hobbyist
Hobbyist

Joined: Tue Apr 28, 2009 12:03 pm
Posts: 10
hi guys.
i just bought the imperial set, and the one which says '1/8' fits perfectly, and is working as smoothly as it should.
i went to a local tool shop and saw those two sets (metric & imperial) and i did not understand that they were two different kinds of animal.
i just thought they were in different colour, so i picked up a red set, and did not know the yellow ones had completely different measurements all together!!
thank you so much!
now i just need to get those chips filled up somehow...
best,
ian
