Here are some pictures of a 75 stratocaster body. The dowels are clearly present. Look at the upper dowel, it is exactly near the connection between the woods (you can see the line of the connection) the dowel is above the line. Now look at the back, look closely for the line and you can see that the dowel is located much lower from the line, therefore it could not be 1 hole through the body, but 2 separate holes. Also with the lower dowel, the front one is near the bridge cavity, and the back one is much much lower then it.



Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Sun Aug 24, 2008 11:15 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Mar 11, 2008 10:08 am
Posts: 9034
Location: Louisiana
Yep, do you think it's something to do with gluing the pieces of wood together? :? that does not make much sense thinking about it though :?


Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 11:24 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
Thanks for those photos. (I have to figure out how to take closeups without all of the flash glare I get.) The one time I took some rough measurements of dowel positions (on my walnut colored '74), the front and back numbers didn't line up, but I attributed that to "operator error."

I've been interested in dowels for a while too, but I never found any definitive explanation/discussion. Like I said, they aren't mentioned in the books (that I've seen).

I first found the spots on my '74 and I thought they were filler (like plastic wood or bondo!) on flaws in the wood. But as the finish on my sunburst '75 faded, the similar looking spots became visible. I then threw out the "flaw filler" idea because of the consistent spacing. Then I discovered more similary spaced spots on all of my old guitars (by holding them just right to the light) and realized they must be dowels plugging holes because of the round shape.

I have a lefty and the little dowel on the headstock is clearly visible (without having to remove any tuners).

_________________
Member #26797
My other guitar is a Strat.



Last edited by orvilleowner on Sun Aug 24, 2008 11:27 am, edited 1 time in total.

Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 11:25 am
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 23, 2008 11:07 am
Posts: 8
fhopkins wrote:
Yep, do you think it's something to do with gluing the pieces of wood together? :? that does not make much sense thinking about it though :?


It probably has nothing to do with gluing the woods together at all. :D


Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 11:28 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Mar 11, 2008 10:08 am
Posts: 9034
Location: Louisiana
I know as always I post before thinking :oops:


Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 11:32 am
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 23, 2008 11:07 am
Posts: 8
When I'll change strings next time, I'll check on my 66 and 57 about the dowel beneath the tuners. From what I remember, there is a hole there, a nail hole, that is not plugged at all. But you said something about a dowel, I'll have a look.


Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 11:39 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
Here's a pic of an old lefty headstock (a 1971) that shows the small dowel in between the D and G string tuners.


_________________
Member #26797
My other guitar is a Strat.



Last edited by orvilleowner on Sun Feb 20, 2011 11:31 am, edited 1 time in total.

Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 2:43 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Aug 23, 2008 11:07 am
Posts: 8
Just like you said, they probably only dowel the hole on the lefties then since its on the front, I'll check again on my guitars but this is probably the case.


Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 3:15 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jun 30, 2008 10:47 am
Posts: 15336
Location: In a galaxy far far away
would the hole on righthand necks be used for machinehead fitting?

_________________
No no and no


Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 3:38 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
nikininja wrote:
would the hole on righthand necks be used for machinehead fitting?


No, it was hole to orient the jig to route out the shape of the headstock (and maybe position the tuner holes?). I was once told (by the guy whose 1963 body is shown in the first post) about the headstock dowel:

Quote:
This leads me to believe that the lefty necks were roughed out on the same router as the right hand ones, just "upside down" if you get what I mean.

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject:
Posted: Sun Aug 24, 2008 3:41 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jul 16, 2007 3:47 pm
Posts: 4294
Location: Somewhere near Seattle
Makes perfect sense.

_________________
"is that a real poncho...i mean
Is that a mexican poncho
Or is that a sears poncho?
Hmmm...no foolin ...." FZ


Top
Profile
Post subject: Re: vintage strats: look for dowels
Posted: Fri Feb 18, 2011 8:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
Bump of an old interesting thread.

For those with any interest at all in vintage Fenders ...

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject: Re: vintage strats: look for dowels
Posted: Sun Feb 20, 2011 5:56 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
orvilleowner wrote:
Bump of an old interesting thread.

For those with any interest at all in vintage Fenders ...

And a very good "bump" too, thank you.

...BTW, care to reinstate the missing photos on this page, please? Anyone interested in vintage guitars is certainly going to be very interested to see those pics!

Cheers - C

_________________


Top
Profile
Post subject: Re: vintage strats: look for dowels
Posted: Sun Feb 20, 2011 11:23 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Jul 17, 2007 9:44 am
Posts: 7282
Location: Washington
Ceri wrote:
BTW, care to reinstate the missing photos on this page, please? Anyone interested in vintage guitars is certainly going to be very interested to see those pics! Cheers - C


I reinstated some pics on the first page (I went through a switch of my photos upload site). I'll see if I can find those from this page (to upload and reinstate).

_________________
Member #26797
My other guitar is a Strat.



Top
Profile
Post subject: Re: vintage strats: look for dowels
Posted: Sun Feb 20, 2011 11:51 am
Offline
Hobbyist
Hobbyist

Joined: Wed Sep 26, 2007 2:33 pm
Posts: 68

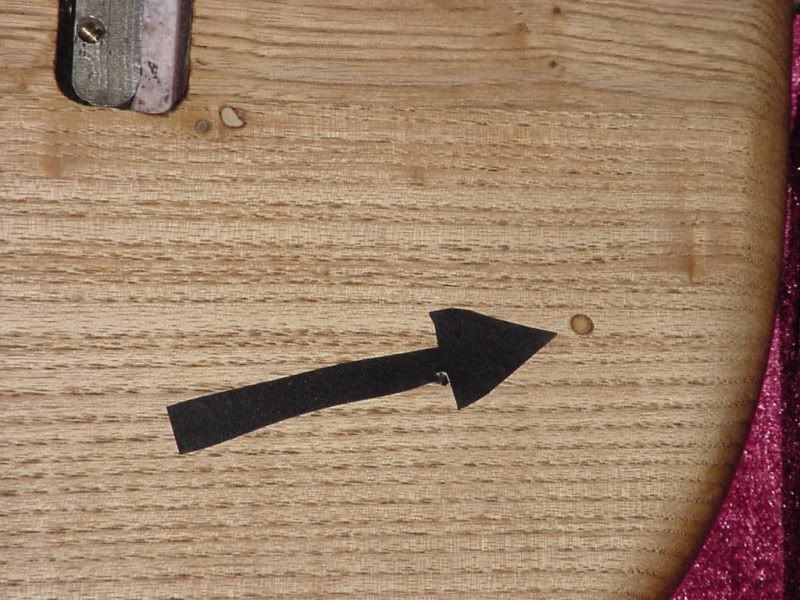

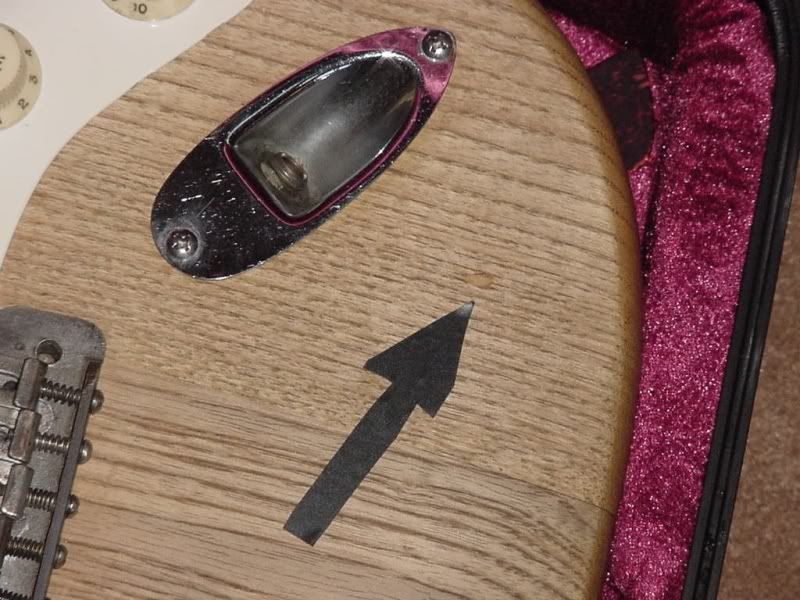

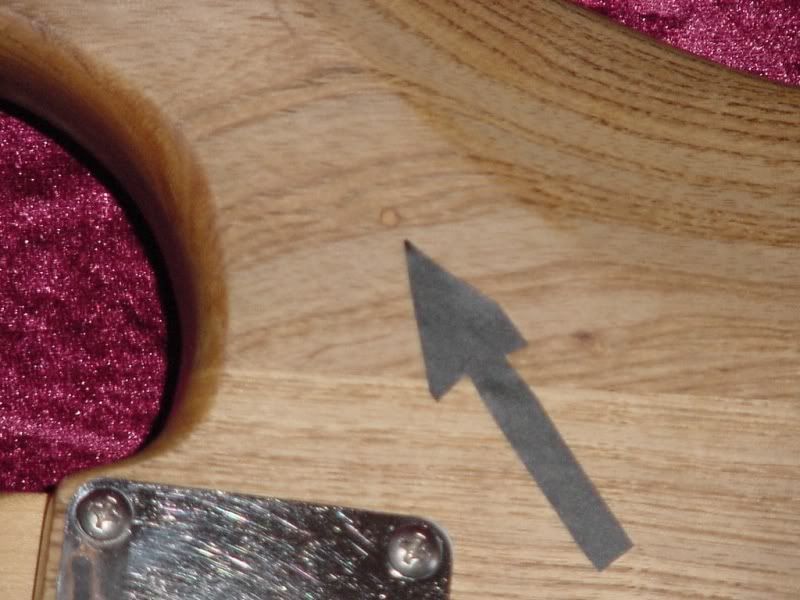

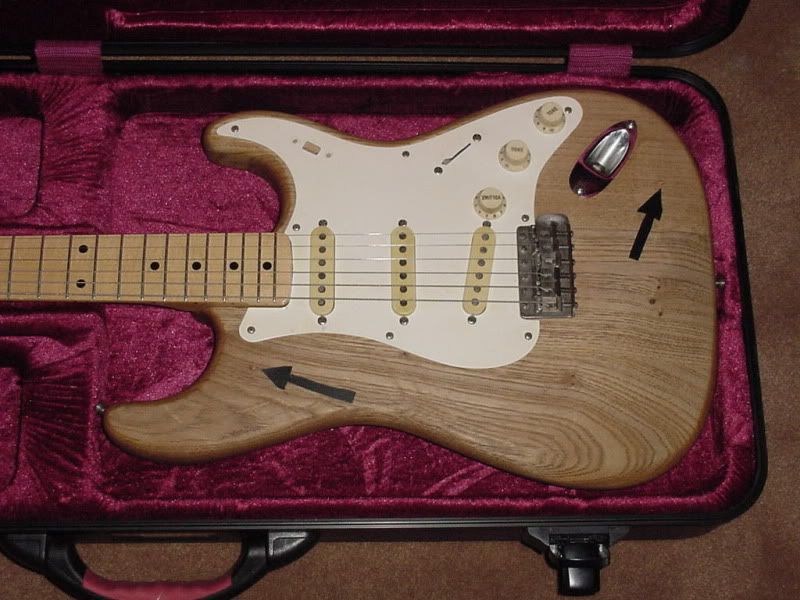

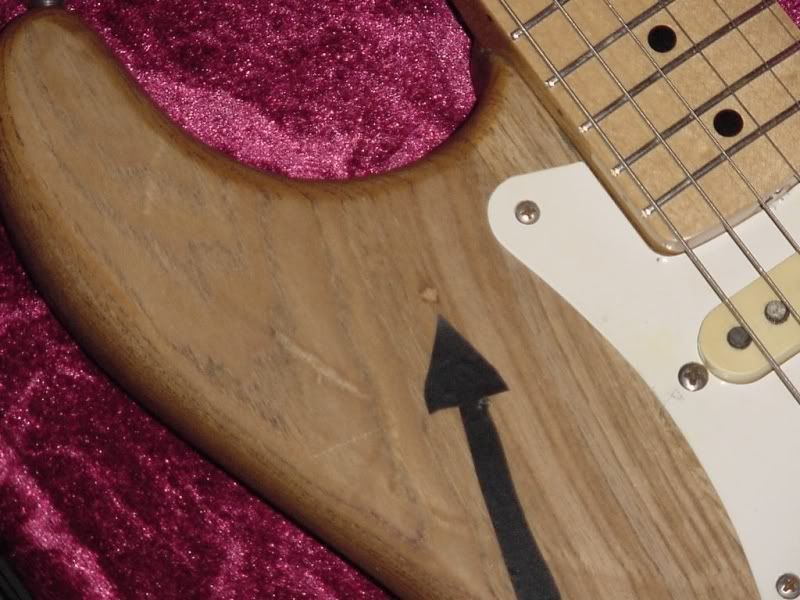

Although my guitar may not be typical because of it not being a regular production guitar , in these pictures you can clearly see the holes that have been filled. I don't believe they used dowels. With a close inspection with a magnifing glass it appears to be only wood filler in the holes. That is not to say there couldn't be be a dowel and then some filler on top of it.
See the whole guitar here
http://sites.google.com/site/1953stratocaster/
