Post subject: Clapton Mid Boost mod
Posted: Tue May 09, 2017 12:00 pm
Offline
Hobbyist
Hobbyist

Joined: Tue May 09, 2017 11:55 am
Posts: 1
Hi

I tried to install a mid boost kit in my 91 US strat yesterday, but couldn't fit the board in. So I removed the middle pickup to make space, I hardly ever use it and am curious if I can get a Tele middle kind of sound by combining neck a bridge of the strat.

How would I need to wire it then?

Tx

Jan


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Clapton Mid Boost mod
Posted: Sat May 20, 2017 1:30 am
Offline
Rock Star
Rock Star

Joined: Tue Jul 17, 2007 1:53 am
Posts: 4241
I'm absolutely no wiring expert, but let's see if this reply gets the topic rolling... :wink:

Basically, you'd need a Telecaster wiring diagram with that EC mid-boost circuit added. The idea been discussed in the tdpri.com, but they have not come up with a solution...
But there's one Tele diagram you maybe could use as a base for a new layout/diagram; Andy Summers Tribute Tele Wiring

It would be nice if you'd report back on the situation - whether you use that diagram or not.


Top
Profile
Post subject: Re: Clapton Mid Boost mod
Posted: Fri May 26, 2017 5:12 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Wed Apr 30, 2008 2:30 pm
Posts: 33
You could possibly use a switch and follow a super strat wiring diagram but I'm not sure how to incorporate the mid boost into the equation. As for the tele sounds, I had a strat that combined the two and it didn't sound like a tele to me. YMMV. As for the board not fitting, if you snip one corner right across the screw hole, it will go into the cavity.

_________________


Top
Profile
Post subject: Re: Clapton Mid Boost mod
Posted: Sat May 27, 2017 12:39 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Jan 02, 2015 6:57 am
Posts: 2238
Location: UK
Clapton without the middle PUP! :shock:

If it really won't fit then why not block the trem and use the spring cavity.

_________________
John

After all this time I should be better.


Top
Profile
Post subject: Re: Clapton Mid Boost mod
Posted: Sat May 27, 2017 12:47 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
John Sims wrote:
Clapton without the middle PUP! :shock:


Sacré bleu!

:roll:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Clapton Mid Boost mod
Posted: Sun May 28, 2017 12:51 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
I hesitate to reply .. it brings back such terrible memories of frustration and hopelessness ..

I implore you .. DO NOT do this .. save yourself .. it's too late for me ..

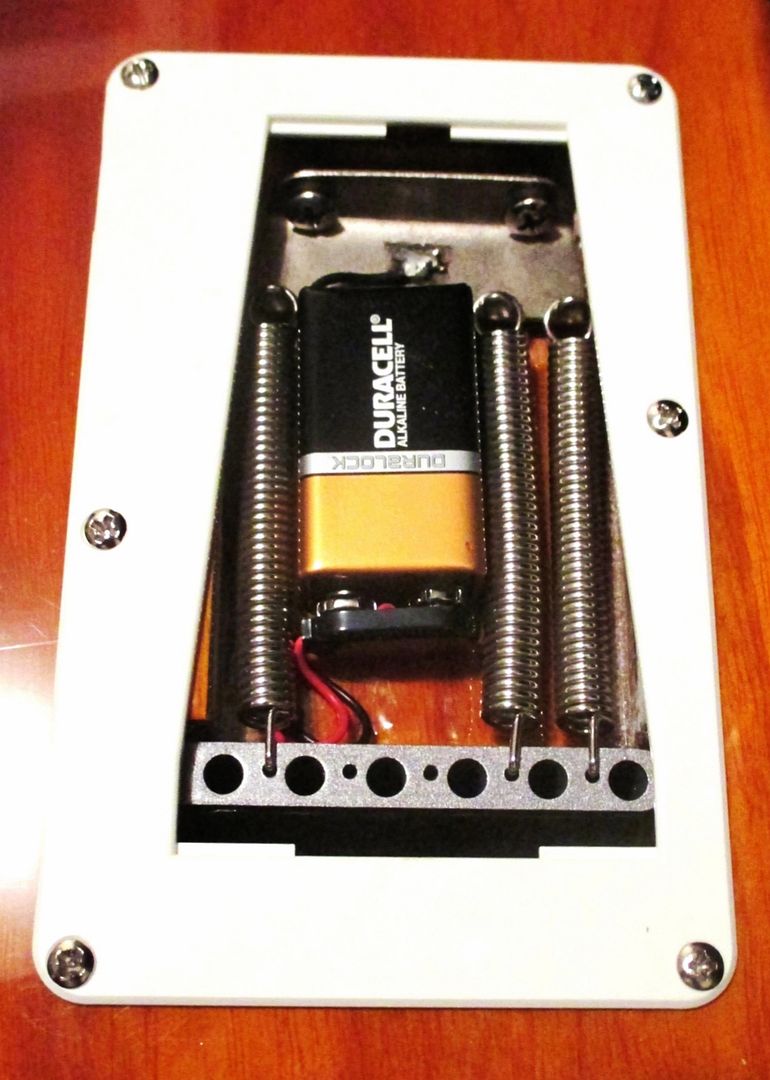

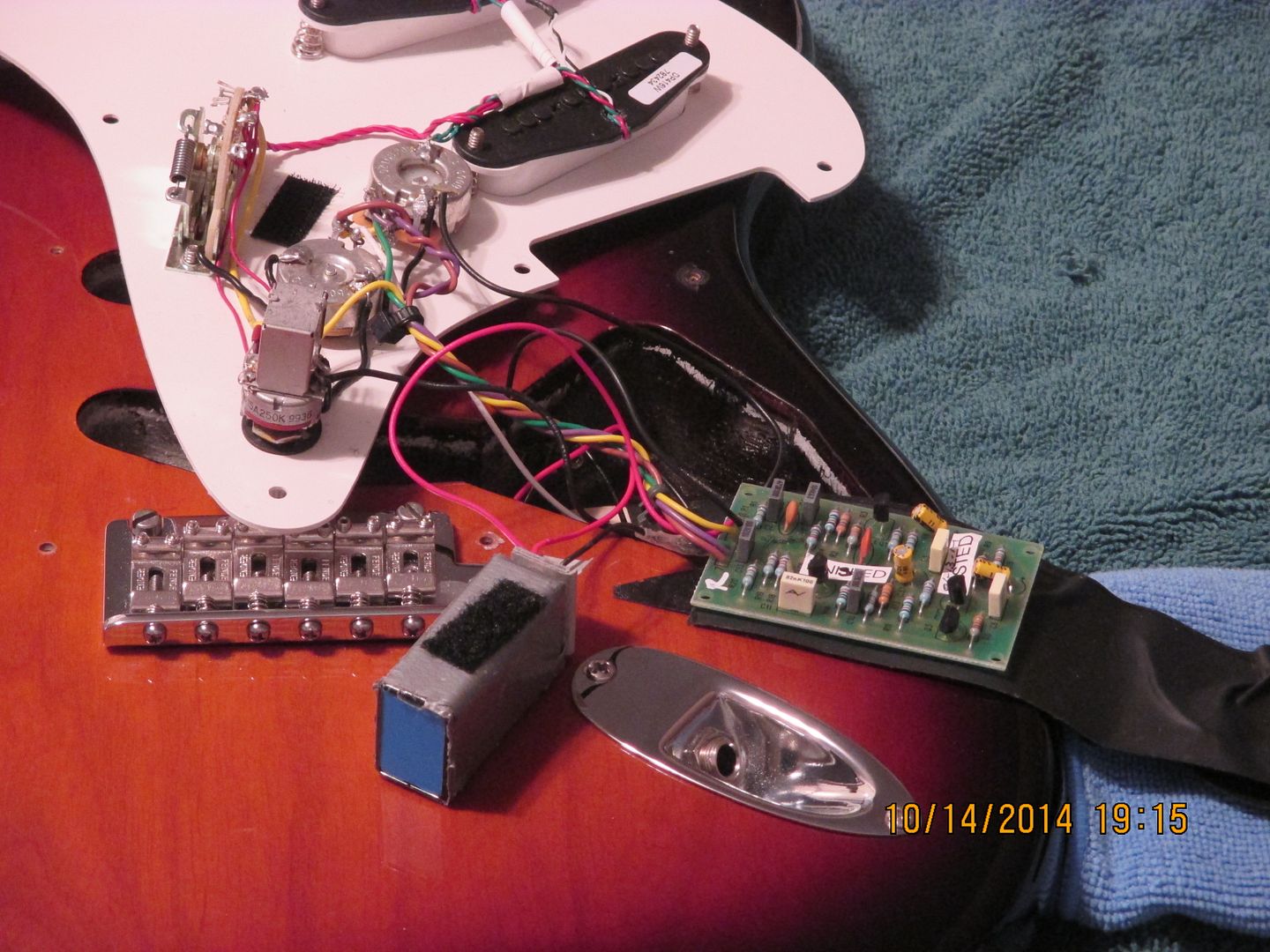

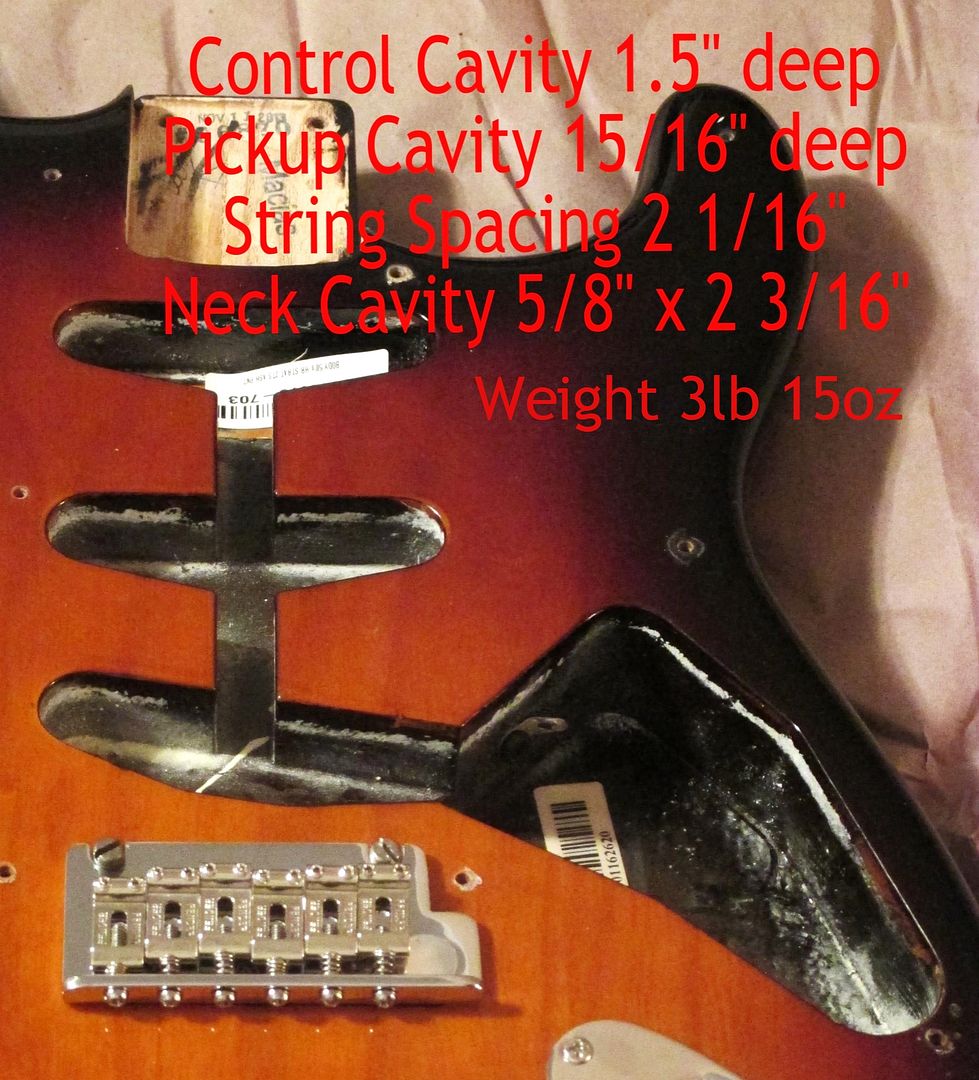

Anyway my " Hot Rod Brownie" build .. forerunner of Fenders "Journeyman" .. (great minds think alike?) .. has a Clapton Mid-Boost installed in the control cavity of a Fender AVRI Hot Rod 50's body .. With all three pickups ..

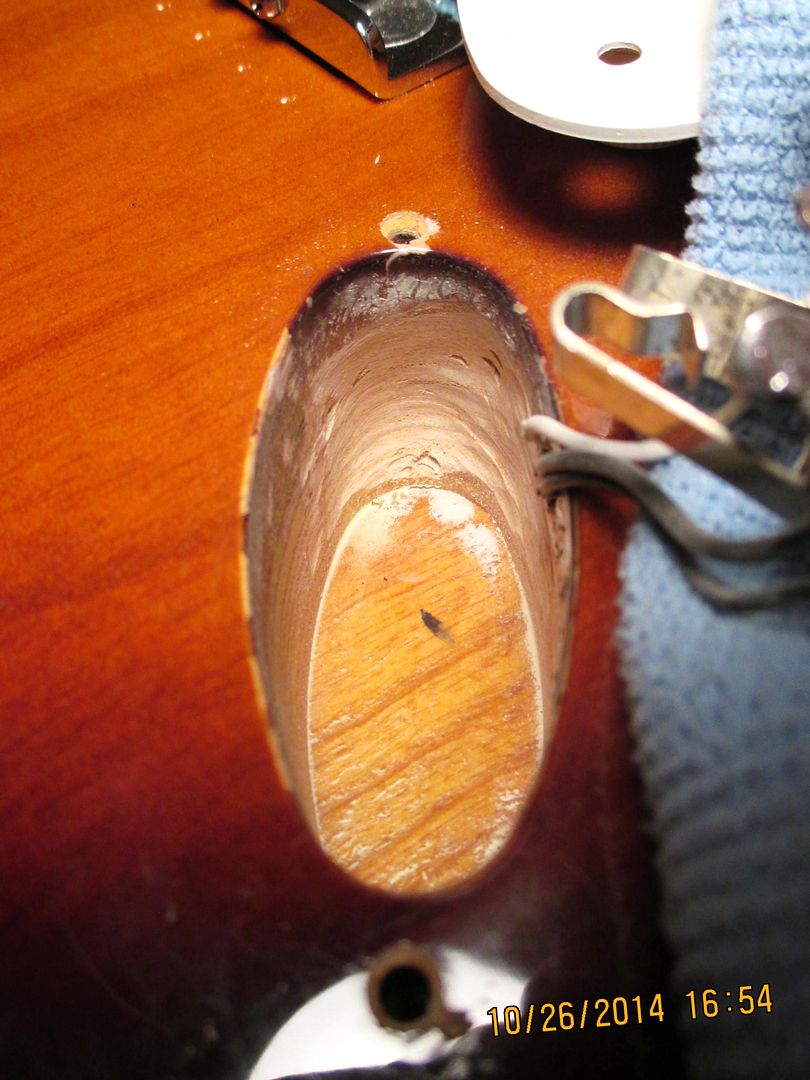

The Mid-Boost wiring is a little delicate .. hence the cable tie .. and the Socket cavity needed a little "wallering" to fit the stereo jack in there properly .. otherwise no mods to the body ..
