Post subject: Re: Request advice before drilling Headstock
Posted: Fri May 19, 2017 2:06 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Aug 23, 2007 1:57 pm
Posts: 1089
Location: Rossendale UK
danagos wrote:
btw .. what did you do with the 18 minutes Chris?


I held my breath.
Now I'm feeling a little blue .....

_________________
Chris :)

Never argue with an idiot. They will only bring you down to their level and beat you with experience.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Request advice before drilling Headstock
Posted: Fri May 19, 2017 8:15 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
With eighteen free minutes I would've had a go with one of my favorite tarts......

:mrgreen:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Sun May 28, 2017 12:05 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
OK .. got to Texas on Tuesday .. enlisted my bud Bob .. aka the "Mad Guthier" .. aka the "King of DYI" (restoring a Red '62? Rambler soft top was a crowning achievement of his) ..

You would remember it .. if you spent time on Music Row in Nashville back in the 90's ..

Luckily his tools were handy .. even if the work bench wasn't .. instead a stack of Gtr Cases on a chair sufficed .. and we went to work ..

It took both heads .. all 4 hands .. and a willingness to leap into the darkness .. VOILA

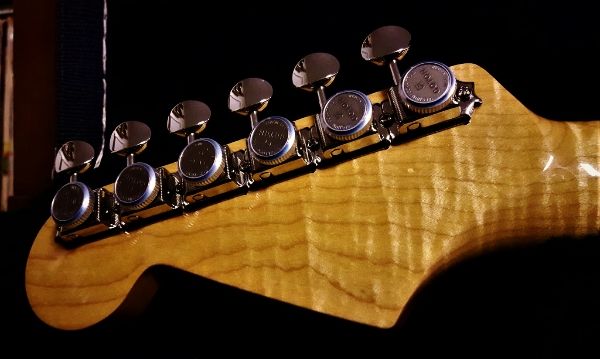

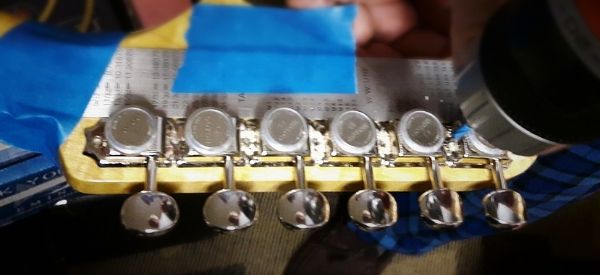

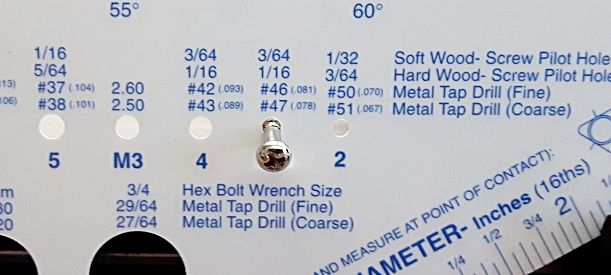

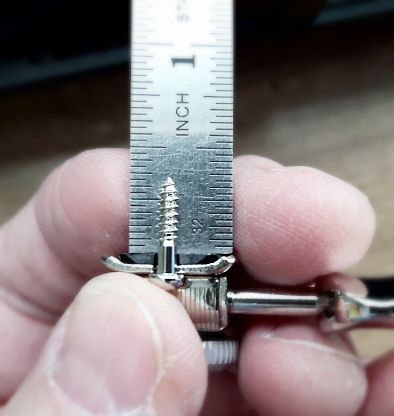

Gotoh SD91mt Locking/staggered Tuners .. the degree of difficulty was pretty high because the bushings aren't the screw on style .. therefore they tended to wiggle in 3 Dimensions!

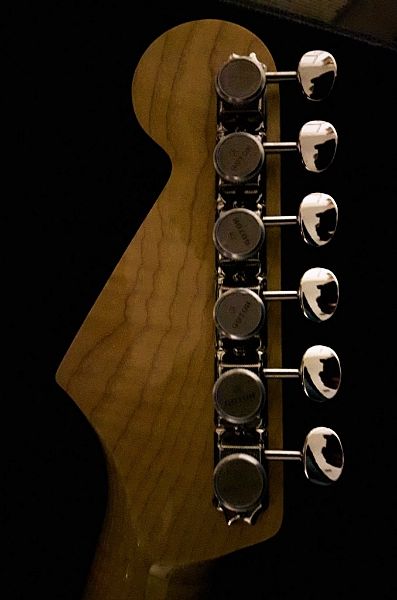

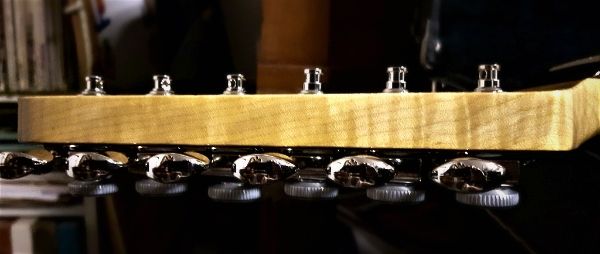

Nice & Straight .. the old screw holes are barely visible .. next up is the electronics .. shouldn't take more than a month of Sundays : )







_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Mon May 29, 2017 5:52 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Aug 23, 2007 1:57 pm
Posts: 1089
Location: Rossendale UK
Nice job!
:D

_________________
Chris :)

Never argue with an idiot. They will only bring you down to their level and beat you with experience.


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Tue May 30, 2017 8:19 am
Offline
Professional Musician
Professional Musician

Joined: Wed Dec 15, 2010 7:06 am
Posts: 1662
Looks real nice
mud


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Tue May 30, 2017 9:35 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
mud wrote:
Looks real nice
mud

stratmangler wrote:
Nice job!
:D

Thank You .. it will do for my use .. I see imperfections that a proper set up (Drill Press/Bench/Vise) would have helped overcome .. but I'm an amateur looking for Tone & Playability ..

Now I have a decision .. the previous owner decided to ground the Pups the standard way .. running wire from case to case .. the EJ scheme used contact with the pickguard shield ..

Any opinions?

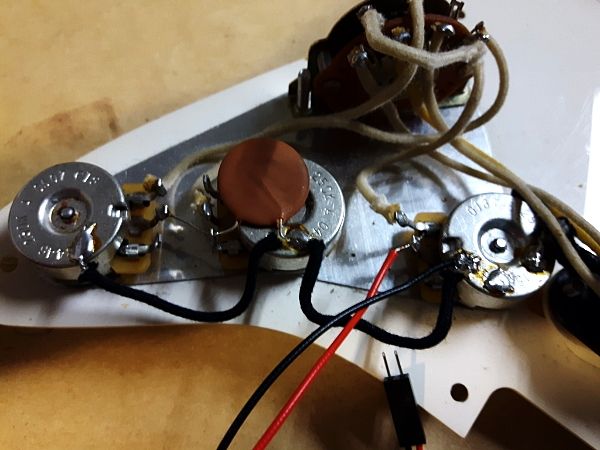

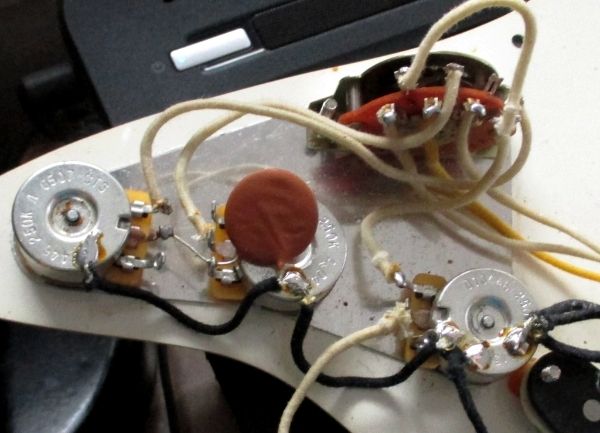

Current wiring

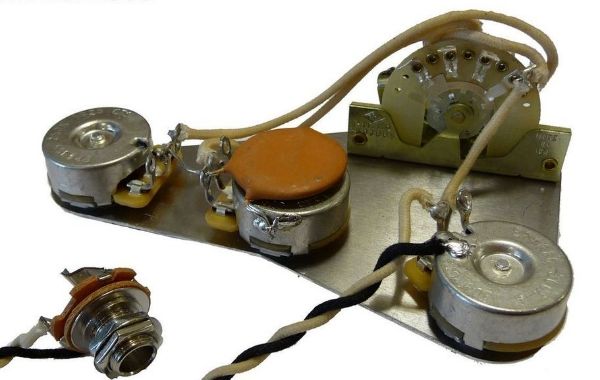

Repro w/out pup wires

_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Tue May 30, 2017 10:13 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Aug 23, 2007 1:57 pm
Posts: 1089
Location: Rossendale UK
The EJ standard wiring looks a lot tidier, but the existing wiring will be fine.
It all depends on your OCD.
I'd be inclined to leave it as is, screw the pickguard down, and forget about it.

_________________
Chris :)

Never argue with an idiot. They will only bring you down to their level and beat you with experience.


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Tue May 30, 2017 2:43 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
stratmangler wrote:
The EJ standard wiring looks a lot tidier, but the existing wiring will be fine.
It all depends on your OCD.
I'd be inclined to leave it as is, screw the pickguard down, and forget about it.

Yup .. I agree .. although my OCD can get pretty high (oops!) it's all about that Bass .. (& the Mids & Trebs) .. It won't add to the output resistance load ..

So they stay ..

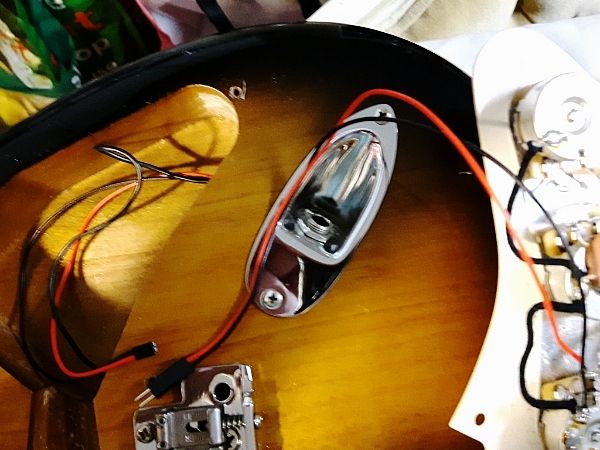

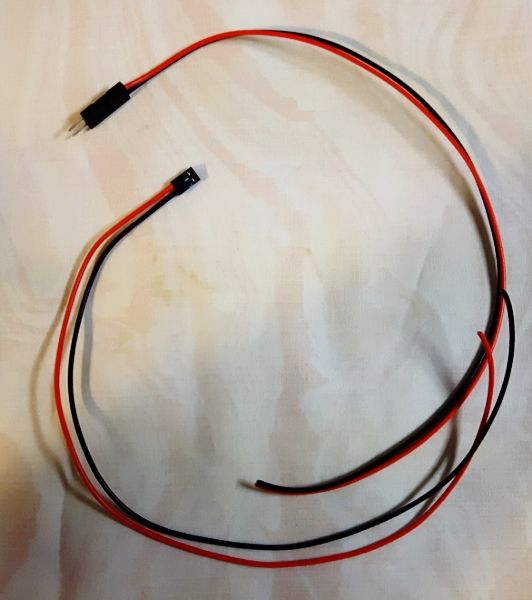

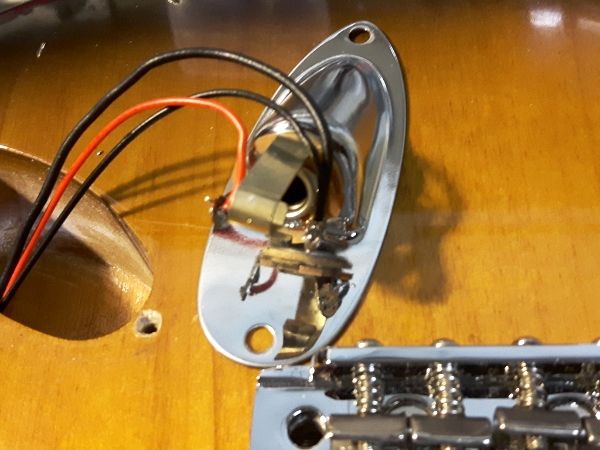

But .. tMG thought a removable connection to the output jack would be helpful in the future .. hmmm .. and how about running the "trem ground" off the output jack for Really Easy servicing .. Sooo

Now the pickguard can be removed and reattached completely from the guitar without soldering/snipping! Time to assemble this Mommadukey ..





_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Tue May 30, 2017 10:03 pm
Offline
Amateur
Amateur

Joined: Tue Oct 18, 2016 7:50 am
Posts: 192
Glad it worked out for you!


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Tue May 30, 2017 10:20 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Whenever I'm under the hood of any guitar, I usuall get rid of the ground loops, which is what the wires from pot to pot are. The shield connection is just fine, but even better than the foil shield is an aluminum pick guard shield. :idea:

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Wed May 31, 2017 6:33 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
shimmilou wrote:
Whenever I'm under the hood of any guitar, I usuall get rid of the ground loops, which is what the wires from pot to pot are. The shield connection is just fine, but even better than the foil shield is an aluminum pick guard shield. :idea:

Ah-Hah .. why do you discard ground loops .. unsightly?

Is that one of those full size PG Shields? Why do you think it's better?

I used a full size shield in a build .. hard to tell if it reduced hum .. but that's why I did it ..

_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Wed May 31, 2017 6:56 am
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
danagos wrote:
Ah-Hah .. why do you discard ground loops .. unsightly?
In an unshielded guitar, when there are multiple options for ground, extraneous noise can occur.
Outside sources can induce slight currents.

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Wed May 31, 2017 7:30 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
BMW-KTM wrote:
danagos wrote:
Ah-Hah .. why do you discard ground loops .. unsightly?
In an unshielded guitar, when there are multiple options for ground, extraneous noise can occur.
Outside sources can induce slight currents.

:shock: :shock: :shock:
ahhhh .. so .. I respect your opinion .. even the "Mad Guthier" didn't know that ..

:roll: :roll: :roll:

_________________
Took me a long time to learn that a Good Set-Up is the best Parts money can buy


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Wed May 31, 2017 11:31 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Really, the pick guard shield does little-to-nothing for noise reduction due to any shielding (covering the control cavity is the only good), but it does provide a better connection for the pots than the thin foil does. All of the grounds should connect to the case of one of the pots, and the connections from one pot case to another creates a ground loop which can intoduce noise, that is why those connecting wires are to be eliminated.

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: Request advice before drilling Headstock
Posted: Thu Jun 01, 2017 12:40 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Wed Apr 13, 2011 6:54 pm
Posts: 1175
shimmilou wrote:
Really, the pick guard shield does little-to-nothing for noise reduction due to any shielding (covering the control cavity is the only good), but it does provide a better connection for the pots than the thin foil does. All of the grounds should connect to the case of one of the pots, and the connections from one pot case to another creates a ground loop which can intoduce noise, that is why those connecting wires are to be eliminated.

Good stuff .. thanks shimmi ..

It's put together and it IS Noisy .. since it's so easy to remove the PG I'll snip those extra wires ..

Just to be sure .. all pup grounds to one case (Vol pot) .. no ground loop .. establish secure connection between pot cases & PG shield ..

Currently a ground wire runs from Vol pot to the Output jack & from the Output jack to the trem claw .. is that OK?

:?
