Post subject: Looking for help on Pickup model
Posted: Tue Aug 23, 2016 9:13 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Wed Jan 19, 2011 6:25 pm
Posts: 432

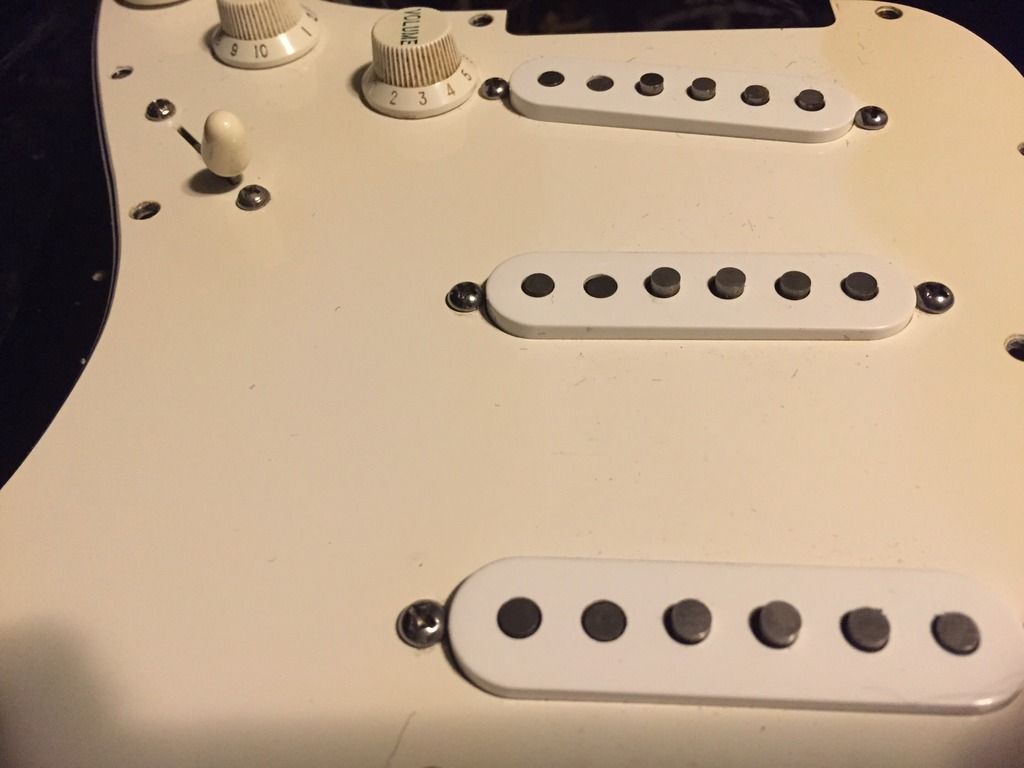

I have some pickups that Im looking for info on? Thanks[img][IMG]http://i1214.photobucket.com/albums/cc492/oopleasenow/IMG_1881.jpg[/img]Image[/img]Image


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Looking for help on Pickup model
Posted: Tue Aug 23, 2016 9:30 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
As far as the grease pencil hand writing goes, I can't tell you anything about it.
However, I am fairly certain that the embossed number "016730" is simply a part number for the plastic bobbin part of the pickup.
It has been used on a number of pickups over the years and IIRC, the Delta Tone system was amoung some of the more common uses for it.
Is there a "detent" in the volume pot at the wide open setting?
If so, you have your answer but if not they could be any of a number of models, including MIA, MIM and possibly others.

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Top
Profile
Post subject: Re: Looking for help on Pickup model
Posted: Tue Aug 23, 2016 10:11 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Staggered, non-beveled alnico pickups are often indicative of a MIM product. But Matt is correct about the embossed P/N on the bobbin. It's been used for a number of different pickups, including MIA types. The color of the insulation for the lead-in wires may yield additional clues.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Looking for help on Pickup model
Posted: Tue Aug 23, 2016 10:27 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Dec 07, 2010 2:39 pm
Posts: 1340
Tex mex? :D


Top
Profile
Post subject: Re: Looking for help on Pickup model
Posted: Tue Aug 23, 2016 11:00 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
jimmy_james wrote:
Tex mex?


A distinct possibility......

http://www.ebay.com/itm/fender-tex-mex- ... SwdzVXt2nW

Note the P/N embossed on the bobbins and the color of the lead-in wires.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Looking for help on Pickup model
Posted: Wed Aug 24, 2016 2:43 am
Offline
Roadie
Roadie

Joined: Sat Oct 05, 2013 4:26 am
Posts: 249
The hand painted numbers 50657 etc are found on Jimmie Vaughan signature model pickups which are Tex Mex. If it's a complete JLV pick guard the switch wiring will also be non standard with no tone control on middle pickup.
http://support.fender.com/service_diagr ... A_SISD.pdf


Top
Profile
Post subject: Re: Looking for help on Pickup model
Posted: Wed Aug 24, 2016 8:09 am
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
Very nice little bit of sleuthing, gentlemen!
Kudos.

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Top
Profile
Post subject: Re: Looking for help on Pickup model
Posted: Wed Aug 24, 2016 8:18 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
That's why we're here.

:wink:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Looking for help on Pickup model
Posted: Tue Aug 30, 2016 1:01 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Apr 17, 2016 8:00 am
Posts: 54
I have a similar set, neck and middle only, and they are not wired in. they were sold to me as Tex-Mex, and like this set, (or it looks like it), my middle pickup has a red and a white lead. For what it's worth, I believe the guy who sold them to me believed they were Tex-Mex. But, he said he took them from a '05 American Standard. Fender advised me today that it would not be possible for an American Standard to have Tex-Mex p'ups. But couldn't you order it that way custom? Or it could've been modded to have the Tex-mex's.
SAnyway, since the neck is black and white, and if black is ALWAYS ground, should I assume red is ground on the middle pickup?

I need to get these installed for some work I have coming up. If anyone can help me know how these wire up, WITHOUT buying a bunch of diagnostic equipment, I'd appreciate it.

GUS
