Post subject: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 10:02 am
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 16, 2011 12:47 pm
Posts: 36
Just picked up a 2008 USA Strat.
Why are there 2 screws on the bottom of the bridge pup?
The other 2 do not have this.

What exactly does the bottom tone nob do?
It seems to cancel out the other when it is wide open.

Is this related to the screws on the pickup?

I would post a pic, but can't figure out how to do it.

_________________
The more hair you lose, the more head you get.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 10:24 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
If it is a humbucker; Pickups height and parallel adjustment screws

1- download photo on Photobucket or other

On Photobucket librairy;

2- choose the photo you wan to post

3- clik on IMG ( copy )

4- Open Fender forum answer window and copy the IMG in the window

5- Test with preview button, you should see what all the forum member will see .


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 10:28 am
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 16, 2011 12:47 pm
Posts: 36
It's a single coil. They are not on top. They are on the bottom of the pup and go right through the coil.

_________________
The more hair you lose, the more head you get.


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 10:37 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
flyinjw wrote:
It's a single coil. They are not on top. They are on the bottom of the pup and go right through the coil.


Picture please, I don't see what kind single it is . Look like a pole piece ?


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 10:52 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
which one ?
http://shop.fender.com/en-US/parts/pick ... ratocaster
Or

http://shop.fender.com/en-US/parts/pick ... Humbucking


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 10:55 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
flyinjw wrote:
Just picked up a 2008 USA Strat.
Why are there 2 screws on the bottom of the bridge pup?
The other 2 do not have this.

What exactly does the bottom tone nob do?
It seems to cancel out the other when it is wide open. It is a tone, look do not work right, did you buy guitar new or second hand ? Any mod on it ?

Is this related to the screws on the pickup?

I would post a pic, but can't figure out how to do it.


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 11:19 am
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 16, 2011 12:47 pm
Posts: 36
I was told it is a special circuit for that year.
It's not modded.
If I could answer my own questions, I would. :wink:

_________________
The more hair you lose, the more head you get.


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 11:26 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
flyinjw wrote:
I was told it is a special circuit for that year.
It's not modded.
If I could answer my own questions, I would. :wink:

And what about picture ?
What is your model ?
USA Strat is not a model name and there is so many American made Fender


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 2:36 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 16, 2011 12:47 pm
Posts: 36

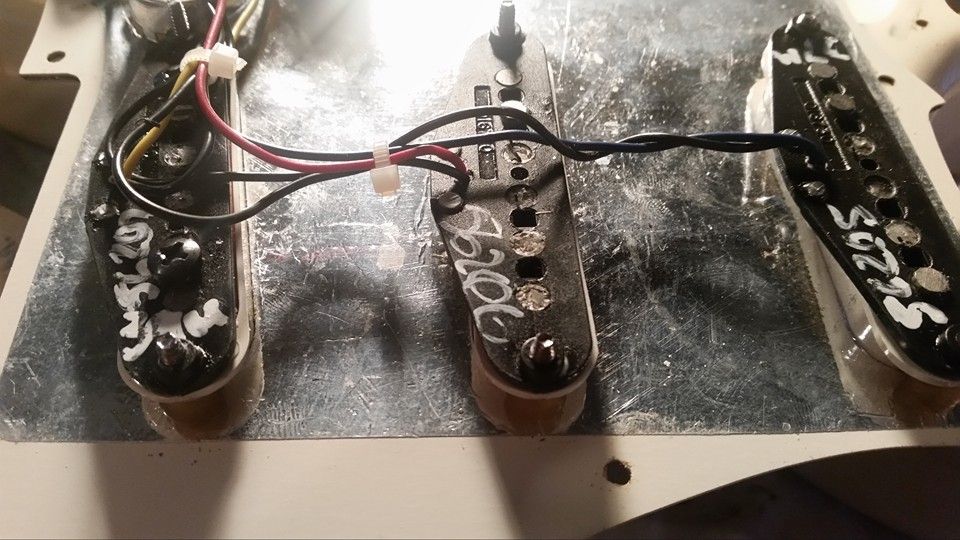

http://i1152.photobucket.com/albums/p48 ... ickups.jpg

_________________
The more hair you lose, the more head you get.


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 3:04 pm
Offline
Rock Star
Rock Star

Joined: Tue Jul 17, 2007 1:53 am
Posts: 4241
The screws in the bridge pickup bottom are there to give the pup more hotness via the added metal.
There is no direct relation between these and the tone pot function.

If your guitar is an American Standard Stratocaster, tone1 is for neck, tone2 for middle and bridge pickups. Both tones are functioning at the same time only in switch position 4; neck+middle pups on together. Tone2 is a no-load pot; that means it "switches out of the circuit" when turned to 10.

If that doesn't seem to fit the guitar, you need to help us help you by giving more precise info of the guitar, there were dozens of Strat models in 2008...


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 3:39 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
]
jmattis wrote:

If that doesn't seem to fit the guitar, you need to help us help you by giving more precise info of the guitar, there were dozens of Strat models in 2008...



+1

To me, screws are under the pickup not at the bottom



Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Fri Apr 15, 2016 5:26 pm
Offline
Hobbyist
Hobbyist

Joined: Sun Jan 16, 2011 12:47 pm
Posts: 36
jmattis wrote:
The screws in the bridge pickup bottom are there to give the pup more hotness via the added metal.
There is no direct relation between these and the tone pot function.

If your guitar is an American Standard Stratocaster, tone1 is for neck, tone2 for middle and bridge pickups. Both tones are functioning at the same time only in switch position 4; neck+middle pups on together. Tone2 is a no-load pot; that means it "switches out of the circuit" when turned to 10.

If that doesn't seem to fit the guitar, you need to help us help you by giving more precise info of the guitar, there were dozens of Strat models in 2008...



Thanks.

_________________
The more hair you lose, the more head you get.


Top
Profile
Post subject: Re: 2008 USA Strat pickup question
Posted: Sat Apr 16, 2016 1:07 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
You write ; " The more hair you lose, the more head you get. "


I would say;

When the forest recedes, civilization advance. :lol:
