Post subject: 110 to 230V gutshots included
Posted: Tue Oct 07, 2014 4:43 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Sep 12, 2014 7:08 am
Posts: 13
Location: Displaced Londoner in Ontario
Ok, this question has been posed before. That of using a North American Mustang in Europe.
Scott-UK gave the opinion a while back, that it's entirely possible that Fender doesn't manufacture different voltage versions, and that there may be a switch or different tap from the PT, rather than use a bulky step down tranny.

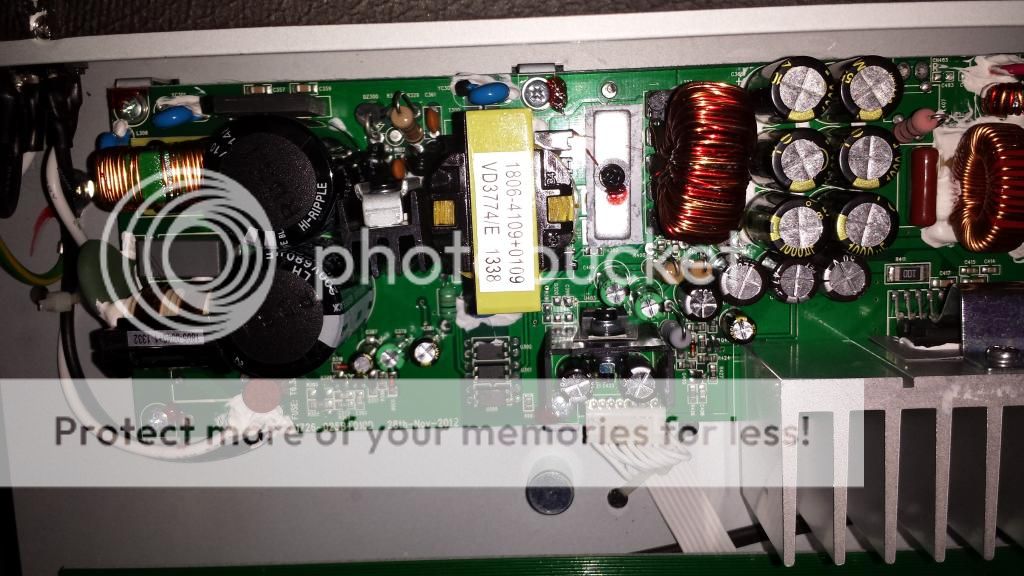

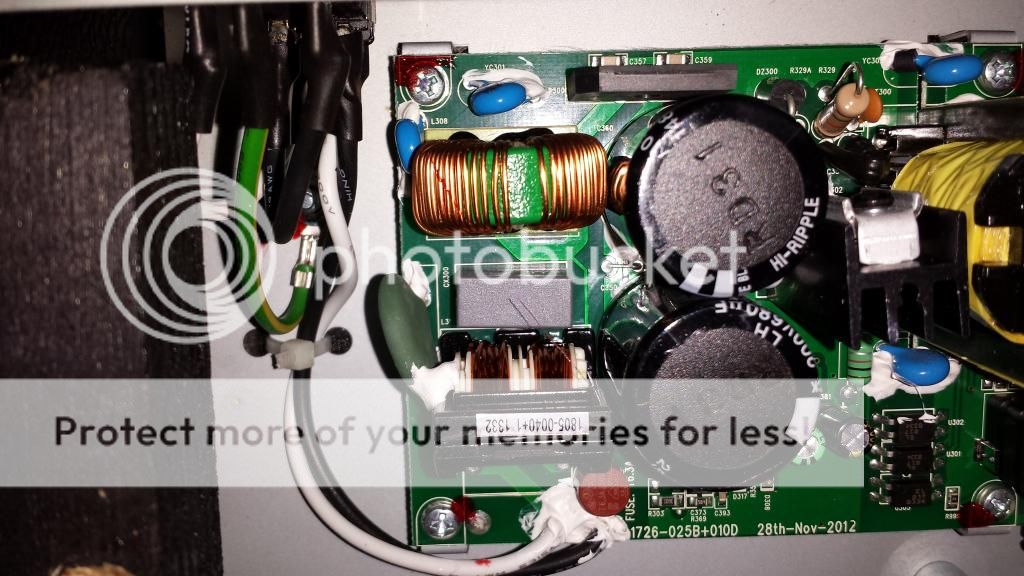

It's very unlikely that Fender will confirm or deny, nor would you expect them to encourage people poking around in potentially dangerous areas, but I wonder if anyone out there can glean anything from these gutshots?

I'm pretty handy with the soldering iron, and have swapped transformers, installed choke etc in my Marshall, but not so clear when it comes to solid state.
There's certainly no hefty valve style iron lurking in there.
Any have any more insight?
