Post subject: Modded Mustang
Posted: Mon Mar 21, 2011 3:37 pm
Offline
Amateur
Amateur

Joined: Sun Oct 12, 2008 4:44 am
Posts: 178
Inevitably peeps will mod their Mustangs, so can post that stuff here.
:mrgreen:

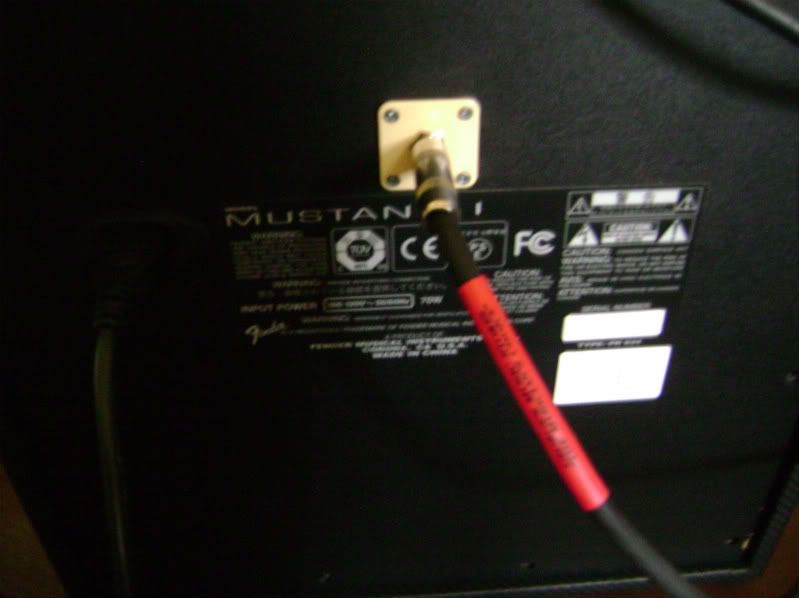

I added an extension speaker jack to my Mustg-I which cuts the internal speaker so I can power my 1x12 or my 2x12, or my bass amp speaker if I dang please :!:
Was it easy? Fairly, but took a bit of process. Yes I know this flounders the warranty.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Modded Mustang
Posted: Mon Mar 21, 2011 5:58 pm
Offline
Amateur
Amateur

Joined: Fri Mar 04, 2011 9:47 am
Posts: 168
I've done stuff like that before, and have considered it on the Mustang I, as I'd love to be able to hook it up to my other cabs. But I've typically done it in a way that wasn't permanent that could be undone with no trace! Doesn't look nearly so nice as this, but it has it's advantages!! :mrgreen:

But I've never done one that automatically cuts the internal speaker...I'm assuming you just need to get the right kind of jack...is that correct?

Anyway, very cool...enjoy!!!


Top
Profile
Post subject: Re: Modded Mustang
Posted: Mon Mar 21, 2011 6:28 pm
Offline
Amateur
Amateur

Joined: Sun Oct 12, 2008 4:44 am
Posts: 178
yes mono normally closed


Top
Profile
Post subject: Re: Modded Mustang
Posted: Mon Mar 21, 2011 7:37 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jan 02, 2011 7:15 pm
Posts: 1203
Location: Hint,in a place...
cool!

_________________
I LIKE PIE!!!!! :twisted: :twisted: :twisted:

IF I DO SOMETHING STUPID,DON'T SAY A WORD...


Top
Profile
Post subject: Re: Modded Mustang
Posted: Mon Mar 28, 2011 1:59 pm
Offline
Amateur
Amateur

Joined: Sun Oct 12, 2008 4:44 am
Posts: 178
Not much love or scorn .... hummm :|


Top
Profile
Post subject: Re: Modded Mustang
Posted: Wed Mar 30, 2011 6:28 am
Offline
Hobbyist
Hobbyist

Joined: Mon Dec 27, 2010 7:54 am
Posts: 19
Nice job allroypa

but i saw this at leftyfrets :wink:

I'm really diggin the MII i got yesterday 8)

Bob


Top
Profile
Post subject: Re: Modded Mustang
Posted: Wed Mar 30, 2011 12:31 pm
Offline
Amateur
Amateur

Joined: Sun Oct 12, 2008 4:44 am
Posts: 178
rolling56 wrote:
Nice job allroypa
but i saw this at leftyfrets :wink:
I'm really diggin the MII i got yesterday 8)
Bob

You got one, sweet~!m/


Top
Profile
Post subject: Re: Modded Mustang
Posted: Sat Apr 02, 2011 9:18 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sun Jan 02, 2011 7:15 pm
Posts: 1203
Location: Hint,in a place...
Bump :wink:

_________________
I LIKE PIE!!!!! :twisted: :twisted: :twisted:

IF I DO SOMETHING STUPID,DON'T SAY A WORD...


Top
Profile
Post subject: Re: Modded Mustang
Posted: Fri Apr 29, 2011 5:36 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Feb 21, 2011 1:59 am
Posts: 6
Did the back panel come off fairly easily? I tried popping the back panel off of mine, but it didn't readily come loose and I didn't want to force it. I'd like to do just this myself, however, and if I'm just being overly cautious with it, then I'll dig in :D


Top
Profile
Post subject: Re: Modded Mustang
Posted: Sat Apr 30, 2011 1:53 am
Offline
Amateur
Amateur

Joined: Sun Oct 12, 2008 4:44 am
Posts: 178
elskeeper wrote:
Did the back panel come off fairly easily? I tried popping the back panel off of mine, but it didn't readily come loose and I didn't want to force it. I'd like to do just this myself, however, and if I'm just being overly cautious with it, then I'll dig in :D

It's just a little sticky from the adhesive they use with the tolex. I used a thin metal pocket clip off my percision ruler.


Top
Profile
Post subject: Re: Modded Mustang
Posted: Wed Jul 27, 2011 2:01 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jul 11, 2011 5:58 pm
Posts: 21
allroypa1,

Will you share the details of how you performed this operation?
Photos too.
Thanks.


Top
Profile
Post subject: Re: Modded Mustang
Posted: Sat Jul 30, 2011 5:10 pm
Offline
Amateur
Amateur

Joined: Sun Oct 12, 2008 4:44 am
Posts: 178
mrgscales wrote:
allroypa1,

Will you share the details of how you performed this operation?
Photos too.
Thanks.

I'll try mate ... give me some time to get something togeather ..


Top
Profile
Post subject: Re: Modded Mustang
Posted: Tue Aug 02, 2011 6:13 pm
Offline
Amateur
Amateur

Joined: Sun Oct 12, 2008 4:44 am
Posts: 178
mrgscales wrote:
allroypa1,
Will you share the details of how you performed this operation?
Photos too.
Thanks.

See next post ...


Last edited by allroypa1 on Mon Sep 19, 2011 7:47 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Modded Mustang
Posted: Mon Sep 19, 2011 7:45 pm
Offline
Amateur
Amateur

Joined: Sun Oct 12, 2008 4:44 am
Posts: 178
Disconnect your onboard speaker wires and run the wires to the jack in this fashion.. Green-tab is your ground from the amp AND run a new wire from the same tab back to the speaker (negative) onboard. Hot (from the PowerTransformer/Mustang's Circuitboard) goes to the lug for the longer tip then the inside shorter tip's lug (silver) gets a new wire going back to the speaker (positive). It's called a mono normally-closed jack you can get them at Radio Shack in their bins.


Top
Profile
Post subject: Re: Modded Mustang
Posted: Thu May 10, 2012 1:45 am
Offline
Hobbyist
Hobbyist

Joined: Wed May 09, 2012 10:54 am
Posts: 2
brilliant! i am doing this. Thanks dude.
