Ok,

first good news :)
Got an answer from dmrogers at TalkBass forum:) No photos, but still it's the first answer with dimmensions. :D So I share, here they are:

"All measurements are in inches.

A =40
B =30
C =17
D =1.5
E =11
F =4
G =7.5
H =2.5
I =2
J =17.5
K =6

These measurements are very close, but some might be off by a few 1/16 or so."

Cheers,
Tho

_________________
Me ->J.Mascis Sign. Jazzmaster ->Fender Blender -> Bassman 100 Silverface


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Wed Oct 16, 2013 12:39 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Oct 14, 2013 3:59 am
Posts: 2
as luck would have it, i was taking apart my own bassman 100 cab to sell the speakers. the measurements on my own cab were very close to the ones listed, but i had some discrepancies. the center strip on my cab was closer to 11.5" than 11". also, the total length of the edge running from the center to the corner was closer to 23" than 23.5" on my cab. other than that, all the measurements look right.

i posted some pictures with measurements on them over at TDPRI since i'm not much of a fender forum user. check them out here:

http://www.tdpri.com/forum/amp-central-station/436134-building-bassman-100-pyramid-cab.html#post5343878


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Wed Oct 16, 2013 12:56 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
Thanks Joe, much obliged.

A Hyundai station wagon, eh?

Perhaps it would be the inspiration for all those low riders which would follow later on......

:mrgreen:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Wed Oct 16, 2013 2:54 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Oct 01, 2013 3:03 am
Posts: 18
Can't belive that it is happening! Can't wait to start the building!
Thank you very much!

So now it's my move.
As soon as I'll start I'll post the photos of the progress.

Regards,
Tho

_________________
Me ->J.Mascis Sign. Jazzmaster ->Fender Blender -> Bassman 100 Silverface


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Wed Oct 16, 2013 4:07 pm
Offline
Rock Star
Rock Star

Joined: Fri Apr 08, 2011 5:14 pm
Posts: 3169
Location: Linningrad
Bring On The Dancing Girls! :D

_________________
2012 Lefty American Standard Jazz
2017 Lefty American Professional Precision
2018 Rumble Studio 40 Combo
2016 Rumble 200 Combo
One day they shall name a GREAT city after me, and they shall call it LINNINGRAD


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Wed Oct 16, 2013 4:23 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory

:wink:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Wed Oct 30, 2013 9:06 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Oct 01, 2013 3:03 am
Posts: 18
Hi guys and girl :)

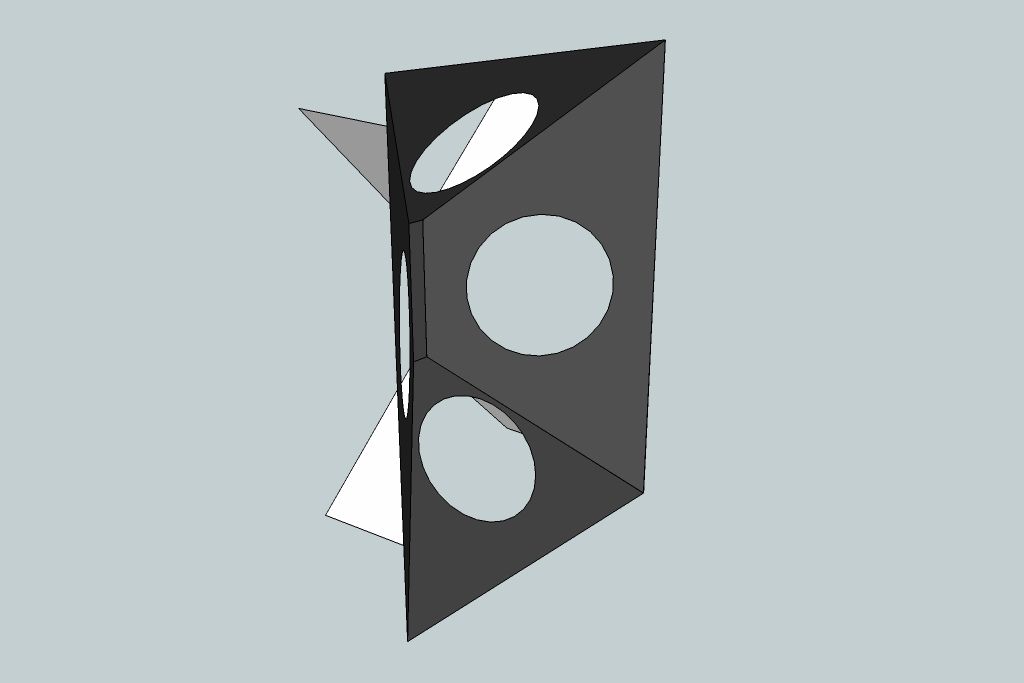

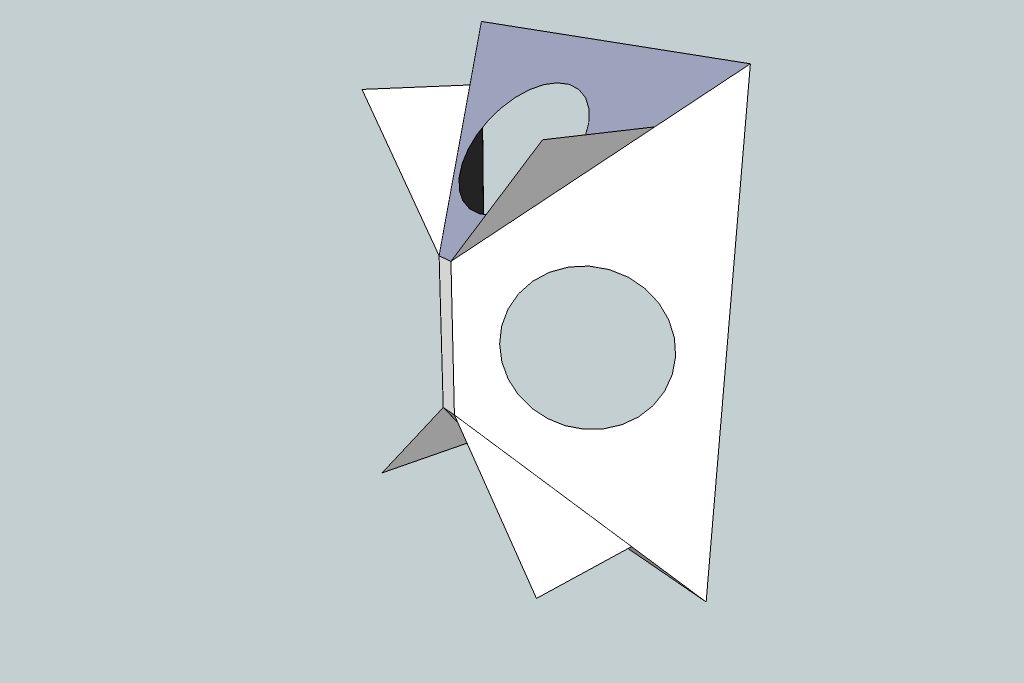

I've made a project of the interior.
It was made based on the info from few persons.

With a help from my father we are at the end of the process...

The most important was the angle of the wings which we counted and it appeared to be 52 degrees.

Some of you were right - the cab itself is too big.
I found a Fender V.T. 215 cab for like 60$ in Poland.
It's little smaller - shallower...



We had to change some dimmensions to fit the interior to the cab.
Tomorrow I'll post some real pics :)

Still waiting for the speakers to come. And when I'll get them I'll record some sounds.
Stay in touch,

Tho

_________________
Me ->J.Mascis Sign. Jazzmaster ->Fender Blender -> Bassman 100 Silverface


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Thu Oct 31, 2013 4:37 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Oct 01, 2013 3:03 am
Posts: 18
Ok,

so here you go. The real pics:





Cheers,
Tho

_________________
Me ->J.Mascis Sign. Jazzmaster ->Fender Blender -> Bassman 100 Silverface


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Sat Nov 09, 2013 2:07 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Oct 01, 2013 3:03 am
Posts: 18
Got the speakers:

4x12''
30W/4Ohm each


:lol:

_________________
Me ->J.Mascis Sign. Jazzmaster ->Fender Blender -> Bassman 100 Silverface


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Sat Nov 09, 2013 7:45 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
What speakers are those?

They look like full-range drivers from a hi-fi cabinet.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Mon Nov 11, 2013 8:31 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Thu Aug 07, 2008 3:12 pm
Posts: 6355
Location: Albemarle, NC
Yeah those speakers have whizzer cones! Maybe he's using it for guitar instead of bass? Acoustic guitar maybe? 30 watt speakers? I'll shut up.


Top
Profile
Post subject: Re: Bassman Pyramid Cabinet 412
Posted: Wed Nov 13, 2013 4:06 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Tue Oct 01, 2013 3:03 am
Posts: 18
Indeed - they're somewhere around 82' polish made "Tonsil" under the Pioneer licence wide range (75Hz-4kHz) hahaha.

I don't have the money for celestion's/eminence's/jbl's :-/

Yea, I use them with guitar (not acoustic - look at my bottom description).

Later I'll post some sound samples on soundcloud.com but first I have to drag it to my friend's studio... Right now it's in my room and making angry my neighbours behind the wall ;-)




Cheers,
Tho
