Post subject: guitar amp mic placement
Posted: Sun Jul 12, 2015 5:56 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 4:54 am
Posts: 2573
Location: Laurel, MD
Setting up my amp this morning for a performance at church this morning and the question came up,"Where do you want this mic placed?" Some people feel the flat kind that lay on the grill is the way to go; others say to place the mic as close to the amp gill as possible, and others say to place it between the center of the speaker and its edge.

I personally place the mic between the two speakers (the amp is Hotrod DeVille 212), and about 6 to 12 inches from the amp grill. Any thoughts about this or any advice.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: guitar amp mic placement
Posted: Sun Jul 12, 2015 7:28 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
The center of the dome will sound the brightest. The edge of the cone near the surround will sound the darkest. Closer to the grille cloth will help avoid stage spill from other sources leaking into your mic and improve your signal clarity. For a smooth, warm jazzy tone you want to use an SM58 straight on (ie: perpendicular to the grille) near the surround. For a bright angry rock tone with some rawness and edge use an SM57 straight on near the center. For most kinds of rock you will want to experiment with straight on approaches and slightly canted approaches somewhere between (a) the middle point between the surround and the dome edge and (b) the dome edge. The actual center of the dome will usually be a little too bright for most traditional classic rock or blues tones. The closer you get to the dome the less beneficial you will find canting the mic. Canting is usually done such that the mic points toward the dome. Placing it the other direction usually results in a hollow-ish unpleasant tone.

The 58 and the 57 are the most commonly used mics in all of rock history and for good reason. They are dependable and they sound good, especially considering the cost. A 58 has a little more depth to the bottom end and has a very mild scoop in the lower-mids and it has smooth highs. A 57 starts a little lower down but has slightly less gain in the lows overall. It has a pretty flat response curve all the way from the bottom end up to the upper-mids and then pushes the highs. The two styles share the same guts. The difference is in the screens and diaphragms.

I like a warmer sound so I usually try to place a 57 somewhere around 7 o'clock or 4 o'clock about an inch or so inside the surround and slightly canted toward the dome. However if the room sounds muddy and I feel the need to cut through better I'll placed it around the mid point between the surround and the dome edge and place it straight on. I usually place it anywhere from almost touching the grille to maybe an inch off.

_________________
Just think of how awesome a guitar player you could have been by now if you had only spent the last 10 years practicing instead of obsessing over pickups and roasted maple necks.


Top
Profile
Post subject: Re: guitar amp mic placement
Posted: Sun Jul 12, 2015 8:49 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
BMW-KTM wrote:
I like a warmer sound so I usually try to place a 57 somewhere around 7 o'clock or 4 o'clock about an inch or so inside the surround and slightly canted toward the dome.


+1

I find this position optimum as well......


Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: guitar amp mic placement
Posted: Mon Jul 13, 2015 1:33 am
Offline
Roadie
Roadie

Joined: Sat Oct 27, 2012 12:11 am
Posts: 299
Here's my normal setup:

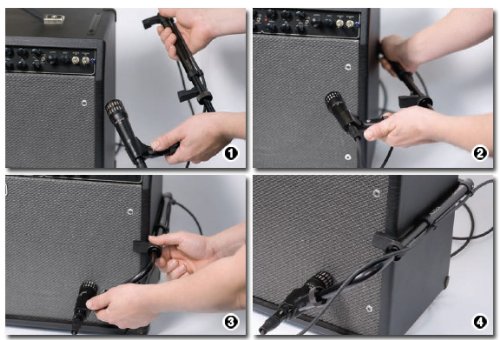

First a cabgrabber

I attach a Sennheiser e906 onto the end of the cab grabber with the flat surface about 3" from the grill cloth positioned just to the outside of the cone.

This works very well for me because it's quick to setup, the positioning is very consistent, it isolates the mic pretty well from cross bleed, and because it's not on a stand that sits on the floor it doesn't pick up any vibration noise caused by the drums or the bass that might come through the stage.

_________________
Gibson Les Paul Standard
Gibson 335
Gretsch G5420T
Fender American Strat
Martin GPCPA1 Plus Grand Performer
Fender Mustang IV v.2


Top
Profile
Post subject: Re: guitar amp mic placement
Posted: Mon Jul 13, 2015 6:01 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jul 16, 2007 6:51 pm
Posts: 25353
Location: Witness Protection Program
So many variables that there is no perfect way, IMO.

I agree on the SM-57 and sometimes use an Audix Cabgrabber. Sometime
I use two mics...a lot depends on the venue, the sound you need, etc.

_________________
Being able to play and enjoy music is a gift that's often taken for granted.

Don't leave home without it!


Top
Profile
Post subject: Re: guitar amp mic placement
Posted: Mon Jul 13, 2015 7:15 am
Offline
Rock Star
Rock Star
User avatar

Joined: Mon Jan 12, 2009 4:50 pm
Posts: 7998
Location: ʎɹʇunoɔ ǝsoɹ pןıʍ
Miami Mike wrote:
So many variables that there is no perfect way, IMO.

Quite right, Mike. The room itself being the biggest variable, IMO and the trouble with the room is that it isn't necessarily the same room at gig time as it was at sound check. Filling the room with warm bodies changes things.
