Post subject: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 3:57 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827

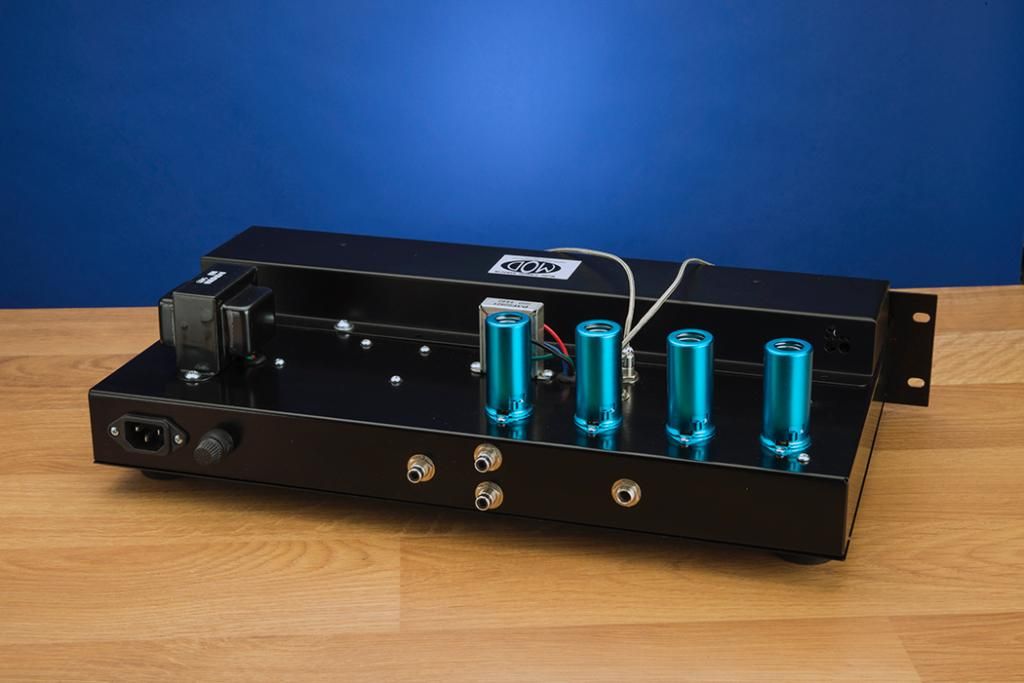

It's done and I finally did some photos of it.
This is a Modkits DIY tube driven true point to point reverb kit.
It doesn't sound like a Fender, but I didn't expect it to. It has three 12AX7's and one 12AT7 preamp tube. It sounds huge, warm and cavernous. I have use a footswitch for it and when you turn it off at the footswitch it let the notes decay out. It's a long tank a little over 16 inches. Nice unit, nice parts and a fairly easy build. I swapped out the JJ's 12AT7 for a NOS JAN Phillips 12AT7. It's just a lot quieter.

Here's some photos I did of it this afternoon.



_________________
Life...... It's sexually transmitted and always fatal


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 3:58 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827

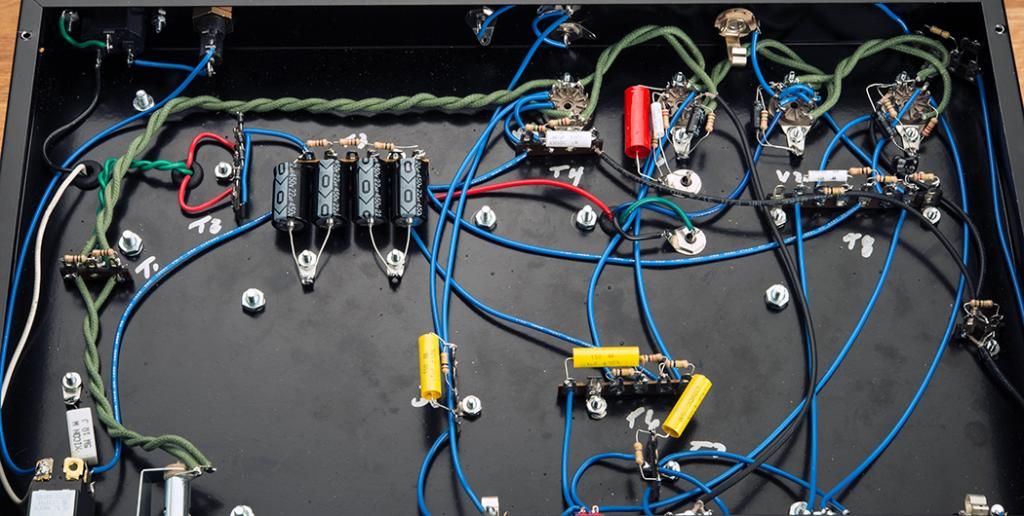

Here's the insides.



_________________
Life...... It's sexually transmitted and always fatal


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 4:04 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Aug 21, 2009 1:45 pm
Posts: 852
Location: SoCal323
That tank looks B. E. A. utifull. Great job and craftsmanship. I've been looking into that unit to replace my surf rider. How does it take pedals? I'm assuming pedal board (for those of us who use them) into reverb unit into amp?

Thanks for sharing.

_________________
Its a lifestyle.....



Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 4:07 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Sep 11, 2012 2:14 pm
Posts: 2561
Great Job !!

BIG THUMBS UP !!!

cheers!

_________________

'11 FSR Am. Vtg. Ltd. Ed. CAR '57 Stratocaster (SN# LE02639)
'14 American Deluxe Ash Stratocaster
'12 Telebration Empress Telecaster
'99 Deluxe Nashville Telecaster
'12 FSR Telecaster HH
'10 Heritage H-535
'99 Martin DC-1E
'13 Lanikai Tenor Ukulele


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 4:16 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827
Thanks guys! I plugged my pedal board into it and I have all kinds of overdrive and fuzz pedals a Deja Vibe III and so far so good. It can get an enormous amount of Reverb and towards the higher end past noon it actually way too much. It's nuts. It's a little darker sounding than a Fender Reverb, but I really like it.

_________________
Life...... It's sexually transmitted and always fatal


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 4:25 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Fri Aug 21, 2009 1:45 pm
Posts: 852
Location: SoCal323
That's good to know. You plan on keeping it as is or is there a custom built cabinet in its future?

_________________
Its a lifestyle.....



Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 4:41 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827
I want to do a cabinet. This is set up for a rack mount. I never had a rack mount, I just finally built a pedal board. :lol:

_________________
Life...... It's sexually transmitted and always fatal


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 4:42 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
That rates a Holy Schmokes on the T2 Scale! What craftsmanship! You gonna put it into a cabinet of some sort? Would almost seem a shame to hide that!
:mrgreen:
T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Wed Feb 25, 2015 6:17 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827
Thanks T2! I'm going to eventually going with a cabinet, just to protect it. I have an agenda now to try to get forum members to try and build something for their rig. A pedal, an amp, their own cables, whatever. It's a fun, learning experience. Kits are great and if you can solder, have patience and follow instructions, you can do it. My next big project might be a Supro Model 24. I'm sourcing a cabinet. Man, this stuff is addicting.

_________________
Life...... It's sexually transmitted and always fatal


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Thu Feb 26, 2015 12:25 pm
Offline
Roadie
Roadie
User avatar

Joined: Fri Sep 09, 2011 9:26 pm
Posts: 269
Location: Near The City By The Bay
I'm with T2 on this one...get some Lexan cut down to size and maybe add some LEDs for highlight. Really nice work. I've seen production assemblies that don't look as clean.

I got into electronics soon after getting my first electric guitar and I haven't stopped building stuff since. My entire pedal board (and the board itself) consists of stuff that I made (and sometimes designed) in my workshop. I agree how satisfying (and addicting) this can be. More good news? Yet another avenue for GAS relief...no...I don't need it, I just want to build one.

I've mourned the loss/damage/failure of my vintage boxes from the 70s and 80s, but remaking them has also been a great experience. I'd also encourage folks to try something simple (overdrive pedal?) and see how it goes...

Cheers.

_________________
1967 Epiphone Madrid EC-30
1975 Fender Stratocaster
1981 Rickenbacker 360
2002 BC Rich Bich
2007 Fender Standard Stratocaster
2012 Taylor GA3-12
2012 Squier Telecaster
2017 Les Paul Kit


"Make every song you sing your favorite tune."


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Thu Feb 26, 2015 1:41 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827
Wow, thanks so much guys.

_________________
Life...... It's sexually transmitted and always fatal


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Thu Feb 26, 2015 4:13 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jan 29, 2009 7:13 pm
Posts: 19025
Location: Illinois, USA
63supro, looks great, congratulations ! Thanks for posting those cool photos !

_________________
you can save the world with your guitar one love song at a time it's just better, more fun, easier with a fender solid body electric guitar or electric bass guitar.


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Thu Feb 26, 2015 4:36 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sun Dec 21, 2008 8:29 am
Posts: 4238
Location: Pgh Pa
Bob your getting really good at this. I vote for a clear cab for it. Congrats


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Thu Feb 26, 2015 5:05 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
63supro wrote:
Thanks T2! I'm going to eventually going with a cabinet, just to protect it. I have an agenda now to try to get forum members to try and build something for their rig. A pedal, an amp, their own cables, whatever. It's a fun, learning experience. Kits are great and if you can solder, have patience and follow instructions, you can do it. My next big project might be a Supro Model 24. I'm sourcing a cabinet. Man, this stuff is addicting.


That does sound like a great agenda! I have always wanted to do a build, maybe a pedal to start out. But it will have to wait...I just received my VIN number for my new Corvette is ready for transit to me hear. I might be pushing my luck to tell the wife I am going to start another build or spend any money for at least a short time!
:mrgreen:
T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: New Tube Reverb Unit Build
Posted: Fri Feb 27, 2015 2:03 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827
T2Stratman wrote:
63supro wrote:
Thanks T2! I'm going to eventually going with a cabinet, just to protect it. I have an agenda now to try to get forum members to try and build something for their rig. A pedal, an amp, their own cables, whatever. It's a fun, learning experience. Kits are great and if you can solder, have patience and follow instructions, you can do it. My next big project might be a Supro Model 24. I'm sourcing a cabinet. Man, this stuff is addicting.


That does sound like a great agenda! I have always wanted to do a build, maybe a pedal to start out. But it will have to wait...I just received my VIN number for my new Corvette is ready for transit to me hear. I might be pushing my luck to tell the wife I am going to start another build or spend any money for at least a short time!
:mrgreen:
T2


Woah, that awesome!
