Post subject: any audiophiles in here?
Posted: Sat Jul 26, 2014 5:18 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Aug 16, 2009 6:30 pm
Posts: 630
Location: clearwater, fl
i picked up an old set of grundig HIFI 500 box speakers from about 1977. the speakers and cases are in great shape but there is a board that is toast. anyone here ever done any work on these (i know REAL shot in the dark but hey doesn't hurt to ask)? i can pm some images if anyone wants to check them out. i would love to rebuild the board and get them back into rocking shape.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 5:27 pm
Offline
Roadie
Roadie

Joined: Sun Aug 26, 2012 4:10 pm
Posts: 282
Try looking here....couldn't hurt 8)

http://translate.googleusercontent.com/ ... sNVLHrUkmQ

Here is the untranslated page

http://www.gr-forum.de/

_________________
R/Jim
2016 Gibson SG Standard T
2014 Fender American Deluxe Telecaster
2013 Fender Dlx Players Stratocaster
2013 Fender FSR American Standard Stratocaster
2013 Gibson Les Paul Trad Pro II
2012 Ibanez AR 325
Super-Sonic 112
GDEC 3 Thirty
Champion 600


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 5:42 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
By "board" do you mean the baffle board that the drivers are mounted to?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 6:02 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Aug 16, 2009 6:30 pm
Posts: 630
Location: clearwater, fl
j.4knee wrote:
Try looking here....couldn't hurt 8)

http://translate.googleusercontent.com/ ... sNVLHrUkmQ

Here is the untranslated page

http://www.gr-forum.de/


Dang man... how did you find that? my search skills must be crap. thanks a million! i will ask them.


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 6:06 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Aug 16, 2009 6:30 pm
Posts: 630
Location: clearwater, fl
Retroverbial wrote:
By "board" do you mean the baffle board that the drivers are mounted to?

Arjay

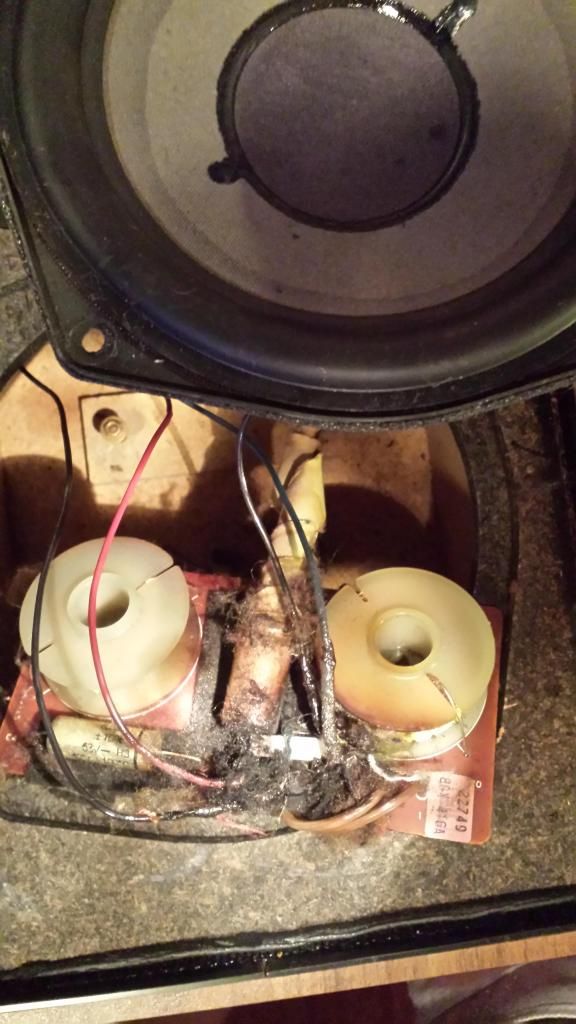

Not sure... maybe? There is a brown board with really thick solder lines (they are usually green now and have tiny built in solder paths). Here is a picture, as you can see they are pretty toast so i was hoping to just build a new one with modern stuff to match, hopefully bringing them back to life.



Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 6:34 pm
Offline
Roadie
Roadie

Joined: Wed Apr 02, 2014 2:32 pm
Posts: 235
Location: Rossendale, UK
The board in question is the speaker crossover.

_________________
Chris


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 6:45 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Stratmangler2 wrote:
The board in question is the speaker crossover.


Correct......and an "extra crispy" crossover at that.

:shock:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 6:58 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Aug 16, 2009 6:30 pm
Posts: 630
Location: clearwater, fl
ah, one step closer. Is this something that i could find parts for and recreate? I mean, i do good solder work and can build electronics fairly well, but some of the older stuff can't be found anymore.


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 7:01 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
It shouldn't be too difficult to recreate -- you'll need a schematic to determine the values and specifications of the incinerated components.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 7:04 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Aug 16, 2009 6:30 pm
Posts: 630
Location: clearwater, fl
i really can't thank you guys enough! i will keep everyone abreast of the progress, i am hopeful they will be back up in the near future.


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 7:13 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Another plan of action might be to replace the crossover outright with a new one. To accomplish that, you'll need the specifications for the original speaker system: max input power, the impedance of each of the drivers within the enclosure, and their frequency roll-off points. Then merely find a crossover that matches those parameters (or nearly so) and wire it into the enclosure.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 7:15 pm
Offline
Roadie
Roadie

Joined: Sun Aug 26, 2012 4:10 pm
Posts: 282
Also poke around audiokarma.org

I'd imagine it is a very simple network, A coil in series with an RC in parallel to the woofer and a Cap in series with a coil in parallel to the tweeter.

_________________
R/Jim
2016 Gibson SG Standard T
2014 Fender American Deluxe Telecaster
2013 Fender Dlx Players Stratocaster
2013 Fender FSR American Standard Stratocaster
2013 Gibson Les Paul Trad Pro II
2012 Ibanez AR 325
Super-Sonic 112
GDEC 3 Thirty
Champion 600


Top
Profile
Post subject: Re: any audiophiles in here?
Posted: Sat Jul 26, 2014 8:05 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 26, 2008 9:56 pm
Posts: 3941
Location: Great White North, EH!

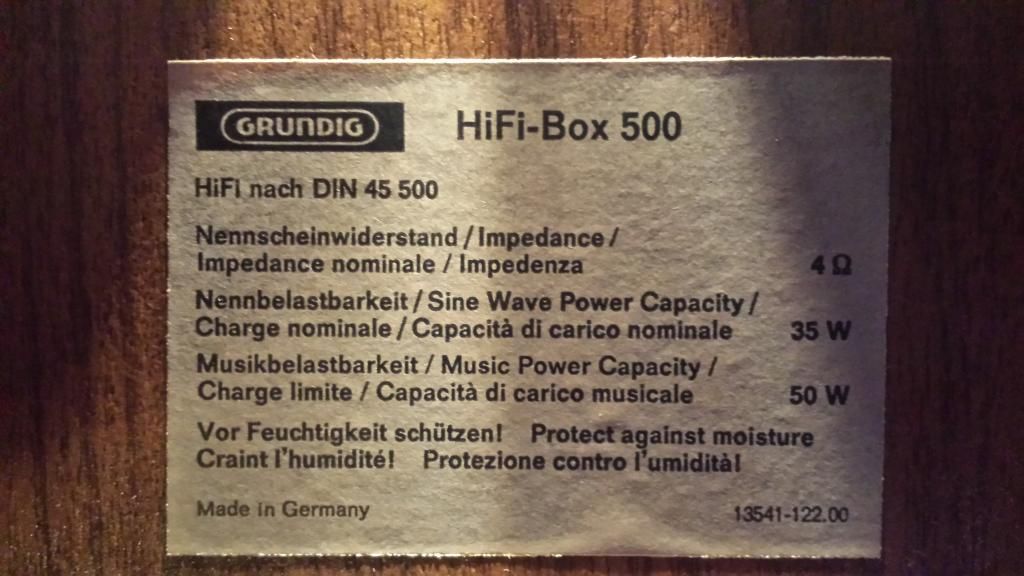

Can you take a picture of any of the tags on the cabinets, if they're still there?
