Post subject: Visual Sound H2O signal chain help
Posted: Thu Sep 05, 2013 9:13 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Wed May 02, 2012 1:32 am
Posts: 446

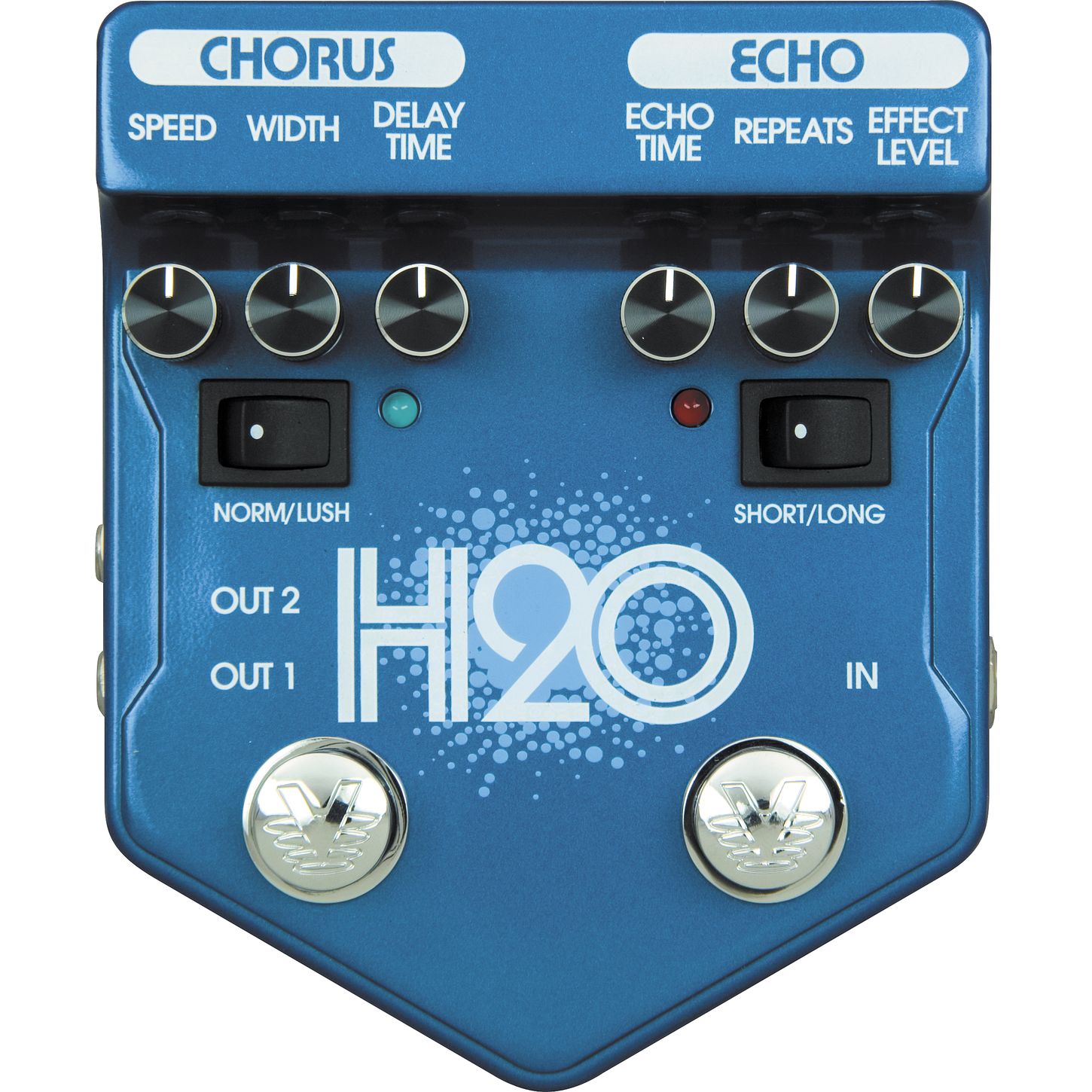

When you look at the H2O pedal it looks like the echo is before the chorus in the chain.
But it sounds as if its the right way around in other words the chorus is before the echo.
Do anyone know if this is right. If its wired in the right order.

I also noticed on the jekyl and hyde it looks as if the distortion is before the overdrive.


sorry for the big pic lol
