Post subject: SSS strat wiring help
Posted: Tue Jun 11, 2013 7:51 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Sun Nov 20, 2011 11:47 am
Posts: 838
Location: Hawaii

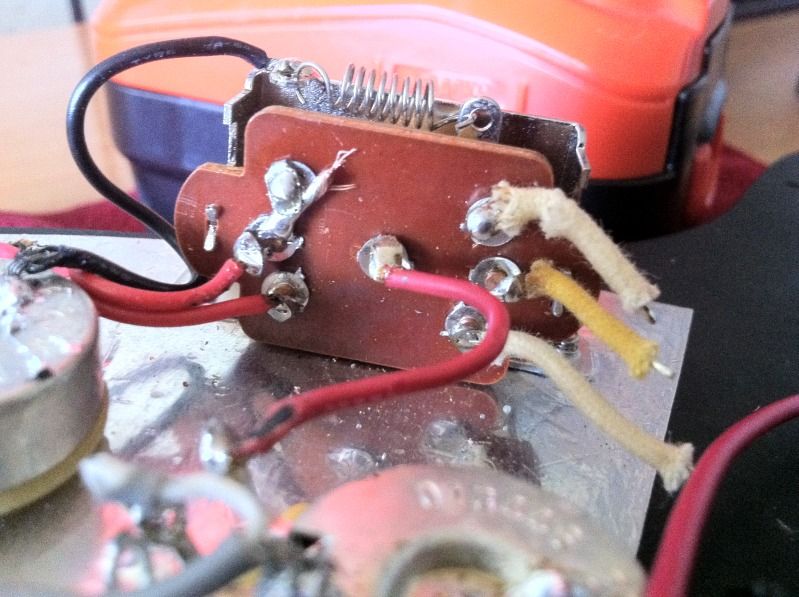

Anyone knows which order I should wire the pickups? Here's a pic.


3 sc's 3 different wire colors. red/white yellow/white and blue/white.

Anyone? Thanks in advance!

_________________
"Music is what feelings sound like"


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: SSS strat wiring help
Posted: Tue Jun 11, 2013 8:01 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Sun Nov 20, 2011 11:47 am
Posts: 838
Location: Hawaii
I also wanted to add tone control to the bridge pup. Did I do this right?

_________________
"Music is what feelings sound like"


Top
Profile
Post subject: Re: SSS strat wiring help
Posted: Tue Jun 11, 2013 8:12 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Sun Nov 20, 2011 11:47 am
Posts: 838
Location: Hawaii
I just noticed that the one with red wire has reverse polarity. I guess it's safe to say that's the middle pickup and doesn't matter where I install the other two?

Solder is hot and I can't wait to finish this project! 8)

_________________
"Music is what feelings sound like"


Top
Profile
Post subject: Re: SSS strat wiring help
Posted: Tue Jun 11, 2013 10:47 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Sun Nov 20, 2011 11:47 am
Posts: 838
Location: Hawaii

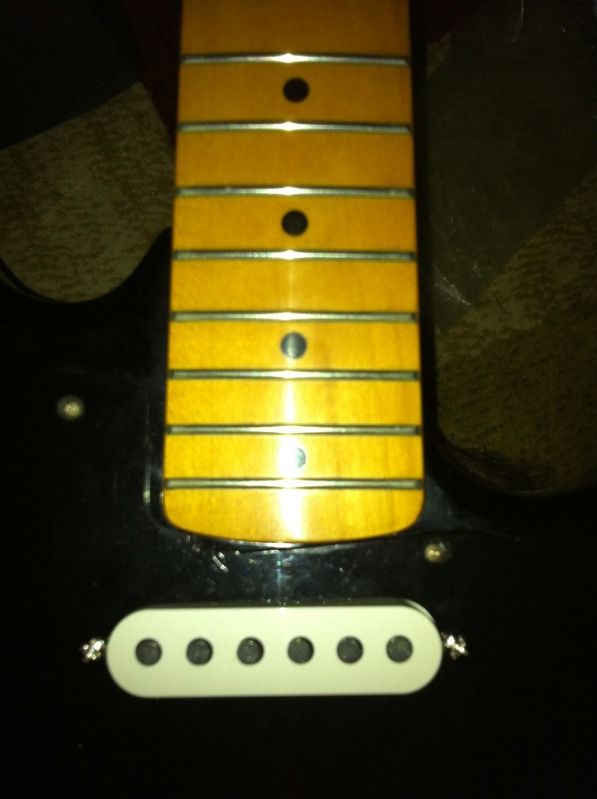

Figured out the wiring, but I ran into a problem I suspected. Because of the 250k pots I installed, now the mid tone pot hits the end of the guitar's cavity, so the only way to make it fit was to reposition the pickguard... and I drilled new holes. Big mistake, I'm not even gonna install the strings because it's too badly misaligned. :(


I think my only option now is to enlarge that part of the cavity until I can align the pickguard to the old holes.

_________________
"Music is what feelings sound like"


Top
Profile
Post subject: Re: SSS strat wiring help
Posted: Wed Jun 12, 2013 1:56 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
1neeto wrote:
I think my only option now is to enlarge that part of the cavity until I can align the pickguard to the old holes.


Use a Dremel tool and work carefully and deliberately. I think you'll find that the barrel sander works more efficiently and more precisely than a router bit.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: SSS strat wiring help
Posted: Wed Jun 12, 2013 3:12 am
Offline
Amateur
Amateur
User avatar

Joined: Sat Jun 01, 2013 5:15 am
Posts: 195
Didn't those come with directions or did you get them used ? If I'm right, I'm pretty sure that the yellow one is the bridge pup.


Top
Profile
Post subject: Re: SSS strat wiring help
Posted: Wed Jun 12, 2013 6:50 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
1neeto wrote:
Figured out the wiring, but I ran into a problem I suspected. Because of the 250k pots I installed, now the mid tone pot hits the end of the guitar's cavity...

That's odd. Are these some sort of non-standard pots? Or is it not a Fender body?

CTS pots (as well as Alpha and others) should fit into a Fender control cavity without issues.

Alternatively, you can also buy "mini" sized pots made by most of the mainstream brands. Very handy for tight spaces.

Cheers - C

_________________


Top
Profile
Post subject: Re: SSS strat wiring help
Posted: Wed Jun 12, 2013 10:50 am
Offline
Aspiring Musician
Aspiring Musician

Joined: Sun Nov 20, 2011 11:47 am
Posts: 838
Location: Hawaii
Lol sorry guys I didn't give too many details. This a project Squier from 1989, a friend of mine gave it to me and a set of AmStd pickups. So I decided to upgrade the tiny pots with full size 250k and I ran into that problem.

_________________
"Music is what feelings sound like"


Top
Profile
Post subject: Re: SSS strat wiring help
Posted: Wed Jun 12, 2013 11:03 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jul 26, 2007 4:57 am
Posts: 13164
Location: Peckham: where the snow leopards roam
1neeto wrote:
Lol sorry guys I didn't give too many details. This a project Squier from 1989, a friend of mine gave it to me and a set of AmStd pickups. So I decided to upgrade the tiny pots with full size 250k and I ran into that problem.

Ah well, that's probably one of the thinner bodies they used to do. Around 40-41 mm thick, I'm guessing?

No matter, you can buy good quality mini pots as well as the cheapies the guitar probably came with. Easiest solution, I'd have thought.

Cheers - C

_________________


Top
Profile
Post subject: Re: SSS strat wiring help
Posted: Wed Jun 12, 2013 11:57 am
Offline
Aspiring Musician
Aspiring Musician

Joined: Sun Nov 20, 2011 11:47 am
Posts: 838
Location: Hawaii
Ceri wrote:
1neeto wrote:
Lol sorry guys I didn't give too many details. This a project Squier from 1989, a friend of mine gave it to me and a set of AmStd pickups. So I decided to upgrade the tiny pots with full size 250k and I ran into that problem.

Ah well, that's probably one of the thinner bodies they used to do. Around 40-41 mm thick, I'm guessing?

No matter, you can buy good quality mini pots as well as the cheapies the guitar probably came with. Easiest solution, I'd have thought.

Cheers - C

Good thing pots are rather inexpensive. Yeah I'll stop doing irreversible stuff to this guitar and just get a mini 250k pot.
