Post subject: Finished Building a Sola Sound Tone Bender MK1
Posted: Wed Mar 27, 2013 4:53 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Nov 27, 2007 8:56 am
Posts: 1277
I found a schematic online for the orginal Sola Sound Tone Bender and built it from scratch, made the layout, soldered the components and wires, drilled and painted the enclosure and done.


Here are some demos

http://www.youtube.com/watch?v=JmxqwI5Os2c

http://www.youtube.com/watch?v=r9hrB7rPxy4

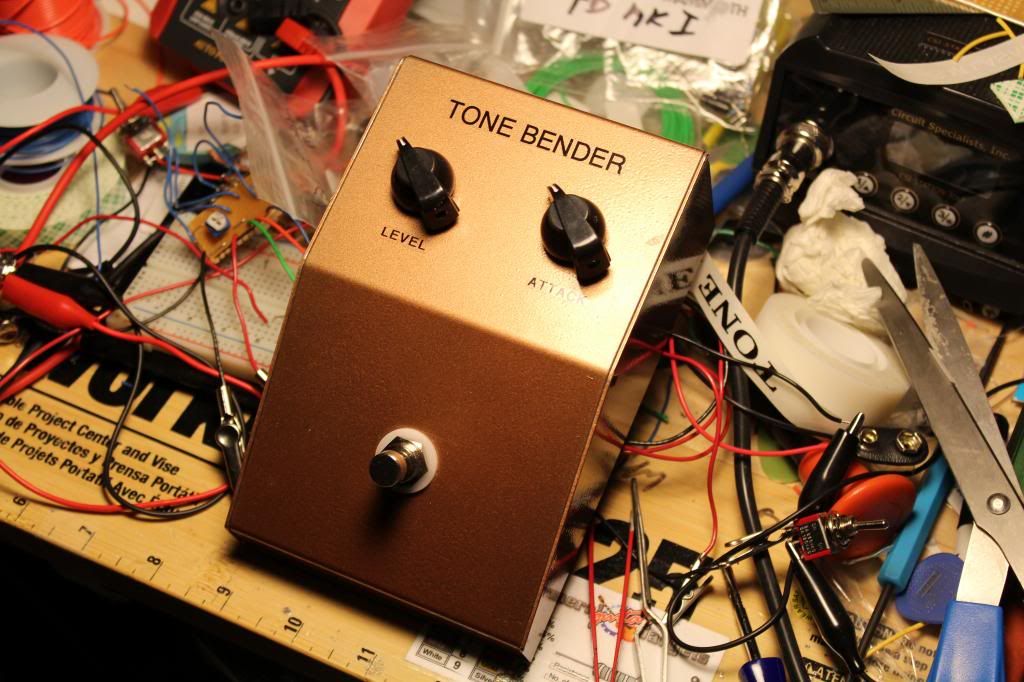

Here is the orginal Tone Bender


_________________

http://www.youtube.com/user/gmlasam


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Finished Building a Sola Sound Tone Bender MK1
Posted: Wed Mar 27, 2013 5:35 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Apr 07, 2009 7:05 pm
Posts: 2333
That turned out awesome! Excellent work! :D


Top
Profile
Post subject: Re: Finished Building a Sola Sound Tone Bender MK1
Posted: Wed Mar 27, 2013 5:41 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Jan 29, 2009 7:13 pm
Posts: 19026
Location: Illinois, USA
bluesguitar65 , nice job cool sounds, thanks for posting.

_________________
you can save the world with your guitar one love song at a time it's just better, more fun, easier with a fender solid body electric guitar or electric bass guitar.


Top
Profile
Post subject: Re: Finished Building a Sola Sound Tone Bender MK1
Posted: Wed Mar 27, 2013 7:50 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Nov 27, 2007 8:56 am
Posts: 1277

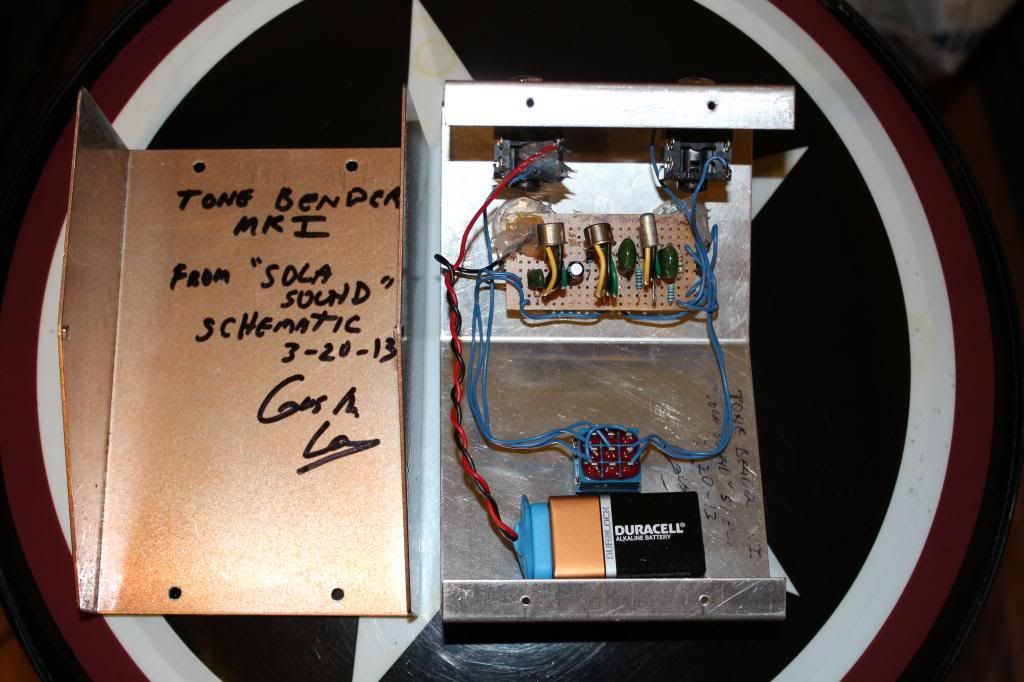

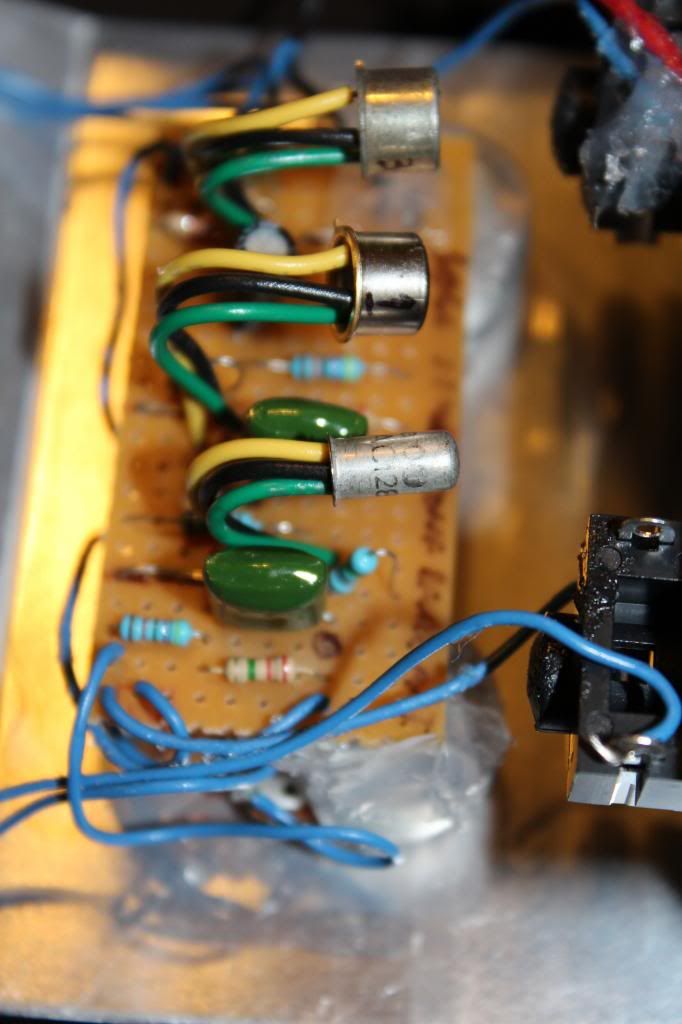

Thanks all...oh I forgot to post some gut shot....I did the layout and used a stripboard to put all the capacitors, resistors and transistors on.

From this schematic:

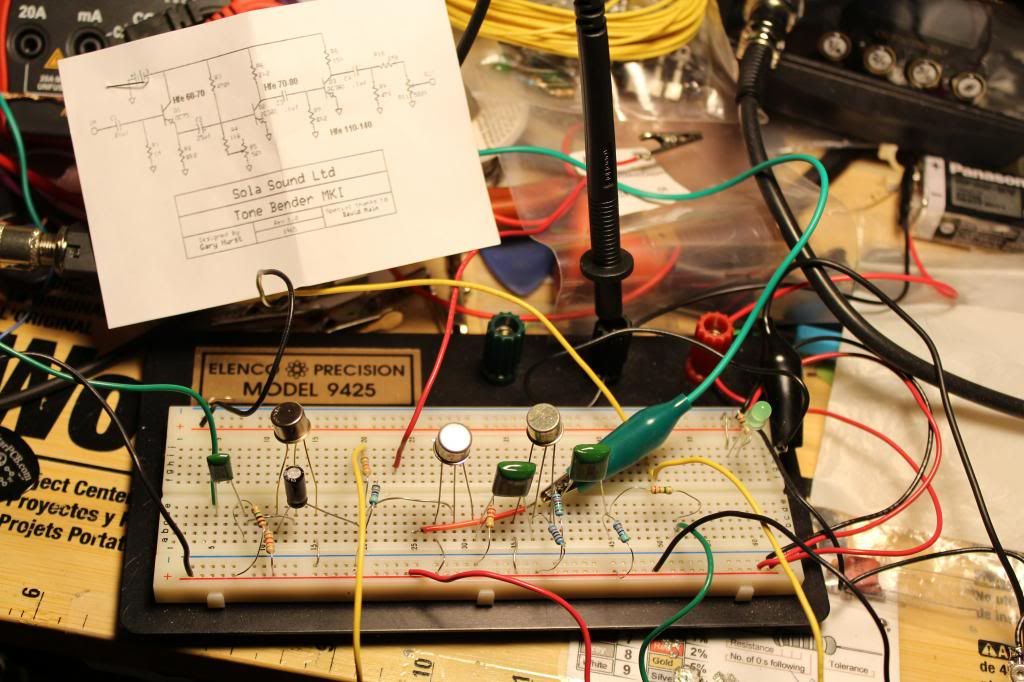

I then breadboarded it to hear and test how it would sound.


I liked how it sounded so I decided to make a layout, organize where to components will go.

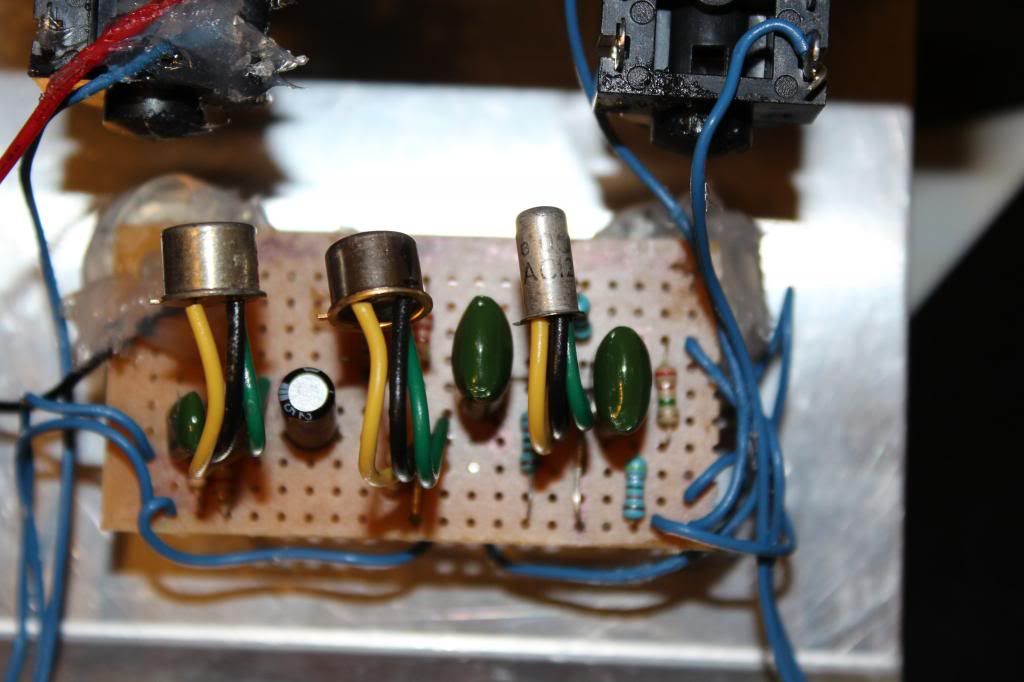

Then putting it all together, soldering and wiring.




Then Finish, a replica of a 1965 Sola Sound Tone Bender, the fuzz you heard Jeff Beck was playing in YardBirds.


_________________

http://www.youtube.com/user/gmlasam


Top
Profile
Post subject: Re: Finished Building a Sola Sound Tone Bender MK1
Posted: Wed Mar 27, 2013 9:36 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Oct 14, 2011 11:15 am
Posts: 1018
Location: Glasgow
Great stuff, sounds great! Rush eh? what was it? working man? anyway, great work. Liked the second clip a lot too. The fuzz and it sounded like a bit of delay as well. Good. 8)

_________________
Luck won't do it and ignorance can't

George Van Eps.


Top
Profile
Post subject: Re: Finished Building a Sola Sound Tone Bender MK1
Posted: Thu Mar 28, 2013 7:05 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Nov 27, 2007 8:56 am
Posts: 1277
Thanks!! I just ordered a bunch of germanium transistors and will be making more of these pedals. Putting it all together is the easy part, but sorting out transistors to tweak the fuzz is very time consuming. This partiucular tone bender model is extremely sensitive to transistor gain and leakage, must match these transistors.....very much like matching tubes.

_________________

http://www.youtube.com/user/gmlasam


Top
Profile
Post subject: Re: Finished Building a Sola Sound Tone Bender MK1
Posted: Thu Mar 28, 2013 7:45 am
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Way cool. 8)

Now you need to build a Marshall clone for the pedal to drive. :wink:

_________________
Bill



Top
Profile
Post subject: Re: Finished Building a Sola Sound Tone Bender MK1
Posted: Thu Mar 28, 2013 3:17 pm
Offline
Professional Musician
Professional Musician

Joined: Wed May 25, 2011 12:45 pm
Posts: 1169
I preferred the tone of the 2nd demo. The reverb with the tone bender worked for me.

Good job.

_________________
In my opinion Leo Fender had essentially perfected the guitar amplifier by 1964.
