OK. I fibbed. This is not about the central throbbing system of a vertebrae. It is about the sodding bridge humbucker in my Falcon copy Vintage VSA 850. This is the guitar in question:



A few of you might remember it from a previous post. Vintage build budget guitars imitating the look, feel and sound of legendary instruments. The head and ears behind this project (amongst other things, for he is a busy chappie) is Trevor Wilkinson - designer, advisor, friend of the great guitar makers, and himself easily one of the most popular heads of guitar making royalty. Many of you will have heard his brand name before.

Forum member Nikininja once famously threw a Vintage LP "Greenie" out onto his lawn, then proceeded to set it alight- I don't think we need to ask him what he thought of its build quality or playability or even sound (as far as I know he kept the pickups though.... ) - I however have been mightily impressed with that honey coloured goddess hanging on my wall. It's not a guitar I regularly use, because it is quite heavy; none the less I value her depth of tone and nearly endless "sustaaaayyyyyn". Good stuff for the money.

But there was always one issue in particular that I never figured out. The bridge HB wouldn't let itself be lowered beyond a certain point, making it usually too loud when switched to bridge position. Slightly awkward. So after owning the guitar for something like three years, I recently set to work.

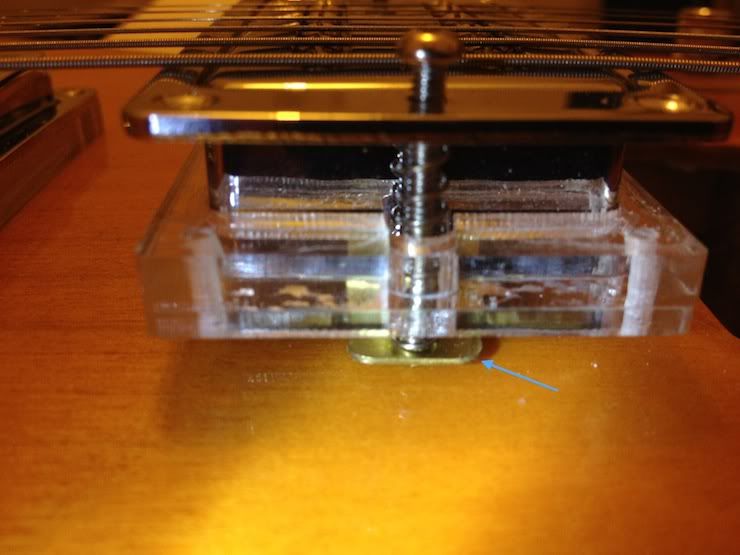

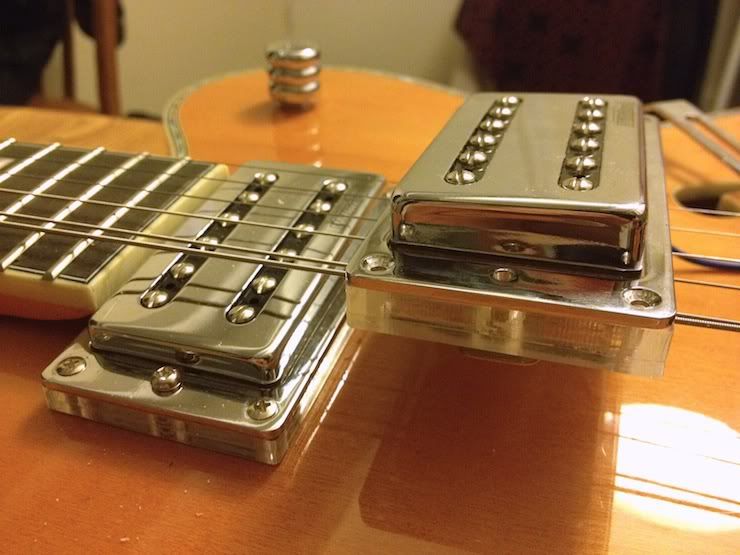

The pickup config consists of a metal PU-ring-cover, which lies on top of a transparent PU holding ring. The pic below shows how it's all stacked together.

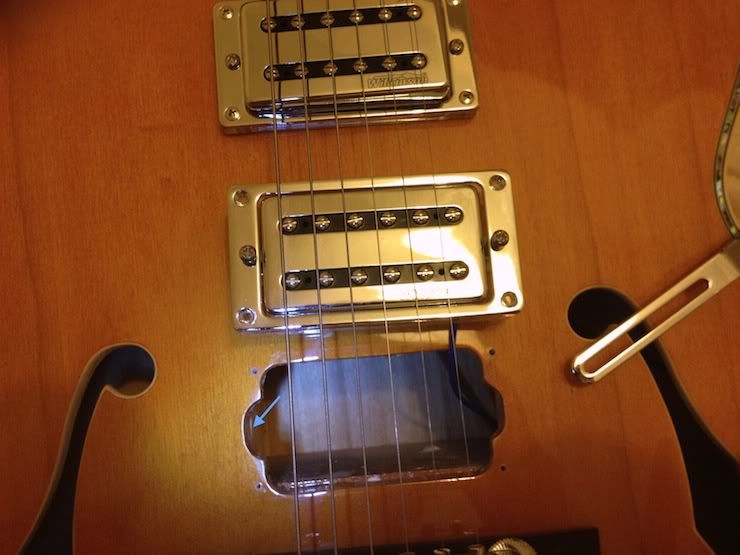

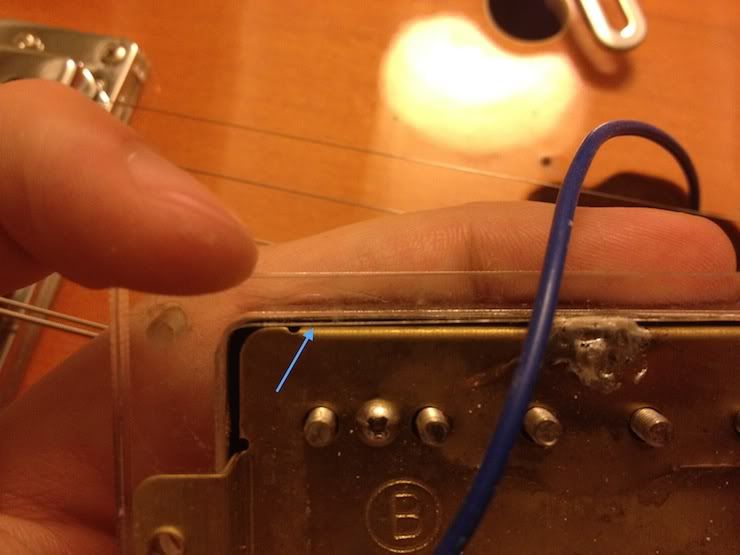

The arrow indicates what I detected to be the issue: One of the metal mounting "ears" of the PU was bumping into a ledge of wood indicated in the pic follwing this one. Someone in China had not had his coffee (or tea I guess) that morning, it seems:

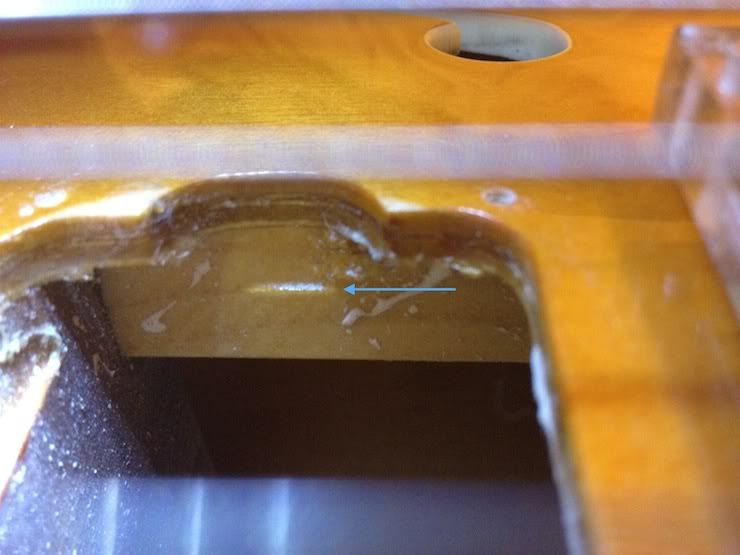

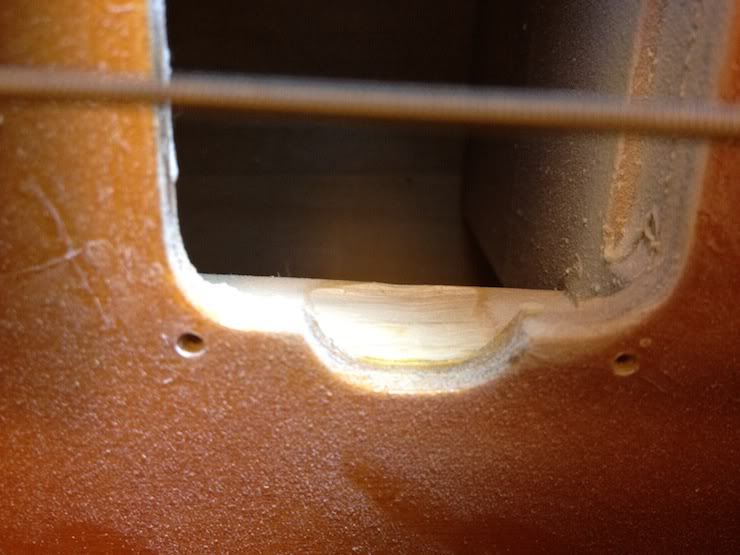

Li'l' ledge:

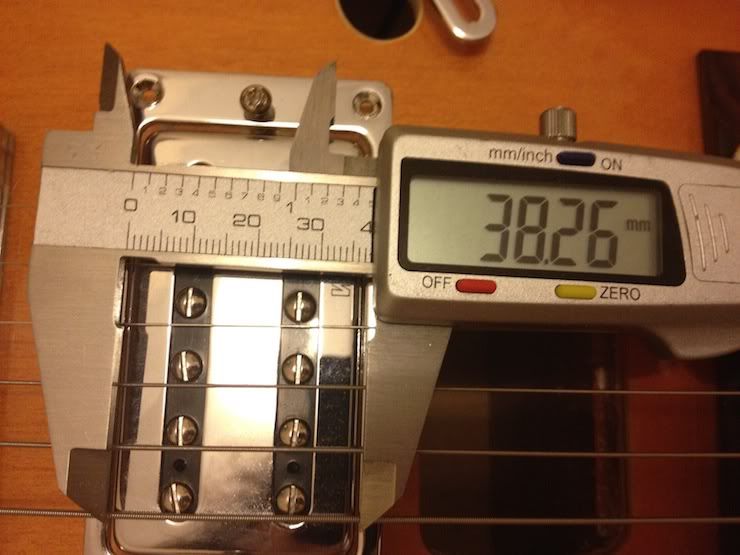

There's also another big bad ledge on the broad side of the HB: But after measuring the width of the PU and the rout I decided this was not causing the issue.

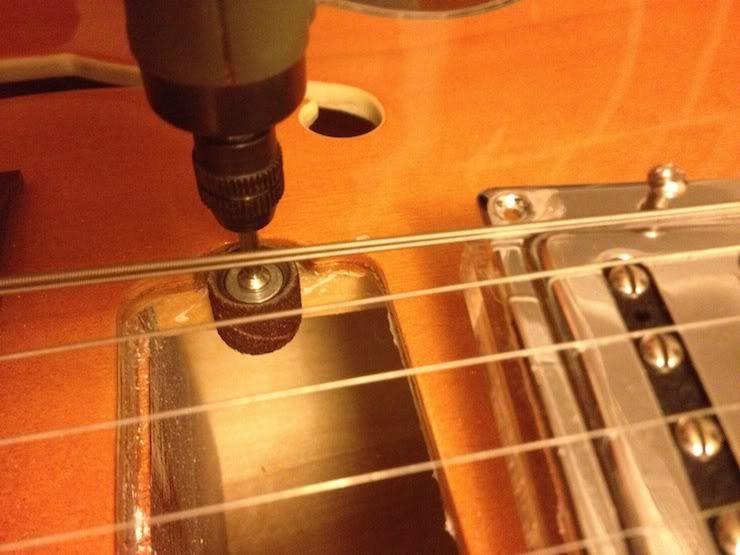

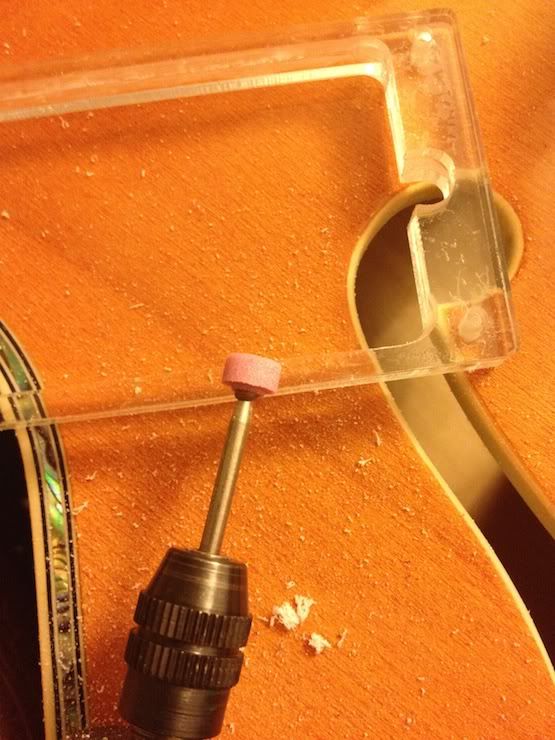

So after extracting the PU and having a good look, I set to work with my micro sander. These tools are truly amazing.



And this was the first step done. Don't worry, I smoothed it out with finer sandpaper after this shot.



Job done! ....or so I thought. After putting it all back together again, I tried adjusting the PU height and again had no luck. Something was seriously causing it to not go below a certain point. So again I took it all apart, this time disassembling the entire PU stack. And there we had our traitor.

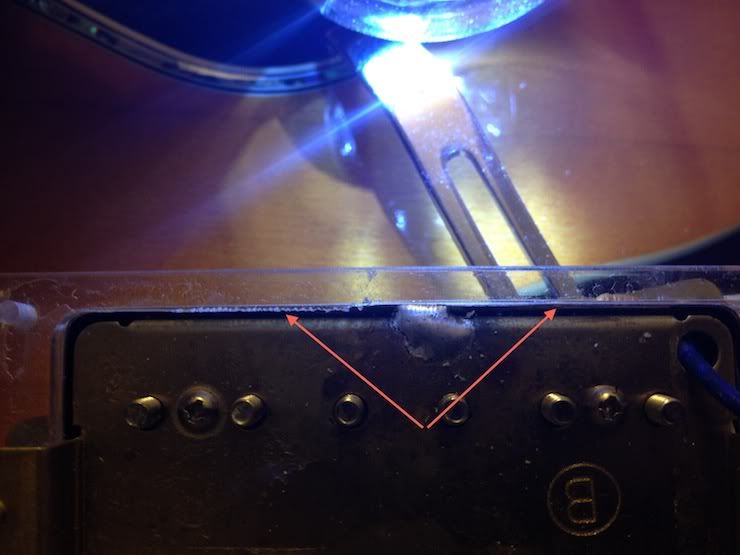

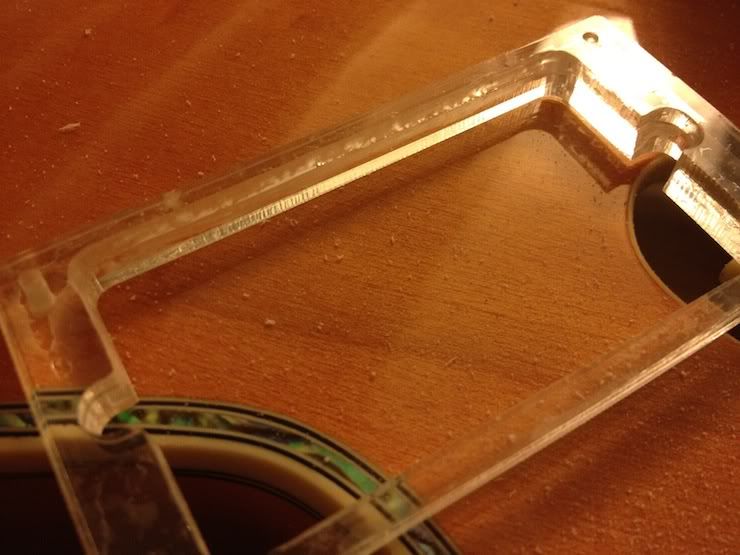

You probably can't see it well in this pic, but under the watchful eye of my trusty windy-uppy LED torch ("oh yeahh, I'm like soooo green and like totally saving the planet and that") I could get a better shot: Somebody else had not had their coffee (or tea, respectively) for an entire week. It would appear, as Spock would say, that when routing or CNC-ing or casting the PU holder, someone had done a really rotten job and carved a nice little ledge around nearly the entire PU mounting ring. So when you wanted to lower the PU beyond a certain point, its edges would get stuck on these evil and spiteful things sticking their heads out. Here we have the two conflicting parties battling it out hard:



I had a feeling I should again have to rely on my trusty micro tool to rid me of this nuisance.

Which I did.

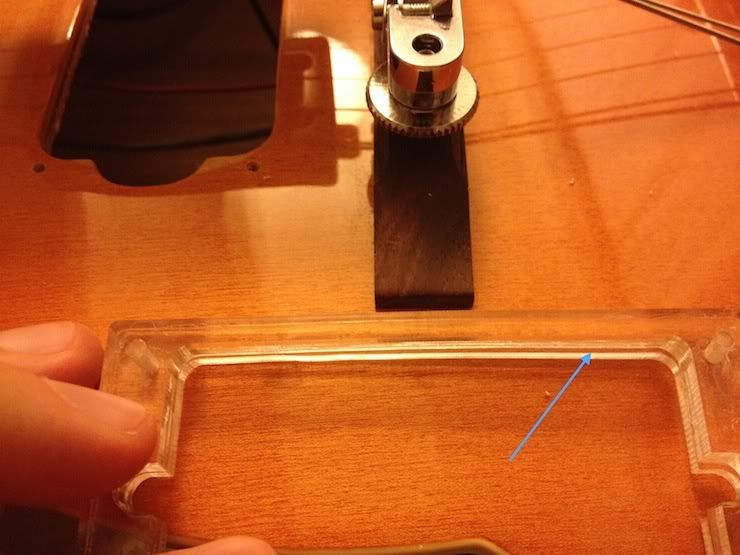

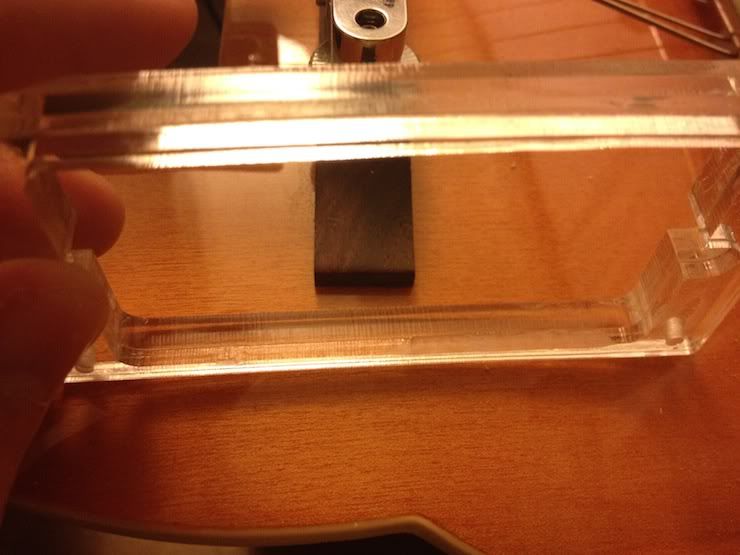

Look at the state of the rout for the mounting / height adjustment screws! They are on two levels and parallely adrift! That's what happens when you drill from the top, then flip the mounting ring over to drill from the bottom, while your mates from the factory next door are showing you the lovely iPads they've been building all week. Or something like that. Anyway - we must get rid of it.



Yeah well here are some random shots trying to illuminate the issue. Enjoy.







So after some lighter sanding and polishing it looked quite ready to be put together once more.



And there we have it! All nicely done up and back in place. Only this time...



I can go wayyyyyyy low!





Well I hope you enjoy and perhaps can take something from it for your own purposes. Contrary to popular practice these pics are all very happy to travel to all sorts of places in the world for educational purposes, so share if you like and be happy. Eat 'yer daily veg an' that. Yeah.

Nutter out
